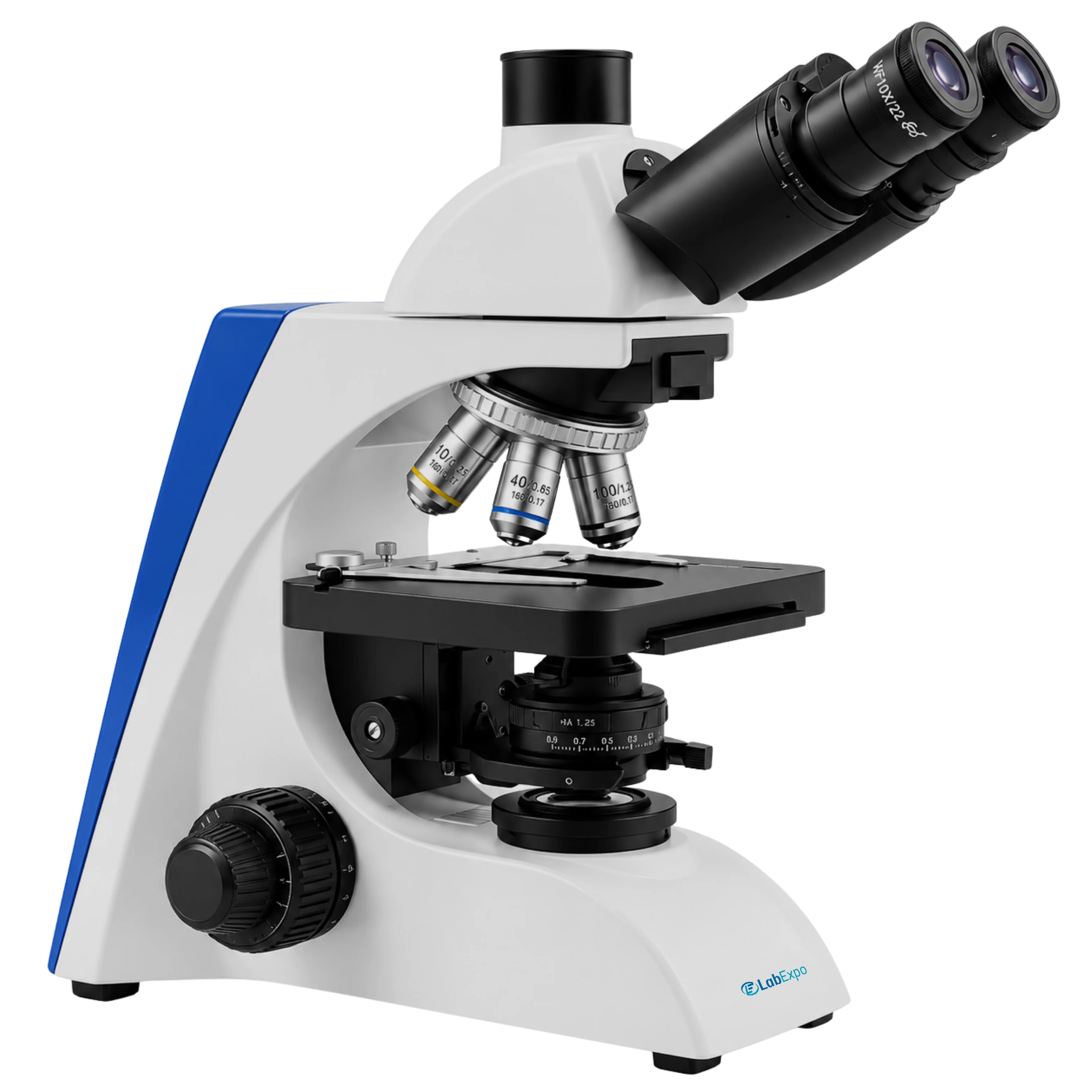

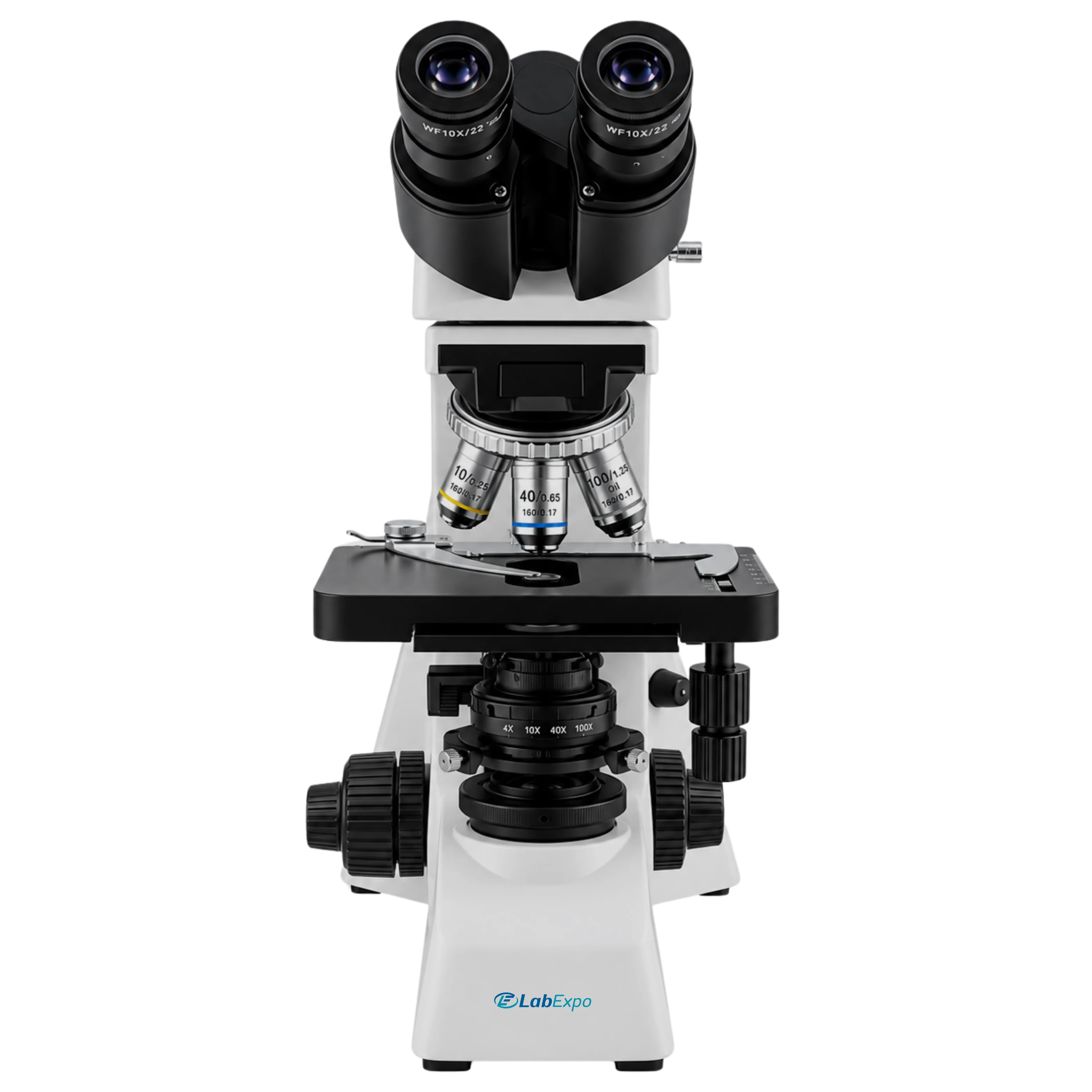

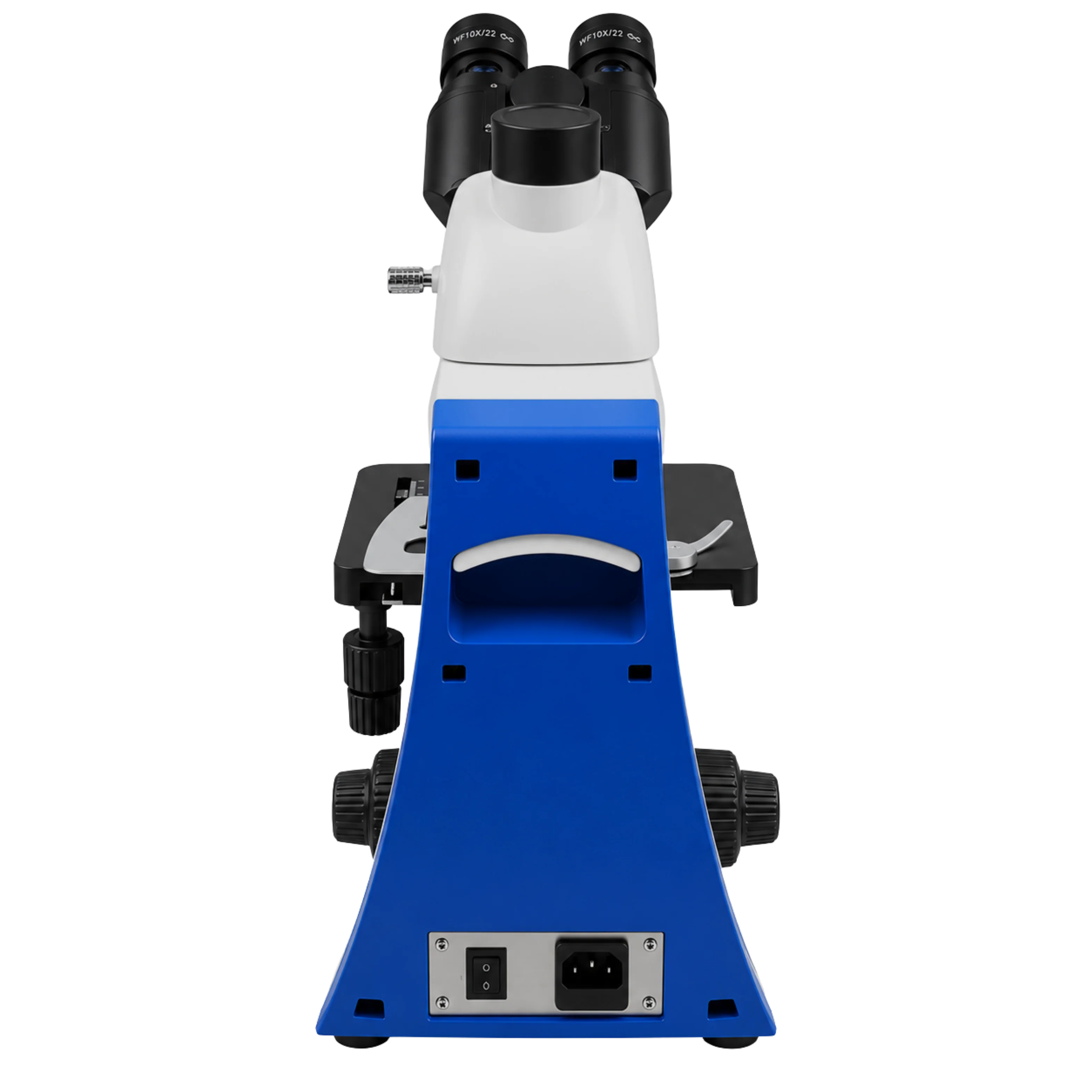

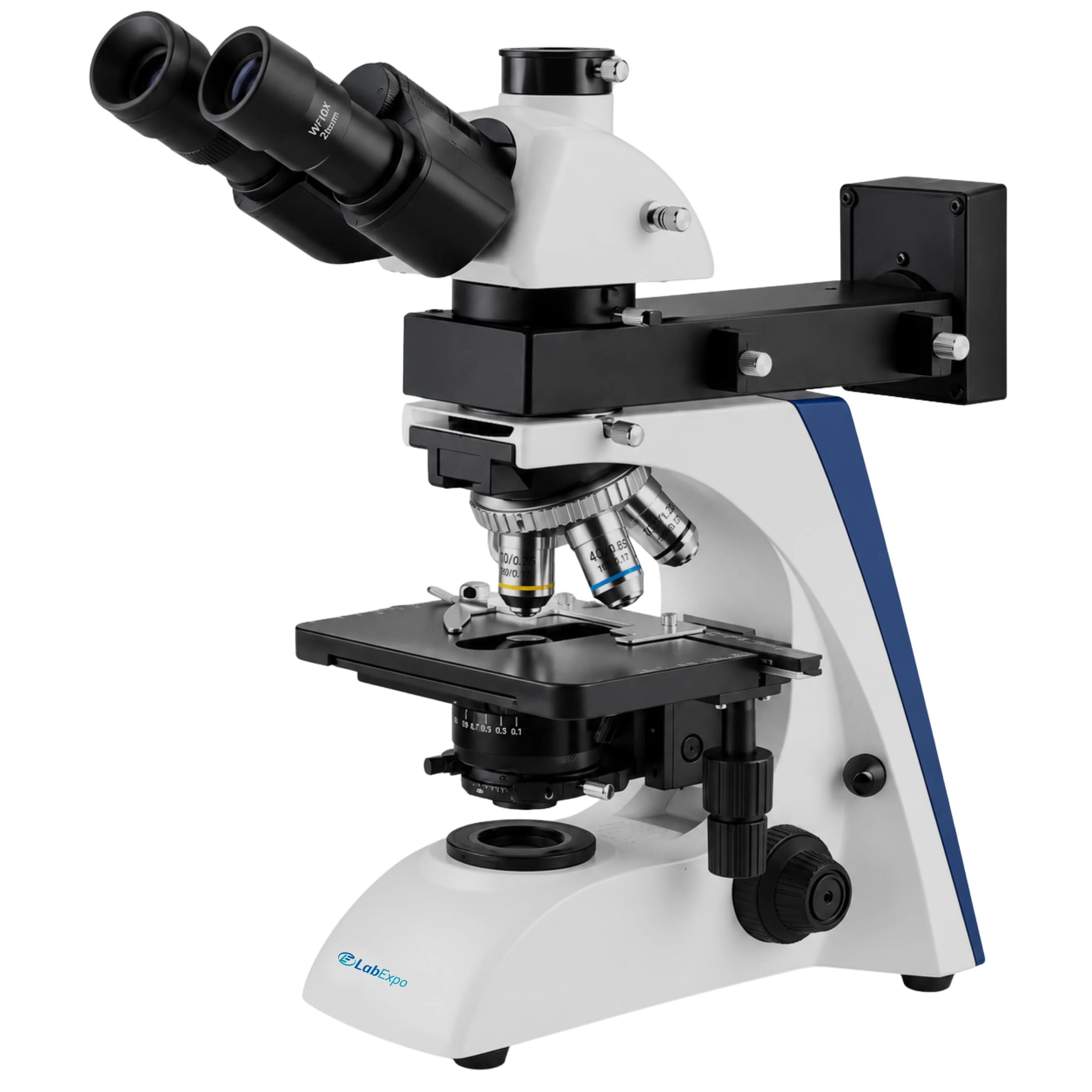

Lab Expo Metallurgical microscopes is designed to meet performance demands of metal and alloy engineering industry. This metallurgical microscope has siedentopf type trinocular head inclined at 30º. It has superior coaxial coarse and fine focusing knobs for sample examination. Metallurgical microscope can be used as measuring instrument for measuring thin metal films, electroplating coating & other opaque films.
$3,653.00 $ 3044
| Viewing head | Siedentopf type trinocular head inclined at 30º, Rotable 360 º interpupilary distance: 48-76 mm |
| Eyepiece | WF10X/22 mm WF10X/22 mm (reticle 0.1 mm) |
| Focusing | Coarse and fine focusing adjustment: Coarse stroke: 25 mm Fine stroke per rotation: 0.2 mm Fine division 2 µm Tightness adjustment, upper distance limiter |
| Nosepiece | Quintuple nosepiece |
| Objective | Metallurgical LWD infinity plan Objectives: LPL5x/0.10 W.D=24.23 mm LPL10x/0.25 W.D=18.48 mm LPL20x/0.40 W.D=8.35 mm LPL50x/0.70(s) W.D=1.95 mm |
| Stage | Stage size: 182×140 mm Travel range: 77×52 mm Two slid holder |
| Illumination | 12V/50W Halogen lamp (Reflection illumination) 6V/20W Halogen lamp (Transmission illumination) |
| Condenser | Abbe N.A. 1.25 (iris diaphragm) |
| Filter | Blue |
| Dimension | 770×370×460 mm |
| Net weight | 17.5 kg |
| Gross weight | 18.5 kg |
Function Implementation Metallurgical sample analysis 182×140 mm stage supports specimen positioning Film thickness measurement 0.2 mm fine stroke enables precise focus adjustment Multi-objective inspection Quintuple nosepiece allows rapid magnification switching Transmission illumination tasks 6V/20W halogen lamp provides transmitted light Reflection-based examination 12V/50W halogen lamp delivers reflected illumination
Metallurgical LWD Infinity Plan objective: 40x, 80x, 100x
C-mount: 1X, 0.57X (focus adjustable)
Filter: Green, Amber, Grey
Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
