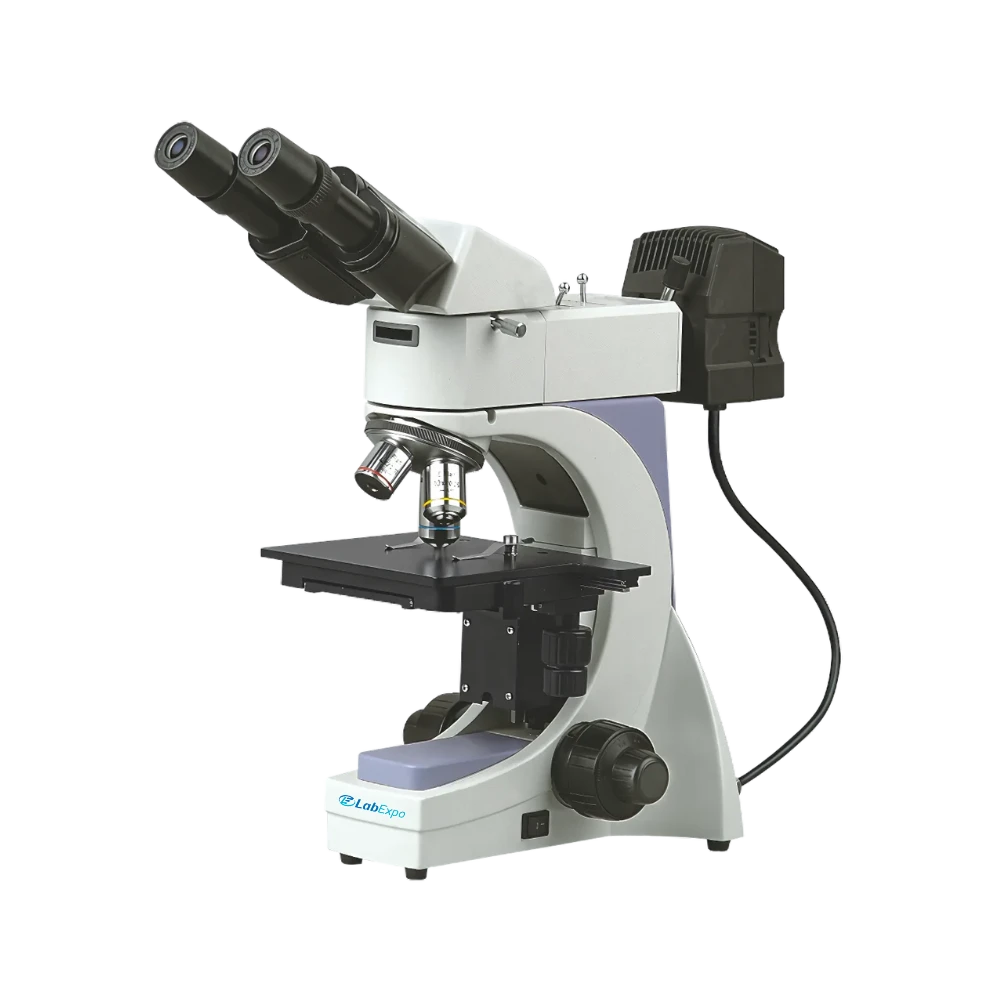

Metallurgical Microscope LE-MM406

Metallurgical Microscope LE-MM406

Lab Expo Metallurgical Microscope LE-MM406 is designed to deliver precision imaging with user-friendly operation. It features a high magnification objective with long working distance for detailed observation. Equipped with a low-positioned, repeatable control knob for comfortable and consistent performance. Integrated lamp replacement system ensures safe, easy, and reliable maintenance. Our Metallurgical Microscope is perfect for inspecting PCB boards, LCD displays, and metal structures in industrial applications.

$2,602.00 $ 2168

Metallurgical Microscope LE-MM406 - Specifications

Viewing Head Hinged Type Binocular HeadHinged Type Trinocular Head
Eyepiece WF10X/18WF8X/18WF10X/18 with 0.1mm Micrometer & Cross HairWF12.5X/15
Objective Infinitive Plan Achromatic Objectives
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage150 × 140mm/75 × 50mm
Focusing Coaxial Fine & Coarse Adjustment
Illumination Kohler Illumination, Epi-Illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable3W LED Illumination, Brightness AdjustableDiascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable
Filters Blue, Green, Yellow & Ground Glass
Specimen Presser For Metallurgical Specimen Preparation

Metallurgical Microscope LE-MM406 - Key Features

  • Hinged type binocular head with ergonomic design
  • Hinged type trinocular head for camera attachment
  • Infinitive plan achromatic objectives with long working distance
  • Quadruple nosepiece enabling rapid objective switching
  • Double layer mechanical stage 150x140mm travel range
  • Kohler illumination system with adjustable brightness control

Metallurgical Microscope LE-MM406 - Applications

FunctionImplementation
Metallurgical analysis labsDouble layer mechanical stage 150 × 140mm supports precise specimen positioning
Quality control inspectionWF10X/18 eyepiece enables clear observation of metal microstructures
Industrial material testingQuadruple nosepiece allows rapid objective switching during sample evaluation
Research facility workflowsKohler illumination with 6V/20W halogen lamp provides adjustable brightfield lighting
PCB and LCD examinationDiascopic illumination with iris diaphragm enhances contrast for electronic component inspection

Metallurgical Microscope LE-MM406 - Catalog

Metallurgical Microscope LE-MM406 Catalog

Related Metallurgical Microscope

Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
