Micro Diaphragm LE-MDP102
Product1
Product2

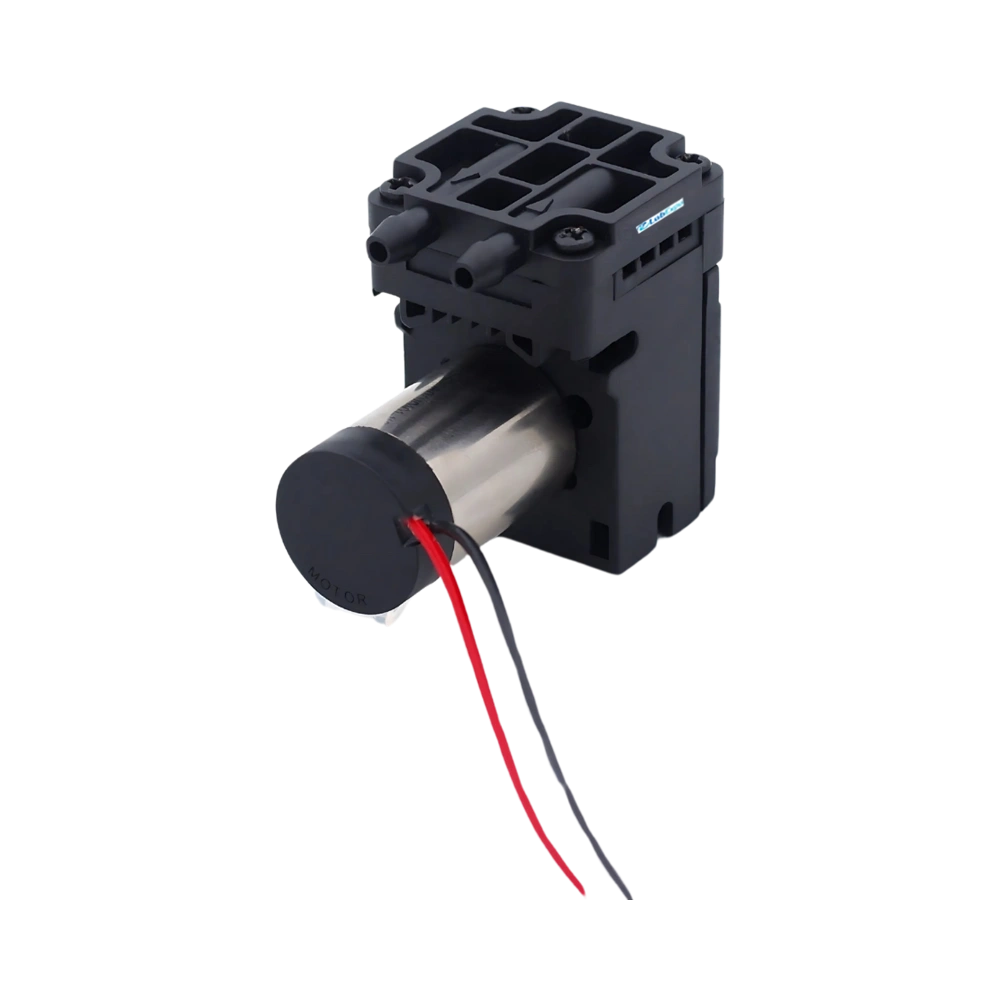

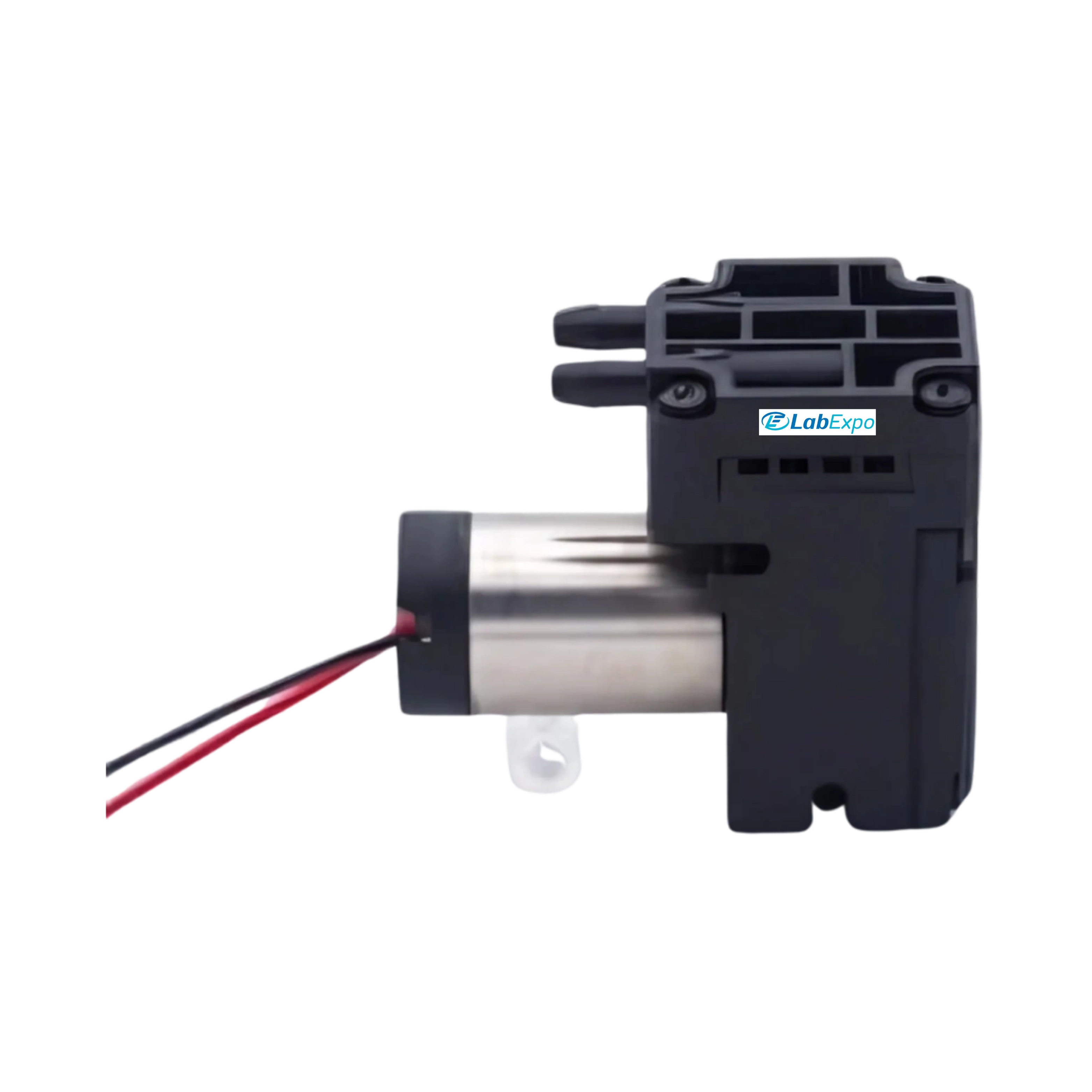

Micro Diaphragm LE-MDP102

Micro Diaphragm Pump LE-MDP102 is a dual-function system with a vacuum pump and compressor delivering up to 3.0 L/min flow rate. It offers a coreless DC motor with a low-power, low-inductance design with explosion-proof standards. Equipped with a lightweight, space-saving structure, a portable and compact device. Integrated diaphragm system ensures steady airflow and extended operational life, with output support. Our Micro Diaphragm Pump is ideal for gas detection and carrying out various analytical and laboratory monitoring tasks.

$1,982.00 $ 1652

Micro Diaphragm LE-MDP102 - Specifications

Voltage 4(2~5V Wide Range)
Max. Pressure ≥ 28 kPa
Peak Flow Rate ≥ 2.2 L/min
Average Flow Rate ≥ 1.1 L/min
Max. Vacuum ≥ 26 kPa
Operating Temperature 0℃ to 50℃
Ambient Temperature 5℃ to 33 ℃,
Relative Humidity 50% to 85%
Fully Loaded Lifetime ≥ 4000
Unloaded Lifetime 5000
Motor Lifetime 8000
Dimension 40 × 37 × 25 mm
Weight 0.04 Kg

Micro Diaphragm LE-MDP102 - Key Features

  • Average flow rate 1.1 L/min
  • Max pressure 28 kPa
  • Operating temperature 0 to 50 degrees
  • Peak flow rate 2.2 L/min
  • Relative humidity 50 to 85 percent

Micro Diaphragm LE-MDP102 - Applications

FunctionImplementation
Low-pressure labs28 kPa max pressure supports precise airflow control
High-flow applications2.2 L/min peak flow rate enables rapid processing
Temperature-sensitive environments0℃ to 50℃ operating temperature range ensures stable performance
Portable research settings0.04 Kg weight and 40 × 37 × 25 mm dimension facilitate easy transport
Humidity-controlled facilities50% to 85% relative humidity tolerance maintains consistent operation

Micro Diaphragm LE-MDP102 - Catalog

Micro Diaphragm LE-MDP102 Catalog

Related Micro Diaphragm Pump

Lab Expo Micro Diaphragm Pumps support compact airflow and vacuum generation where precise, oil-free performance is required for space-limited systems. This mini diaphragm pump operates with a flexible diaphragm mechanism and selectable motor options to deliver stable suction and pressure at low power draw. Compact build enables easy integration, while controlled airflow and quiet operation ensure repeatable performance for portable instruments and continuous-duty applications.
