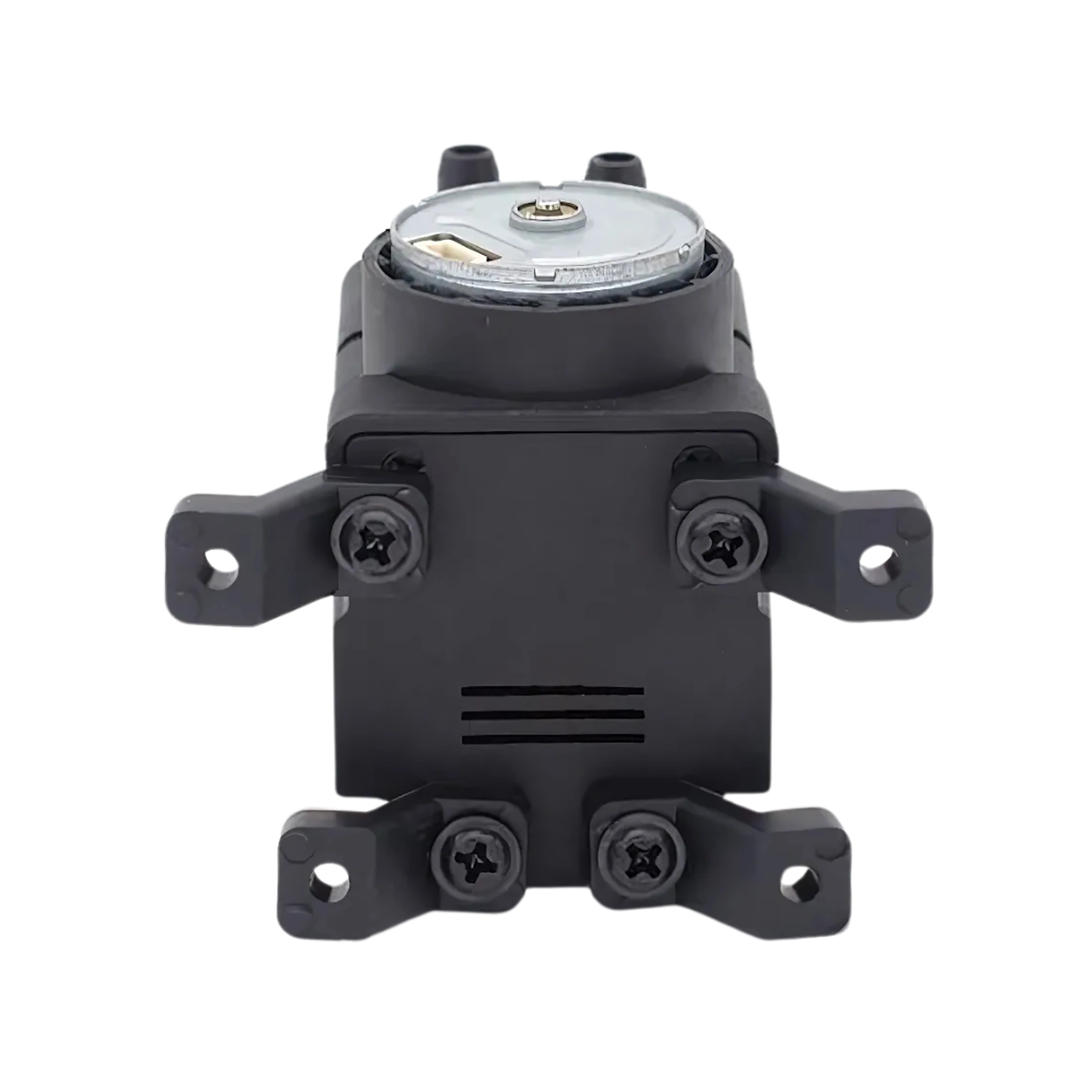

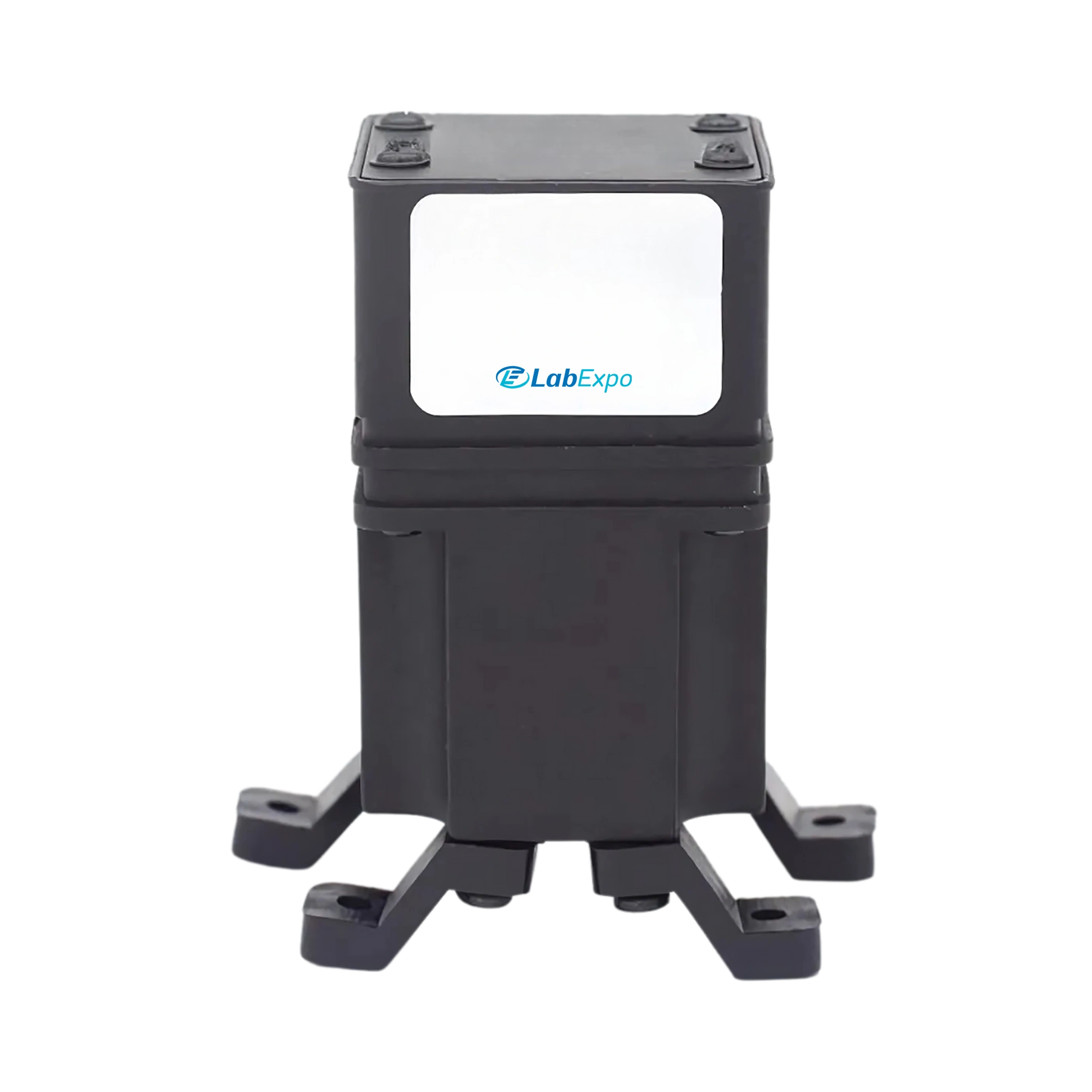

Micro Diaphragm Pump LE-MDP202

Micro Diaphragm Liquid Pump LE-MDP202 provides a durable 12V brushless DC motor for dry-run. It operates with minimal noise and vibration, dual-purpose functionality liquid transfer. Built with various pump head materials to ensure excellent chemical compatibility. Designed with features like speed control and start-stop signal function for accurate flow monitoring. Our Liquid Pump is a dependable choice for compact systems requiring precise, quiet, and long-lasting fluid handling.

$2,112.00 $ 1760

Micro Diaphragm Pump LE-MDP202 - Specifications

Voltage 12 V DC
Max. Load Current ≤250 mA
Free Flow Rate ≥ 0.4 L/min
Max. Suction Height 1.4m H2O
Flow Rate @Max. Suction Height 0.25 L/min
Max. Pressure Height 1.2m H2O
Flow Rate @ Max. Pressure Height 0.2 L/min
Max. Vacuum ≥ 15 -kPa
Operating Temperature 0 ℃ to 50 ℃
Ambient Temperature 5 ℃ to 33 ℃
Relative Humidity 50 % to 85 %
Fully Loaded Lifetime ≥ 10000
Unloaded Lifetime 18000
Motor Lifetime 20000
Dimension 35 × 51 × 56 mm

Micro Diaphragm Pump LE-MDP202 - Key Features

  • Voltage 12 V DC power supply
  • Relative humidity 50 to 85 percent
  • Free flow rate 0.4 L/min or higher
  • Operating temperature 0 to 50 degree
  • Max load current 250 mA or less

Micro Diaphragm Pump LE-MDP202 - Applications

FunctionImplementation
Low-pressure labs0.25 L/min flow rate enables precise liquid transfer
High-temperature systems0 ℃ to 50 ℃ operating temperature supports stable performance
Compact fluid handling35 × 51 × 56 mm dimension allows for space-efficient installation
Low-voltage applications12 V DC voltage enables safe and efficient operation
High-humidity environments50 % to 85 % relative humidity tolerance ensures reliable functioning

Micro Diaphragm Pump LE-MDP202 - Catalog

Micro Diaphragm Pump LE-MDP202 Catalog

Related Micro Diaphragm Pump

Lab Expo Micro Diaphragm Pumps support compact airflow and vacuum generation where precise, oil-free performance is required for space-limited systems. This mini diaphragm pump operates with a flexible diaphragm mechanism and selectable motor options to deliver stable suction and pressure at low power draw. Compact build enables easy integration, while controlled airflow and quiet operation ensure repeatable performance for portable instruments and continuous-duty applications.
