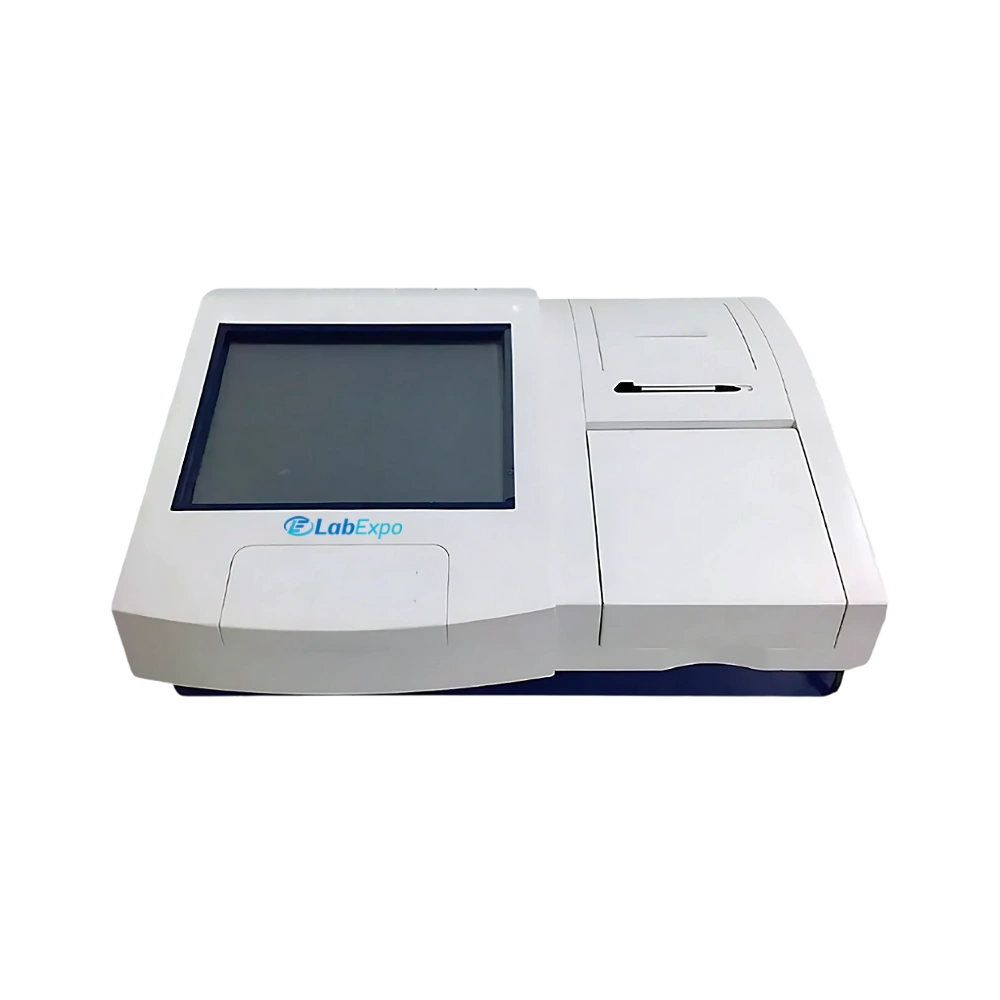

Lab Expo Microplate Reader 96-MPR101 supports 48 and 96-well plates and covers a wavelength range from 400 to 850 nm. It can perform up to 12 different tests per plate, particularly for ELISAs. offers a flexible plate layout accommodating Blanks, Standards, Samples, Reference, and QC. It features an auto plate centering system and lamp adjustment. It measures single or dual wavelength. Our microplate reader can store 20 million test data and 500 test projects.
$4,013.00 $ 3344
| Plate Type | 48/96-well plate |
| Wavelength Range | 400 to 850 nm |
| Standard Wavelength | 405, 450, 492, 630 nm |
| Additional Filters | Filter wheel for up to 8 filters |
| Resolution | 0.001 Abs |
| Single Wavelength Reading Speed | ≤ 3s |
| Dual Wavelength Reading Speed | ≤ 6s |
| Reading Range | 0.000 to 4.000 Abs |
| Accuracy | ± 0.008 Abs |
| Reproducibility | ≤ 0.2 % |
| Stability | ± 0.003 Abs |
| Shaking | Linear shaking, 3 speeds |
| Printer | Built-in thermal printer, optional external printer |
| Light Source | 8V/50W controlled tungsten halogen lamp |
| Detector | Silicon photodiode |
| Interface Connection | DVI, UGA, Network interface, USB, Audio interface, RS-232 |
| Power Supply | 100 to 240 V, 50 to 60 Hz |
| Overall Dimension | 460 × 350 × 197 mm |
| Gross Weight | 10 Kg |
Function Implementation ELISA testing labs ≤ 3s single wavelength reading speed enables rapid assay throughput Clinical diagnostics ± 0.008 Abs accuracy supports precise quantitative analysis Research laboratories 400 to 850 nm wavelength range accommodates diverse photometric assays Quality control facilities ≤ 6s dual wavelength reading speed ensures efficient batch processing Industrial testing environments Linear shaking with 3 speeds improves sample homogeneity during measurement
Lab Expo Microplate Readers are structured around precision optical detection to deliver consistent absorbance measurement for immunoassays. This elisa reader supports 48- and 96-well plates with single and multi-wavelength monitoring for varied test formats. Automatic plate centering, light calibration, onboard data storage, and integrated ELISA software enable accurate readings, efficient data handling, and smooth workflow integration for research, clinical, and diagnostic laboratories.
