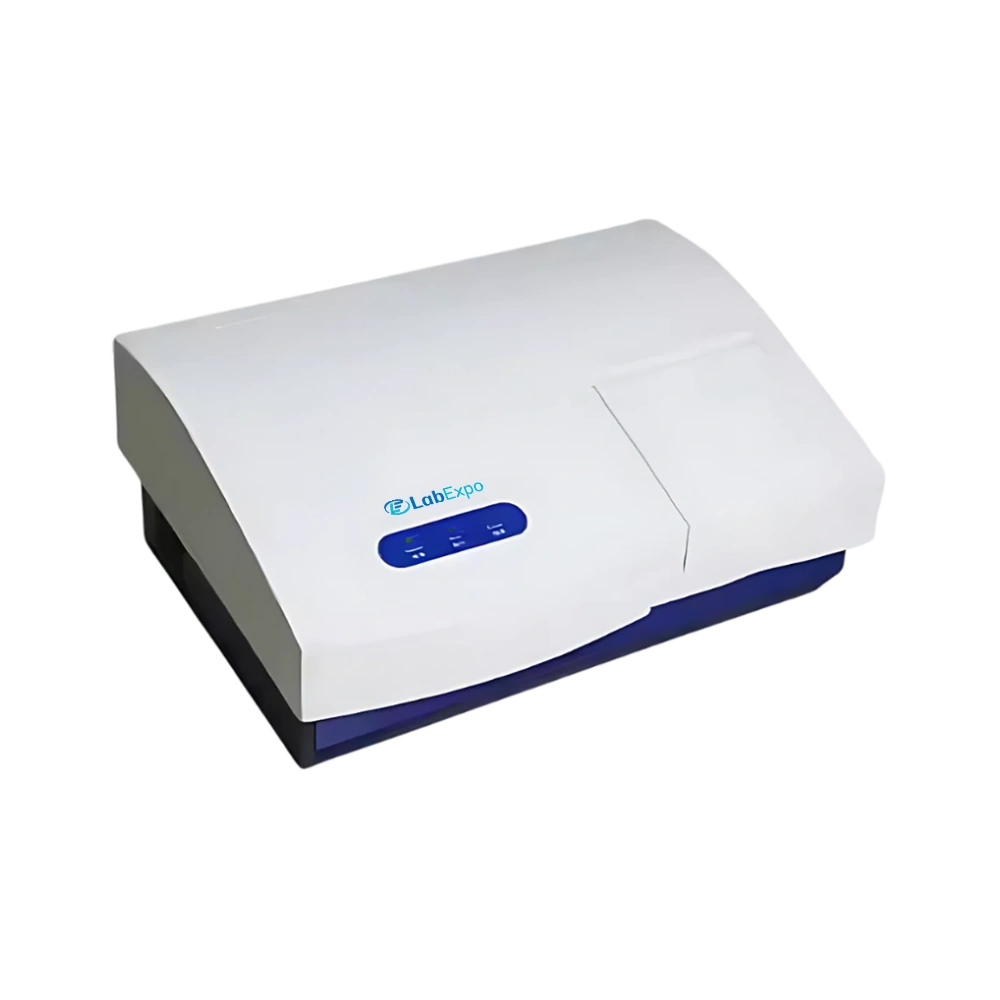

Lab Expo Microplate Reader 96-MPR102 is compatible with both 48 and 96-well plates and covers a wide wavelength range from 400 to 850 nm. It measures both single and dual wavelengths. It can perform 12 different tests per plate. It features an 8-channel optical fiber system and auto plate centering for accurate positioning. Our microplate reader connects to a computer for operation, ensuring seamless integration and control.
$3,408.00 $ 2840
| Plate Type | 48/96-well plate |
| Wavelength Range | 400 to 850 nm |
| Standard Filters | 405, 450, 492, 630 nm |
| Additional Filters | Filter wheel for up to 8 filters |
| Reading Range | 0.000 to 4.000 Abs |
| Single Wavelength Reading Speed | ≤ 3s |
| Dual Wavelength Reading Speed | ≤ 6s |
| Resolution | 0.001 Abs |
| Accuracy | ± 0.008 Abs |
| Reproducibility | ≤ 0.2 % |
| Stability | ± 0.003 Abs |
| Shaking Mode | Linear shaking, 3 speeds |
| Photodetector | Silicon photodiode |
| Light Source | 8V/50W controlled tungsten halogen lamp |
| Power supply | 100 to 240 V, 50 to 60 Hz |
| Dimension (L × W × H) | 460 × 350 ×197 mm |
| Net weight | 10 kg |
| Gross weight | 12 kg |
Function Implementation Clinical diagnostics labs ±0.008 Abs accuracy supports precise absorbance measurements Quality control testing ≤3s single wavelength reading speed enables rapid sample analysis Research laboratories 400 to 850 nm wavelength range accommodates diverse assay requirements Industrial screening facilities Dual wavelength reading speed ≤6s facilitates high-throughput workflows Pharmaceutical development Silicon photodetector with stability ±0.003 Abs ensures consistent performance
Lab Expo Microplate Readers are structured around precision optical detection to deliver consistent absorbance measurement for immunoassays. This elisa reader supports 48- and 96-well plates with single and multi-wavelength monitoring for varied test formats. Automatic plate centering, light calibration, onboard data storage, and integrated ELISA software enable accurate readings, efficient data handling, and smooth workflow integration for research, clinical, and diagnostic laboratories.
