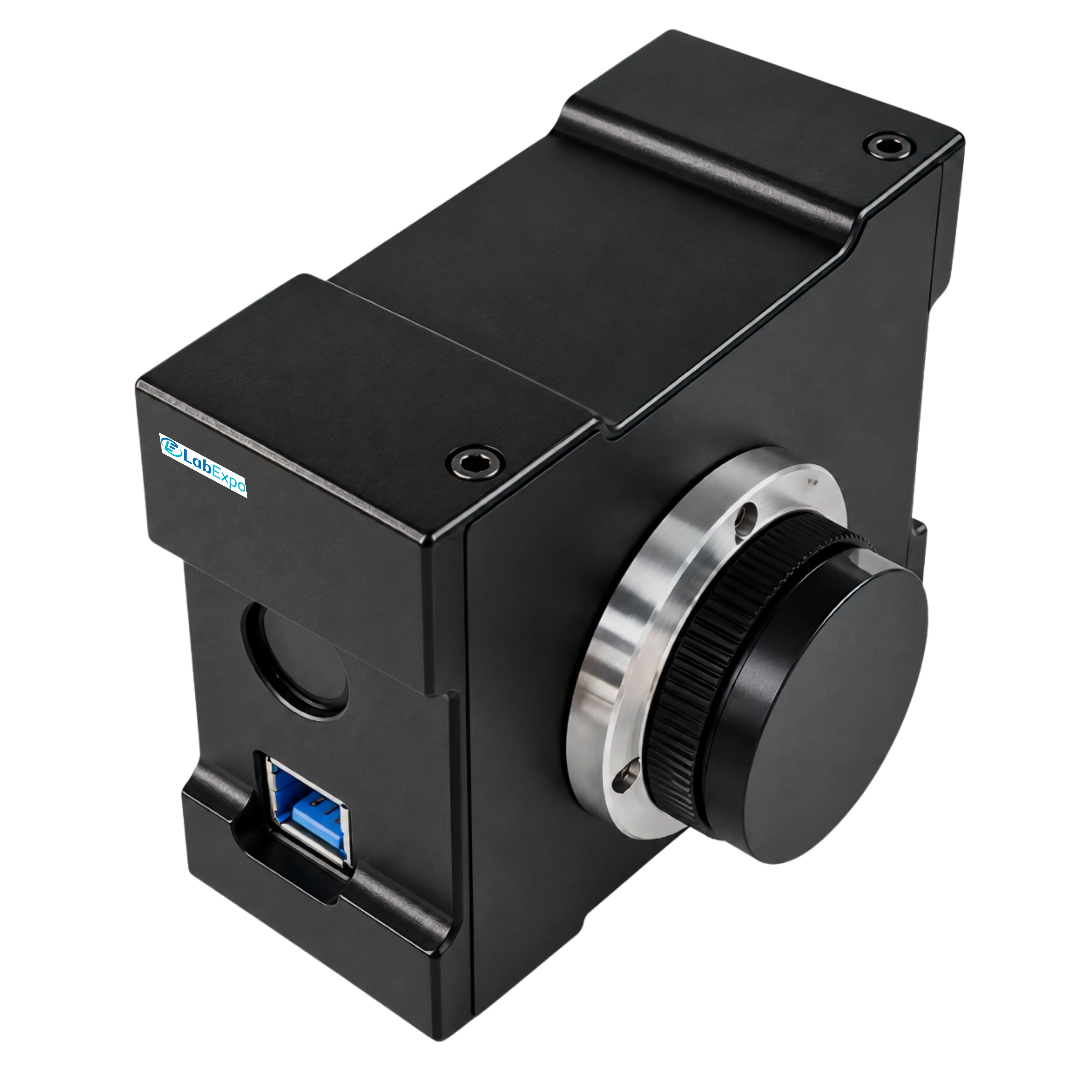

Microscopic Camera 43-MSC101

Microscopic Camera 43-MSC101

Lab Expo Microscopic Camera 43-MSC101 comes with 2/3” CCD Sony ICX285 sensor, aluminum alloy shell and PCB design. With C-mount fitting attachment, better rate of frames readout per second, it gives better visual microscopic inspection & measurement of the specimen under study. Widely used as microscopic camera attachment across research institutes, gemology, forensic and other industries.

$2,429.00 $ 2024

Microscopic Camera 43-MSC101 - Specifications

Sensor type CCD Sony ICX285 sensor
Camera type Black and white or color camera
Sensor size 2/3”
Resolution 1.4 MP
Pixel size 6.45×6.45 µm
Total active pixels 1360×1040
Resolution, display mode 20 fps at 1360 × 1040
Peltier device No
Scan mode Progressive scan mode
Frame rate 26 fps @1360×1040, 40 fps @680×520
Integrated filter Yes
Shutter Global shut
SNR 74 dB
Spectral response range 400 to 1000 nm
Refrigeration temperature Nil
Data interface USB 3.0
Power DC 5V ± 5%
Current Appx. 400 mA
White balance Automatic regional white balance
Auto exposure control 36 µs to 30 minutes
Product indicator LED
Working temperature 0 to 40°C
Working Humidity 10 to 60 % RH
Lens mount C-mount
Supported OS Microsoft windows XP/ Vista 7/ 8
Dimension 190 × 150 × 90 mm
Gross weight 450 g

Microscopic Camera 43-MSC101 - Key Features

  • 1.4 MP CCD Sony ICX285 sensor with 2/3 inch format
  • USB 3.0 interface supporting DC 5V ± 5% power input
  • 400 to 1000 nm spectral response range for broad detection
  • Progressive scan mode with global shutter operation
  • Automatic regional white balance for consistent imaging
  • Auto exposure control from 36 µs to extended durations

Microscopic Camera 43-MSC101 - Applications

FunctionImplementation
Research institutes26 fps @1360×1040 enables detailed specimen imaging
Gemology applications40 fps @680×520 supports rapid gemstone analysis
Forensic examinationAutomatic regional white balance ensures accurate color representation
Industrial quality controlUSB 3.0 interface allows high-speed data transfer to systems
Laboratory measurement tasksGlobal shut prevents motion blur during specimen capture

Microscopic Camera 43-MSC101 - Catalog

Microscopic Camera 43-MSC101 Catalog

Related Microscopic Camera

Lab Expo Microscopic Cameras are structured around high-resolution sensor architecture to deliver accurate digital capture from optical microscopes. This digital microscope camera supports USB-based live imaging with progressive scanning for sharp detail and color fidelity. Adjustable white balance, broad spectral response, and integrated analysis software enable precise visualization, measurement, and documentation for research, forensic, quality control, and industrial inspection workflows.
