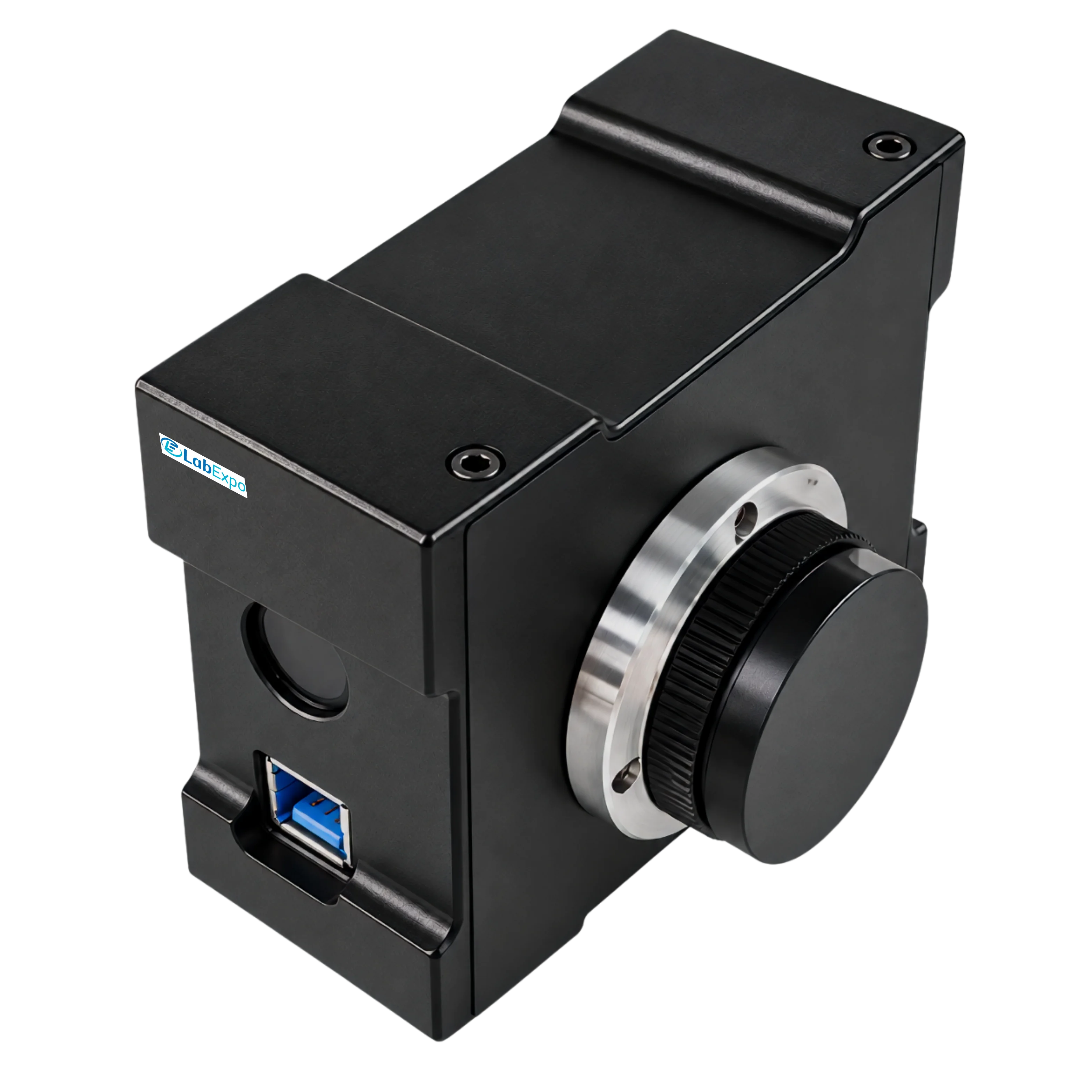

Lab Expo Microscopic Camera 43-MSC102 comes with 2/3” CCD Sony ICX285 sensor, aluminum alloy shell and PCB design. With C-mount fitting attachment, better rate of frames readout per second, it gives better visual microscopic inspection & measurement of the specimen under study. Widely used as microscopic camera attachment across research institutes, gemology, forensic and other industries.
$3,379.00 $ 2816
| Sensor type | CCD Sony ICX285 sensor |
| Camera type | Black and white or color camera |
| Sensor size | 2/3” |
| Resolution | 5.0 MP |
| Pixel size | 3.45×3.45 µm |
| Total active pixels | 2456×2058 (12 bit) |
| Resolution, display mode | 9 fps at 2456 × 2058, ROI mode |
| Peltier device | No |
| Scan mode | Progressive scan mode |
| Frame rate | 9 fps @2456×2058 |
| Integrated filter | Yes |
| Shutter | Global shut |
| SNR | 74 dB |
| Spectral response range | 400 to 1000 nm |
| Refrigeration temperature | Nil |
| Data interface | USB 3.0 |
| Power | DC 5V ± 5% |
| Current | Appx 500 mA |
| White balance | Automatic regional white balance |
| Auto exposure control | 28 µs to 1.8 seconds |
| Product indicator | LED |
| Working temperature | 0 to 60°C |
| Working Humidity | 0 to 85% RH |
| Lens mount | C-mount |
| Supported OS | Microsoft windows XP/ Vista 7/ 8 |
| Dimension | 190 × 150 × 90 mm |
| Gross weight | 450 g |
Function Implementation Research institute labs 5.0 MP resolution supports detailed specimen analysis Gemology inspection stations 9 fps frame rate enables smooth live imaging Forensic evidence examination C-mount fitting allows secure microscope attachment Quality control facilities USB 3.0 interface facilitates rapid data transfer Industrial material testing 400 to 1000 nm spectral range captures varied sample responses
Lab Expo Microscopic Cameras are structured around high-resolution sensor architecture to deliver accurate digital capture from optical microscopes. This digital microscope camera supports USB-based live imaging with progressive scanning for sharp detail and color fidelity. Adjustable white balance, broad spectral response, and integrated analysis software enable precise visualization, measurement, and documentation for research, forensic, quality control, and industrial inspection workflows.
