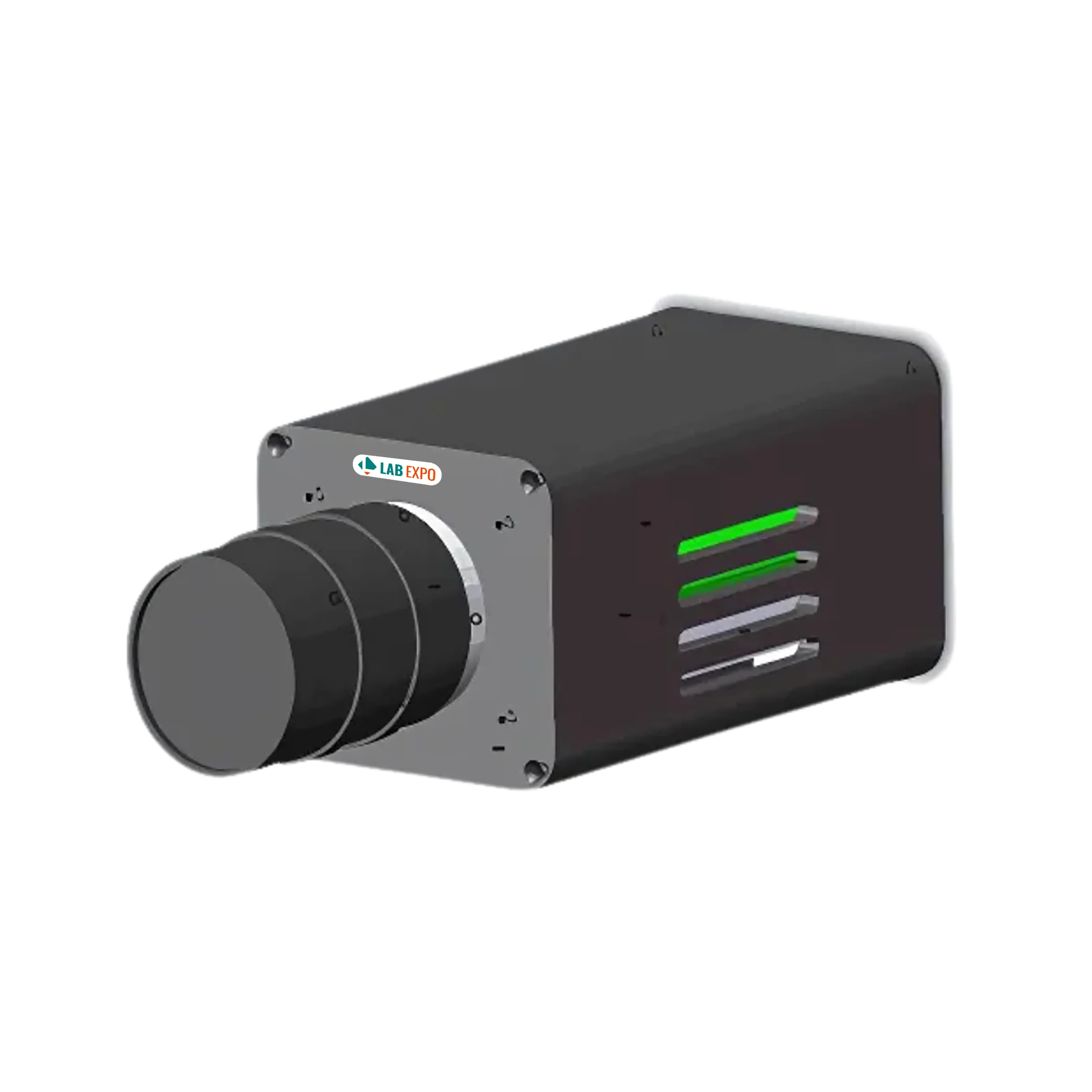

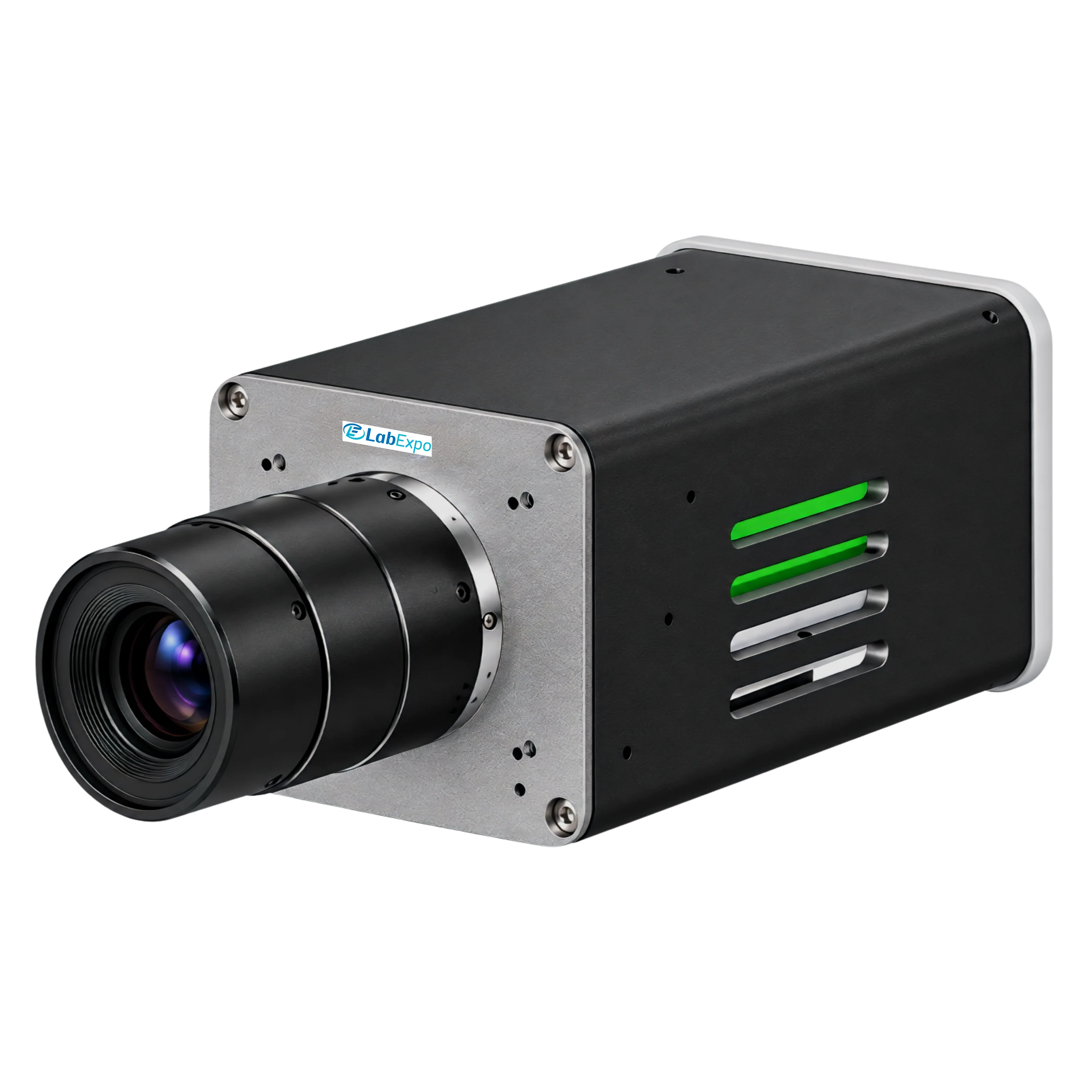

Lab Expo Microscopic camera is adopted with digital image CMOS Sony IMX253 sensor, used to improve low light performance and obtain high resolution images. Its image analysis software includes image previewing, capturing, analyzing, processing and sharing to give user the latest image processing experience.
$10,901.00 $ 9084
| Sensor type | CMOS Sony IMX253 sensor |
| Camera type | Black & white or colored camera |
| Sensor size | 1” |
| Resolution | 12 MP |
| Pixel size | 3.1 × 3.1 µm |
| Total active pixels | 4090 × 3072 |
| Frame rate | 40 fps at 4090×3072 |
| Scan method | Progressive scan mode |
| Exposure time | 10 µs to 600 minutes |
| Exposure control | Manual/Auto/Area Exposure |
| Shutter | ESR & global reset |
| Dynamic rate | 66 dB |
| SNR | 24 dB |
| Spectral response range | 350 to 1100 nm |
| Data interface | USB 3.0, up to 56 bps, 1.8 meter cable |
| Power | DC 12V ± 5% |
| Current | Appx. 500 mA |
| White balance | Manual/Auto/Area white balance |
| Product indicator | Power LED , RS 485 communication light |
| Less mount | C- mount |
| Working temperature | 0 to 60°C |
| Working Humidity | 0 to 85 % RH |
| Product Dimension | 29 × 29 × 60 mm |
| Gross weight | 700 g |
Function Implementation Quality control labs 12 MP resolution supports detailed defect analysis Clinical imaging units 40 fps at 4090×3072 enables real-time specimen viewing Research microscopy setups Exposure time up to 600 minutes allows long-term observation Industrial inspection lines Spectral response 350–1100 nm facilitates material analysis Educational training labs USB 3.0 interface ensures stable image transfer for demonstrations
| Accessories No. | Name |
|---|---|
| 1 | 1.8 meters USB 3.0 cable |
| 2 | Drive & application CD |
| Accessories No. | Name |
|---|---|
| 1 | PCI-E USB3.0 card |
| 2 | USB3.0- Optical fiber |
| 3 | USB3.0- Converter cable |
Lab Expo Microscopic Cameras are structured around high-resolution sensor architecture to deliver accurate digital capture from optical microscopes. This digital microscope camera supports USB-based live imaging with progressive scanning for sharp detail and color fidelity. Adjustable white balance, broad spectral response, and integrated analysis software enable precise visualization, measurement, and documentation for research, forensic, quality control, and industrial inspection workflows.
