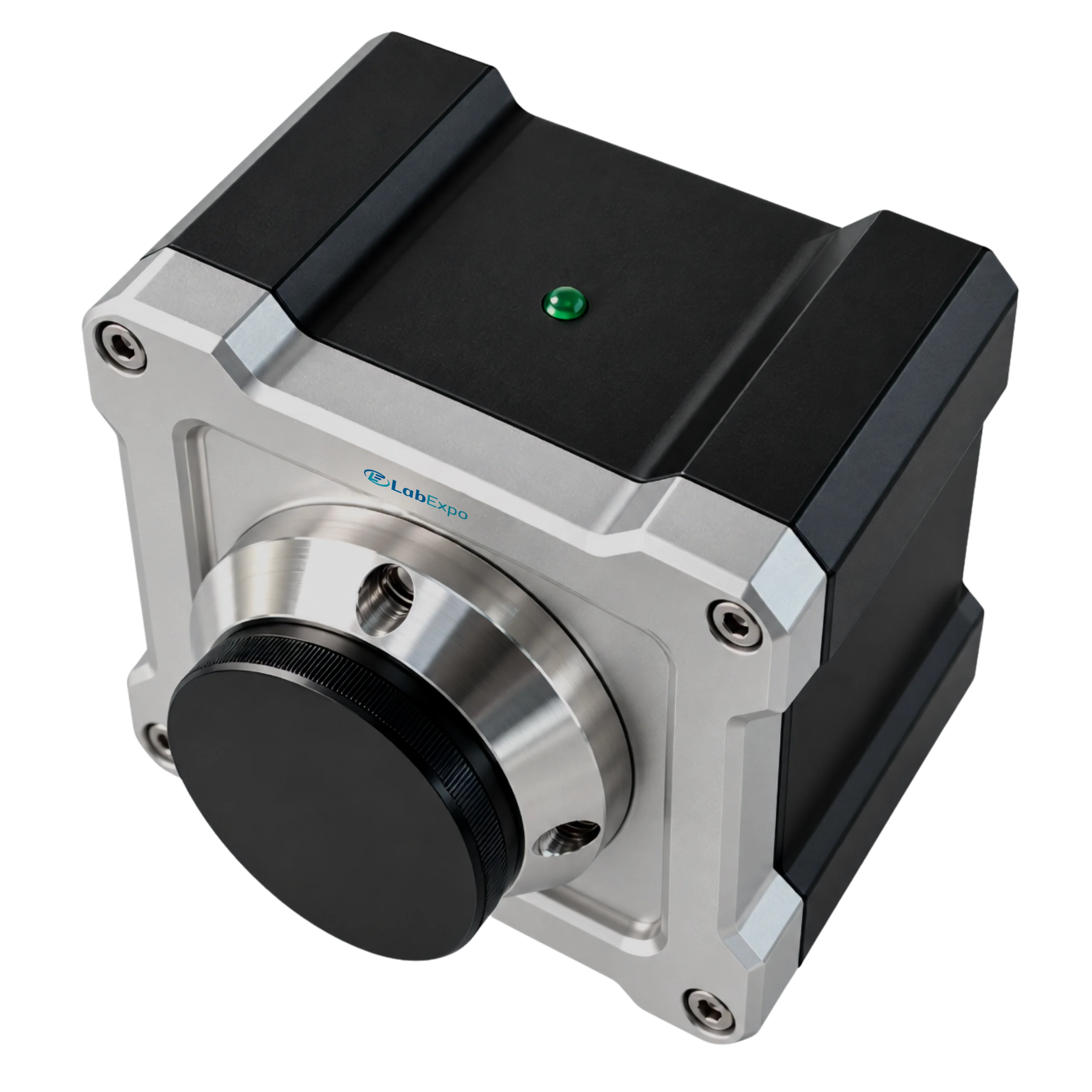

Lab Expo Microscopic camera is adopted with digital CMOS Sony IMX185 sensor, used to improve low light performance and obtain high resolution images. Its image analysis software includes image previewing, capturing, analysis, processing, sharing function, to give user the latest image processing experience.
$2,184.00 $ 1820
| Sensor type | CMOS Sony IMX185 sensor |
| Camera type | Colored |
| Sensor size | 1/1.9” |
| Resolution | 2.3 MP |
| Pixel size | 3.75 × 3.75 µm |
| Total active pixels | 1952 × 3072 |
| Frame rate | 30 fps at 1952×3072 (12 bit) |
| Scan method | Progressive scan mode |
| Exposure time | 28 µs to 1.8 s |
| Exposure control | Manual/Auto/Area Exposure |
| Shutter | ESR & global reset |
| Dynamic rate | 64 dB |
| SNR | 41 dB |
| Spectral response range | 400 to 1000 nm |
| Data interface | USB 3.0, up to 5 Gbps, 3 m cable |
| Power | DC 5V ± 5% |
| Current | Appx. 500 mA |
| White balance | Manual/Auto/Area white balance |
| Product indicator | Power LED, RS 485 communication light |
| Less mount | CS interface mount |
| Working temperature | 0 to 60°C |
| Working Humidity | 0 to 85 % RH |
| Product Dimension | 29 × 29 × 60 mm |
| Gross weight | 450 g |
Function Implementation Low-light imaging labs Sony IMX185 sensor supports high sensitivity in dim conditions High-resolution analysis 1952 × 3072 pixels enables detailed specimen visualization Extended spectral studies 400 to 1000 nm range facilitates multi-band observation Rapid capture workflows 30 fps frame rate allows smooth live video streaming Variable exposure needs 28 µs to 1.8 s exposure time adapts to diverse lighting scenarios
| Accessories No. | Name |
|---|---|
| 1 | 1.8 meters USB 3.0 cable |
| 2 | Drive & application CD |
| Accessories No. | Name |
|---|---|
| 1 | PCI-E USB3.0 card |
| 2 | USB3.0- Optical fiber |
| 3 | USB3.0- Converter cable |
Lab Expo Microscopic Cameras are structured around high-resolution sensor architecture to deliver accurate digital capture from optical microscopes. This digital microscope camera supports USB-based live imaging with progressive scanning for sharp detail and color fidelity. Adjustable white balance, broad spectral response, and integrated analysis software enable precise visualization, measurement, and documentation for research, forensic, quality control, and industrial inspection workflows.
