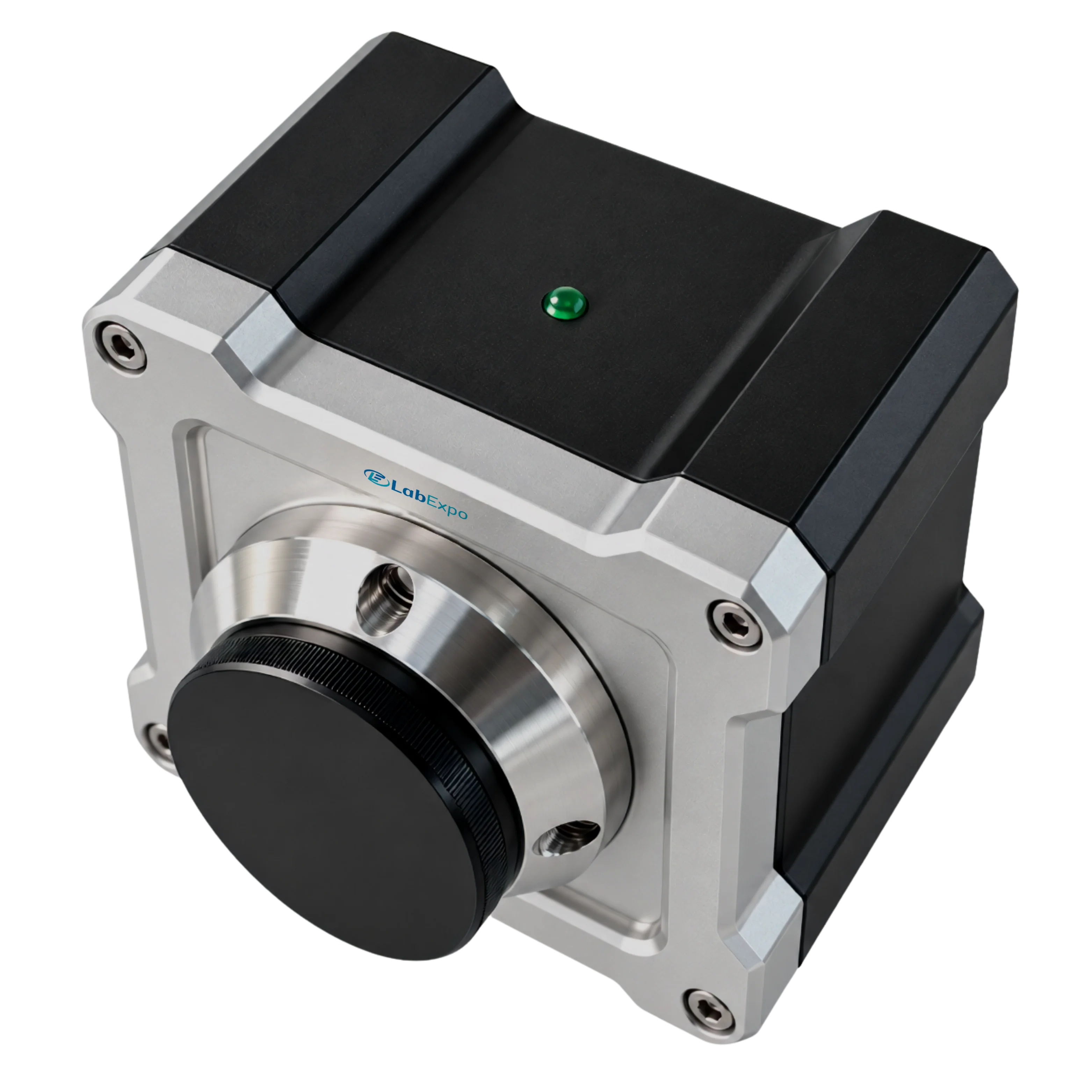

Lab Expo Microscopic Camera 43-MSC202 is adopted with digital CMOS Sony IMX123 sensor, used to improve low light performance and obtain high resolution images. Its image analysis software includes image previewing, capturing, analysis, processing, sharing function, to give user the latest image processing experience.
$2,162.00 $ 1802
| Sensor type | CMOS Sony IMX123 sensor |
| Camera type | Colored |
| Sensor size | 1/ 2.8” |
| Resolution | 3.0 MP |
| Pixel size | 3.75 × 3.75 µm |
| Total active pixels | 2048 × 1536 |
| Frame rate | 20 fps at 2048×1536 (12 bit) |
| Scan method | Progressive scan mode |
| Exposure time | 28 µs to 1.8 s |
| Exposure control | Manual/Auto/Area Exposure |
| Shutter | Rolling Shutter |
| Dynamic rate | 64 dB |
| SNR | 41 dB |
| Spectral response range | 400 to 1000 nm |
| Data interface | USB 3.0, up to 5 Gbps, 3 m cable |
| Power | DC 5V ± 5% |
| Current | Appx. 250 mA |
| White balance | Manual/Auto/Area white balance |
| Product indicator | Power LED, RS 485 communication light |
| Less mount | CS interface mount |
| Working temperature | 0 to 60°C |
| Working Humidity | 0 to 85 % RH |
| Product Dimension | 60 × 60 × 45 mm |
| Gross weight | 450 g |
Function Implementation Quality control labs 41 dB SNR supports accurate defect detection Clinical research settings 20 fps at 3.0 MP enables real-time specimen imaging Industrial inspection areas USB 3.0 up to 5 Gbps facilitates rapid data transfer Educational microscopy labs Manual/Auto white balance adapts to varied lighting conditions Pharmaceutical testing facilities Exposure time 28 µs to 1.8 s captures dynamic processes
| Accessories No. | Name |
|---|---|
| 1 | 1.8 meters USB 3.0 cable |
| 2 | Drive & application CD |
| Accessories No. | Name |
|---|---|
| 1 | PCI-E USB3.0 card |
| 2 | USB3.0- Optical fiber |
| 3 | USB3.0- Converter cable |
Lab Expo Microscopic Cameras are structured around high-resolution sensor architecture to deliver accurate digital capture from optical microscopes. This digital microscope camera supports USB-based live imaging with progressive scanning for sharp detail and color fidelity. Adjustable white balance, broad spectral response, and integrated analysis software enable precise visualization, measurement, and documentation for research, forensic, quality control, and industrial inspection workflows.
