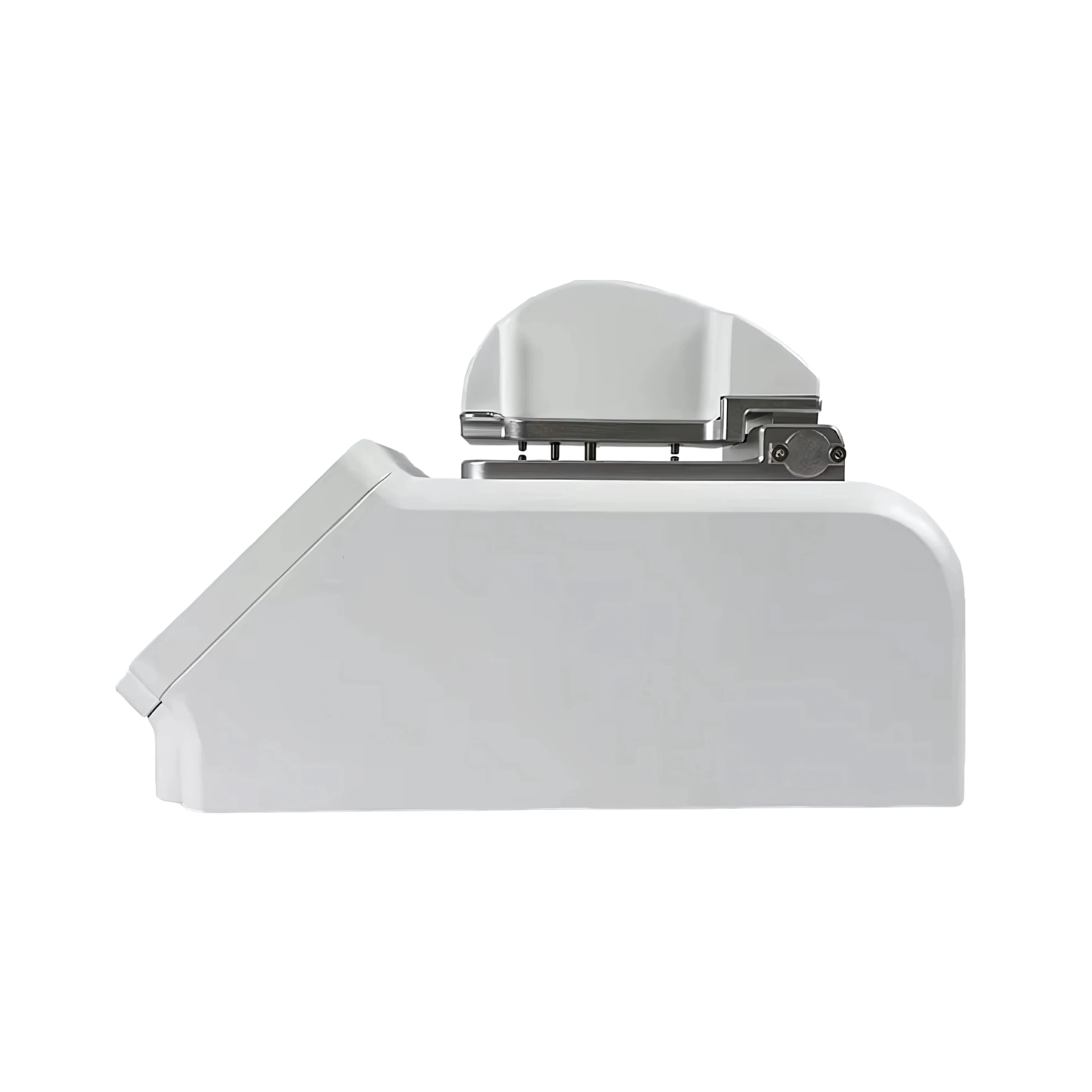

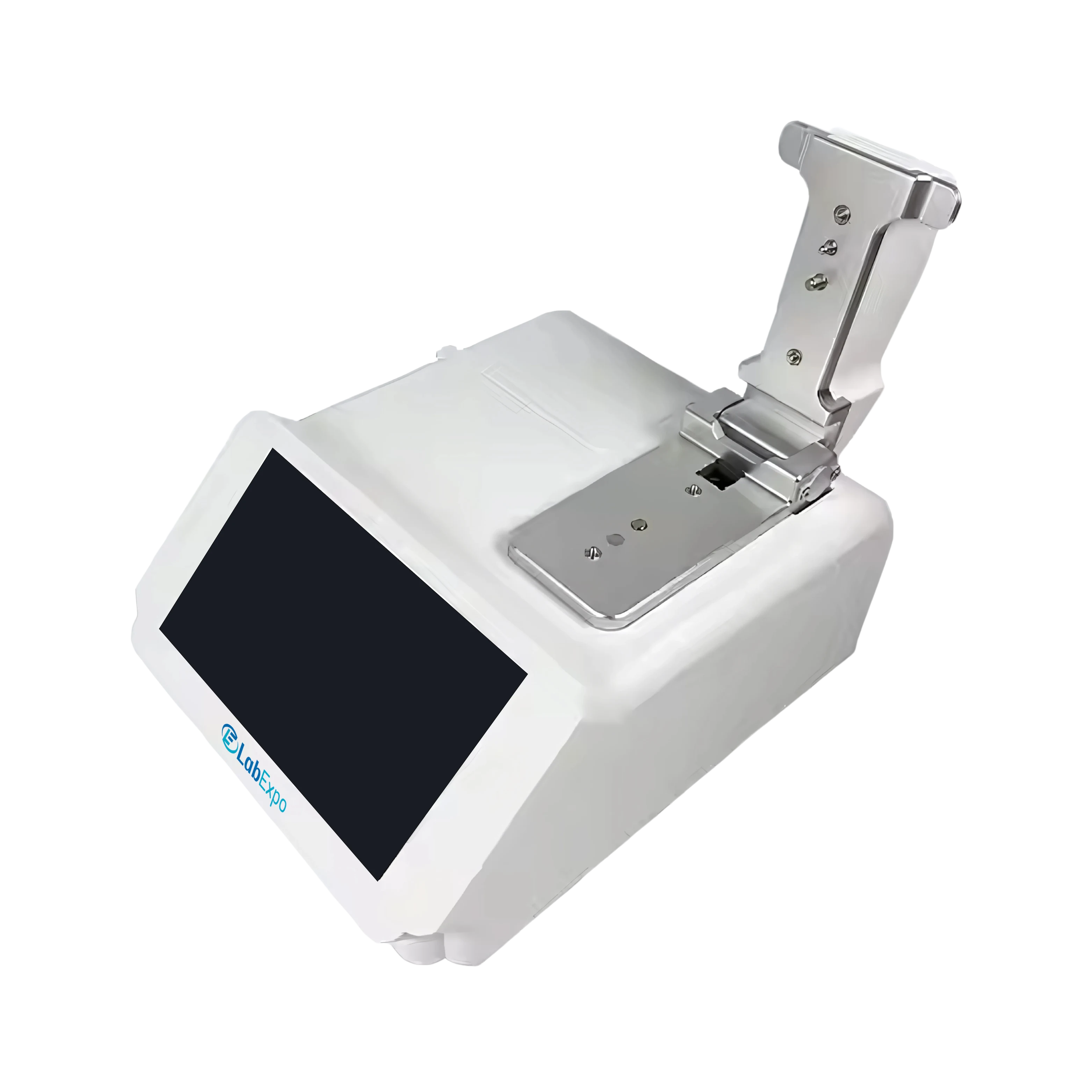

Lab Expo Microspectrophotometer LE-MS103 detects wavelengths ranging from 180 to 910 nm, enabling precise and reliable analysis. It is equipped with a xenon flash lamp that provides stable, high-intensity light. Built in with a 2048-element linear silicon CMOS array detector for rapid processing speed. Our Microspectrophotometer delivers fast and accurate spectral readings.
$7,721.00 $ 6434
| Sample Volume | 0.5 to 2.0 µl |
| Path Length | 0.2mm, 1.0m, 1.2mm |
| Wavelength | 180 to 910 nm |
| Wavelength Accuracy | ± 1 nm |
| Absorbance Range | 0.04 to 90 A (equaled 10mm) |
| Absorbance Accuracy | ±1%（7.332 Abs at 260nm） |
| Absorbance Precision | 0.002Abs |
| Spectral Resolution | ≤ 1.5nm（FWHM @ Hg 253.7nm） |
| Nucleic Acid Detection Range | dsDNA: 2 to 4500ng/µL |
| Protein Detection Range | BSA: 120mg/mlIgG: 58.7mg/ml |
| Sample Pedestal | 304 Stainless Steel and Quartz Fiber |
| Light Source | Xenon Flash Lamp |
| Detector | 2048 -Element Linear Silicon CMOS Array |
| Measurement Time | ＜ 6 seconds |
| Operation System | Android |
| Data Export | USB |
| Power Adapter | 12 V 4 A |
| Power Consumption | 48W (working) 5W (standby) |
| Dimension | 270 × 210 × 196 mm |
| Weight | 3.5 kg |
Function Implementation Sample analysis labs 0.5 to 2.0 µl enables minimal volume testing Quality control workflows ＜ 6 seconds supports rapid batch processing Protein quantification assays BSA: 120mg/ml defines upper detection limit Nucleic acid research dsDNA: 2 to 4500ng/µL quantifies sample concentration Multi-wavelength scanning 180 to 910 nm covers full UV-Vis spectrum range
Lab Expo Microspectrophotometer units are designed for micro-volume absorbance analysis in molecular biology, clinical, and forensic applications. Models support micro spectrophotometer testing with 0.5 to 2 µl sample volumes and 180 to 910 nm wavelength range for nucleic acid, protein, and microspectrophotometer forensics analysis.
