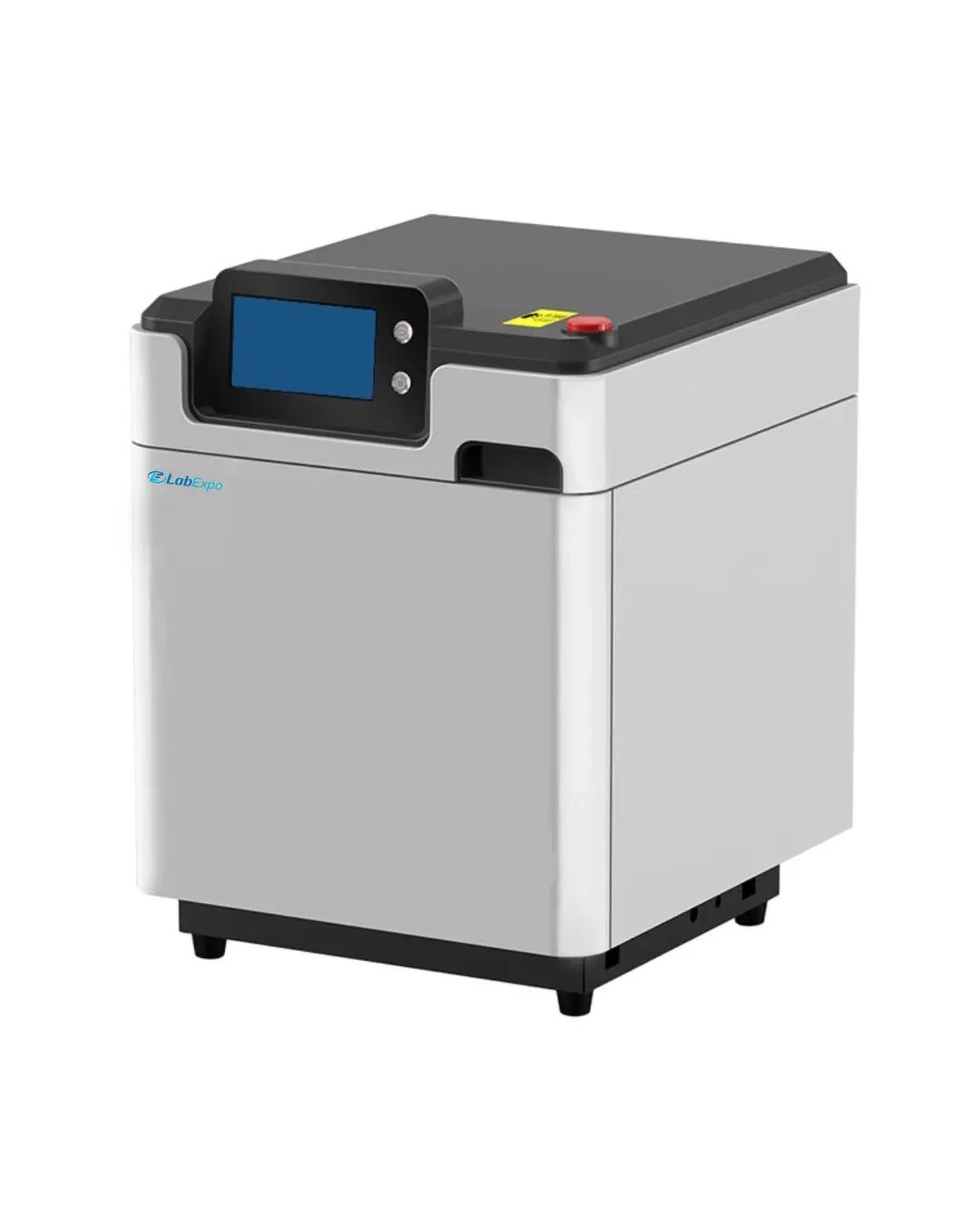

Lab Expo Microwave Digestion System LE-MDS102 offers 12 high-capacity vessels to enable efficient parallel sample processing. It supports precise temperature regulation from 50 to 400°C to meet the demands of complex sample matrices. Equipped with a corrosion-proof air blower to ensure rapid and safe exhaust. Our Microwave Digestion System delivers unmatched performance, reliability, and efficiency for modern analytical laboratories.
$22,356.00 $ 18630
| Vessel Quantity | 12 |
| Temperature Monitoring | Contactless IR Sensor |
| Temperature Controlling Range | 50 to 400℃ |
| Max. Working Temperature | 250℃ |
| Temperature Accuracy | ±0.1℃ |
| Pressure Monitoring | Contactless Pressure Sensor |
| Pressure Controlling Range | 0 to 15 MPa |
| Max. Working Pressure Range | 6 MPa |
| Pressure Accuracy | ±0.01 MPa |
| Vessel Volume | 100 mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° Continuous Rotation |
| Microwave Power | 0 to 1000W(Adjustable) |
| Cavity Volume | 35 L |
| Microwave Leakage | |
| Air Exhaust | High Power Corrosion-Proof Air Blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Dimension | 490 × 560 × 630 mm |
| Weight | 47 kg |
Function Implementation Quality control labs 0 to 1000W adjustable microwave power enables precise sample digestion Clinical research facilities ±0.1℃ temperature accuracy supports repeatable analytical results Industrial testing environments 6 MPa max working pressure handles high-pressure digestions Pharmaceutical analysis units 35 L cavity volume accommodates batch processing workflows Environmental monitoring labs <5 mW/cm² microwave leakage ensures operator safety during operation
Sample Pretreatment/Acid-removing Heating Equipment (Heating Blocks), set of 12
1: What is the temperature range for this system?
The temperature can be precisely controlled between 50°C and 400°C, with a maximum working temperature of 250°C and accuracy of ±0.1°C.
2: What safety features are included?
The system includes an explosion-proof cavity, auto-venting vessels, electromagnetic protection, and a high-power corrosion-proof air blower to ensure safe operation.
3: What type of display does the system feature?
It comes with a 7-inch smart color touch screen for easy and intuitive control of system settings and status.
4: Are optional accessories available?
Yes, heating blocks for sample pretreatment are available as optional accessories in sets of 12.
5: Can this system be used across different industries?
Yes, it is ideal for environmental testing, food safety, pharmaceutical research, petrochemical studies, and materials science.
6: What is a Microwave Digestion System?
A microwave digestion system is a laboratory instrument that uses microwave energy to rapidly heat and break down sample materials in sealed vessels for subsequent elemental analysis.
7: How does the auto-vent and self-resealing mechanism work?
This feature allows vessels to automatically release excess pressure in case of overpressure and then instantly reseal, minimizing the risk of accidents and preserving sample integrity.
8: What is the advantage of contactless monitoring?
Contactless sensors reduce the risk of sample contamination and wear, while improving measurement precision and safety during digestion.
9: Are different models available under this category?
Yes, Lab Expo offers a range of microwave digestion systems with varying vessel capacities, power outputs, and automation features tailored to diverse laboratory needs.
10: What applications is this system suitable for?
It is ideal for sample digestion in applications such as TOC analysis, TIC/TC/TOC measurement, chemical digestion, inorganic and organic compound digestion, and elemental testing across various scientific disciplines.
Lab Expo Microwave Digestion Systems are structured around sealed-vessel microwave heating to enable controlled acid digestion under elevated temperature and pressure. This microwave digester supports high-throughput batch processing with real-time pressure and temperature monitoring. Automated venting with self-resealing vessels, contamination-controlled chamber design, and stable energy delivery ensure repeatable sample decomposition for analytical, environmental, food, and research laboratory workflows.
