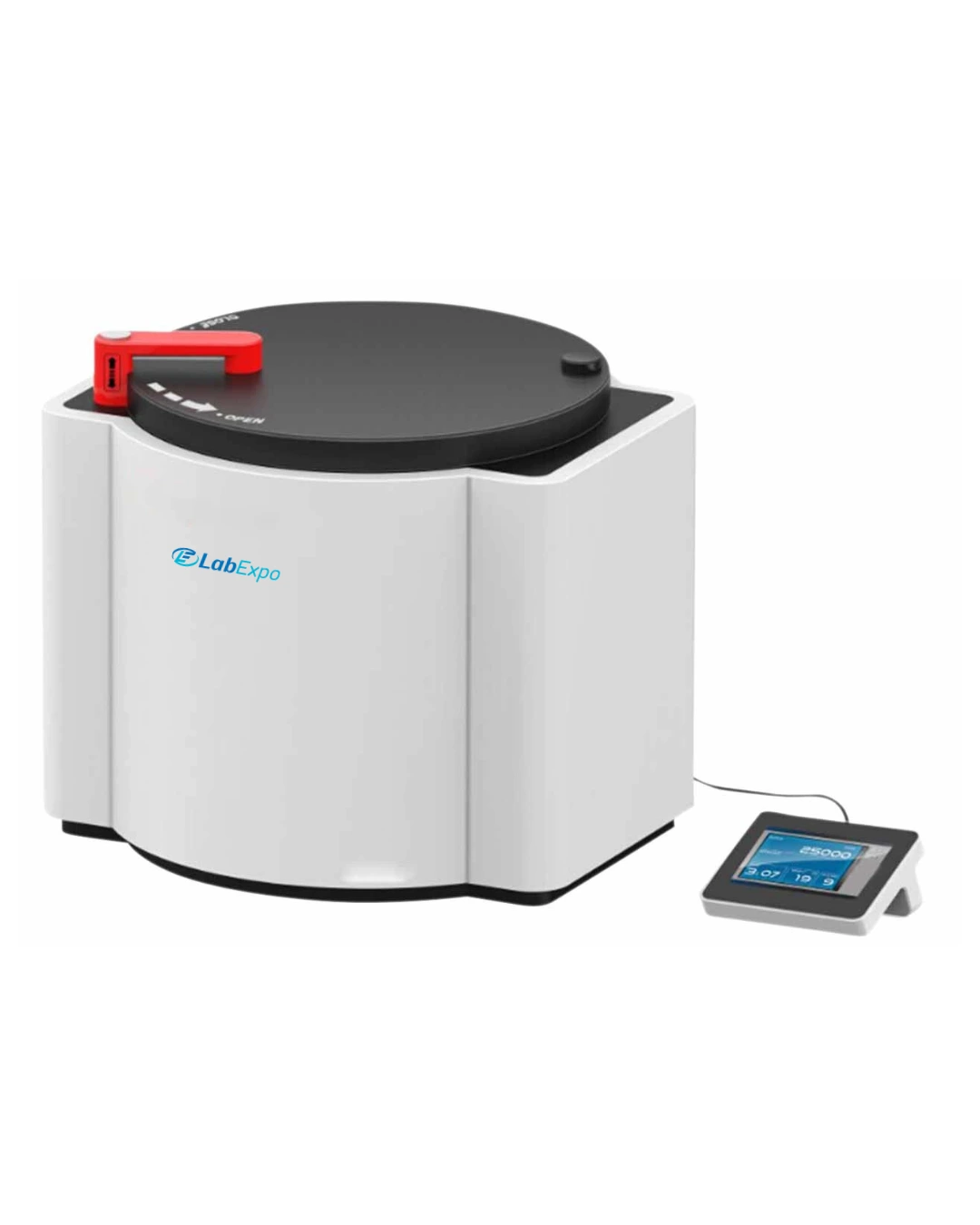

Lab Expo Microwave Digestion System LE-MDS104 provides 40 digestion vessels to enable large-scale, simultaneous sample processing. Built with auto-vent design that allows the vessels to safely release excess pressure and reseal instantly. Features a stainless-steel cavity coated with a corrosion-proof layer to ensure durability. Our Digestion System ensures precise and consistent results by individually controlling the pressure in each vessel during the digestion process.
$49,572.00 $ 41310
| Vessel Quantity | 40 |
| Temperature Monitoring | Contactless IR Sensor |
| Temperature Controlling Range | 50 to 400℃ |
| Max. Working Temperature | 250℃ |
| Temperature Accuracy | ±0.1℃ |
| Pressure Monitoring | Contactless Pressure Sensor |
| Pressure Controlling Range | 0 to 15 MPa |
| Max. Working Pressure Range | 6 MPa |
| Pressure Accuracy | ±0.01 MPa |
| Vessel Volume | 50 mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° Continuous Rotation |
| Microwave Cavity | 316 L Stainless Steel Cavity with Corrosion-Proof Coating |
| Microwave Power | 0 to 3000W (Adjustable) |
| Cavity Volume | 35 L |
| Microwave Leakage | |
| Air Exhaust | High Power Corrosion-Proof Air Blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Dimension | 640 × 630 × 590 mm |
| Weight | 78 kg |
Function Implementation High-throughput labs 40 vessels enables simultaneous processing of multiple samples Quality control testing ±0.1℃ temperature accuracy ensures precise analytical results Industrial sample prep 3000W microwave power supports rapid digestion cycles Clinical research facilities 50 mL vessel volume accommodates standard biological samples Environmental analysis 6 MPa max working pressure handles aggressive acid digestions
Sample Pretreatment/Acid-removing Heating Equipment (Heating Blocks), set of 42
1: How many digestion vessels does the LE-MDS104 support?
The system supports 40 digestion vessels, making it ideal for large-scale, simultaneous sample processing in high-throughput labs.
2: How is pressure monitored and controlled?
It features contactless pressure sensors with a control range of 0 to 15 MPa, a maximum working pressure of 6 MPa, and high accuracy of ±0.01 MPa. Each vessel is individually pressure-controlled for consistent results.
3: What safety features are integrated into the system?
It includes a high safety system, auto-venting vessels, explosion-proof cavity, electromagnetic shielding, and a corrosion-proof stainless-steel cavity for enhanced durability and protection.
4: What is the vessel volume for this model?
Each digestion vessel has a volume of 50 mL.
5: What is the maximum microwave power output?
The microwave power is adjustable up to 3000W, suitable for a wide range of sample types and digestion requirements.
6: What is a Microwave Digestion System?
A microwave digestion system is a laboratory instrument that uses microwave energy to rapidly heat and break down sample materials in sealed vessels for subsequent elemental analysis.
7: How does the auto-vent and self-resealing mechanism work?
This feature allows vessels to automatically release excess pressure in case of overpressure and then instantly reseal, minimizing the risk of accidents and preserving sample integrity.
8: What is the advantage of contactless monitoring?
Contactless sensors reduce the risk of sample contamination and wear, while improving measurement precision and safety during digestion.
9: Are different models available under this category?
Yes, Lab Expo offers a range of microwave digestion systems with varying vessel capacities, power outputs, and automation features tailored to diverse laboratory needs.
10: What applications is this system suitable for?
It is ideal for sample digestion in applications such as TOC analysis, TIC/TC/TOC measurement, chemical digestion, inorganic and organic compound digestion, and elemental testing across various scientific disciplines.
Lab Expo Microwave Digestion Systems are structured around sealed-vessel microwave heating to enable controlled acid digestion under elevated temperature and pressure. This microwave digester supports high-throughput batch processing with real-time pressure and temperature monitoring. Automated venting with self-resealing vessels, contamination-controlled chamber design, and stable energy delivery ensure repeatable sample decomposition for analytical, environmental, food, and research laboratory workflows.
