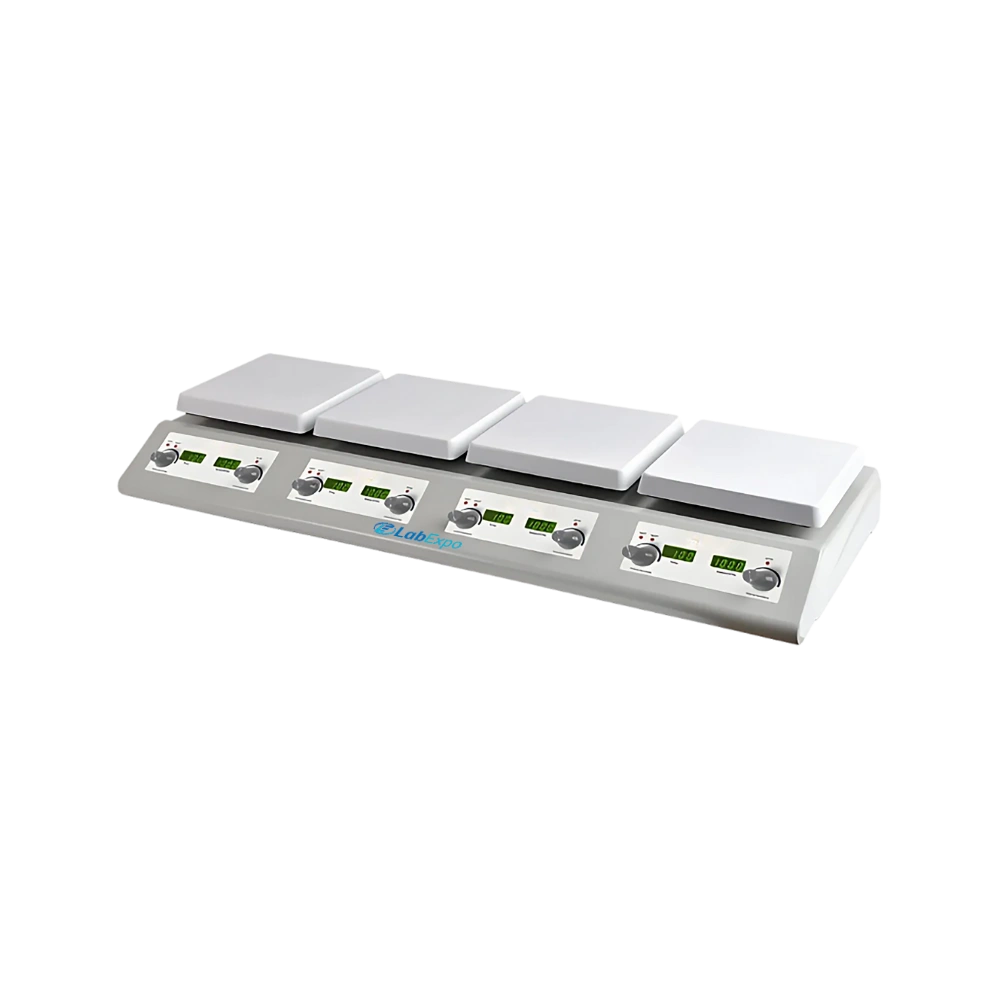

Lab Expo Multi-Plate Stirrer LE-MP101 is designed with four independent plates, each having a maximum stirring quantity of 10L. It features an integrated PT1000 external sensor to ensure accurate temperature regulation. Equipped with a stirring speed range of 150 to 1500 rpm, it delivers reliable and efficient mixing. Built-in LED digital display allows clear and easy parameter monitoring. Our Multi-Plate Stirrer is suitable for chemical analysis, sample preparation, research, quality control, and laboratory applications.
$3,473.00 $ 2894
| Speed Range | 150 to 1500rpm |
| Plate Number | 4 |
| Number of Stirring Positions in Each Plate | 1 |
| Maximum Stirring Quantity per Stirring Position | 10L (H2O) |
| Display | LED |
| Plate Material | Ceramic Coated Aluminium |
| Hot Warning | Yes |
| Number of Control | 4 |
| Temperature Setting Range | 35℃ to 400℃ |
| Heating Range for Plate | 35℃ to 400℃ |
| Heating Range for Solution | 35℃ to 200℃ |
| External Temperature Sensor | PT1000 |
| Heating Setting Resolution of Plate | 1℃ |
| Heating Setting Resolution of Solution | 0.1℃ |
| Temperature Stability | 1℃ |
| Heat Control Accuracy with PT1000 | +/-0.5℃ |
| Capable of Calibration on External Probe | Yes |
| Stir Bar Length Range | 25 to 60mm |
| Overheat Warning in Plate and Medium Detection | Yes |
| Operation Ambient Temperature | 5℃ to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP 21 |
| Power Consumption | 3200W |
| Power Supply | 200 to 240V |
| Frequency | 50/60Hz |
| Each Plate Dimension | 7” (178mm × 178mm) |
| Dimensions | 760 × 290 × 100 mm |
| Net weight | 3.5kg |
| Gross weight | 15 kg |
Function Implementation Chemical analysis labs 4 plates each with 10L capacity enables multi-sample processing Quality control testing ±0.5℃ heat accuracy ensures consistent sample preparation Research laboratories 150-1500rpm speed range supports varied viscosity mixing Sample preparation workflows Ceramic coated aluminium plates resist corrosion during prolonged use Industrial testing facilities IP21 protection allows operation in humid environments up to 80% RH
Lab Expo Multi-Plate Stirrers are structured around independent drive architecture to enable simultaneous, controlled mixing across multiple workstations. This laboratory magnetic stirrer supports synchronous or asynchronous operation with precise speed regulation for varied sample conditions. Digital status display, vibration-stable build, and consistent magnetic coupling ensure reproducible stirring performance for synthesis, sample preparation, and quality control workflows.
