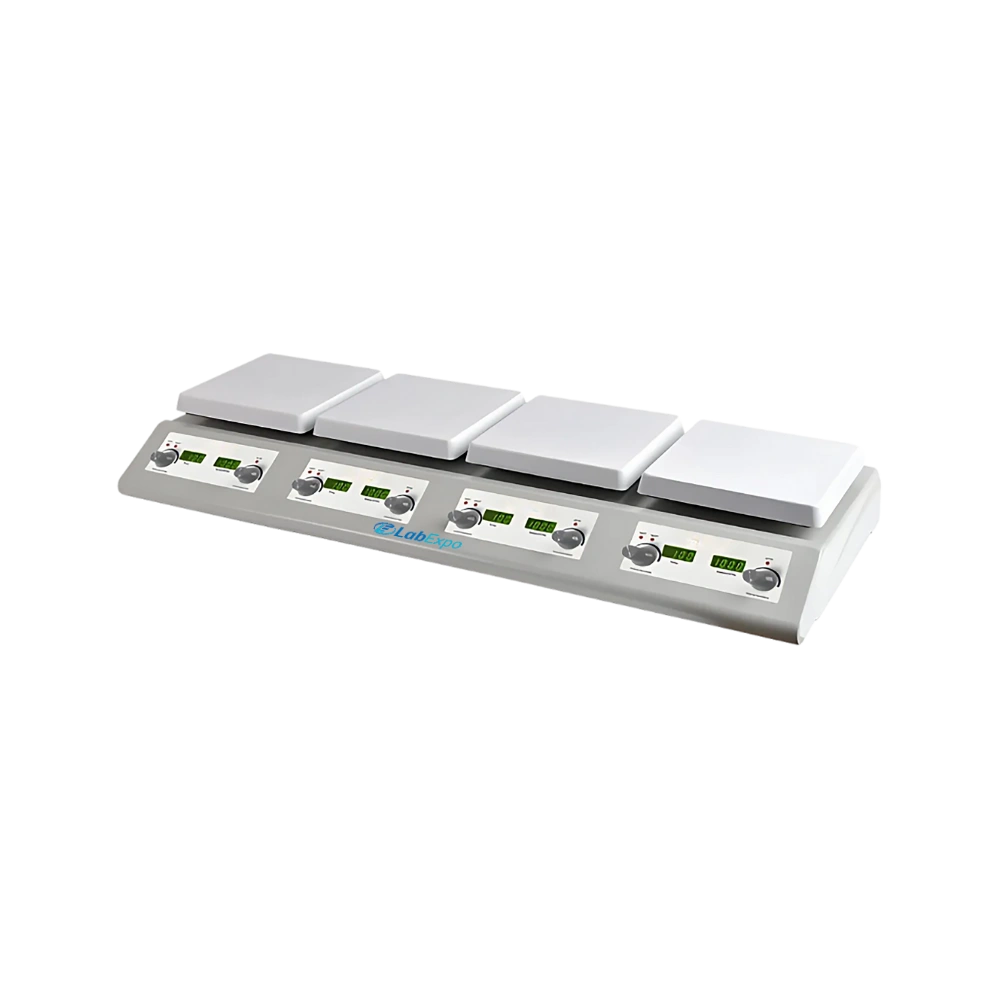

Lab Expo Multi-Plate Stirrer LE-MP102 offers four stirring plates, each with a maximum capacity of 10L. It is equipped with a digital LED display, enabling precise monitoring of temperature and speed settings. Built-in with a robust ceramic work surface, it provides excellent heat resistance and durability. Integrated with over-temperature protection, it prevents overheating and ensures safe operation. Our Multi-Plate Stirrer is ideal for research, chemical processing, and laboratory testing applications.
| Speed Range | 150 to 1500rpm |
| Plate Number | 4 |
| Number of Stirring Positions in each Plate | 1 |
| Maximum Stirring Quantity per Stirring Position | 10L (H2O) |
| Display | LED |
| Plate Material | Ceramic |
| Hot Warning | Yes |
| Number of Control | 4 |
| Temperature Setting Range | 35 to 500℃ |
| Heating Range for Plate | 35 to 500℃ |
| Heating Range for Solution | 35 to 200℃ |
| External Temperature Sensor | PT1000 |
| Heating Setting Resolution of Plate | 1℃ |
| Heating Setting Resolution of Solution | 0.1℃ |
| Temperature Stability | 1℃ |
| Heat Control Accuracy with PT1000 | +/-0.5℃ |
| Capable of Calibration on External Probe | Yes |
| Stir Bar Length Range | 25 to 60mm |
| Overheat Warning in Plate and Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP 21 |
| Power Consumption | 2500W |
| Power Supply | 200 to 240V |
| Frequency | 50/60Hz |
| Each Plate Dimension | 160mm × 160mm |
| Dimensions | 760×290×100 mm |
| Weight | 3.5kg |
Function Implementation Research laboratories 150 to 1500rpm enables precise agitation across viscosity ranges Chemical processing units 35 to 200℃ solution heating range supports reaction temperature control Quality control testing ±0.5℃ heat accuracy with PT1000 ensures measurement repeatability Industrial sample prep Four plates each handling 10L allow parallel high-volume mixing Clinical diagnostics workflows LED display with 0.1℃ resolution enables real-time monitoring during assays
Lab Expo Multi-Plate Stirrers are structured around independent drive architecture to enable simultaneous, controlled mixing across multiple workstations. This laboratory magnetic stirrer supports synchronous or asynchronous operation with precise speed regulation for varied sample conditions. Digital status display, vibration-stable build, and consistent magnetic coupling ensure reproducible stirring performance for synthesis, sample preparation, and quality control workflows.
