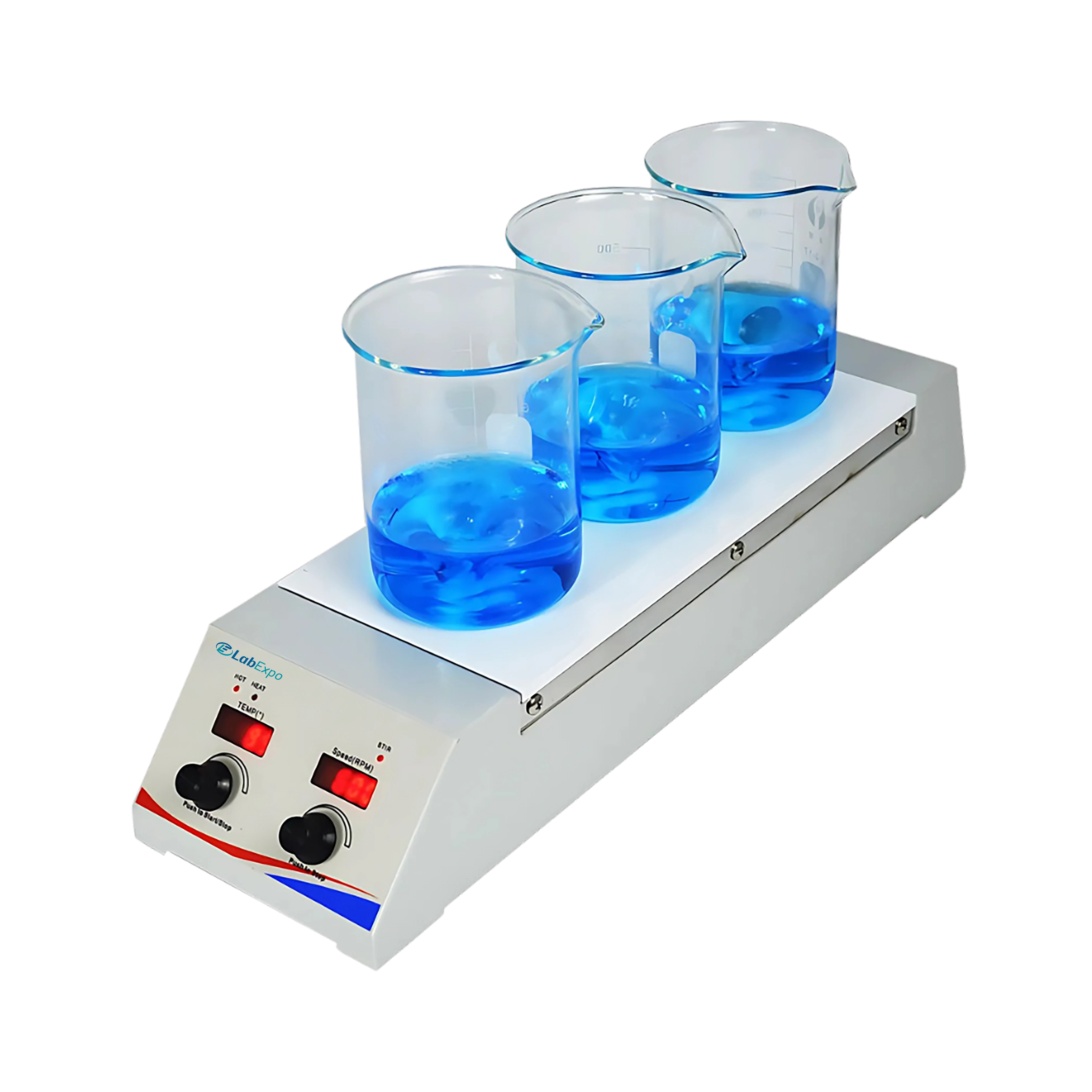

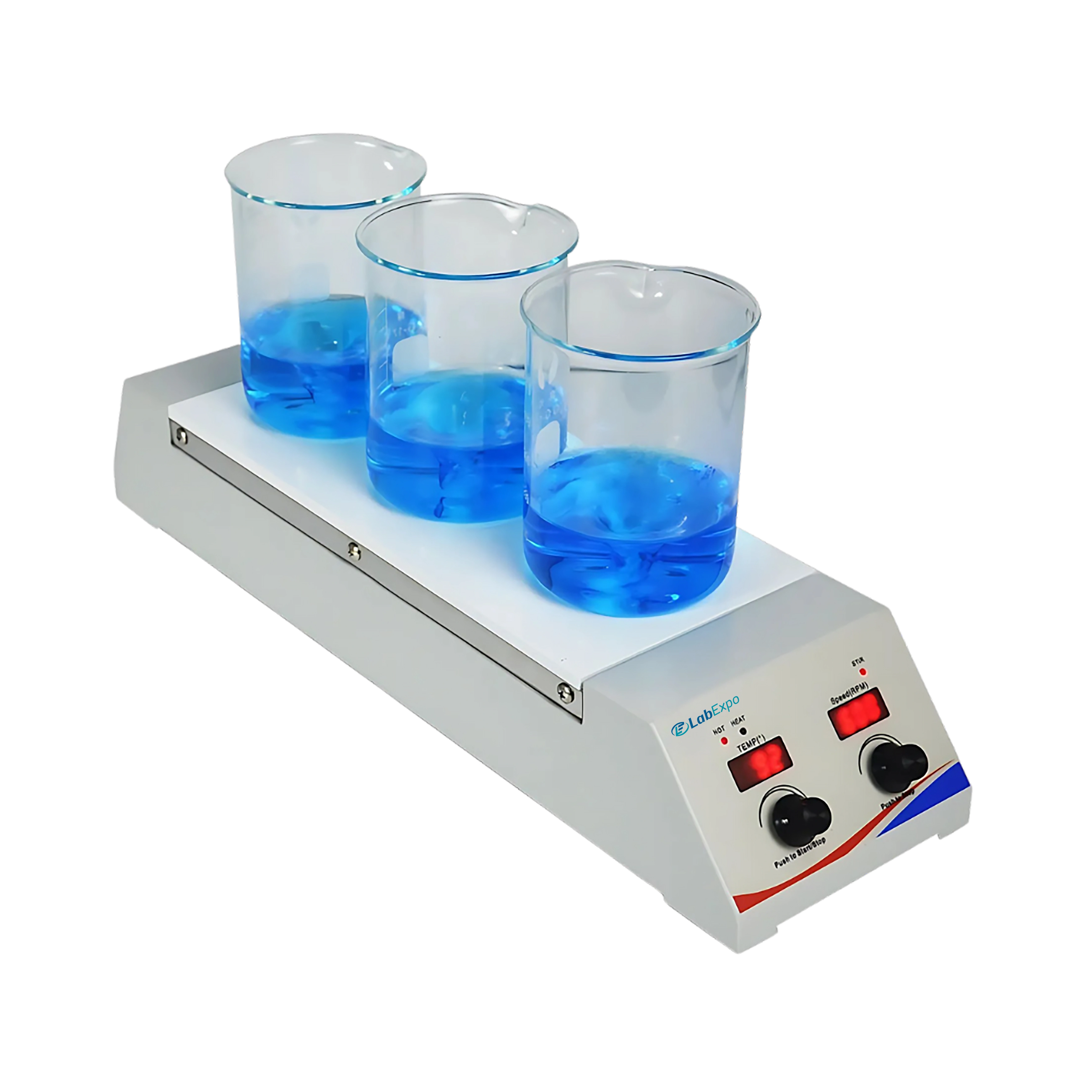

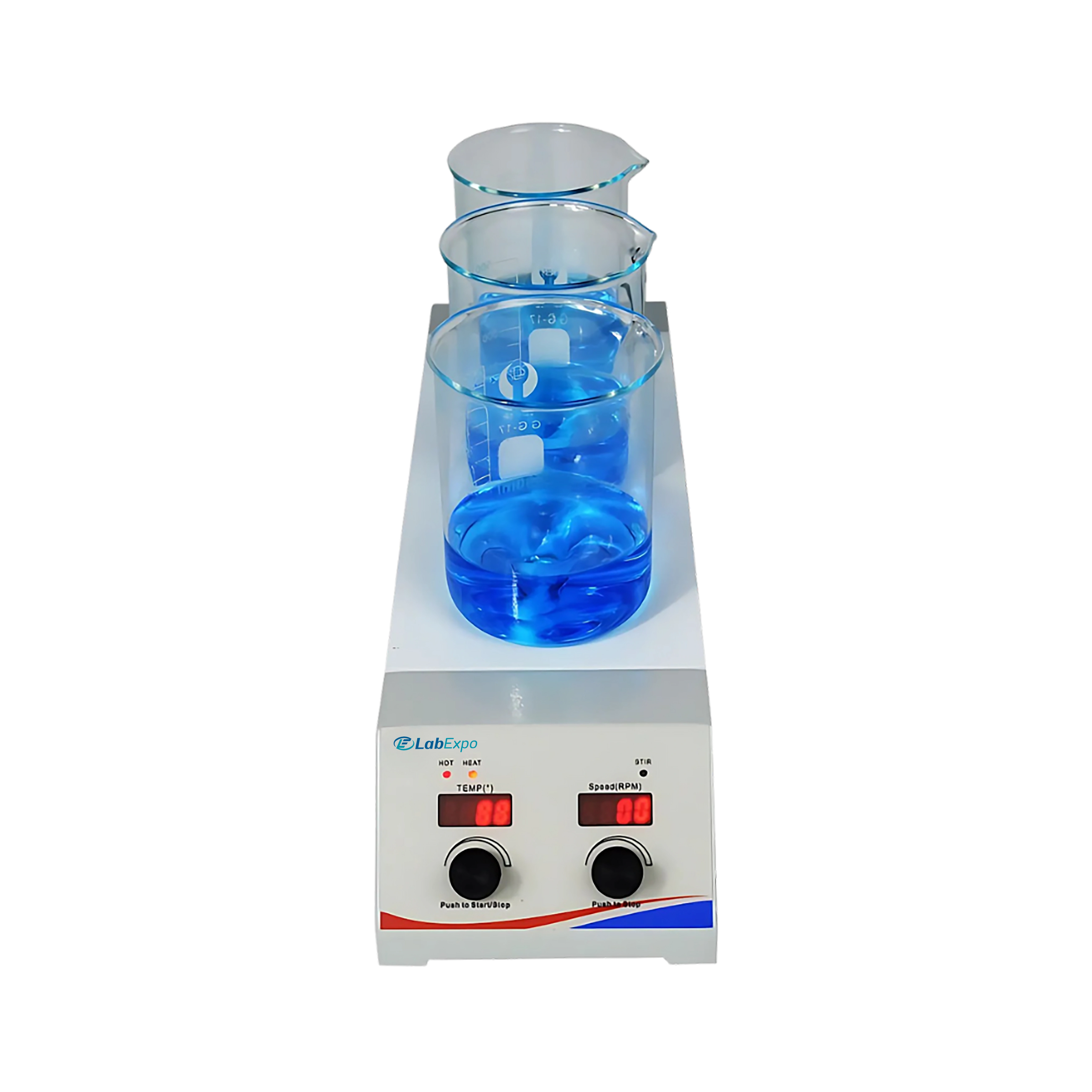

Lab Expo Multi-Position Stirrer Hotplate LE-MPH101 is designed with 3 stirring positions to enable efficient parallel sample processing. It features digital speed control for precise and reliable stirring performance. Integrated speed range of 150 to 1600 rpm ensures smooth and consistent operation. Equipped with an LED hot warning that alerts users to residual surface heat. Our Multi-Position Stirrer Hotplate is ideal for simultaneous stirring and heating of multiple samples in research, quality control, and academic laboratories.
$1,766.00 $ 1472
| Number of Stirring Positions | 3 |
| Maximum Stirring Quantity per Position | 1 L (H₂O) |
| Speed Range | 150 to 1600 rpm |
| Speed Control | 1 rpm/step |
| Heating Temperature Range | Room Temperature 120°C |
| Plate Material | Ceramic Coated Aluminum |
| Hot Warning | LED |
| Stirring Bar Length | 25 to 35 mm |
| Stirring Position Distance | 100 mm |
| Chemical Resistant | Yes |
| Operation Temperature | 5℃ to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Heat Output | 300 W |
| Power Consumption | 180 W |
| Power Supply | 115 to 230 V |
| Frequency | 50/60Hz |
| Plate Dimensions | 130 × 300 mm |
| Dimensions | 450 × 135 × 86 mm |
| Weight | 3.2 Kg |
Function Implementation Quality control labs 150 to 1600 rpm enables consistent sample mixing across multiple positions Research laboratories Ceramic coated aluminum plate provides uniform heating for parallel sample processing Clinical testing facilities IP42 protection supports safe operation in humid environments up to 80% RH Industrial QA settings 3 stirring positions allow simultaneous processing of up to 3 L (H₂O) per run Educational institutions LED hot warning alerts users to residual surface heat after operation
Lab Expo Multi-Position Stirrer Hotplates are designed around synchronized heating and magnetic drive systems to support parallel sample processing. This hot plate and magnetic stirrer enables uniform temperature control and consistent agitation across multiple positions. Fast thermal response, stable stirring synchronization, and durable build ensure repeatable heating and mixing for chemical synthesis, microbiology, quality testing, and routine laboratory workflows.
