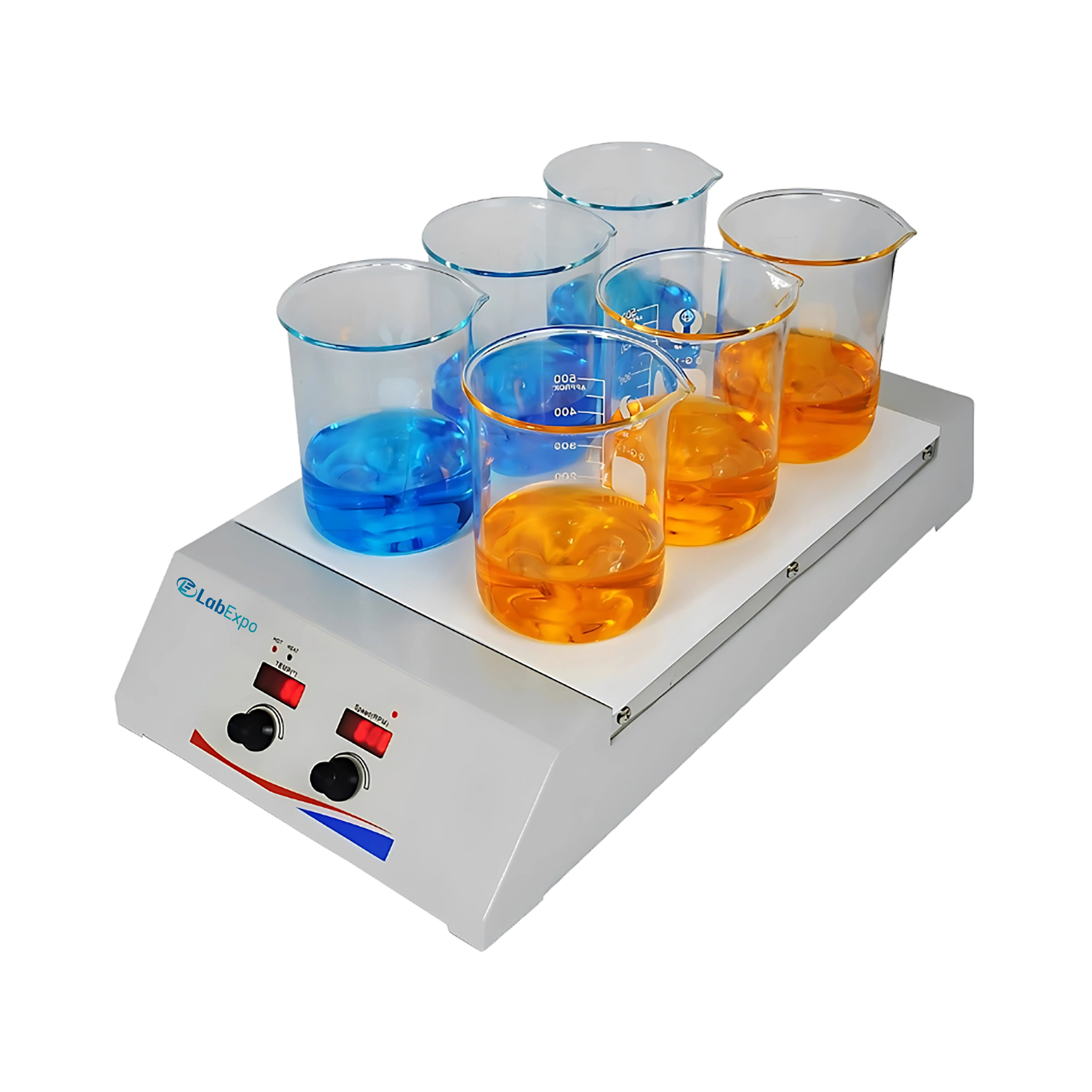

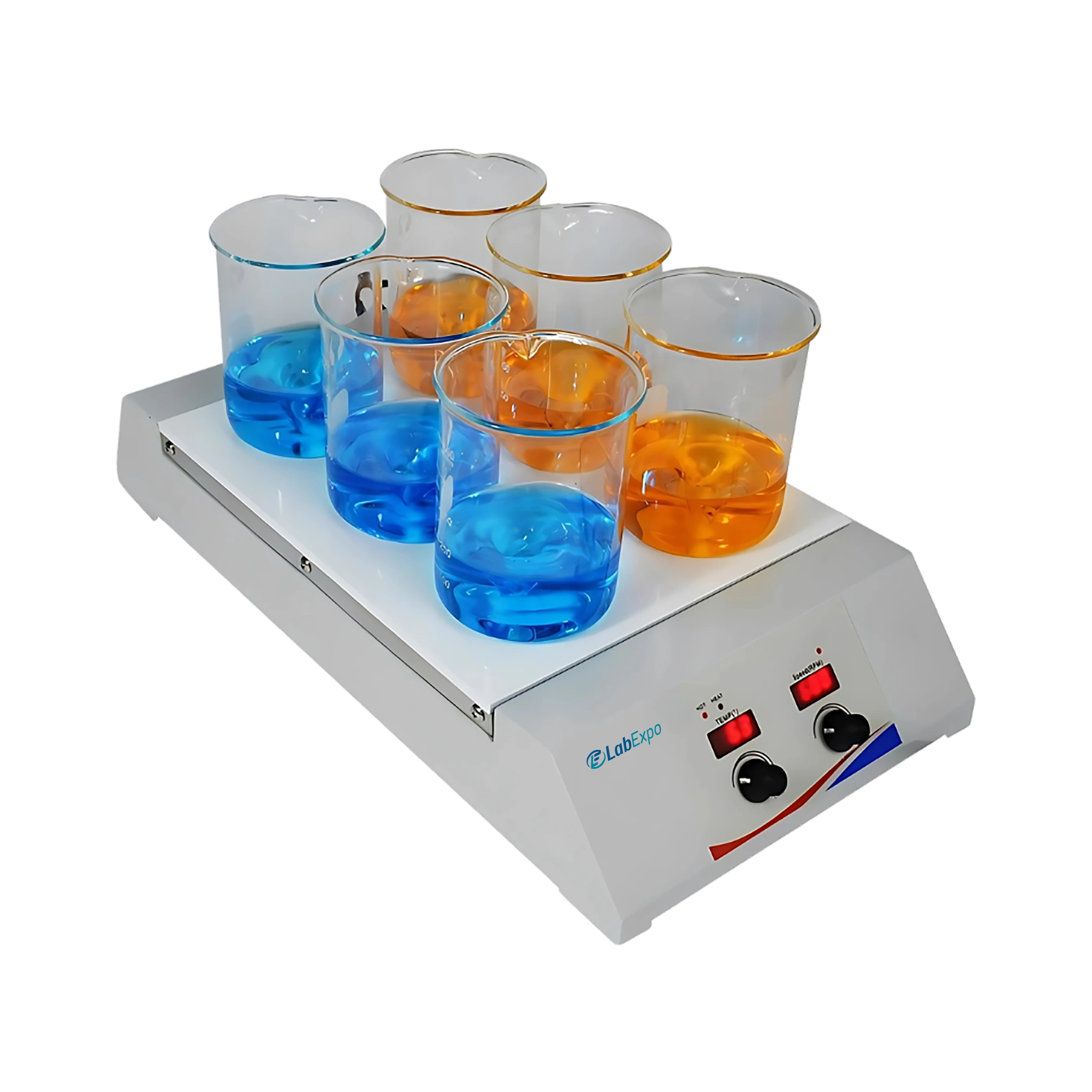

Lab Expo Multi-Position Stirrer Hotplate LE-MPH103 offers 6 stirring positions to support efficient handling of multiple samples at the same time. It provides a stirring position distance of 100 mm to ensure stable and uniform sample placement. Built-in ceramic-coated plate ensures efficient heat transfer and easy cleaning. Incorporated with a heating temperature range from room temperature to 120°C for controlled and consistent sample heating. Our Multi-Position Stirrer Hotplate is suitable for stirring and heating in research and laboratories.
$2,054.00 $ 1712
| Number of Stirring Positions | 6 |
| Maximum Stirring Quantity per Position | 1 L (H₂O) |
| Speed Range | 150 to 1600 rpm |
| Speed Control | 1 rpm/step |
| Heating Temperature Range | Room Temperature 120°C |
| Plate Material | Ceramic Coated Aluminum |
| Hot Warning | LED |
| Stirring Bar Length | 25 to 35 mm |
| Stirring Position Distance | 100 mm |
| Chemical Resistant | Yes |
| Operation Temperature | 5℃ to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Heat Output | 300 W |
| Power Consumption | 360 W |
| Power Supply | 115 to 230 V |
| Frequency | 50/60Hz |
| Plate Dimensions | 240 × 300 mm |
| Dimensions | 450 × 245 × 86 mm |
| Weight | 5.6 Kg |
Function Implementation Quality control labs 300 W heats samples to 120°C for consistent thermal processing Clinical sample prep 6 positions at 100 mm spacing enables parallel sample handling Research laboratories 150-1600 rpm range supports variable agitation protocols Industrial testing facilities IP42 protection resists moisture ingress during operation Educational institutions Ceramic-coated plate allows safe heating of aqueous solutions up to 1 L
Lab Expo Multi-Position Stirrer Hotplates are designed around synchronized heating and magnetic drive systems to support parallel sample processing. This hot plate and magnetic stirrer enables uniform temperature control and consistent agitation across multiple positions. Fast thermal response, stable stirring synchronization, and durable build ensure repeatable heating and mixing for chemical synthesis, microbiology, quality testing, and routine laboratory workflows.
