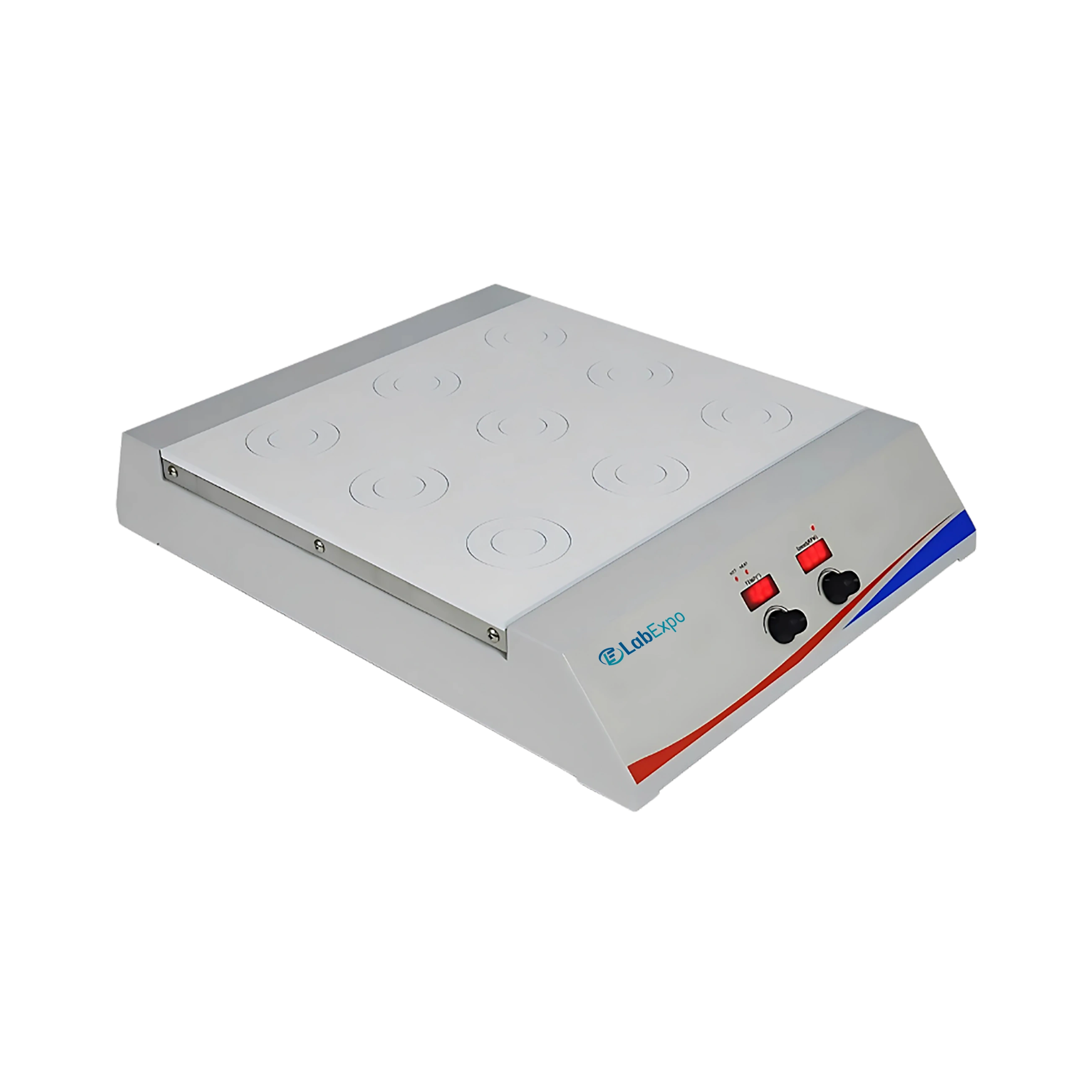

Lab Expo Multi-Position Stirrer Hotplate LE-MPH104 delivers 9 stirring positions to facilitate simultaneous processing of multiple samples efficiently. It ensures a speed range of 150 to 1600 rpm for reliable sample mixing. Integrated compact design allows easy placement and efficient use of space. Equipped with digital speed control for accurate and consistent stirring operations. Our Multi-Position Stirrer Hotplate is ideal for chemical, biological, and academic laboratories.
$2,342.00 $ 1952
| Number of Stirring Positions | 9 |
| Maximum Stirring Quantity per Position | 1 L (H₂O) |
| Speed Range | 150 to 1600 rpm |
| Speed Control | 1 rpm/step |
| Heating Temperature Range | Room Temperature 120°C |
| Plate Material | Ceramic Coated Aluminum |
| Hot Warning | LED |
| Stirring Bar Length | 25 to 35 mm |
| Stirring Position Distance | 100 mm |
| Chemical Resistant | Yes |
| Operation Temperature | 5℃ to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to | IP42 |
| Heat Output | 450 W |
| Power Consumption | 540 W |
| Power Supply | 115 to 230 V |
| Frequency | 50/60Hz |
| Plate Dimensions | 350 × 300 mm |
| Dimensions | 450 × 355 × 86 mm |
| Weight | 8 Kg |
Function Implementation Sample processing labs 9 stirring positions enable simultaneous multi-sample handling Chemical analysis workflows Ceramic coated aluminum plate resists corrosion during reagent mixing Biological research settings Speed range of 150 to 1600 rpm supports varied viscosity sample agitation Academic laboratory use IP42 protection class allows safe operation in humid environments up to 80% RH Industrial quality control Maximum stirring quantity of 1 L per position accommodates standard test volumes
Lab Expo Multi-Position Stirrer Hotplates are designed around synchronized heating and magnetic drive systems to support parallel sample processing. This hot plate and magnetic stirrer enables uniform temperature control and consistent agitation across multiple positions. Fast thermal response, stable stirring synchronization, and durable build ensure repeatable heating and mixing for chemical synthesis, microbiology, quality testing, and routine laboratory workflows.
