Multi-Position Stirrer Hotplate LE-MPH201

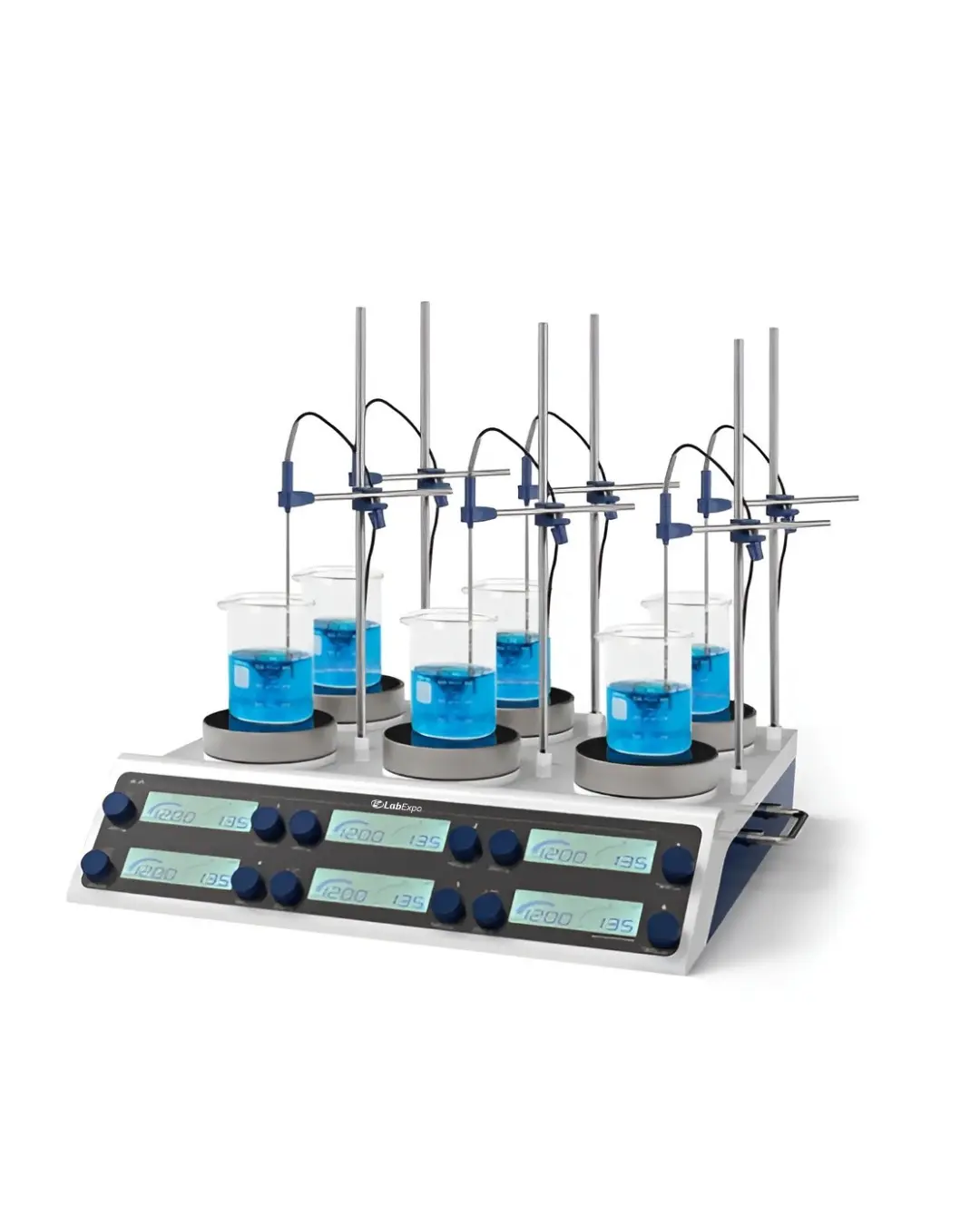

Multi-Position Stirrer Hotplate LE-MPH201
Model: LE-MPH201

Lab Expo Multi-Position Stirrer Hotplate LE-MPH201 offers a maximum temperature setting of 450 °C for efficient heating performance. It utilizes advanced infrared heating technology to deliver rapid operation. Equipped with 3 temperature control levels, allowing precise adjustment. Built with a durable ceramic glass plate for uniform temperature distribution. Our Stirrer Hotplate is a reliable choice for a wide range of laboratory applications.

$5,345.00 $ 4454

Multi-Position Stirrer Hotplate LE-MPH201 - Specifications

Maximum Temperature Setting 450 °C
Maximum Temperature with E-sensor 300 °C
Temperature Stability with E-sensor ±1 °C (measured with 500 ml water at 80 °C)
Safety Temperature 50 to 500 °C adjustable
High Temperature Protection 10 to 50 °C adjustable
Heat Output (each position/set) 500 W / 3000 W
External Temperature Sensor PT100
Temperature Control Levels 3
Speed Setting Range 100 to 1500 rpm
Stirring Quantity (max, H₂O) 20 L
Display / Control Independent LCD Digital Display & Knob Operation
Time Setting 1 to 999 min / continuous
Top Plate Material Ceramic Glass
Top Plate Dimensions Ø135 mm
Communication Interface USB-A
Power Supply 220 V / 50 Hz
Dimensions 582 × 473 × 138 mm
Weight 23.8 kg

Multi-Position Stirrer Hotplate LE-MPH201 - Key Features

  • Digital LCD display with real-time temperature monitoring
  • Independent knob operation for precise speed adjustment
  • External PT100 temperature sensor input supported
  • Anti-corrosion ceramic glass control panel surface
  • USB-A communication interface for data transfer

Multi-Position Stirrer Hotplate LE-MPH201 - Applications

FunctionImplementation
Quality control labs±1 °C stability supports repeatable analytical testing
Clinical diagnostics20 L max stirring volume enables high-throughput sample processing
Research institutions450 °C maximum temperature facilitates diverse chemical reactions
Industrial testing300 W heat output per position allows precise thermal management
Pharmaceutical developmentUSB-A interface enables external data logging for compliance records

Multi-Position Stirrer Hotplate LE-MPH201 - Spare Parts

(5) magnetic stirring bar 25 × 9 mm

Multi-Position Stirrer Hotplate LE-MPH201 - Catalog

Multi-Position Stirrer Hotplate LE-MPH201 Catalog

Related Multi-Position Stirrer Hotplate

Lab Expo Multi-Position Stirrer Hotplates are designed around synchronized heating and magnetic drive systems to support parallel sample processing. This hot plate and magnetic stirrer enables uniform temperature control and consistent agitation across multiple positions. Fast thermal response, stable stirring synchronization, and durable build ensure repeatable heating and mixing for chemical synthesis, microbiology, quality testing, and routine laboratory workflows.
