Viewing Head |
Sliding type binocular head, inclined at 45° (5 pcs)
|
Eyepiece |
Wide field eyepiece WF10X (10 pcs)
|
Focusing |
Coaxial coarse & fine focus adjustment, fine division 0.002 mm
|
Objective |
Achromatic objective 4x, 10x, 40x(s), 100x(s,oil)
|
Stage |
Double layer mechanical stage: 140×140 mm
Moving stage: 75×50 mm
|
Illumination |
S-LED Illumination, brightness adjustable
|
Nosepiece |
Quadruple nosepiece
|
Pointer |
Green LED pointer,
brightness adjustable
|
Dimension |
670×570×470 mm
|
Net weight |
15 kg
|
Gross weight |
16.5 kg
|
- ✔ Sliding type binocular head inclined at 45°
- ✔ S-LED illumination source
- ✔
Achromatic objectives 4x, 10x, 40x(s), 100x(s, oil)
- ✔
Quadruple nosepiece
- ✔ Green LED pointer with adjustable brightness
- ✔
Wide field eyepiece WF10X (10 pcs)
Illumination outfit: Halogen lamp
24V/50W or 100W

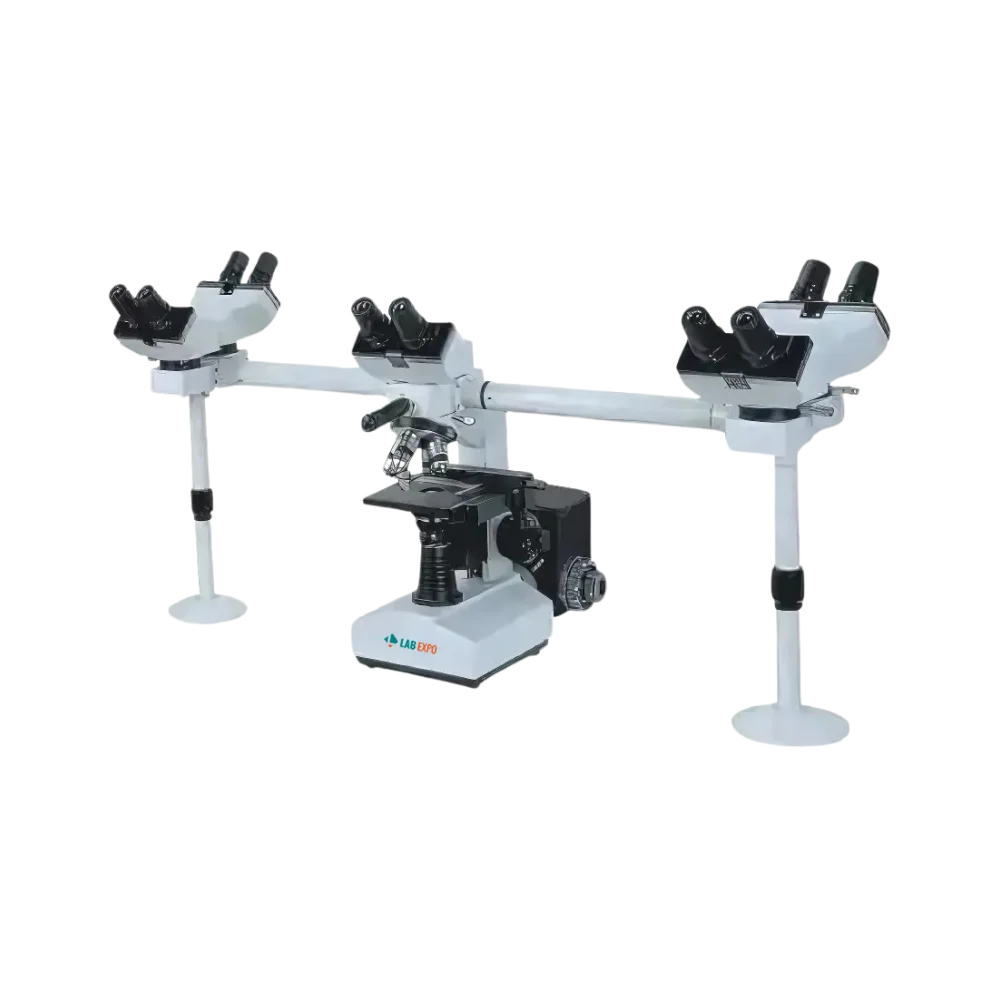

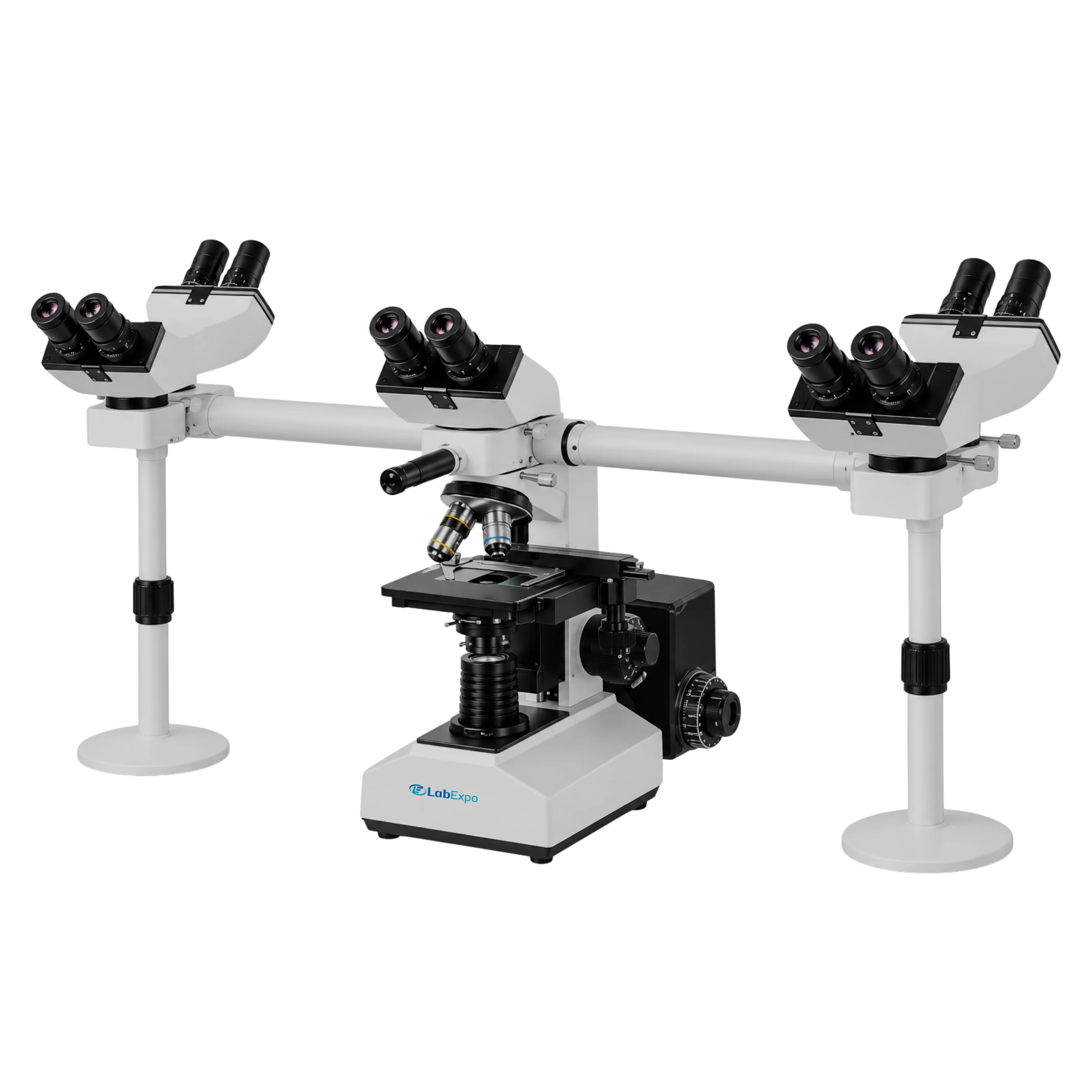

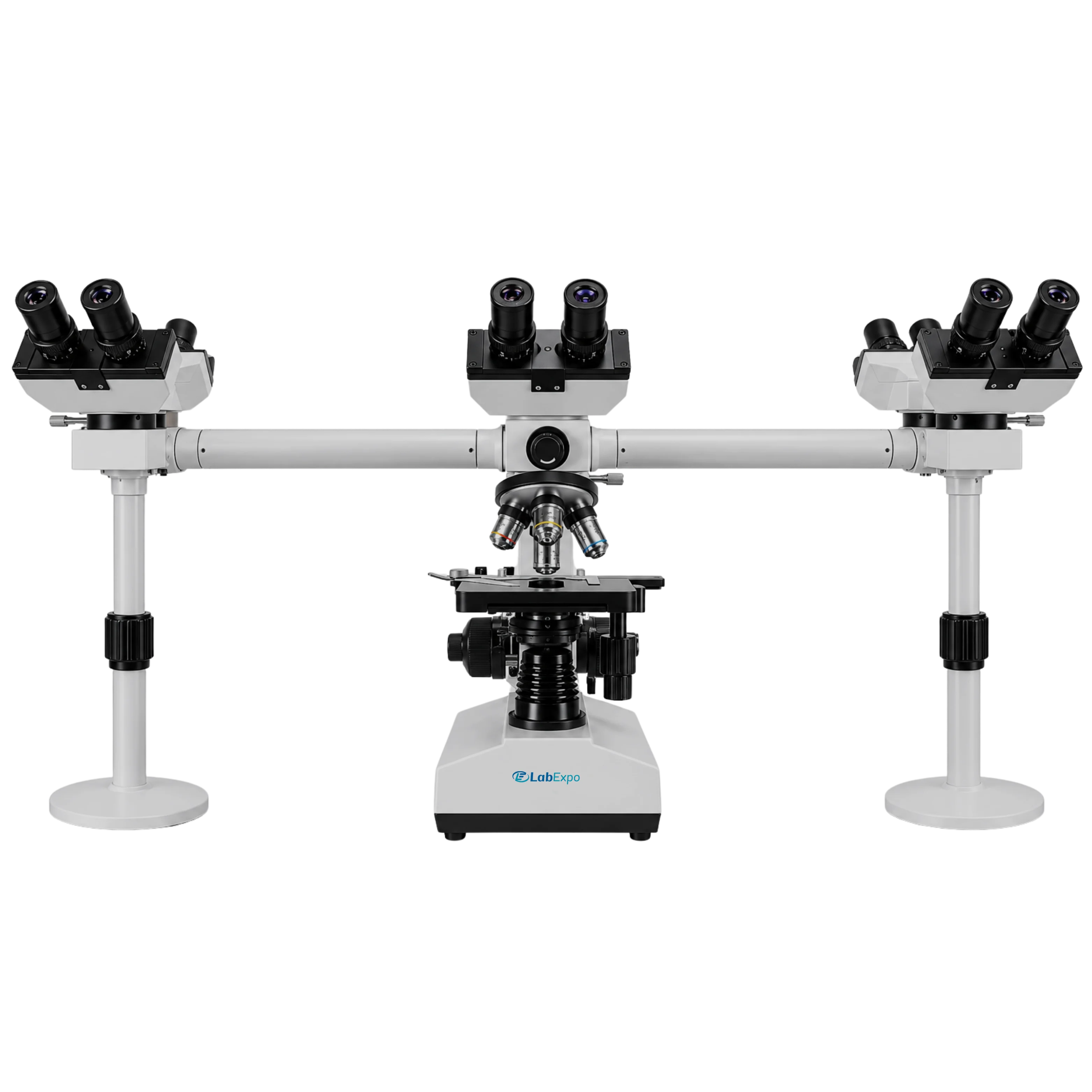

This Multi-viewing biological microscope has wide applications in pathology, medical diagnostic, molecular biology, and other scientific institute for demonstration & research purpose.
