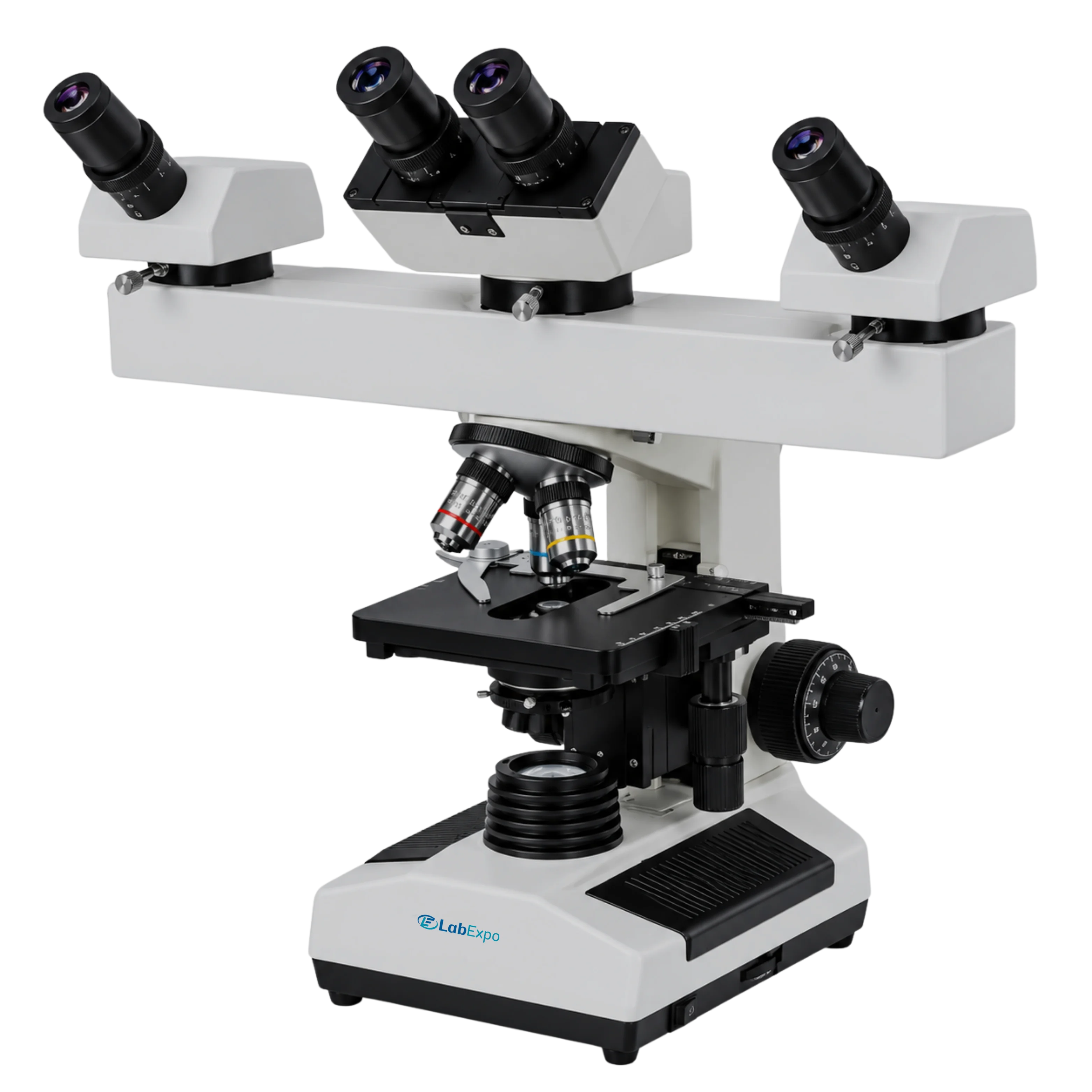

Lab Expo Multi-Viewing Biological Microscope 43-MBM101 is designed to observe one specimen by several people together at the same time. These multi-viewing microscopes has fine focusing knob adjustment for sharp and clear image of the specimen. This modular microscope has high S-LED as a source of illumination. They are suitable for demonstration & teaching purpose. They are user-friendly and highly reliable.
$2,789.00 $ 2324
| Viewing Head | Sliding type binocular head, inclined at 45° (1 pcs) Monocular head, inclined at 45º (2 pcs) |
| Eyepiece | Wide field eyepiece WF10X (4 pcs) |
| Focusing | Coaxial coarse & fine focus adjustment, fine division 0.002 mm |
| Objective | Achromatic objective 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage: 140×140 mmMoving stage: 75×50 mm |
| Illumination | S-LED Illumination, brightness adjustable |
| Nosepiece | Quadruple nosepiece |
| Dimension | 570×180×220 mm |
| Net weight | 6 kg |
| Gross weight | 8 kg |
Function Implementation Clinical labs 0.002 mm fine division supports precise focusing Educational settings WF10X eyepiece (4 pcs) enables group viewing Quality control 4x, 10x, 40x(s), 100x(s,oil) objectives allow detailed specimen analysis Research facilities S-LED illumination with adjustable brightness ensures consistent lighting Institutional use Double layer mechanical stage (140×140 mm) facilitates specimen manipulation
Illumination outfit: Halogen lamp 6V/20W
Lab Expo Multi Viewing Microscope delivers exceptional clarity and precision, making it ideal for collaborative observation in research labs, universities, and clinical environments. Equipped with adjustable objective lenses, it allows users to switch between multiple magnification levels for detailed examination of specimens. Its high-reApproach optical system ensures sharp, vivid, and distortion-free imaging, enabling accurate analysis even during prolonged use. The inclined viewing head supports comfortable multi-angle observation, reducing eye strain and enhancing user ergonomics during group discussions or teaching sessions. it a powerful tool for collaborative learning, detailed specimen study, and advanced microscopy applications.
