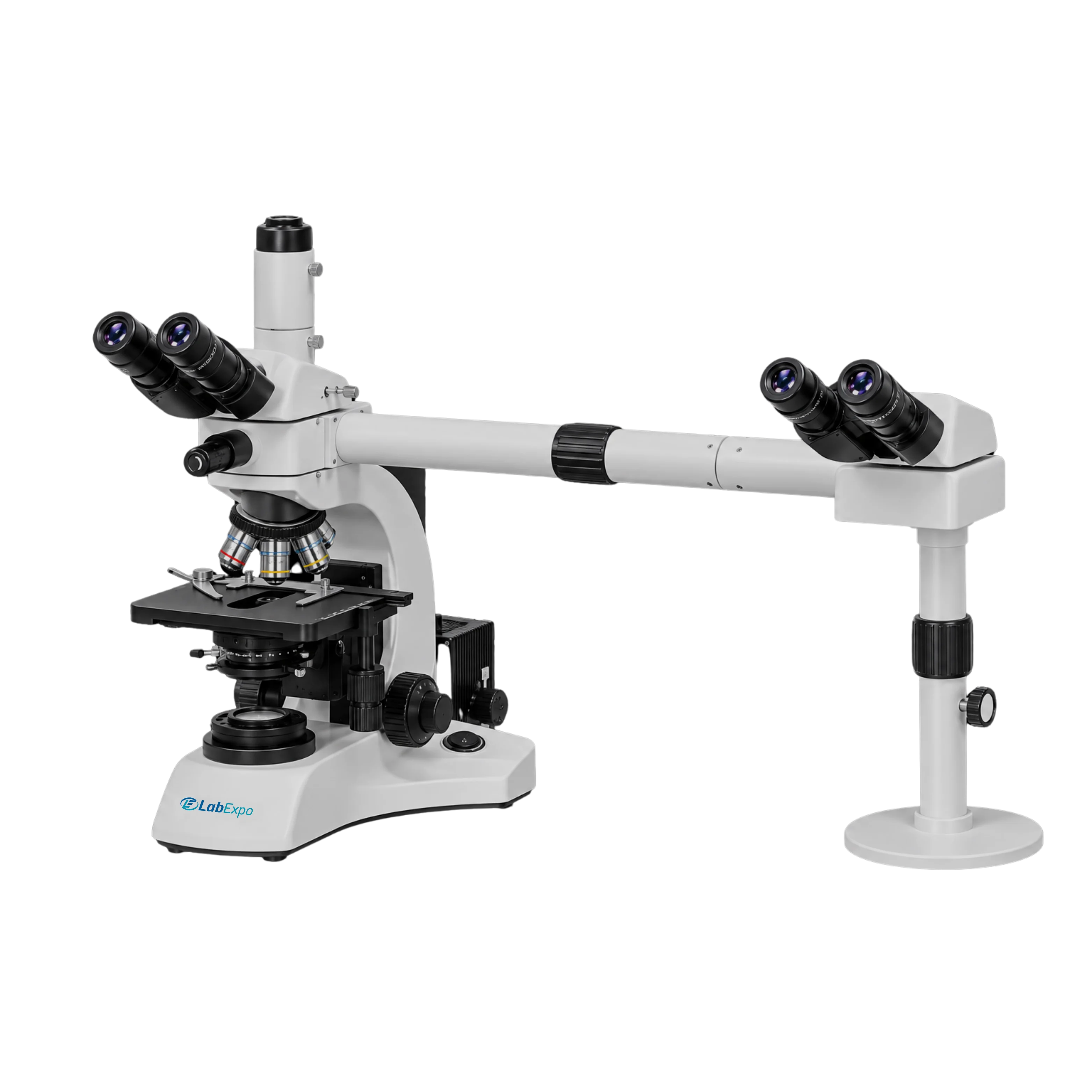

Lab Expo Multi-Viewing Biological Microscope 43-MBM201 is designed to observe single specimen by several people together at the same time. Its swing condenser, coarse and fine focusing knobs, C-mount video adaptor attachment helps in viewing sharp and clear images of the specimen studied. This user-friendly microscope is suitable for demonstration, examination and research purpose.
$6,000.00 $ 5000
| Optical system | Infinite optical system |
| Viewing Head | Compensation free trinocular head, inclined at 30°, 360° rotable, interpupillary distance 48-75 mm (1 pcs) Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-7 5 mm (2 pcs) |
| Eyepiece | Extra wide field eyepiece EW10X/20mm (6 pcs) |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.001 mm |
| Objective | Infinite plan objective 4x, 10x, 40x(s), 100x (s,oil) |
| Stage | Double layer mechanical stage: 185×142 mmMoving range: 75×55 mm |
| Condenser | Swing condenser N.A. 0.9/0.25 |
| Illumination | External kohler illumination, Halogen lamp 24V/100W |
| Nosepiece | Inverse quintuple nosepiece |
| Pointer | Green LED pointer, brightness adjustable |
| Video adaptor | C-Mount 1X, 0.5X |
| Dimension | 530×360×460 mm |
| Net weight | 12 kg |
| Gross weight | 11 kg |
Function Implementation Clinical labs 185×142 mm stage supports precise specimen positioning Research facilities 0.001 mm fine focusing enables detailed sample analysis Educational settings 360° rotatable head allows multi-user simultaneous viewing Quality control 100x oil objective provides high-magnification inspection Industrial testing Halogen lamp 24V/100W ensures consistent illumination
Dual Colour pointer, brightness adjustable
Photo attachment
Lab Expo Multi Viewing Microscope delivers exceptional clarity and precision, making it ideal for collaborative observation in research labs, universities, and clinical environments. Equipped with adjustable objective lenses, it allows users to switch between multiple magnification levels for detailed examination of specimens. Its high-reApproach optical system ensures sharp, vivid, and distortion-free imaging, enabling accurate analysis even during prolonged use. The inclined viewing head supports comfortable multi-angle observation, reducing eye strain and enhancing user ergonomics during group discussions or teaching sessions. it a powerful tool for collaborative learning, detailed specimen study, and advanced microscopy applications.
