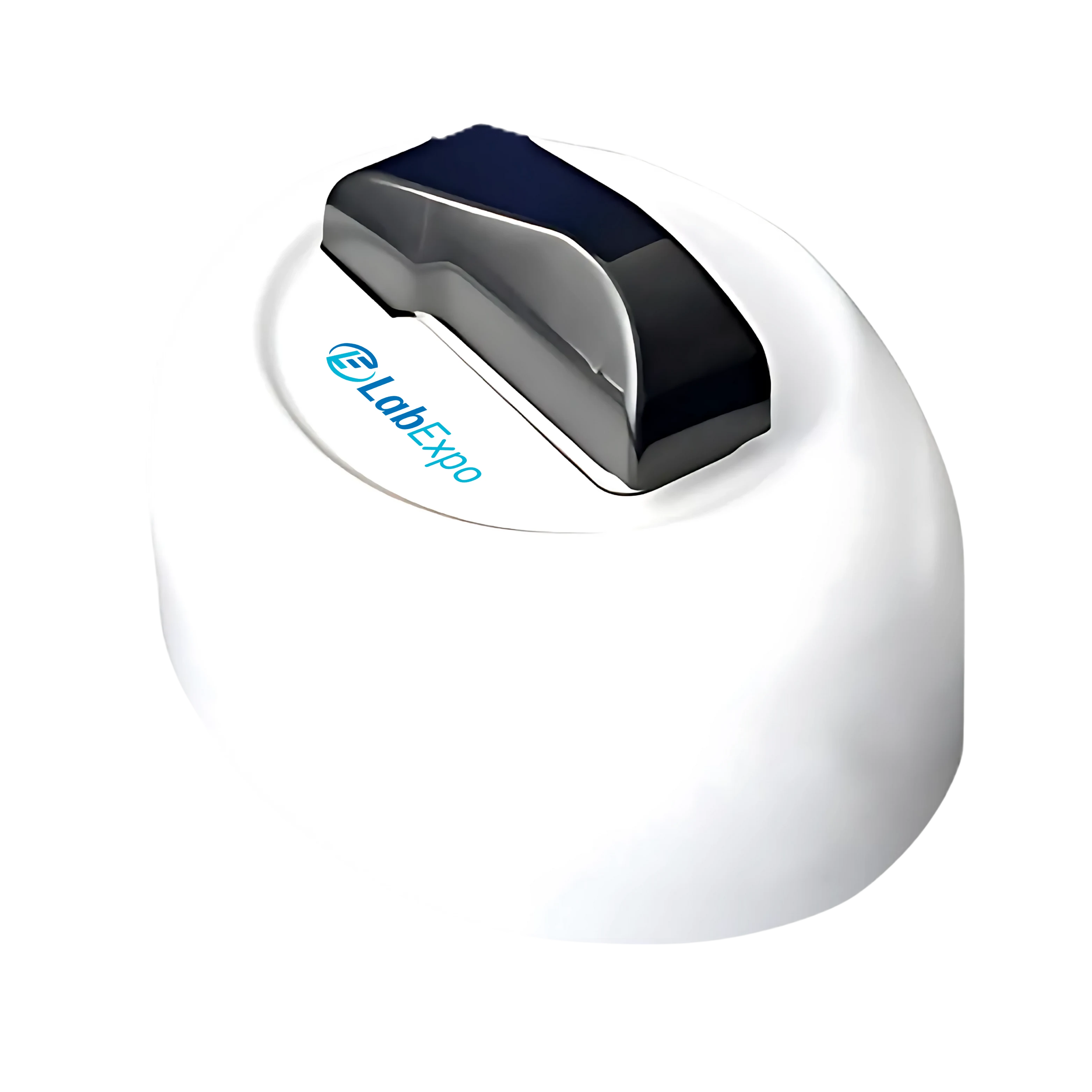

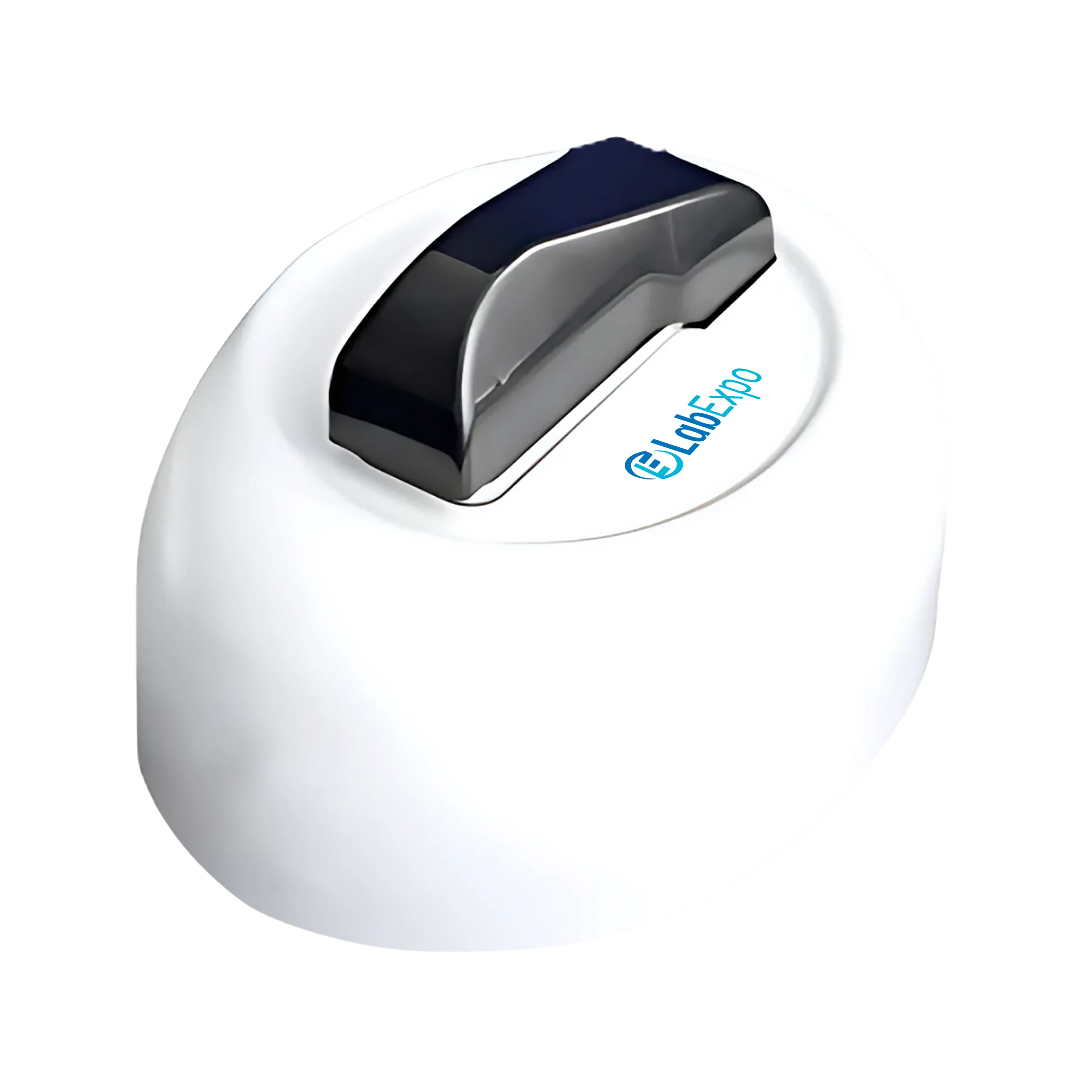

Lab Expo Nano Spectrophotometer 15A-NSP101 with full spectrum light covers a wide wavelength range of 200 to 850 nm. It requires only 0.3 - 2 µl sample for measurement which takes place within 5 seconds. It uses Xenon flash lamp as light source which has high stability and long operating life.
$13,320.00 $ 11100
| Wavelength range | 200 - 850 nm |
| Path length | 1 mm, 2 mm, 5 mm, 10 mm |
| Wavelength accuracy | ± 1 nm |
| Wavelength Resolution | 2 nm (FWHM at Hg 546 nm) |
| Minimum Sample size | 0.3 - 2.0 µl |
| Absorbance range | 0.002 ~ 75 A (150, 300 optional, 10mm equivalent absorbance) |
| Absorbance precision | 0.002 Abs |
| Absorbance accuracy | 1 % (0.76 absorbance at 350 nm) |
| Light source | Xenon flash lamp |
| Measurement time | < 5 s |
| Detector Type | 2048-element linear silicon CCD |
| Detects nucleic acid up to | 2 - 3750 ng/µL (7500,15000 optional, dsDNA) |
| Detects protein up to | 0.1 - 100 mg/mL (200,400 optional, BSA) |
| Dimension | 210 x 170 x 110 mm |
| Weight | 1.35 kg |
Function Implementation Sample-limited labs 0.3 - 2 µl minimum sample size enables micro-volume analysis Rapid testing workflows <5 s measurement time supports high-throughput screening Broad analytical range 200 - 850 nm wavelength range covers UV-Vis applications Concentrated samples Up to 75 A absorbance range handles highly concentrated nucleic acids Precise quantification ±1 nm wavelength accuracy ensures reliable peak detection
Lab Expo Nano Spectrophotometer units are designed for low-volume nucleic acid and protein analysis in molecular biology and research applications. Models support microvolume spectrophotometer testing with wavelength ranges from 190 to 900 nm, sample sizes as low as 0.3 µL, and automatic path length switching for nano photometer analysis.
