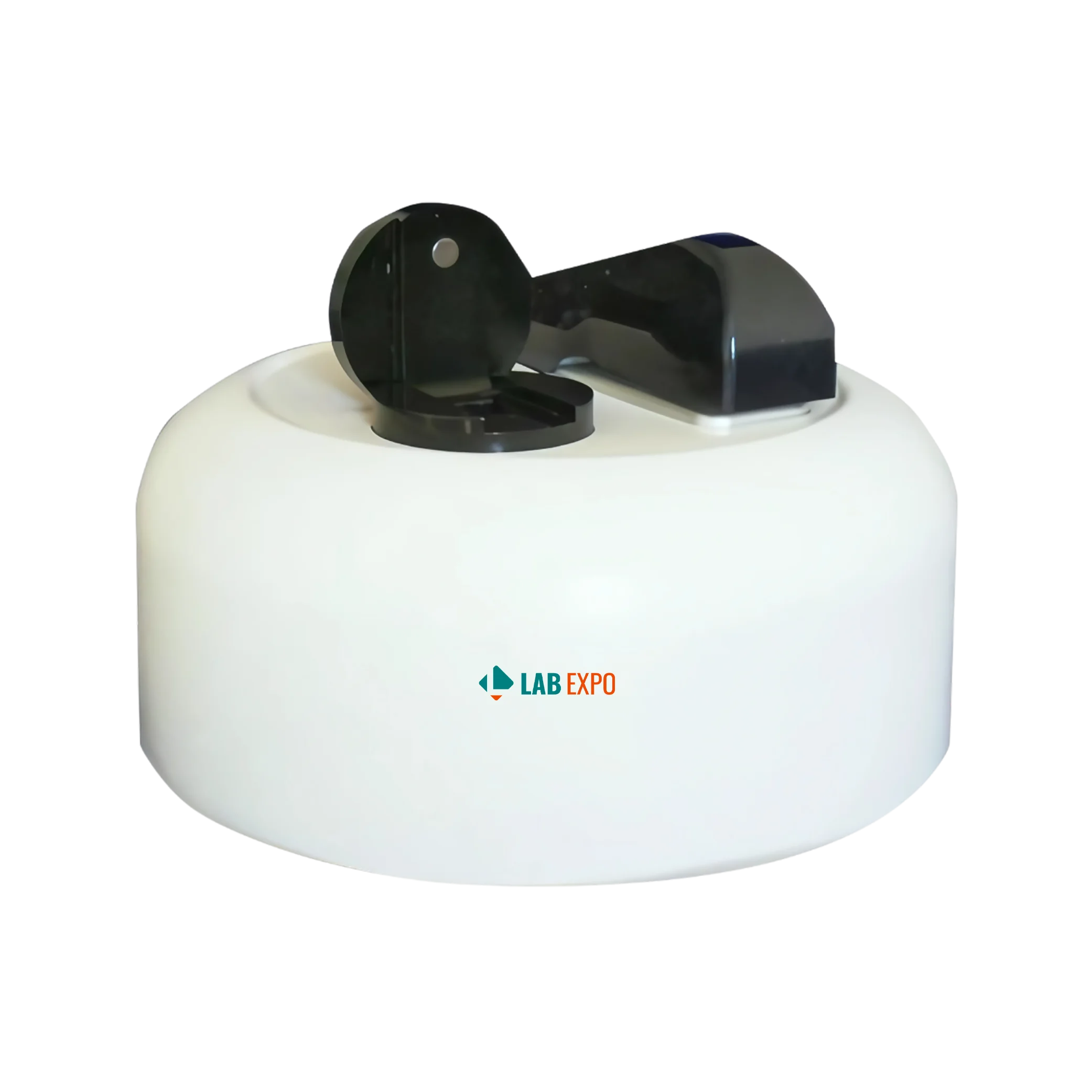

Lab Expo Nano Spectrophotometer 15A-NSP102 is micro volume UV spectrophotometer which takes measurements at 230 nm, 260 nm, 280 nm. It utilizes CCD detector, Xenon flash lamp as light source which has high stability and long operating life. They are used to detect micro volume quantities of nucleic acids and other concentrated or dilute components is specially designed to analyze the concentration of pure of nucleic acid.
$13,752.00 $ 11460
| Wavelength range | 200 to 850 nm |
| Path length | 1 mm, 2 mm, 5 mm, 10 mm |
| Wavelength accuracy | ± 1 nm |
| Wavelength Resolution | 2 nm (FWHM at Hg 546 nm) |
| Minimum Sample size | 0.3 to 2.0 µl |
| Absorbance range | 0.00 2 to 75 A (150, 300 optional, 10mm equivalent absorbance) |
| Absorbance precision | 0.002 Abs |
| Absorbance accuracy | 1 % (0.76 absorbance at 350 nm) |
| Light source | Xenon flash lamp |
| Measurement time | < 5 s |
| Detector Type | 2048-element linear silicon CCD |
| Detects nucleic acid up to | 4 to 3750 ng/µL (7500,15000 optional, dsDNA) |
| Detects protein up to | 0.01 to 100 mg/mL (200, 400 optional, BSA) |
| Dimension | 240 x 210 x 110 mm |
| Weight | 1.92 kg |
Function Implementation Nucleic acid analysis 4 to 3750 ng/µL dsDNA detection enables precise quantification Protein concentration 0.01 to 100 mg/mL range supports accurate assay results Micro-volume testing Minimum sample size of 0.3 µl facilitates limited specimen use Rapid screening workflows Measurement time under 5 seconds accelerates throughput Wavelength-specific assays ±1 nm accuracy ensures reliable peak identification
Lab Expo Nano Spectrophotometer units are designed for low-volume nucleic acid and protein analysis in molecular biology and research applications. Models support microvolume spectrophotometer testing with wavelength ranges from 190 to 900 nm, sample sizes as low as 0.3 µL, and automatic path length switching for nano photometer analysis.
