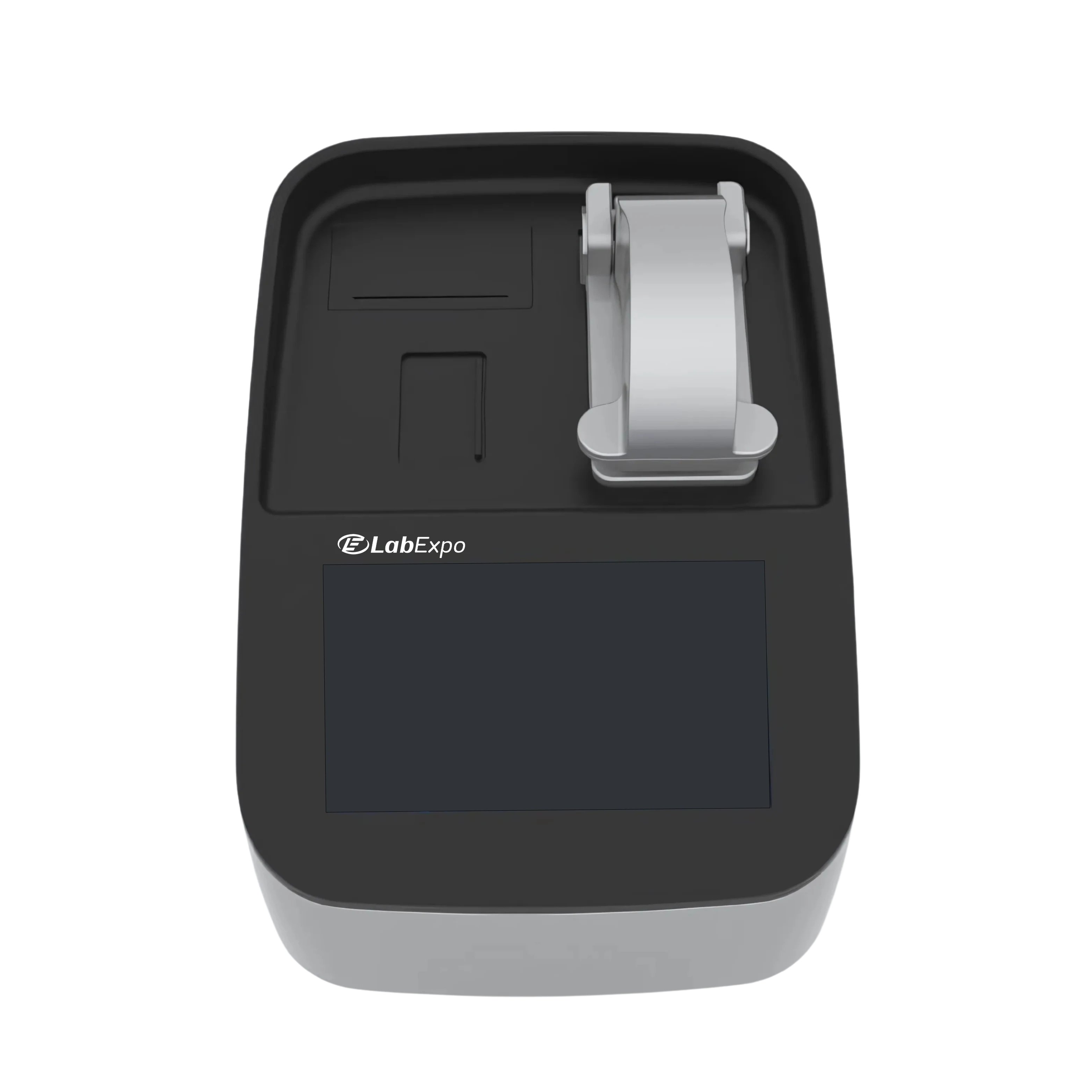

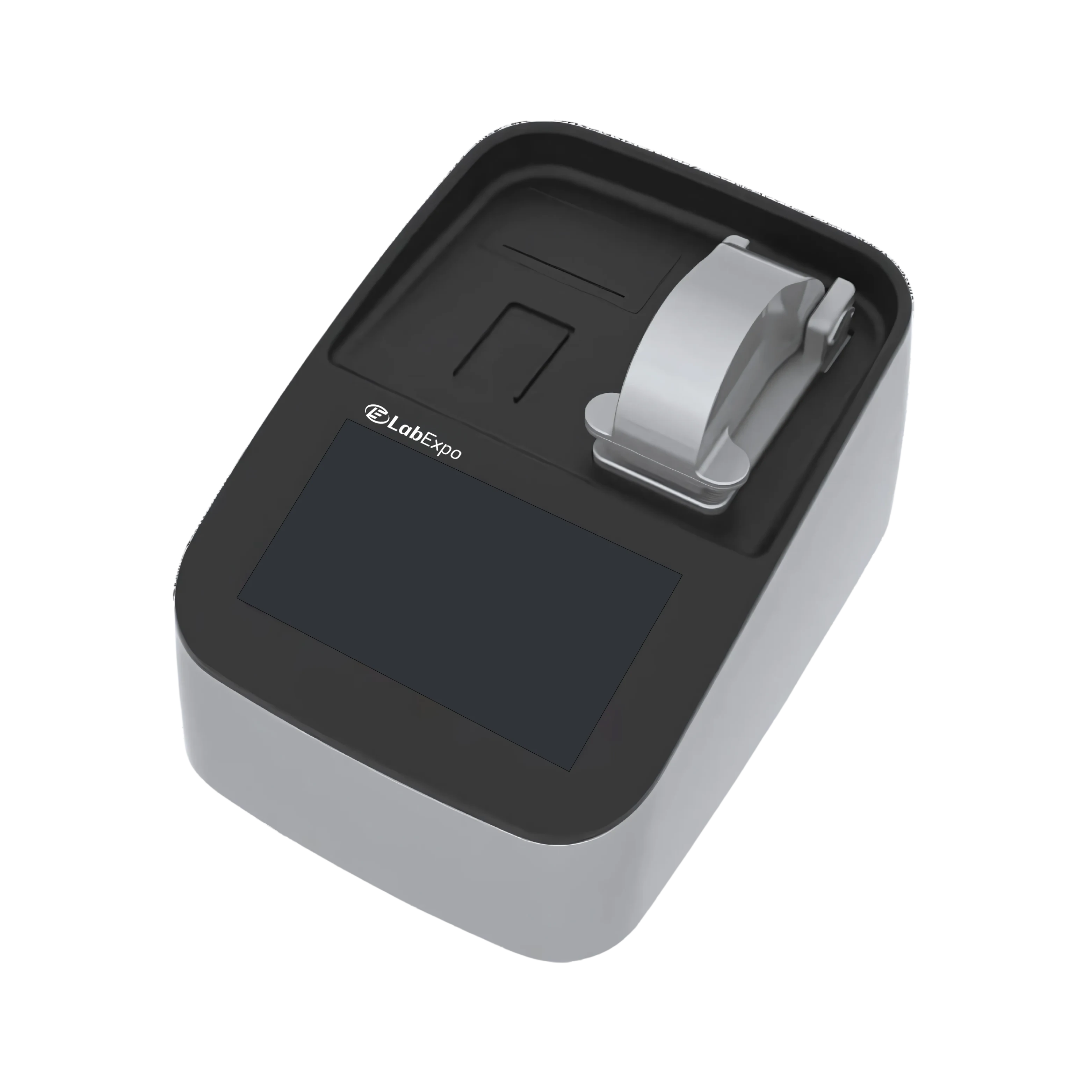

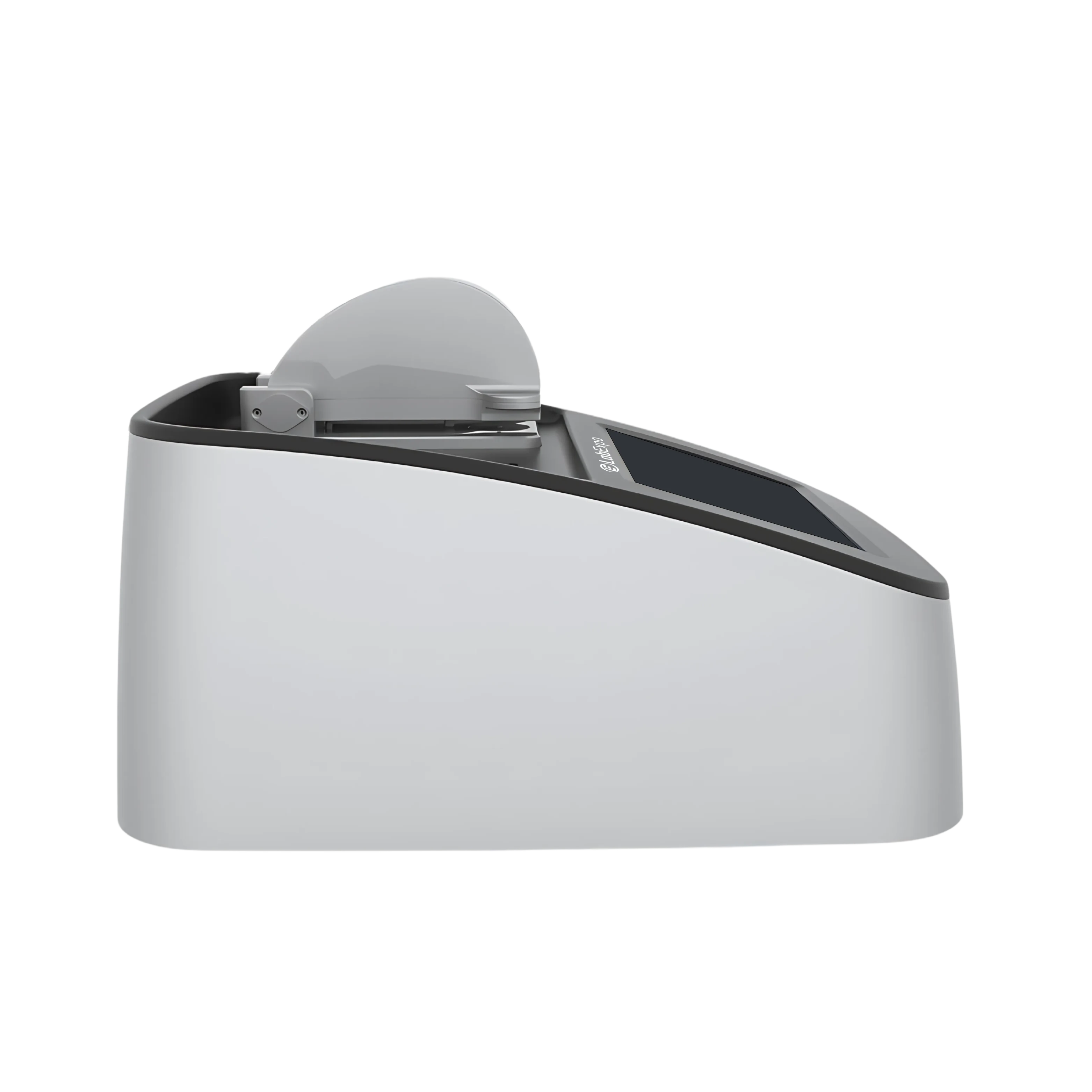

Lab Expo Nano Spectrophotometer 15A-NSP200 offers a wavelength range of 190 to 900 nm, enabling comprehensive analysis across a wide array of samples. It requires a minimum sample size of just 0.5 µL, making it ideal for microscale testing. Its two-in-one functionality supports the measurement of cell growth density, including bacteria, yeast, and other microorganisms. Our Spectrophotometer is designed with a compact size and lightweight build, ideal for on-site testing and convenient field use.
$11,981.00 $ 9984
| Wavelength Range | 190 to 900 nm |
| Minimum Sample Size | 0.5 µL |
| Optical Distance | 0.02 / 0.02 / 0.1 / 0.5 / 1 mm (Five detection light paths, automatic switching) |
| Wavelength Accuracy | 1 nm |
| Wavelength Resolution | 1 nm |
| Absorbance Accuracy | ±1% (0.76 at 260 nm) |
| Absorbance Resolution | 0.002 Abs (at 1 mm optical distance) |
| Absorbance Range | 0 to 750 Abs (10 mm equivalent) |
| OD 600 Absorbance Range | 0 to 4.000 Abs |
| OD 600 Absorbance Stability | (0, 3) ≤ 0.5%, [3, 4] ≤ 2% |
| OD 600 Absorbance Repeatability | (0, 3) ≤ 0.5%, [3, 4] ≤ 2% |
| Nucleic Acid Detection Range | 1.5 to 3750 ng/µL (dsDNA), Lower limit 1.5 ng/µL |
| Protein Detection Range | 0.05 to 1110 mg/mL (BSA), 0.03-540 mg/mL (IgG) |
| Sample Pedestal Material | 304 Stainless Steel and Quartz |
| Measurement Time | |
| Detector | 2048 unit cmos linear array sensor |
| Light Source | Xenon flash lamp |
| Plugs | Three/Two PIN plug |
| Peculiarity | The principle of the fixed optical path, a lifetime without correction, can detect volatile solvent samples |
| Power Supply | 110V to 220V, 50 to 60Hz |
| Dimensions (W×D×H) | 310×221×176 mm |
| Packaging Dimensions (L×W×H) | 320×380×330 mm |
| Net Weight | 5.2 kg |
| Gross Weight | 9 kg |
Function Implementation Nucleic acid analysis 1.5 to 3750 ng/µL dsDNA range enables precise quantification Protein concentration assay 0.05 to 1110 mg/mL BSA range supports accurate measurement Microvolume sampling Minimum sample size of 0.5 µL allows low-volume testing OD600 monitoring for cell growth OD600 absorbance range of 0 to 4.00 Abs tracks microbial proliferation Rapid wavelength scanning Measurement time under five seconds facilitates high-throughput screening
Item | Quantity |
Photometer Main Unit | 1 set |
Power Adapter | 1 set |
Power Line | 1 Pc |
Quartz Cuvette / 10mm | 1 set |
Lab Expo Nano Spectrophotometer units are designed for low-volume nucleic acid and protein analysis in molecular biology and research applications. Models support microvolume spectrophotometer testing with wavelength ranges from 190 to 900 nm, sample sizes as low as 0.3 µL, and automatic path length switching for nano photometer analysis.
