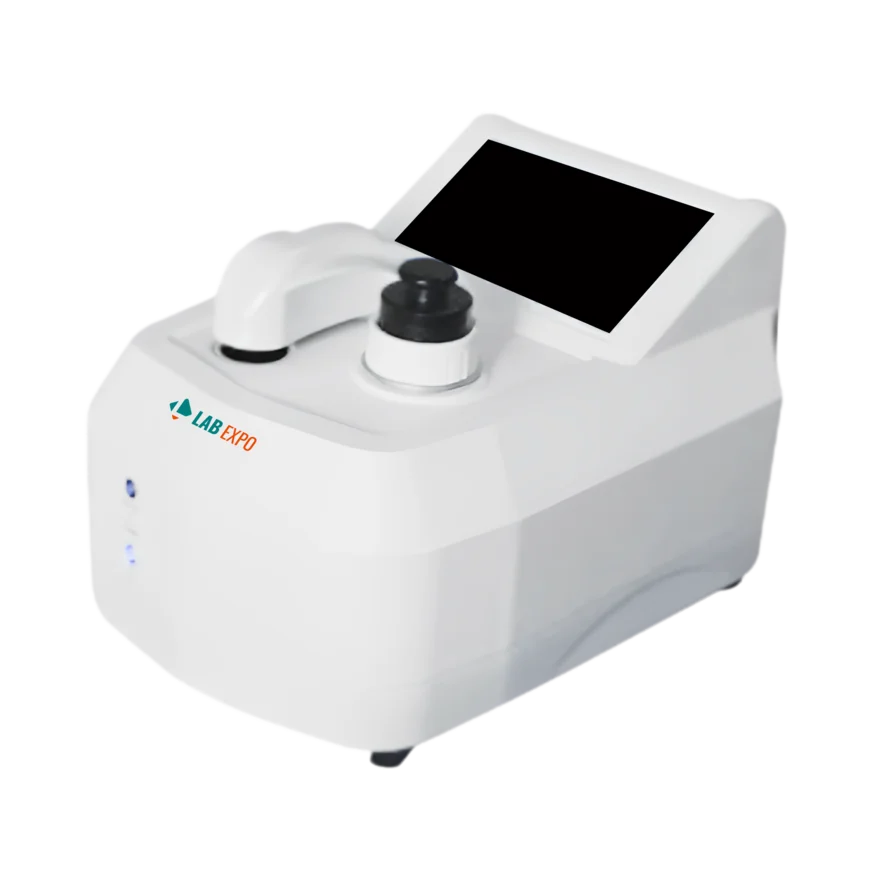

Lab Expo Nano Spectrophotometer 15A-NSP301 with full spectrum covers a wide wavelength range of 190 to 850 nm. It requires only 0.3 - 2 µl sample for measurement which takes place within 5 seconds. It uses Xenon flash lamp as light source which has high stability and long operating life. It can be connected to mouse, printer, and other wireless card devices for multiple operations.
$9,936.00 $ 8280
| Cuvette | Yes |
| PC | Inbuilt |
| Wavelength range | 190 to 850 nm |
| Path length | 1 mm, 0.2 mm ,0.04 mm |
| Wavelength accuracy | ± 1 nm |
| Wavelength Resolution | 2 nm (FWHM at Hg 546 nm) |
| Path length of cuvette | 1 mm/2 mm/5 mm/10 mm |
| Minimum Sample size | 0.3 to 2.0 µl |
| Absorbance range | 0.002 to 75 A (150,300 optional, 10 mm equivalent absorbance) |
| Precision of wavelength | ± 1 nm |
| Absorbance precision | 0.002 to 400 Abs (10 mm) |
| Absorbance accuracy | 1 % (0.76 absorbance at 350 nm) |
| Light source | Xenon flash lamp |
| Measurement time | < 5 s |
| Sample Pedestal Material | Stainless steel and quartz fiber |
| Detector Type | 2048-element linear silicon CCD |
| Screen | Color LCD Touchscreen display |
| Software Compatibility | Win7 (64-bit operating system)/Win 8 |
| Detects nucleic acid up to | 0.4 to 19000 ng/µL (dsDNA) |
| Detects protein up to | 0.01 to 400 mg/mL (BSA) |
| Dimension | 350 x 240 x 220 mm |
| Weight | 5.2 kg |
Function Implementation Nucleic acid analysis 0.4 to 19000 ng/µL dsDNA range enables precise quantification Protein concentration assays 0.01 to 400 mg/mL BSA detection supports accurate measurement Low-volume sample testing Minimum 0.3 µl sample size allows microliter-scale workflows Rapid spectral scanning Measurement time <5 s facilitates high-throughput screening Multi-pathlength cuvette use Path length options of 1 mm, 2 mm, 5 mm, 10 mm accommodate varied assays
Lab Expo Nano Spectrophotometer units are designed for low-volume nucleic acid and protein analysis in molecular biology and research applications. Models support microvolume spectrophotometer testing with wavelength ranges from 190 to 900 nm, sample sizes as low as 0.3 µL, and automatic path length switching for nano photometer analysis.
