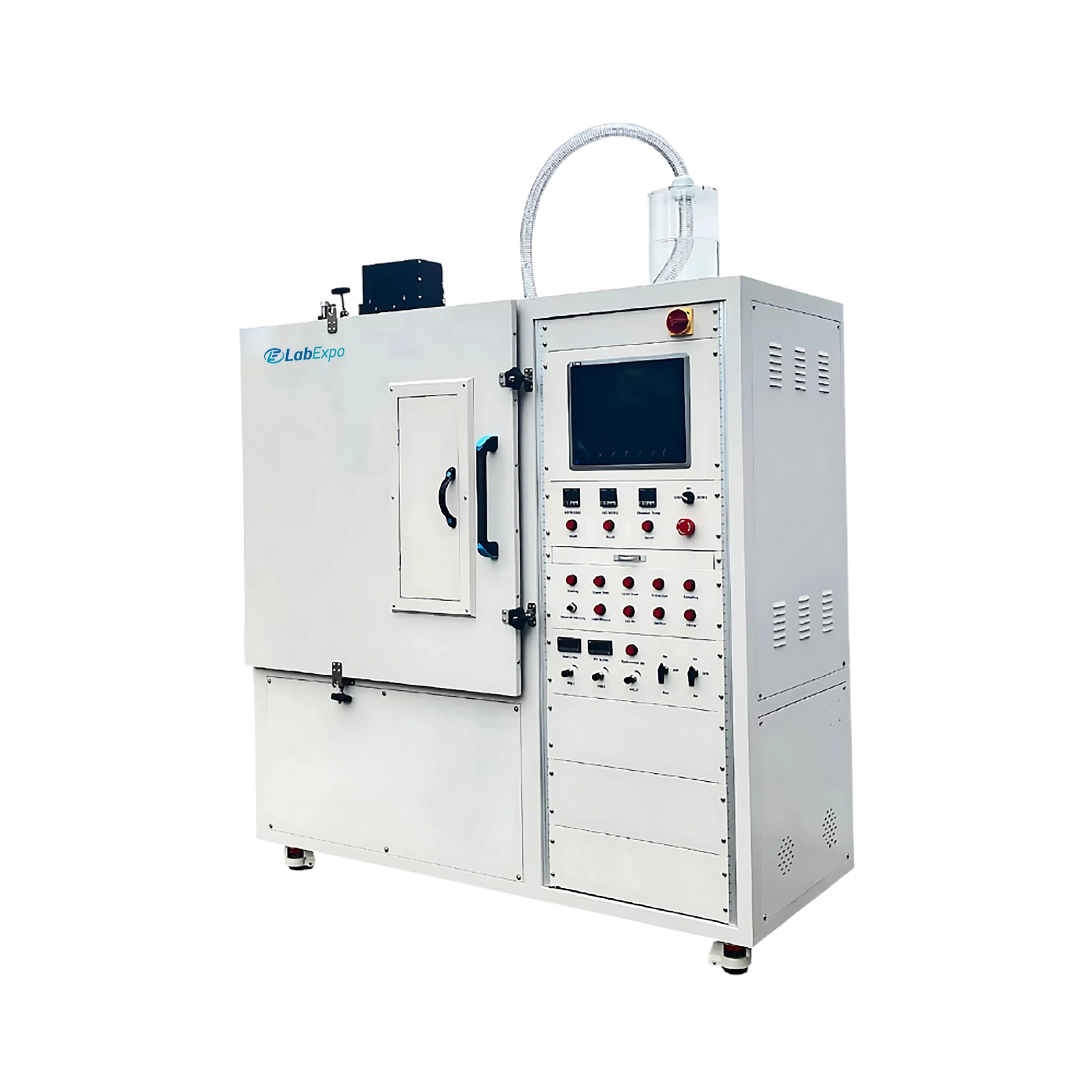

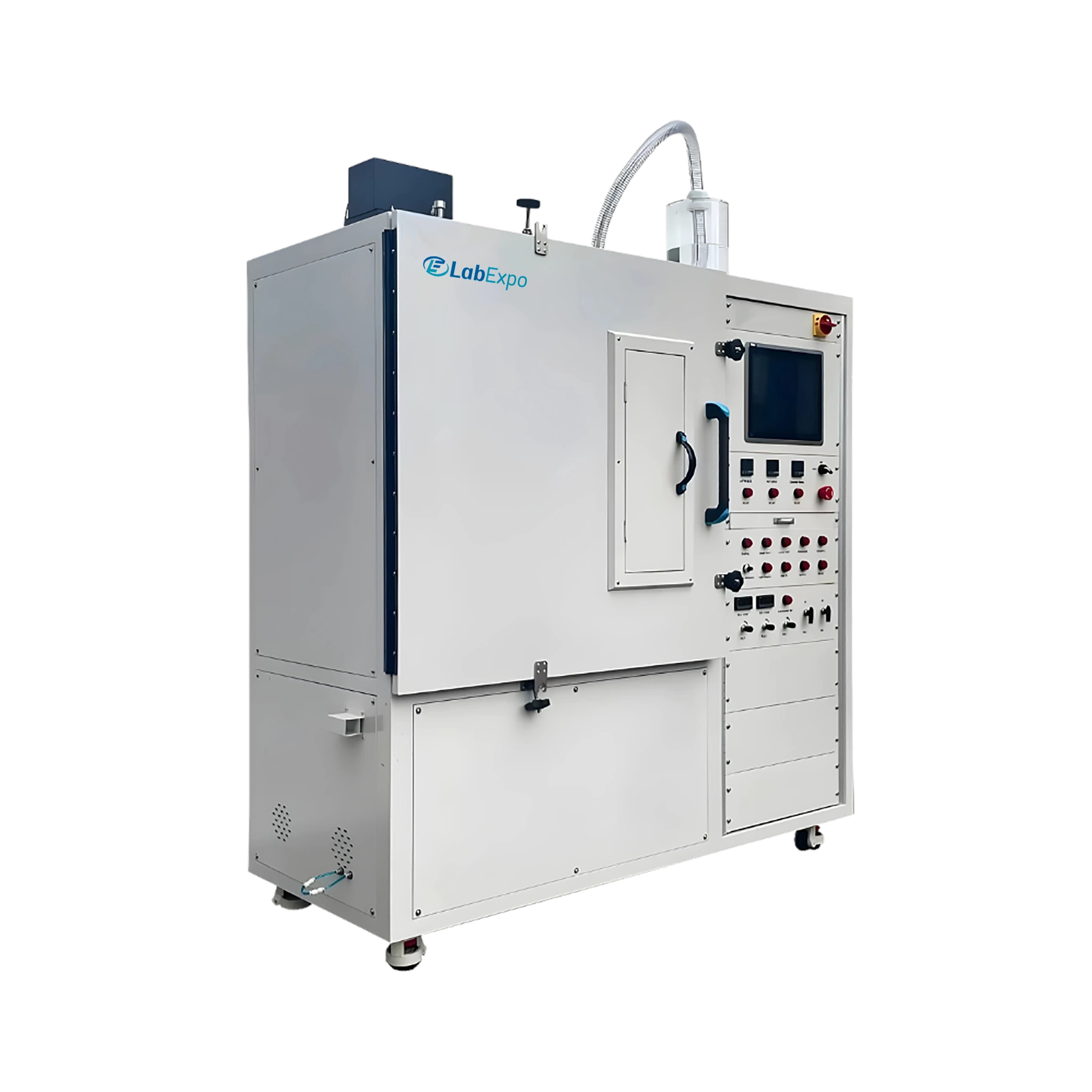

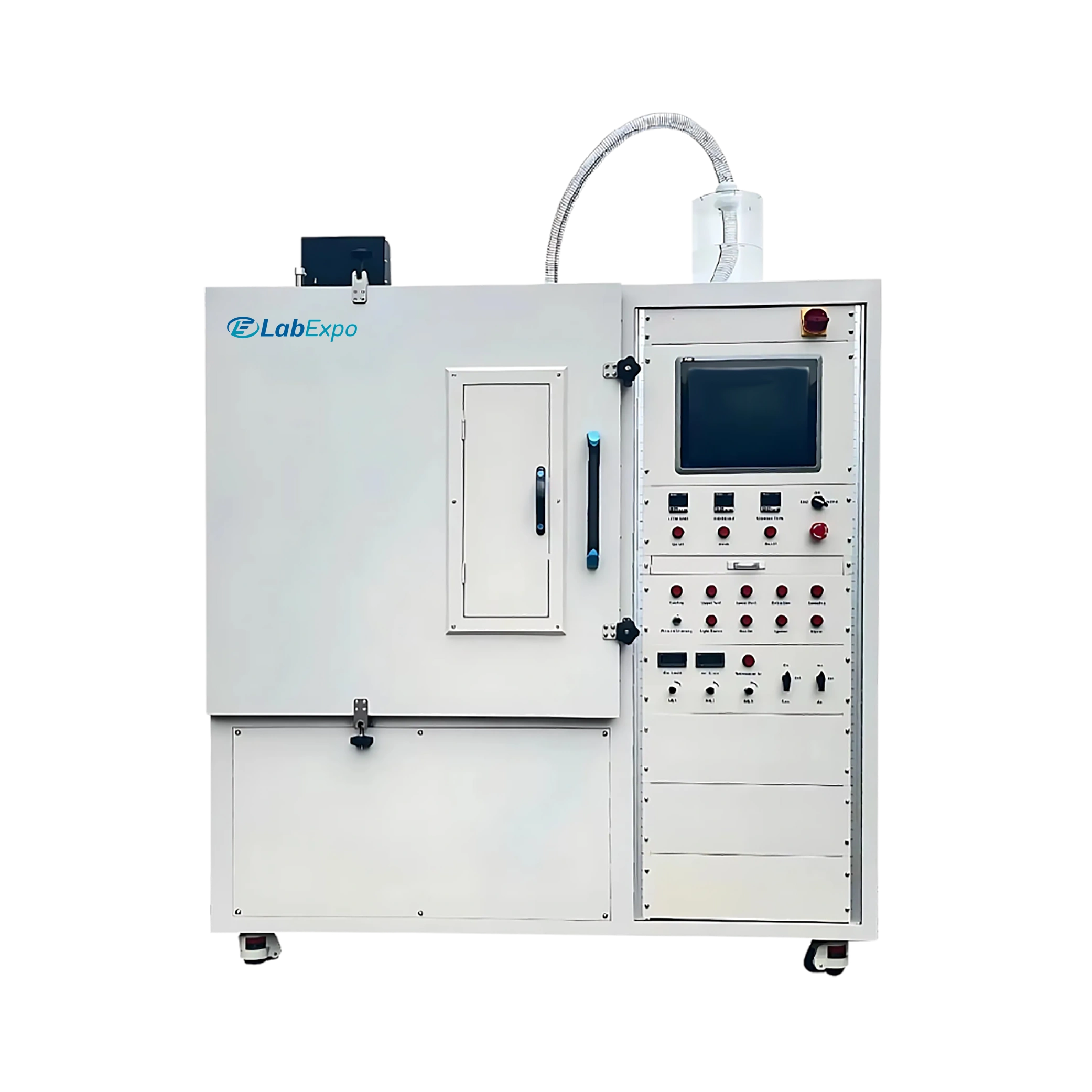

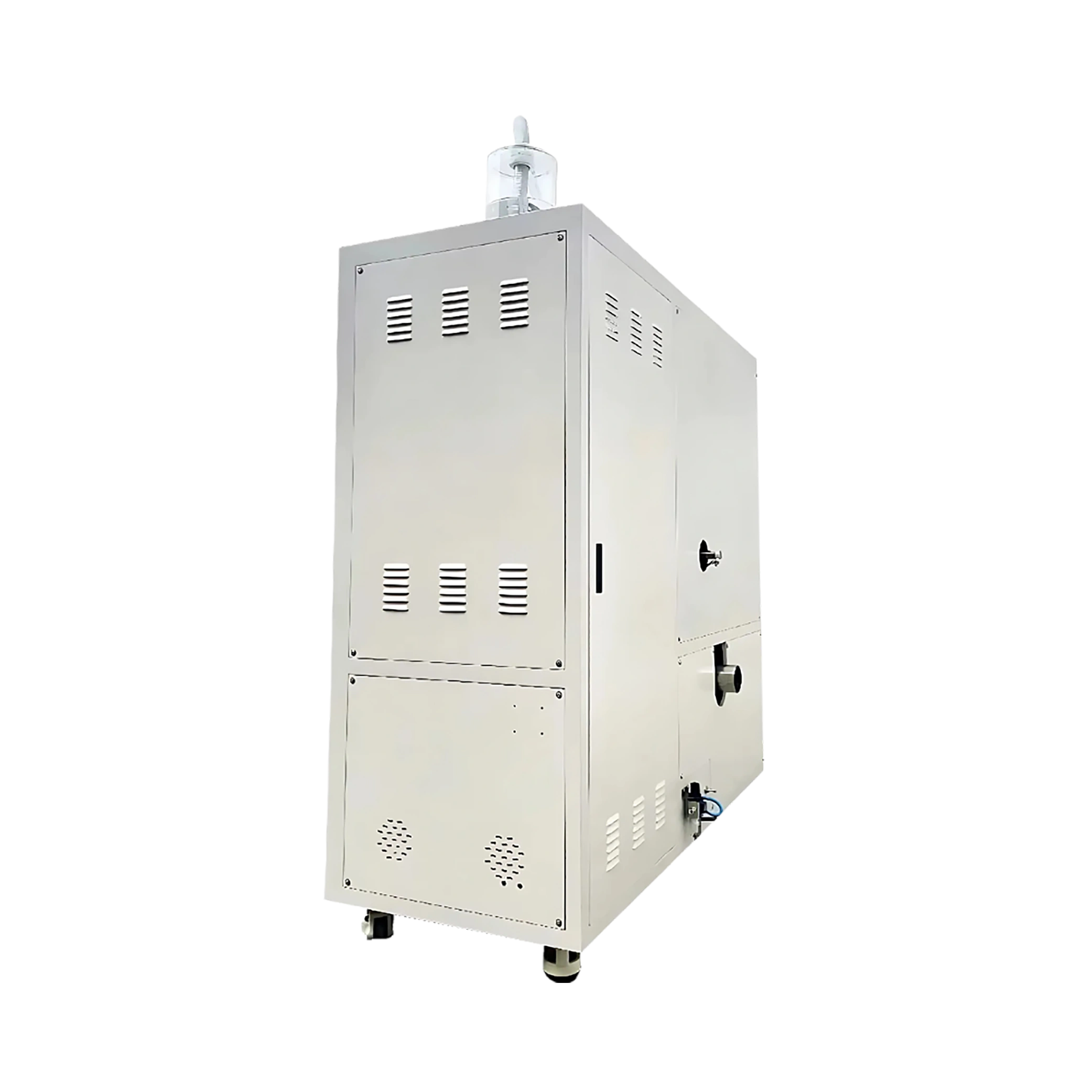

NBS Smoke Chamber LE-SCB101
Model: LE-SCB101

Lab Expo NBS Smoke Chamber LE-SCB101 is a precision instrument with a stainless-steel Teflon-coated body for testing smoke from non-metallic materials. It provides reliable results for rail, maritime, plastic, and cable testing. Equipped with optical sensors and a Hamamatsu photomultiplier to detect subtle smoke changes. Built with stainless steel and Teflon for durability and corrosion resistance. Our Smoke Chamber offers a flexible configuration to seamlessly meet multiple international fire safety standards.

$123,300.00 $ 102750

NBS Smoke Chamber LE-SCB101 - Specifications

Chamber Material SUS304 stainless steel with Teflon coating
Optical Resolution 0.0001%
Light Source USHI incandescent lamp
Photomultiplier Tube Hamamatsu, Japan
Radiation Output 25 kW/m² (ASTM), 0 to 50 kW/m² (ISO)
Gas Requirements Propane ≥95% purity, 170 kPa pressure
Flow Rates Propane 50 cm³/min; Air 500 cm³/min
Sample Holders 3
Radiometer 1, water-cooled, high accuracy
Control Touchscreen industrial PC with test software
Power Consumption 2600 Watt (Total: 3000 W)
Power Supply AC 220V, 50/60 Hz, single phase
Inner Chamber Dimensions 914 × 914 × 610 mm
Outer Dimensions 2022 × 910 × 1970 mm
Weight ~500 kg

NBS Smoke Chamber LE-SCB101 - Key Features

  • Power consumption 2600 Watt total system rating
  • Touchscreen industrial PC control test software integration
  • Sample holders quantity three for simultaneous testing setups
  • Radiometer single water-cooled high accuracy measurement unit

NBS Smoke Chamber LE-SCB101 - Applications

FunctionImplementation
Fire safety testing labs25 kW/m² radiation output enables smoke density measurement per ASTM standards
Material flammability assessment0 to 50 kW/m² adjustable radiation supports ISO-compliant test variations
Plastic and cable evaluationThree sample holders allow simultaneous multi-specimen analysis
Railway component validationHamamatsu photomultiplier detects subtle smoke changes for precise optical measurements
Marine safety certificationAC 220V power supply ensures stable operation in fixed laboratory installations

NBS Smoke Chamber LE-SCB101 - Catalog

NBS Smoke Chamber LE-SCB101 Catalog

Related NBS smoke chamber

Lab Expo NBS Smoke Chamber supports controlled evaluation of smoke generation and optical density during material combustion for safety and compliance testing. Designed as an NBS smoke density chamber, it integrates uniform heating, calibrated photometric measurement, and controlled airflow for reproducible results. Robust stainless steel build, digital control, and real-time data acquisition enable accurate smoke analysis across research and industrial testing workflows.
