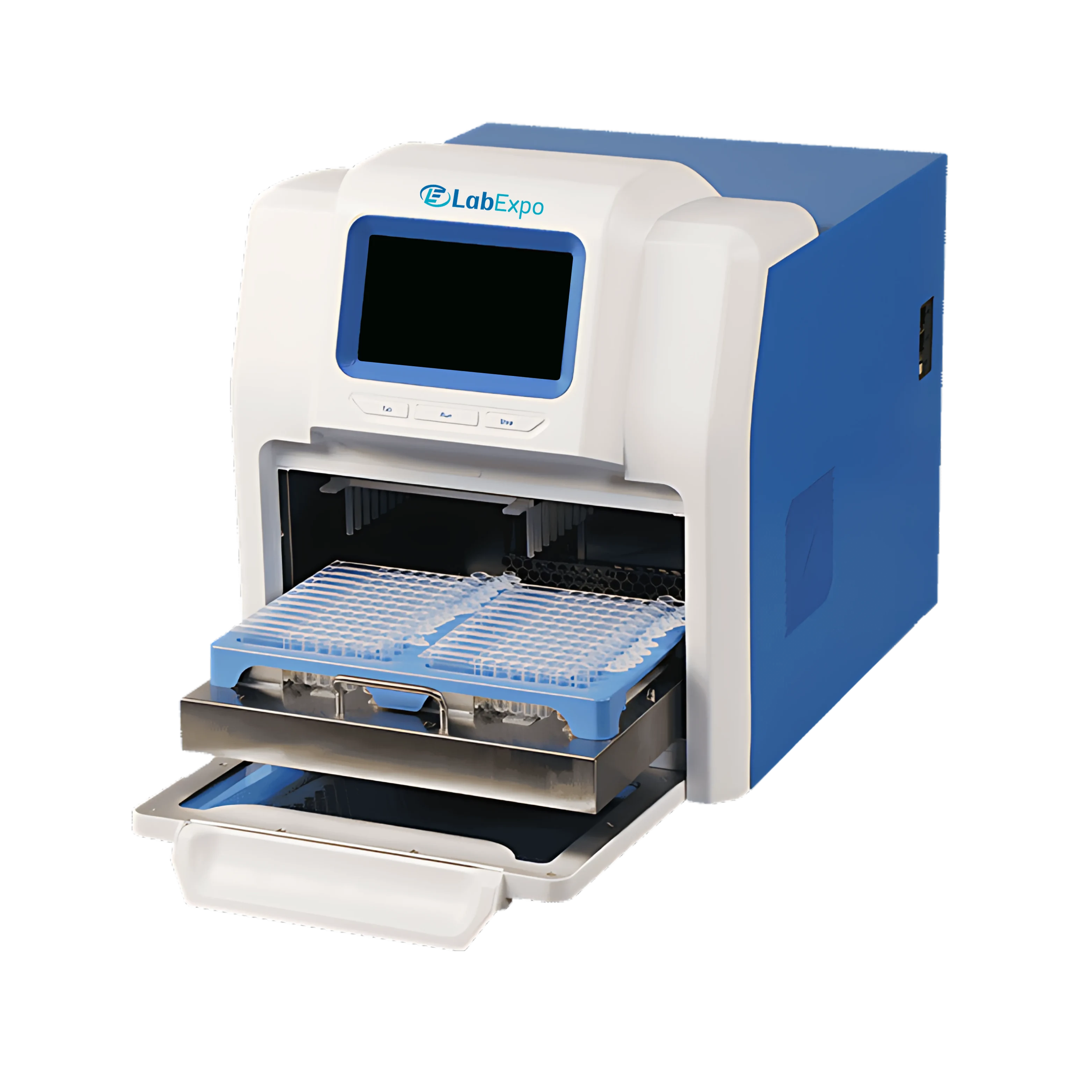

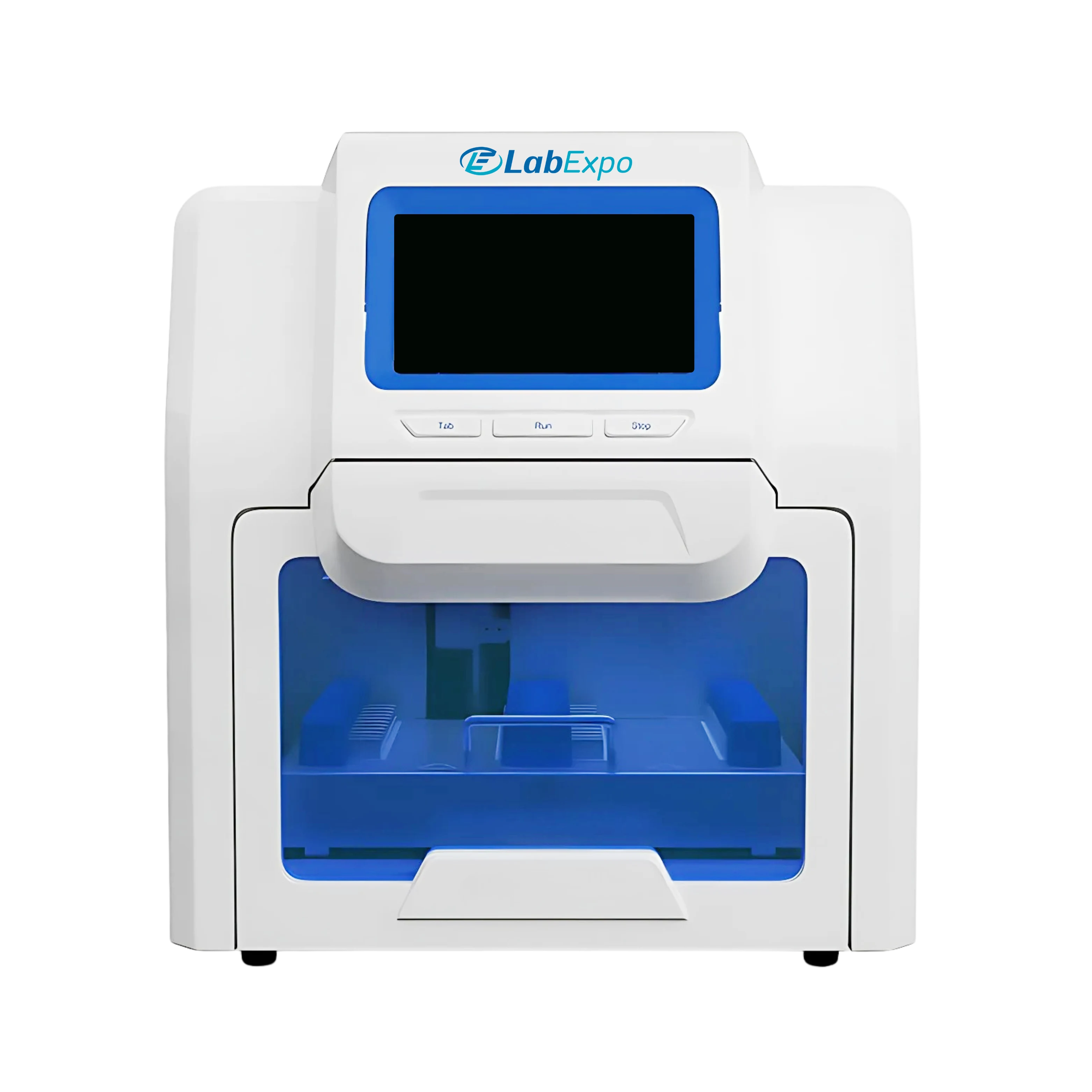

Lab Expo Nucleic Acid Purification System 48-NPS101 is a benchtop unit for DNA and RNA purification with automated low throughput sample preparation Capable of extracting 1 to 20 samples per run with a working volume of 1 ml. Features a fast extraction protocol of 15 to 40 mins per cycle depending on sample type. Built-in UV lamp prevents cross contamination. Unit can be configured for elevation of sample processing volume upto 3 ml and 5 ml for higher yields of purified products.
$12,312.00 $ 10260
| Throughput | 1 to 20 |
| Process volume | 50 µl to 5000 µl |
| Collection efficiency | > 95 % |
| Magnetic rod number | 20 |
| Purification accuracy | 100 copy sample positive rate > 95% |
| Stability | CV < 5% |
| Plate types | 5 ml tube strip |
| Heating for lysis tube | Ambient temperature to 120°C |
| Heating for elution tube | Ambient temperature to 120°C |
| Operation | 7 inch color touch screen |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Storage capacity | more than 100 programs |
| Protocol management | Create, edit, delete, protocol mode |
| Pollution control | UV light |
| Lighting | Yes |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power supply | 450 W |
| Dimensions | 400 × 520 × 450 mm |
| Weight | 28 kgs |
Function Implementation Quality control labs 1 to 20 throughput supports batch sample processing Clinical diagnostics >95% collection efficiency ensures reliable yield Research laboratories UV light prevents cross contamination during runs Industrial testing Ambient to 120°C heating enables lysis and elution protocols Institutional facilities More than 100 programs stored allows protocol flexibility
| Accessory No | Accessory |
| NAP-B1 | Tube strips |
| NAP-B2 | Magnetic rod's tip |
Lab Expo Nucleic Acid Purification apparatuss are structured around standardized reagent-driven workflows to support efficient DNA and RNA isolation. This nucleic acid extraction kit enables high-throughput processing with consistent yield and purity across sample volumes. Clear LCD monitoring, controlled processing logic, and repeatable chemistry support PCR, sequencing, and genetic analysis in molecular biology, research, and clinical laboratory workflows.
