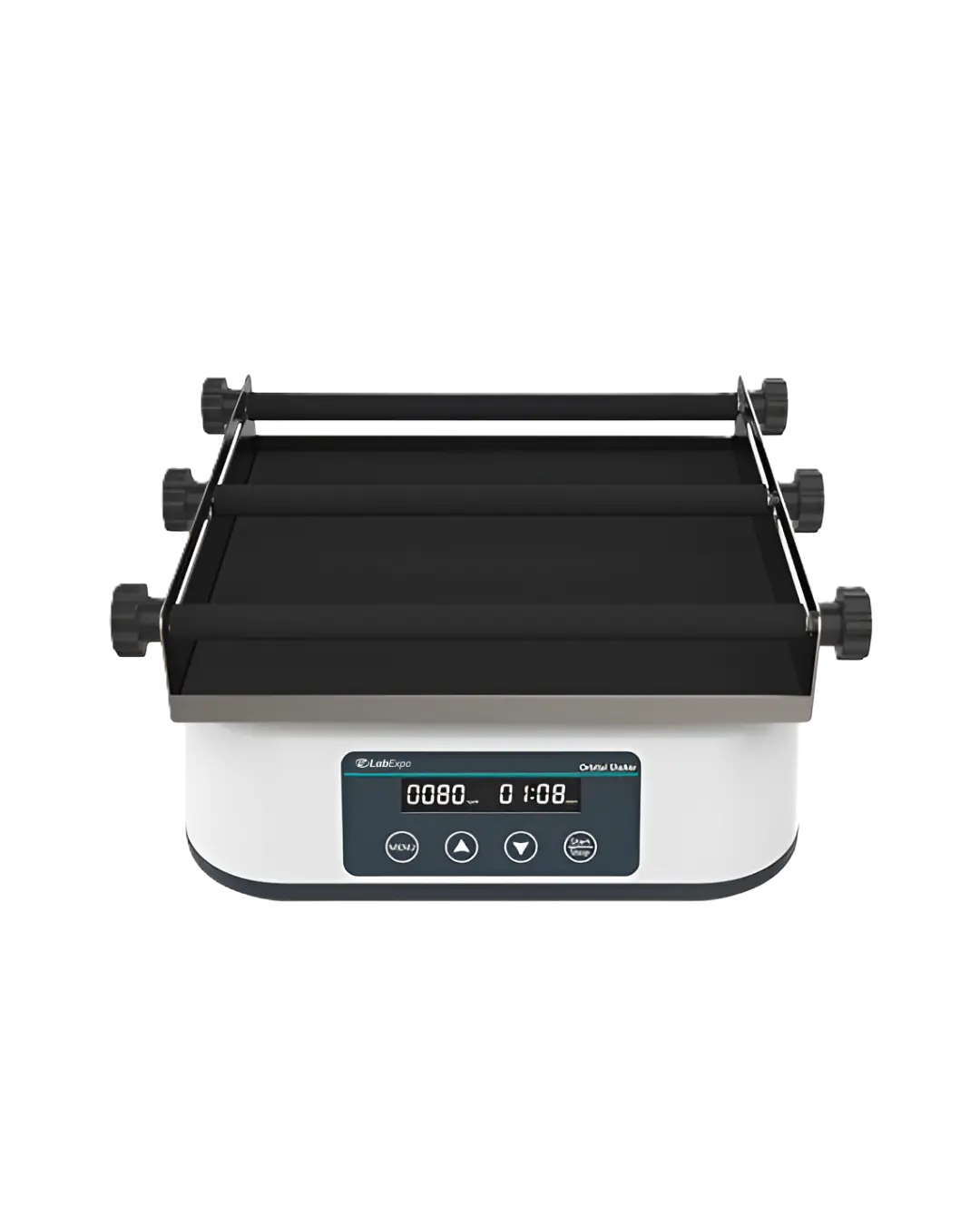

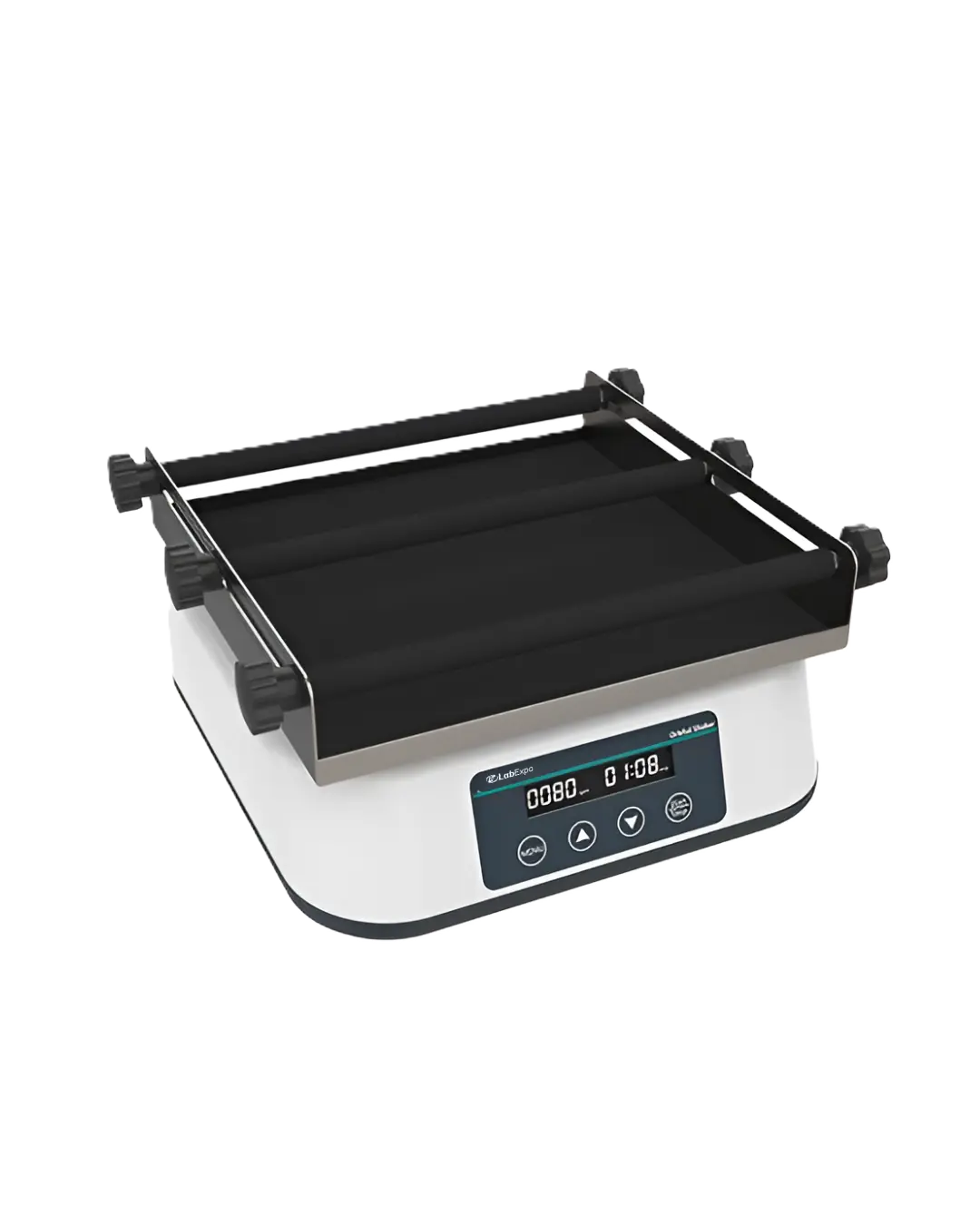

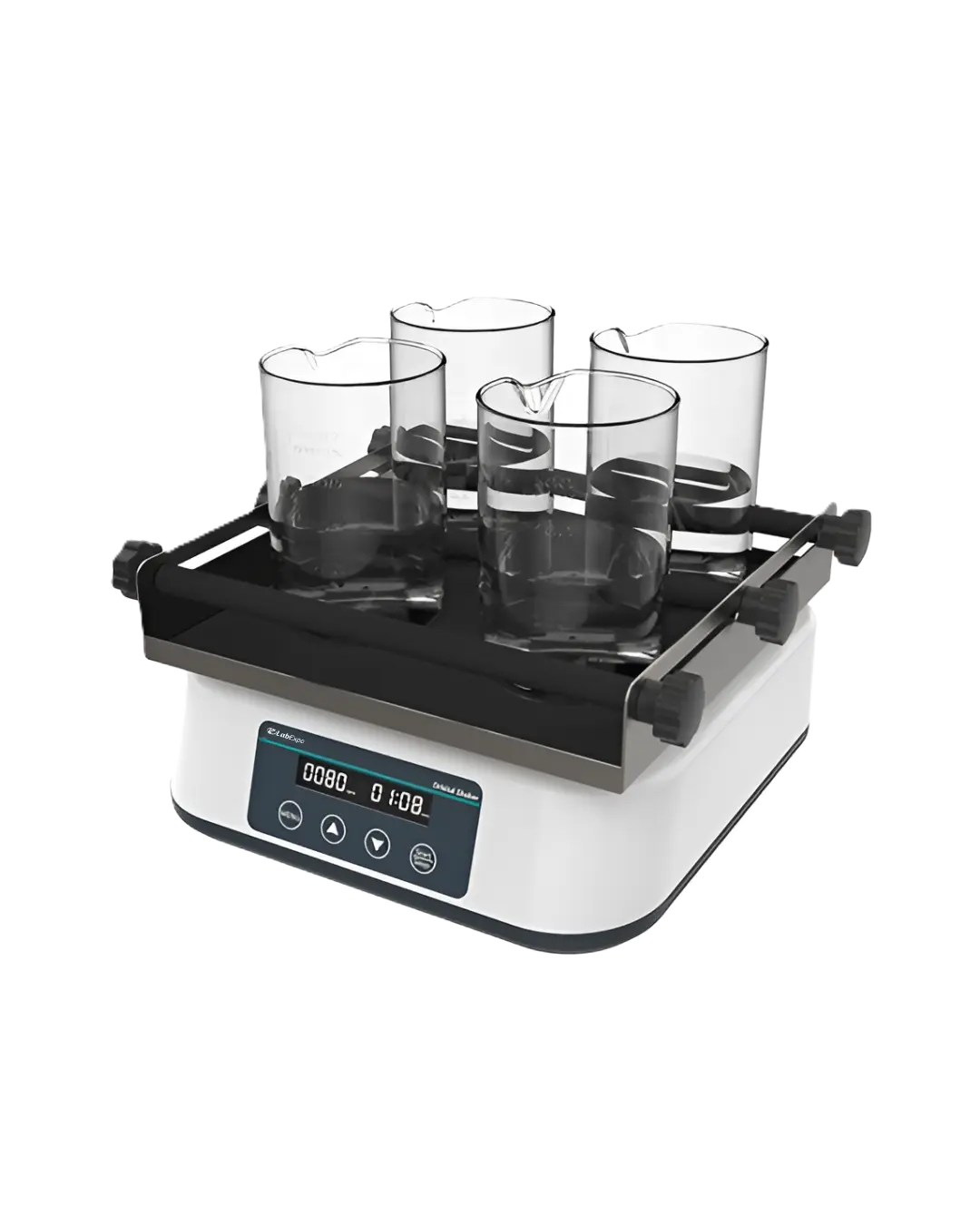

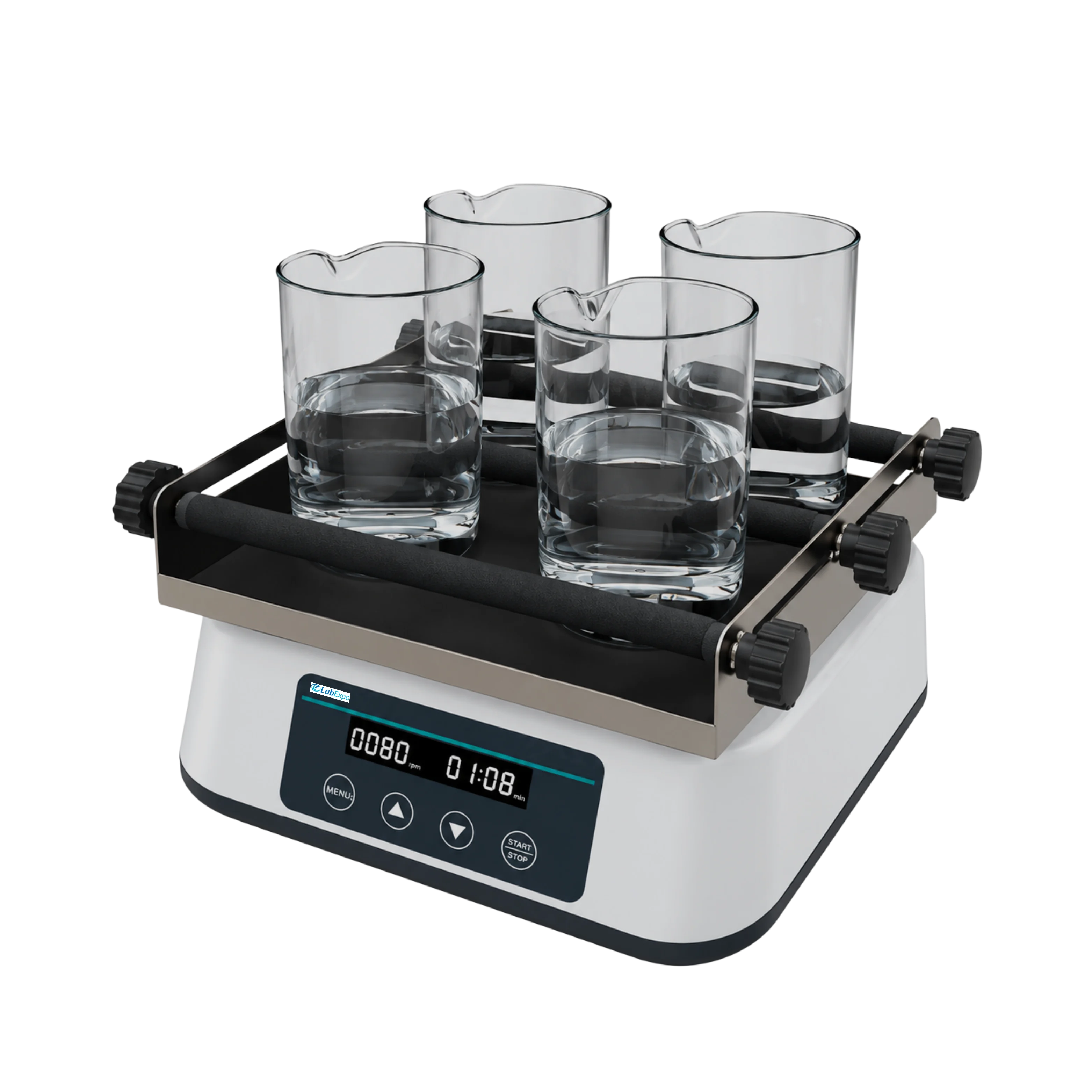

Lab Expo Orbital Shaker LE-OSH203 is built with a universal tray measuring 200 × 200 mm for holding a wide variety of vessels. Supports a maximum load capacity of 2 kg to enable reliable mixing of multiple samples. Powered by a brushless motor for silent, low-maintenance, and long-lasting operation. Constructed for routine laboratory use with chemical-resistant materials. Our Orbital Shaker delivers reliable mixing for cell culture, staining, solubility testing, and more.
$2,098.00 $ 1748
| Plate Dimension | Universal Tray 200 × 200 mm |
| Maximum Load | 2 kg |
| Type | Circular |
| Orbit Diameter | 20 mm |
| Speed Range | 40 to 200 rpm |
| Timing Range | 1 min to 24 hr |
| Motor Type | Brushless Motor |
| Allowable Ambient Temperature | AC100 to 240 V |
| Dimension | 235 × 220 × 95 mm |
Function Implementation Clinical sample mixing 200 × 200 mm tray holds multiple vessels for consistent agitation Cell culture applications Brushless motor enables silent operation during extended runs Solubility testing labs Speed range of 40 to 200 rpm allows precise control over mixing intensity Staining procedures Timing range of 1 min to 24 hr supports automated process duration settings Quality control workflows Maximum load of 2 kg accommodates varied sample volumes reliably
1: What types of vessels can the Orbital Shaker LE-OSH203 support?
It includes a universal 200 × 200 mm tray, making it adaptable for a wide variety of vessels such as beakers, flasks, petri dishes, and microplates.
2: What control interface does the device offer?
It features a digital control panel that allows for real-time adjustments to speed and timing with precision.
3: What is the typical motion type and orbit diameter?
Our shaker uses circular motion with a 20 mm orbit diameter, ensuring even mixing throughout the vessel.
4: What makes the motor reliable for continuous operation?
It uses a brushless motor known for quiet operation, minimal maintenance, and extended lifespan, ideal for continuous protocols.
5: Can I set both short and extended mixing durations?
Yes, the timing function ranges from 1 minute to 24 hours, and it also supports continuous operation if required.
Lab Expo Orbital Shakers operate on stabilized orbital drive architecture to deliver controlled agitation across multiple vessel types. This orbital shaker lab system uses brushless DC motor technology for quiet, low-maintenance operation with precise speed regulation. Rigid platforms, smooth motion control, and intuitive adjustment enable repeatable mixing for microbiology, cell culture, and chemical processing workflows.
