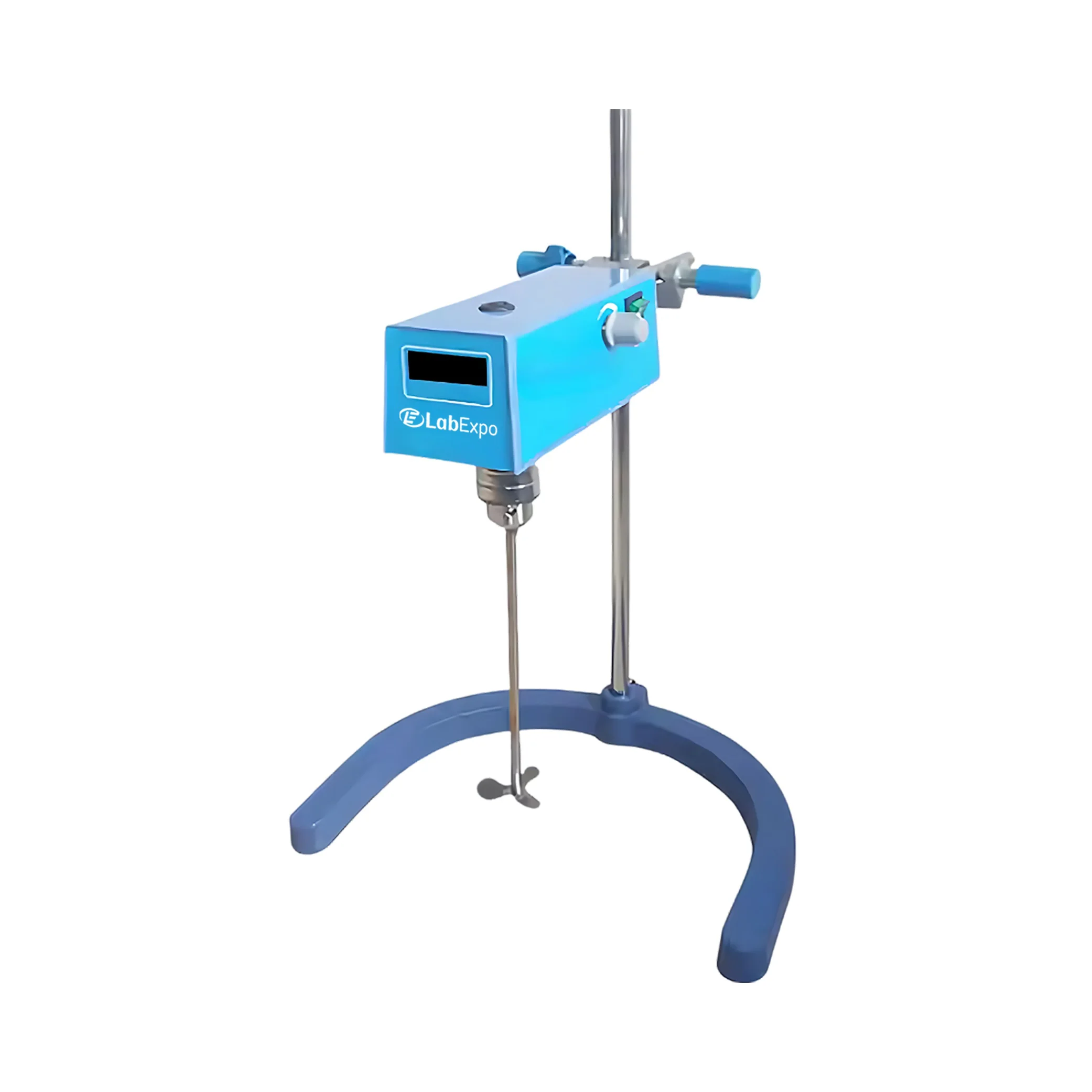

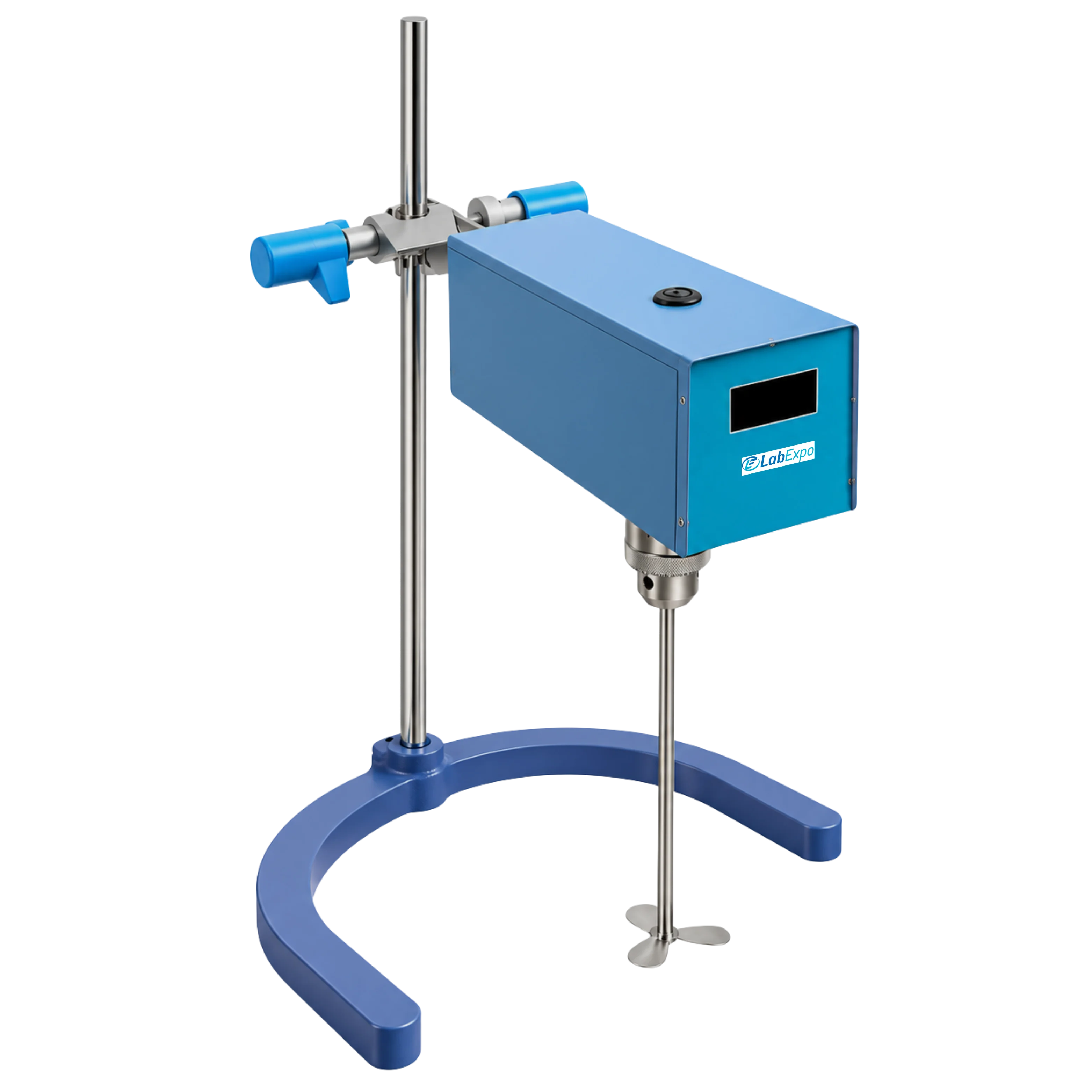

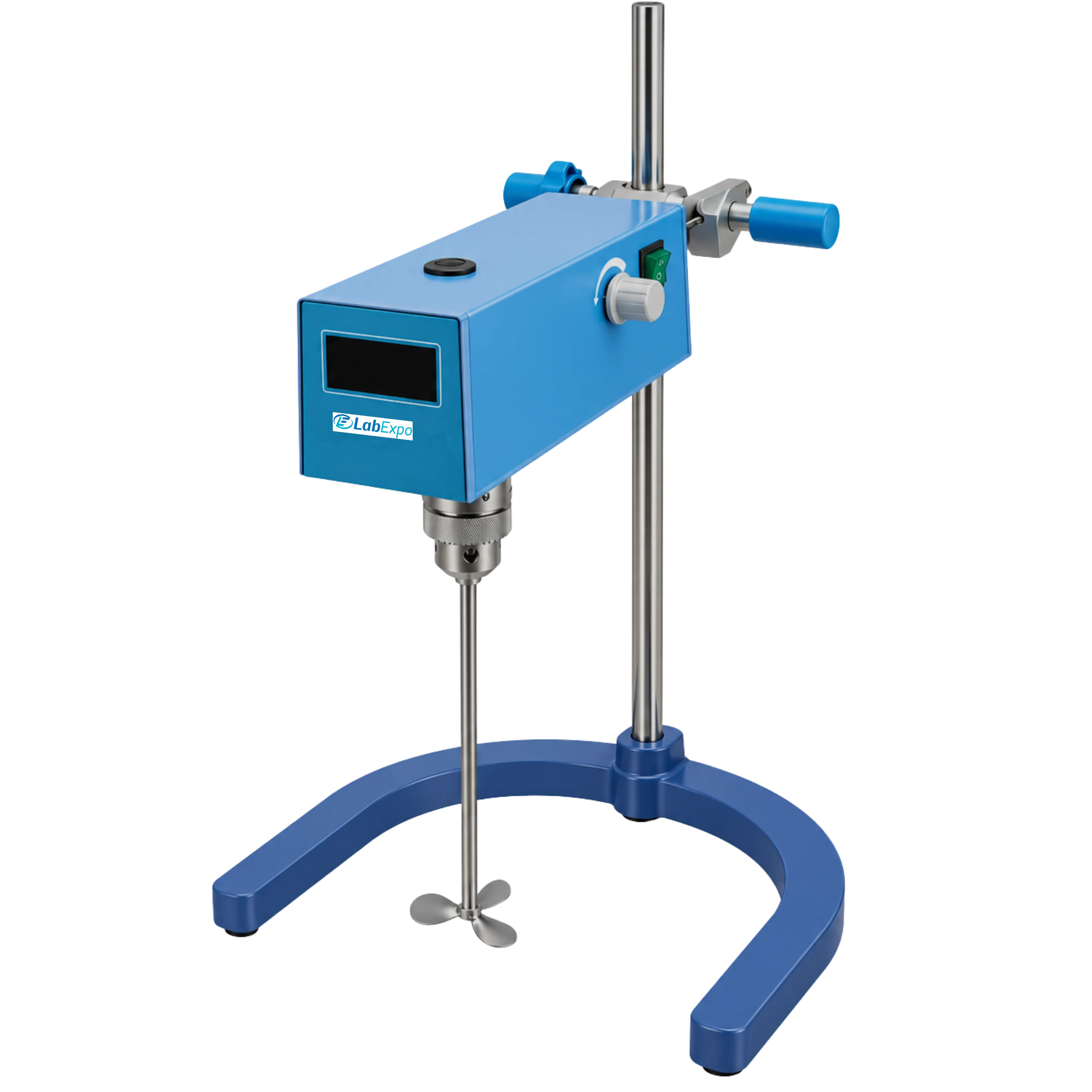

Lab Expo Overhead Stirrer LE-OS102 is designed for high-capacity mixing, capable of efficiently stirring up to 150 L of liquid. It is powered by a brushless DC motor, delivering consistent and reliable performance. Integrated digital LED display enables real-time monitoring and easy speed control. Built-in with a speed range of 60 to 1500 RPM, it ensures uniform mixing. Our Overhead Stirrer delivers strong, accurate mixing for high-volume laboratory applications.
$2,918.00 $ 2432
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 150 L |
| Motor Type | Brushless DC Motor |
| Motor Torque | 1 N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Digital Display | LED |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 150 W |
| Power Supply | 220 V / 110 Optional |
| Dimension (CM) | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 12 kg |
Function Implementation High-volume liquid mixing 150 L stirring volume supports large batch processing Continuous operation labs 150 W motor power enables sustained mixing cycles Variable speed applications 60 to 1500 RPM range adapts to diverse viscosities Precision monitoring needs LED digital display provides real-time speed tracking Secure sample handling Ø 1.5 to 13 mm chuck clamping range secures various stir rods
1: What makes this overhead stirrer suitable for large-volume mixing?
It has high-capacity stirring capability of up to 150 liters and the strong torque provided by its brushless DC motor make it ideal for large-scale liquid handling in laboratory and industrial settings.
2: How is speed maintained during high-viscosity mixing?
The constant speed control ensures stable RPM even when mixing dense or viscous substances, allowing consistent results throughout the operation.
3: What safety features are included in this model?
These stirrers are designed with spill-proof housing, overload protection, and an automatic shutdown system to protect both the user and the equipment.
4: How user-friendly is the digital interface?
The LED digital display provides real-time speed readouts and intuitive control for precise adjustments during mixing, even in high-throughput environments.
5: Is the stirrer suitable for integration with external systems?
Our stirrer offers PC connectivity options for monitoring, logging, and remote operation, supporting automation in advanced research or production workflows.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
Lab Expo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
