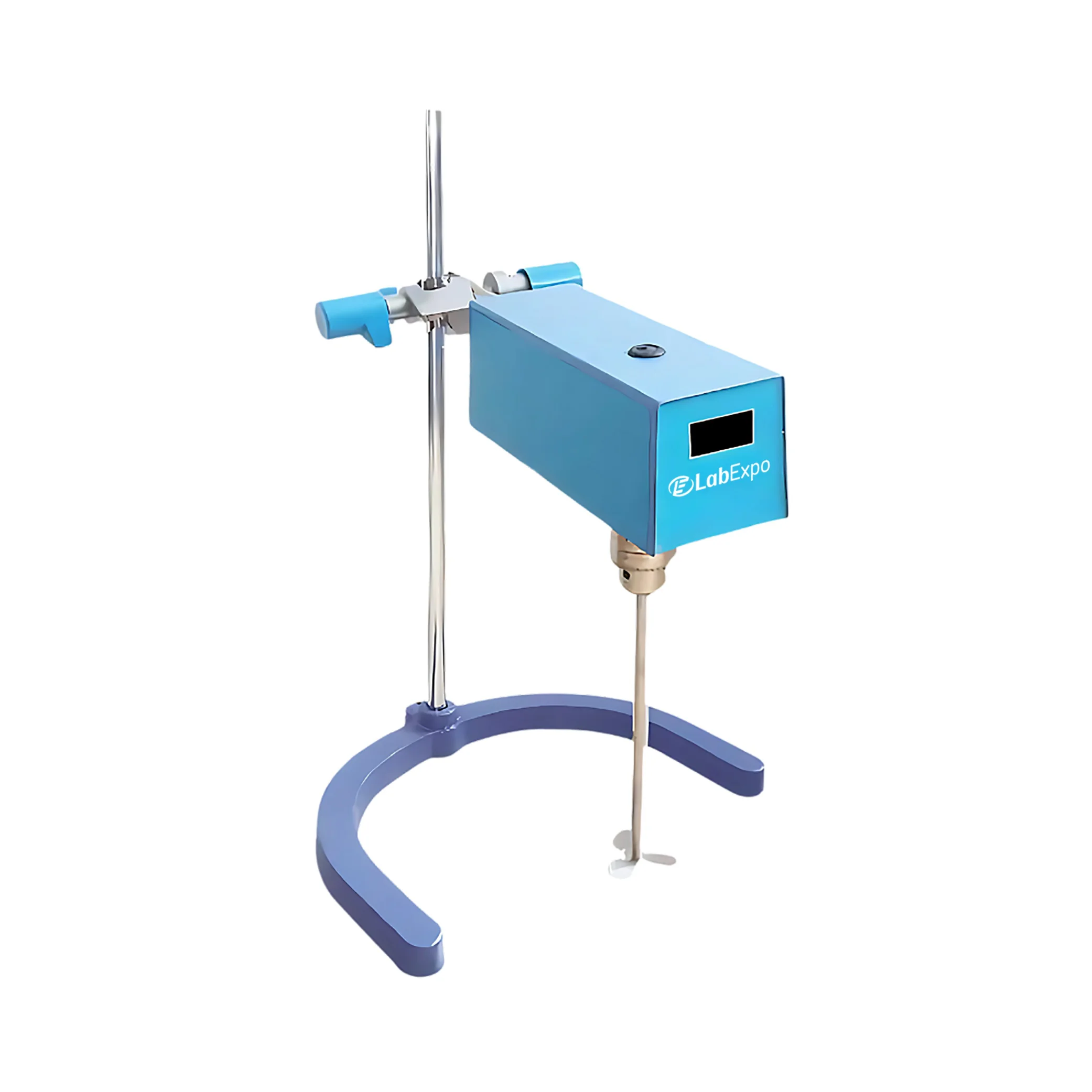

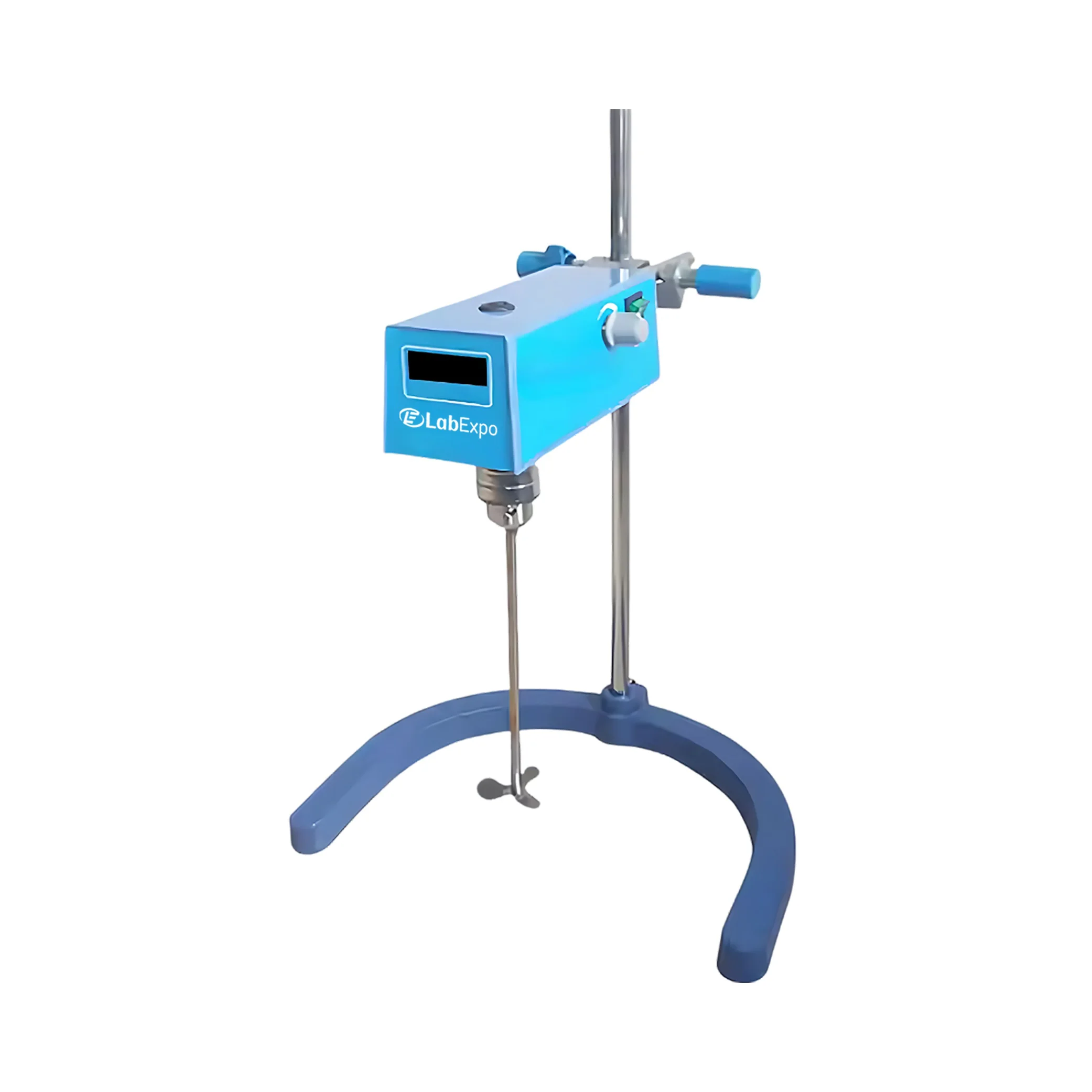

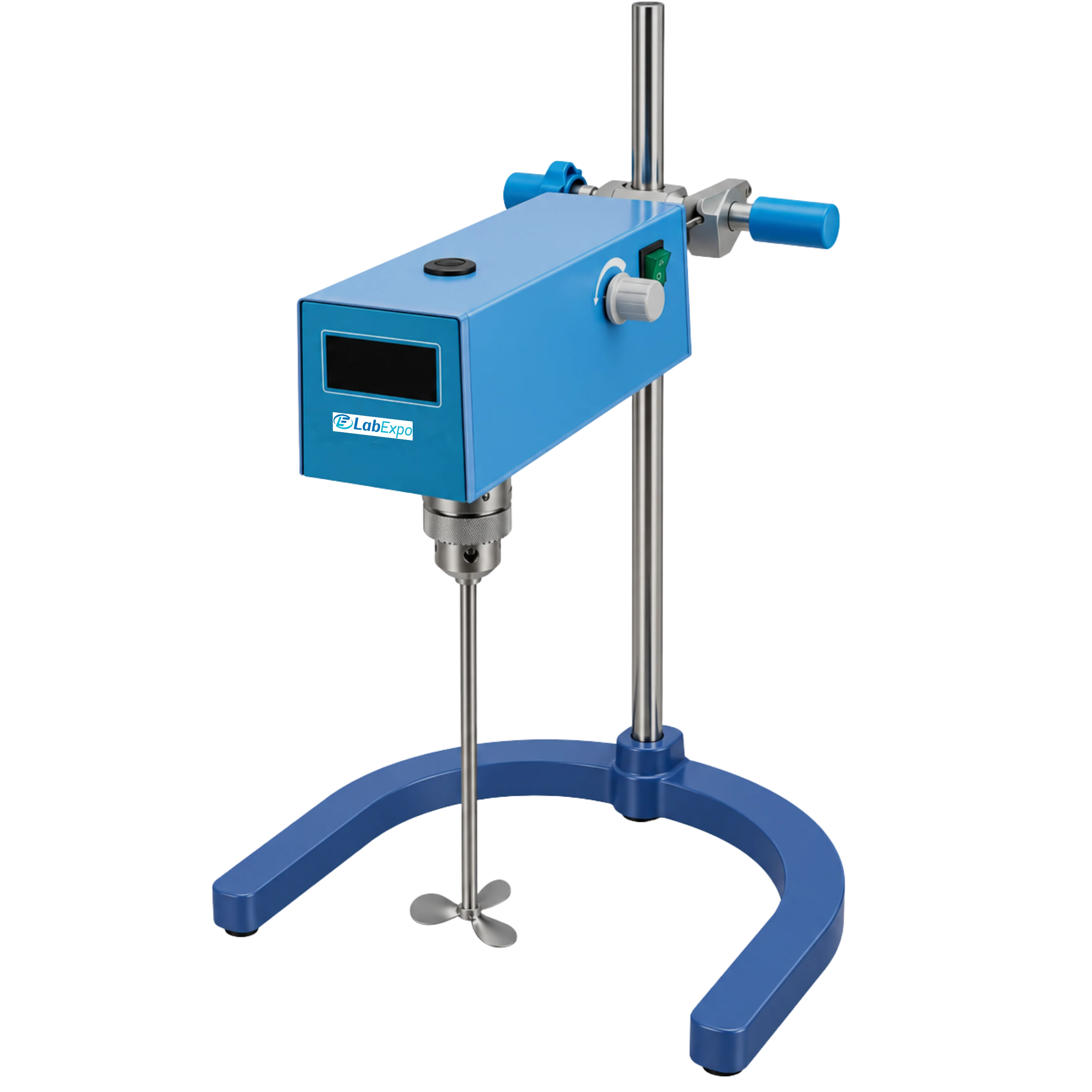

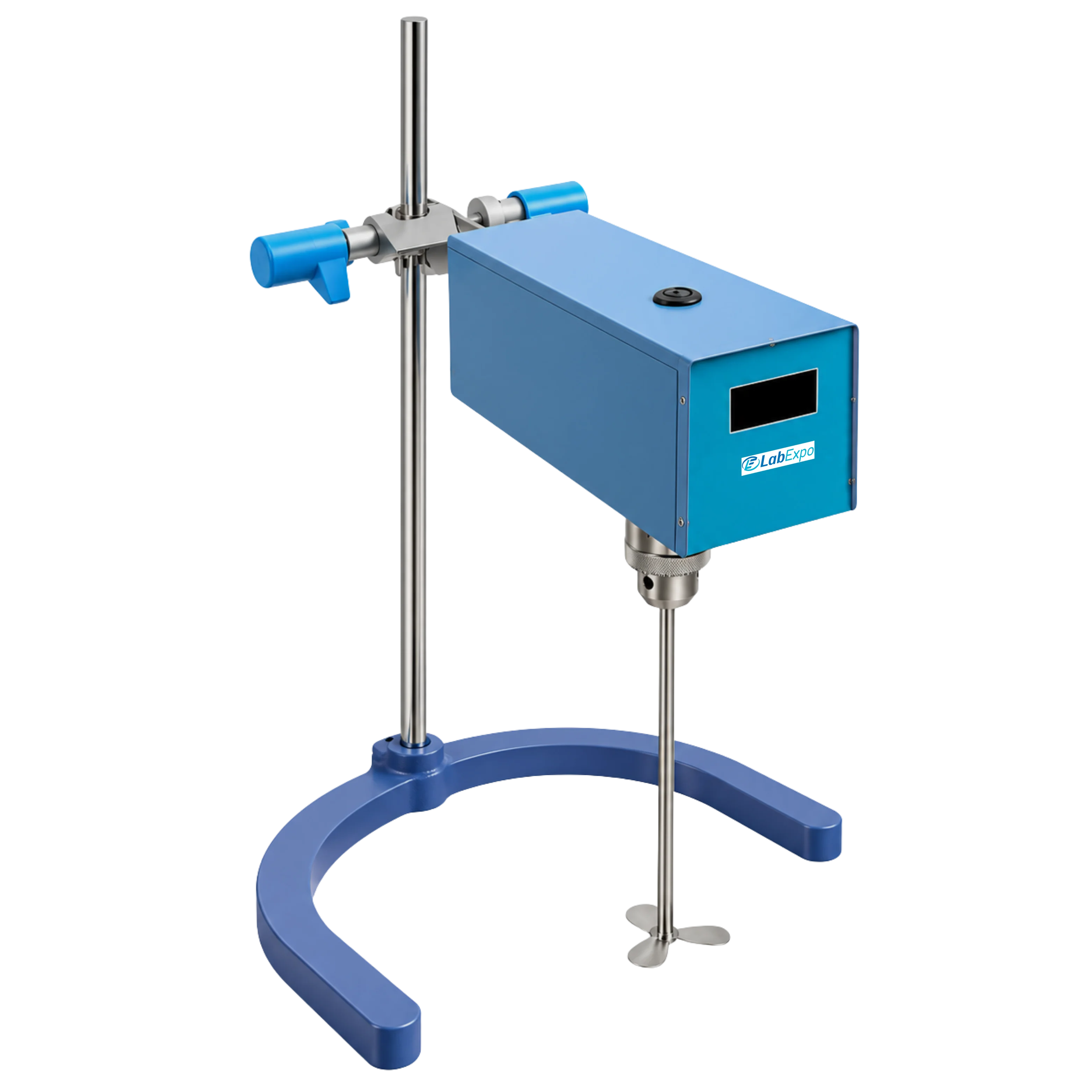

Lab Expo Overhead Stirrer LE-OS104 is designed for high-volume mixing up to 150 L, offering reliable performance with a brushless DC motor for efficient, low-maintenance operation. With a speed range of 60 to 1500 RPM and an integrated timer for precise control, it's ideal for industrial and laboratory applications, providing a versatile solution for pharmaceutical, chemical, and food processing industries.
$2,962.00 $ 2468
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 150 L |
| Timer | 0 to 9999 Min |
| Motor Type | Brushless DC Motor |
| Motor Torque | 1 N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Closed Loop MCU Control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 250 W |
| Power Supply | 220 V / 110 Optional |
| Dimension | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 12 kg |
Function Implementation High-volume mixing labs 150 L stirring volume supports large-scale liquid processing Industrial batch operations 60 to 1500 RPM speed range enables precise viscosity control Pharmaceutical formulation Closed loop MCU control maintains consistent stirring accuracy Food processing lines SS 304 stir rod material resists corrosion in sanitary environments Chemical R&D testing Timer up to 9999 min allows unattended extended runs
1: What is the mixing volume capacity of the LE-OS104 stirrer?
The stirrer supports mixing volumes up to 150?L, making it suitable for large-scale applications in laboratories and industrial environments.
2: How does the closed-loop MCU control system benefit mixing operations?
The system maintains consistent stirring speed by automatically adjusting for resistance or load changes, enhancing reliability and mixing uniformity.
3: What safety features are built into the Overhead Stirrer?
These stirrers are equipped with a spill-proof design and robust construction to minimize operational risks and ensure long-term durability.
4: How does the timer improve process accuracy?
The built-in timer allows users to precisely control mixing durations, which is especially useful for time-dependent chemical or biological processes.
5: What environments is the LE-OS104 suitable for?
Our stirrer is ideal for use in research labs, pilot production units, pharmaceutical processing, food development, and chemical formulation tasks.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
Lab Expo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
