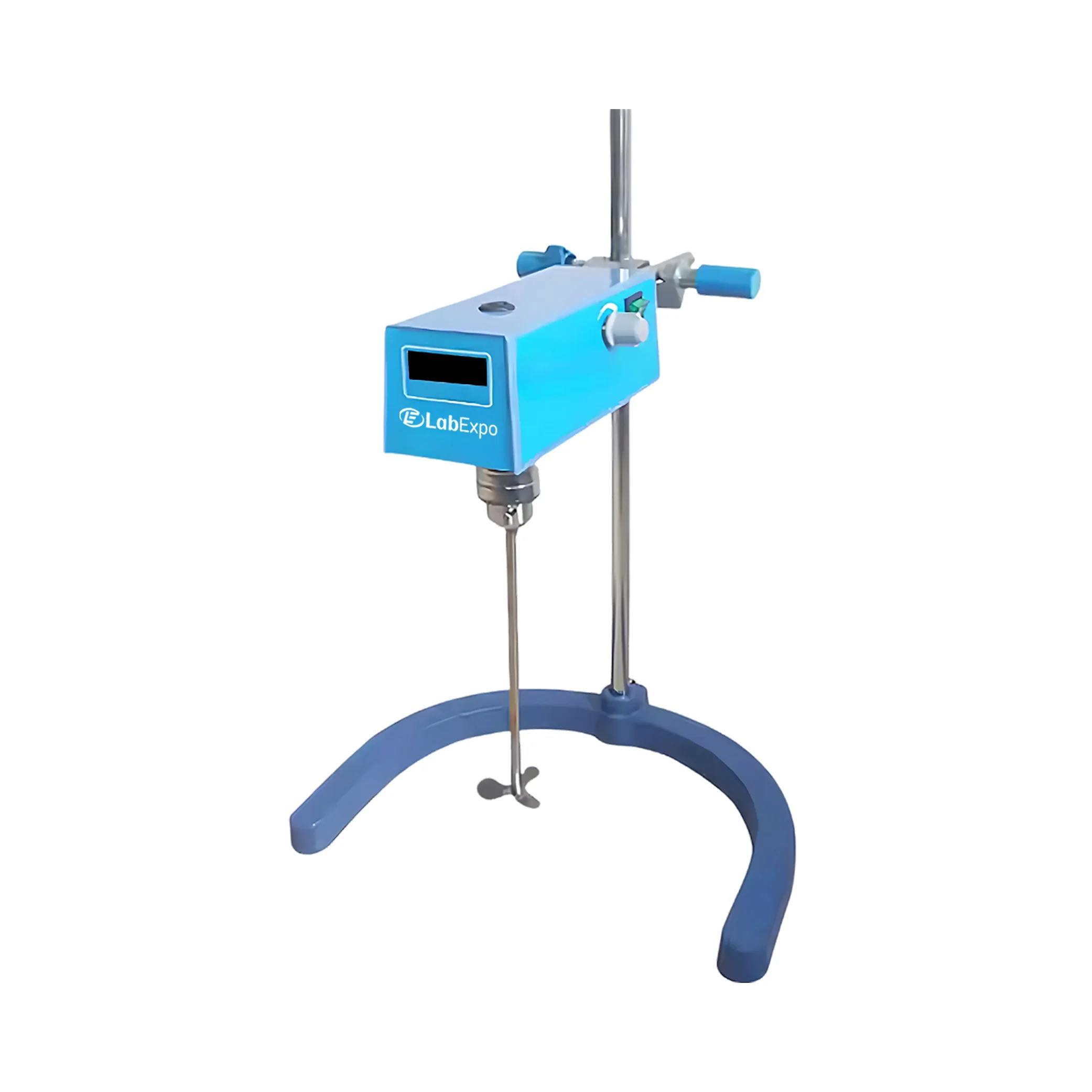

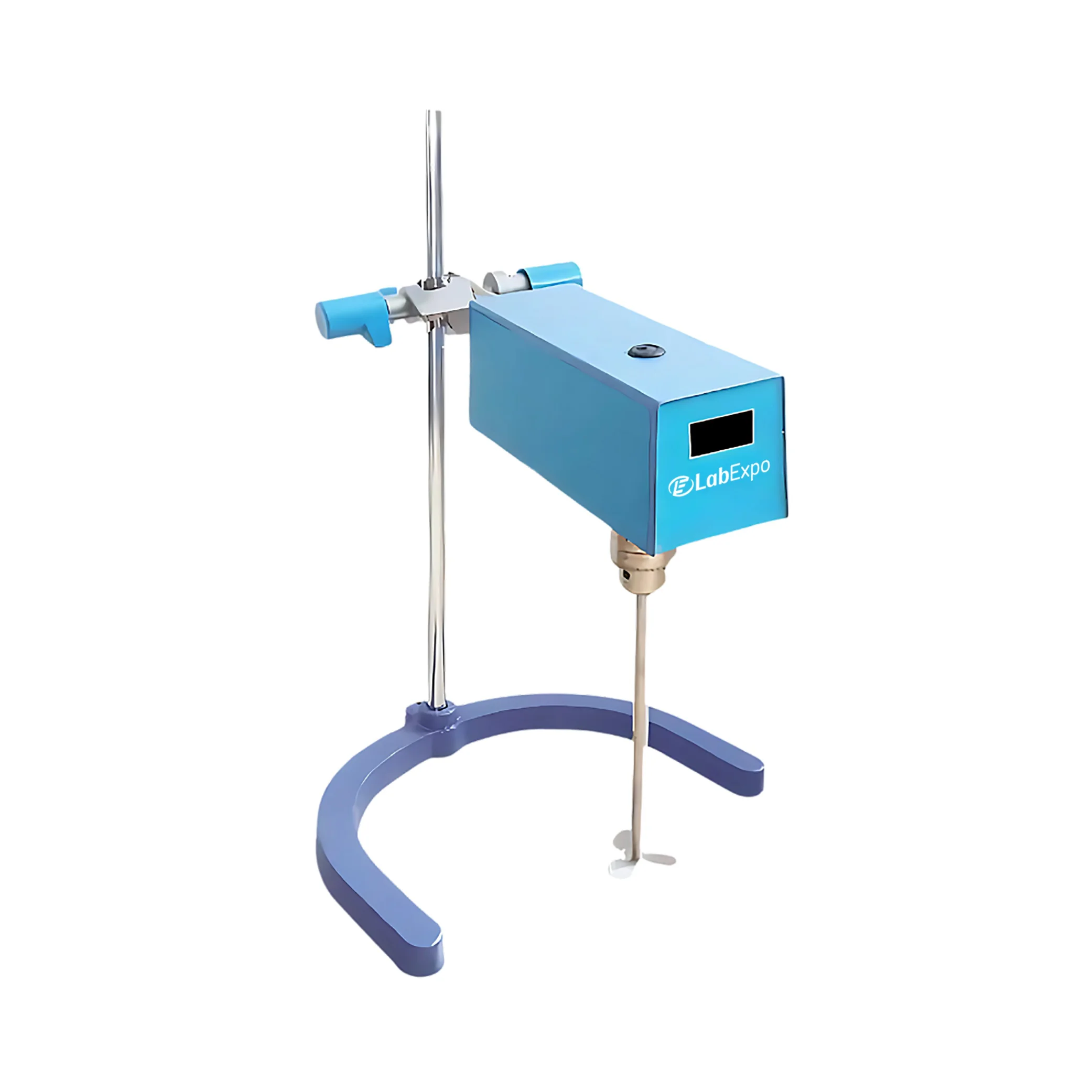

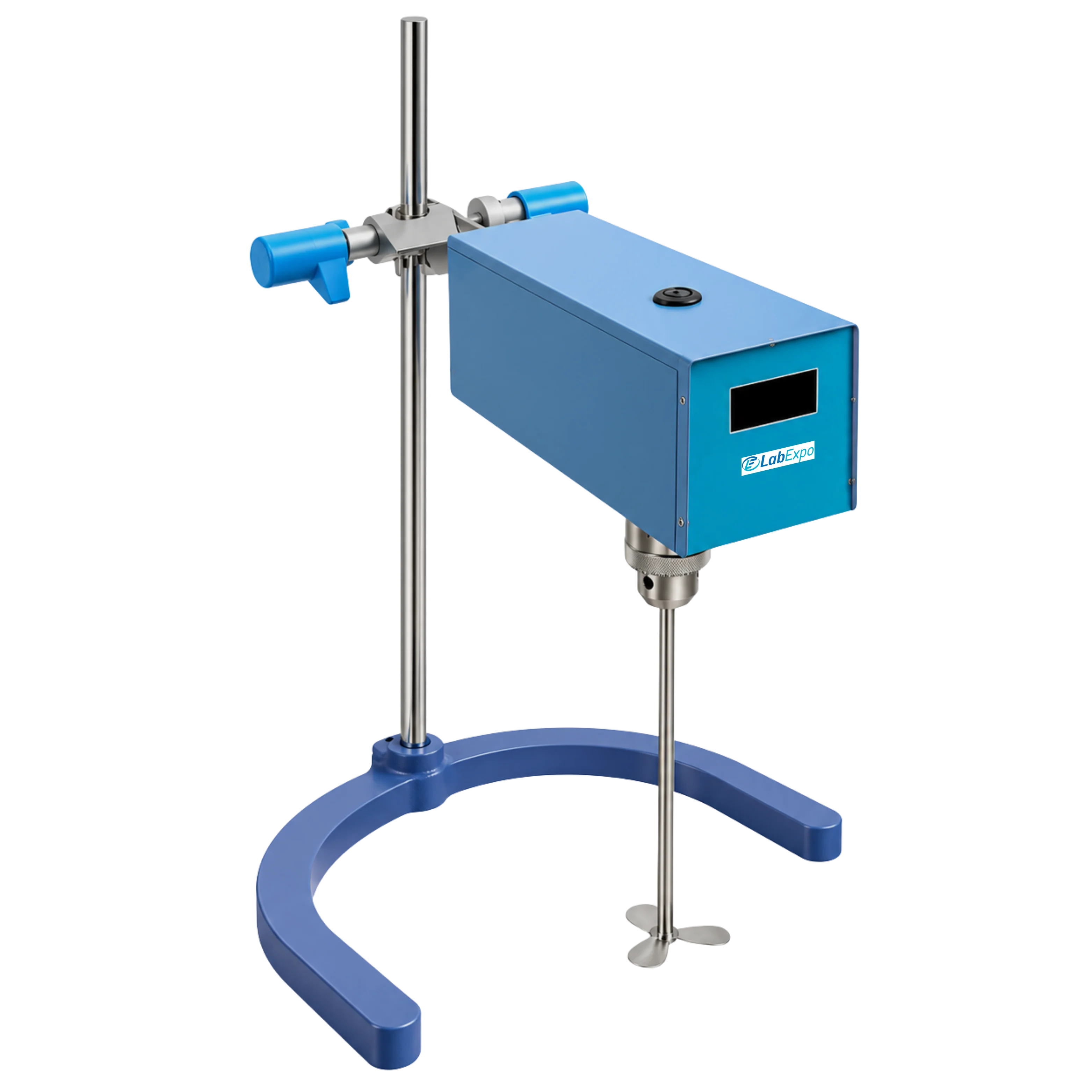

Lab Expo Overhead Stirrer LE-OS106 is designed with a brushless DC motor, ensuring stable and high-performance mixing. It offers a maximum stirring capacity of 150 L. Equipped with a digital LCD display, it allows real-time speed monitoring and precise adjustments. Built-in with a speed range of 60 to 1500 RPM, it ensures uniform mixing. Our Overhead Stirrer delivers strong, accurate liquid mixing for high-volume laboratory applications.
$3,682.00 $ 3068
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 150 L |
| Motor Type | Brushless DC Motor |
| Motor Torque | 1 N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Closed Loop MCU Control Rotary Encoder Operation |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 250 W |
| Power Supply | 220 V / 110 (Optional) |
| Dimension | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 12 kg |
Function Implementation High-volume liquid mixing 150 L stirring volume enables processing of large batches Continuous operation labs Brushless DC motor supports extended runtime without overheating Precise speed control Closed loop MCU control maintains set RPM ± tolerance for reproducible results Secure sample handling Chuck clamping range Ø 1.5 to 13 mm accommodates various stir rod diameters Standardized lab setup Holder length 700 mm fits common vessel heights for consistent positioning
1: What makes the LE-OS106 suitable for high-volume applications?
The high-capacity stirring design and durable brushless DC motor allow for consistent and efficient mixing of large liquid volumes without overheating or vibration issues.
2: How does the stirrer support different viscosity levels?
These stirrers maintain stable torque across the full speed range, allowing smooth mixing of light solutions and viscous substances such as gels, oils, and emulsions.
3: What is the benefit of the integrated LCD display?
The display provides clear visibility of operating speed and system status, helping users make precise adjustments during sensitive formulation processes.
4: How user-friendly is the LE-OS106 for regular lab use?
Our stirrer features a rotary encoder for easy speed control, long holder length for better positioning, and tool-free setup for daily convenience.
5: How does it ensure long-term durability in industrial settings?
They are built with corrosion-resistant SS 304 components, a robust housing, and thermal protection features to ensure reliable operation in continuous-duty environments.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
Lab Expo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
