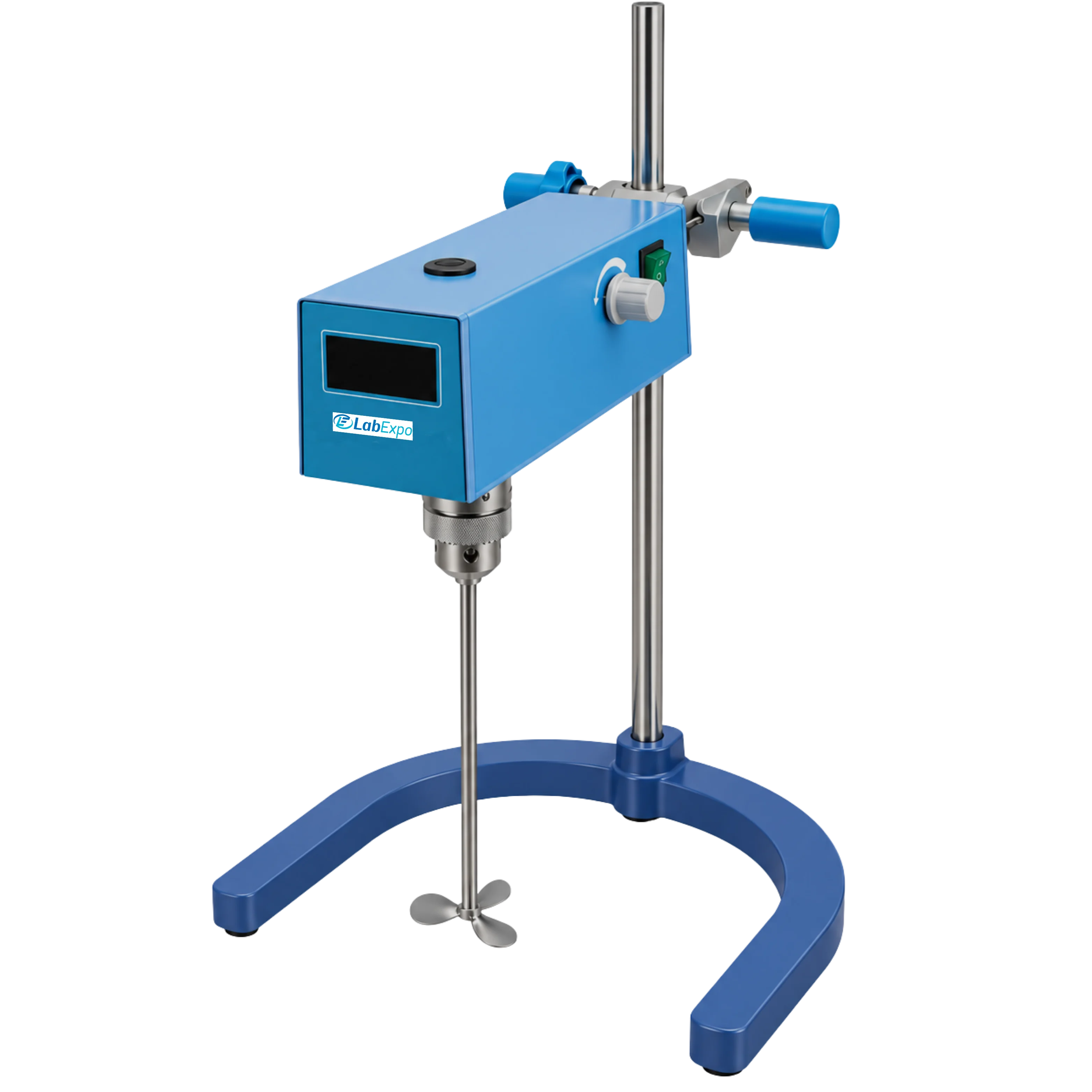

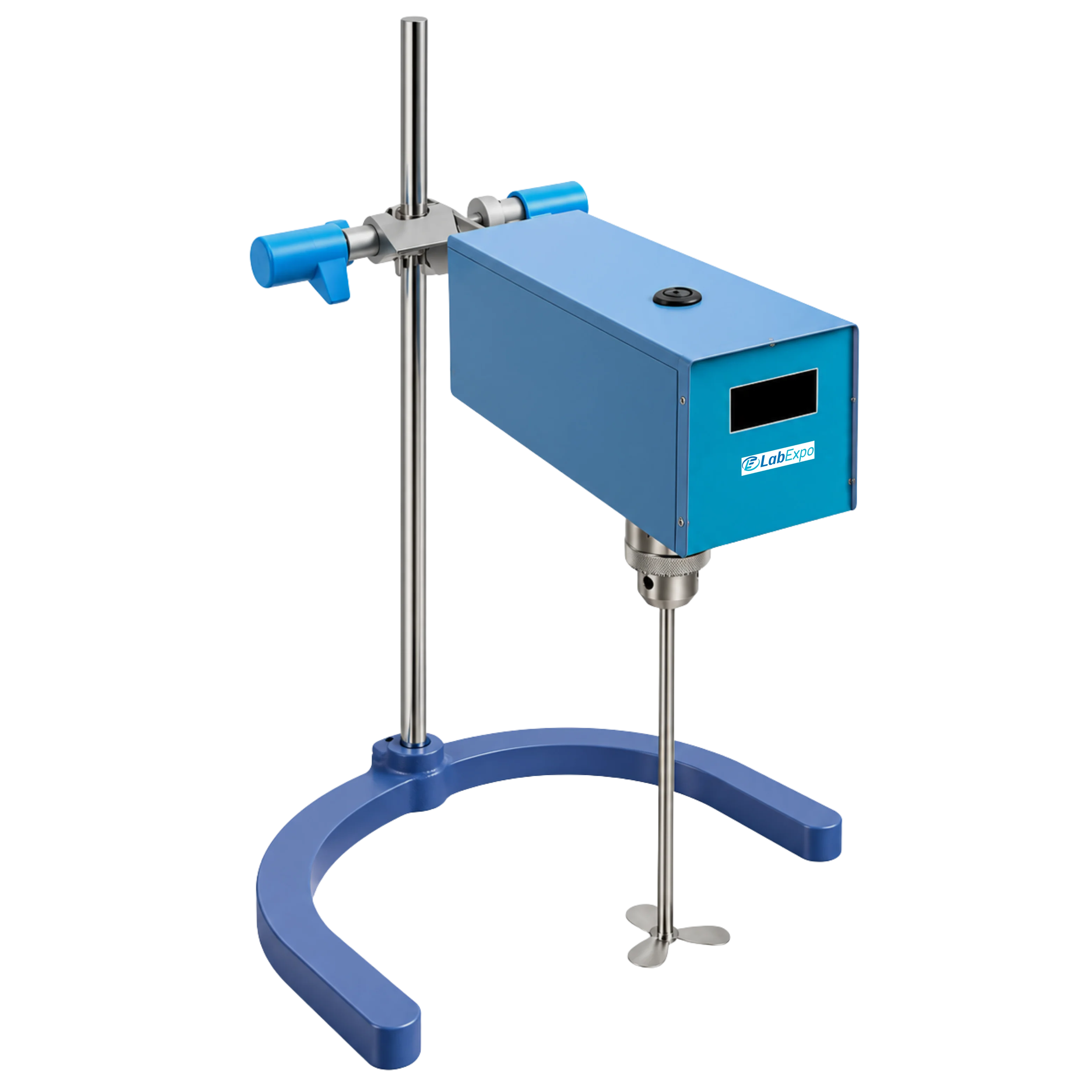

Lab Expo Overhead Stirrer LE-OS108 is designed with a microprocessor control system for accurate speed regulation and stability. It has a digital display that enables clear real-time monitoring for enhanced control. Equipped with a maximum stirring capacity of 150 L, it is suitable for large-scale operations. Built-in with a sturdy structure and user-friendly controls, it ensures reliable performance. Our Overhead Stirrer is widely used in laboratories, research facilities, and biotechnology fields.
$3,653.00 $ 3044
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 150 L |
| Timer | 0 to 9999 Min |
| Motor Type | Brushless DC Motor |
| Motor Torque | 1 N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Micro-processor control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 250 W |
| Power Supply | 220 V / 110 (Optional) |
| Dimension | 6.9 × 3.9 × 2.0 mm |
| Gross Weight | 12 kg |
Function Implementation Laboratory sample prep 150 L stirring volume handles large batch processing Quality control testing 60 to 1500 RPM speed range enables precise viscosity analysis Research facility use Brushless DC motor provides maintenance-free continuous operation Industrial mixing lines 250 W motor power supports extended duty cycles Biotech workflow integration Micro-processor control allows reproducible protocol execution
1: What makes the LE-OS108 suitable for large-scale mixing applications?
Our Overhead Stirrer offers a 150?L mixing capacity and strong torque, making it well-suited for high-volume formulations in industrial and laboratory settings.
2: How does the digital control system benefit users during operation?
These digital controls allow users to set forward, reverse, and interval times precisely, enabling accurate mixing protocols with minimal manual intervention.
3: Why is the brushless DC motor advantageous for continuous use?
They deliver stable speed, reduced heat generation, and longer motor life without requiring frequent maintenance, which is ideal for long operating cycles.
4: What can be monitored on the LCD display during stirring?
This stirrer displays real-time speed, set time, and directional settings, giving operators full visibility over every phase of the mixing process.
5: Can the LE-OS108 be customized for different process cycles?
The built-in microprocessor control and programmable time settings let users fine-tune forward/reverse cycles and intervals to suit complex formulations.
6: What allows the Overhead Stirrer to maintain a constant speed even when the sample viscosity changes?
A closed-loop feedback system continuously adjusts the motor’s torque to keep the stirring speed steady under varying load conditions.
7: What types of blades can be used with an Overhead Stirrer?
Overhead stirrers support various blades, including propeller, paddle, turbine and anchor types, each suited for specific liquid viscosities and mixing needs.
8: What safety features protect the Overhead Stirrer during operation?
The stirrer includes automatic shut-off in case of overload, overheating or motor malfunction to protect both the equipment and the user.
9: What makes the Overhead Stirrer suitable for mixing large volumes of liquid?
It features a high-torque motor and robust construction to handle large-capacity vessels and maintain consistent stirring performance.
10: What makes the Overhead Stirrer suitable for use in different industries?
Its variable speed control, compatibility with various blade types and high torque output make it ideal for mixing, blending and dispersing in various industries.
Lab Expo Overhead Stirrer is designed for effective and dependable mixing of large liquid volumes. They maintain a constant speed, even when the viscosity of the sample changes. These stirrers support different blade types for handling various liquids. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is useful for mixing, blending, and dispersing in labs, food production, cosmetics, and chemical industries.
