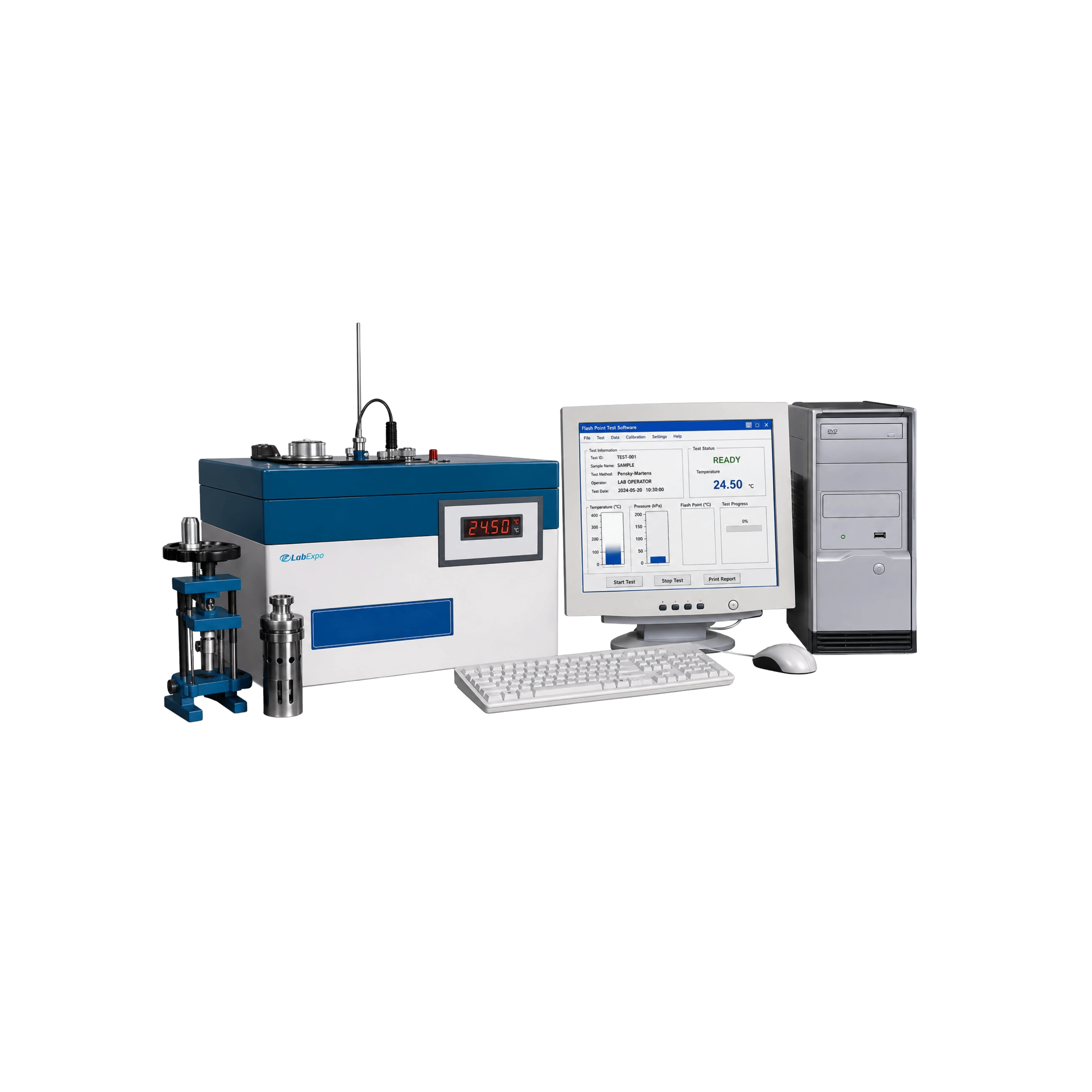

Oxygen Bomb Calorimeter 52-OBC100

Oxygen Bomb Calorimeter 52-OBC100

Lab Expo Oxygen Bomb Calorimeter 52-OBC100  offers a temperature range of 0 to 40 °C for accurate and accurate thermal analysis. It enables stable large-batch experimental operation through an ultra-large capacity water tank. Its fully automated system integrates oxygen charging, ignition, and temperature control to minimize manual intervention. The advanced cooling and heating system prevents outer cylinder temperature overshoot, enabling uninterrupted long-duration experiments.

$6,274.00 $ 5228

Specifications

Oxygen bomb working pressure 2.8-3.0mpa, maximum 3.2Mpa
Capacity of external water cylinder About 45L
Capacity of the inner water cylinder About 2.1L
Ignition method Fusible cotton wire ignition
Temperature measurement range 0 to 40 ℃
Temperature resolution 0.0001 ℃
Test time ≤ 15 minutes
Operating environment Room temperature 5-35 ℃, humidity < 80%
Power supply AC 220V ±10%，50Hz
Packaging Dimension 600 × 610 × 630 mm
Net Weight 30 Kg
Gross Weight 45 Kg

Features

  • Ultra-large external water cylinder with 45L capacity
  • Fully automated oxygen charging ignition temperature control system
  • Test time under fifteen minutes for rapid analysis cycles
  • Temperature measurement range zero to forty degrees Celsius

Applications

FunctionImplementation
Quality control labs0 to 40 ℃ temperature measurement range enables precise thermal analysis
Research facilities≤ 15 minutes test time supports rapid sample processing
Clinical testing environmentsOxygen bomb working pressure of 2.8-3.0 mpa ensures consistent combustion conditions
Industrial material assessmentCapacity of external water cylinder about 45L allows large-batch experimental operation
Educational laboratoriesTemperature resolution of 0.0001 ℃ provides high-precision data acquisition

Catalog

Oxygen Bomb Calorimeter 52-OBC100 Catalog

Related Models Of Oxygen Bomb Calorimeter

Lab Expo Oxygen Bomb Calorimeters are designed for determination of calorific value in coal, fuel oil, biomass, petrochemical, food & industrial material testing applications. Units support oxygen bomb working pressures up to 20 MPa, heat capacity ranges from 14400 to 14500 J/K, and temperature measurement from 10°C to 35°C with resolution up to 0.001 K. Systems integrate automatic temperature control, stable water circulation, pressure-resistant combustion vessels, and repeatability error ≤0.2% for consistent thermal analysis. Automatic bomb calorimeter configurations support fuel combustion efficiency studies, energy content determination, combustion research, and Calorimeter-based quality control workflows.
