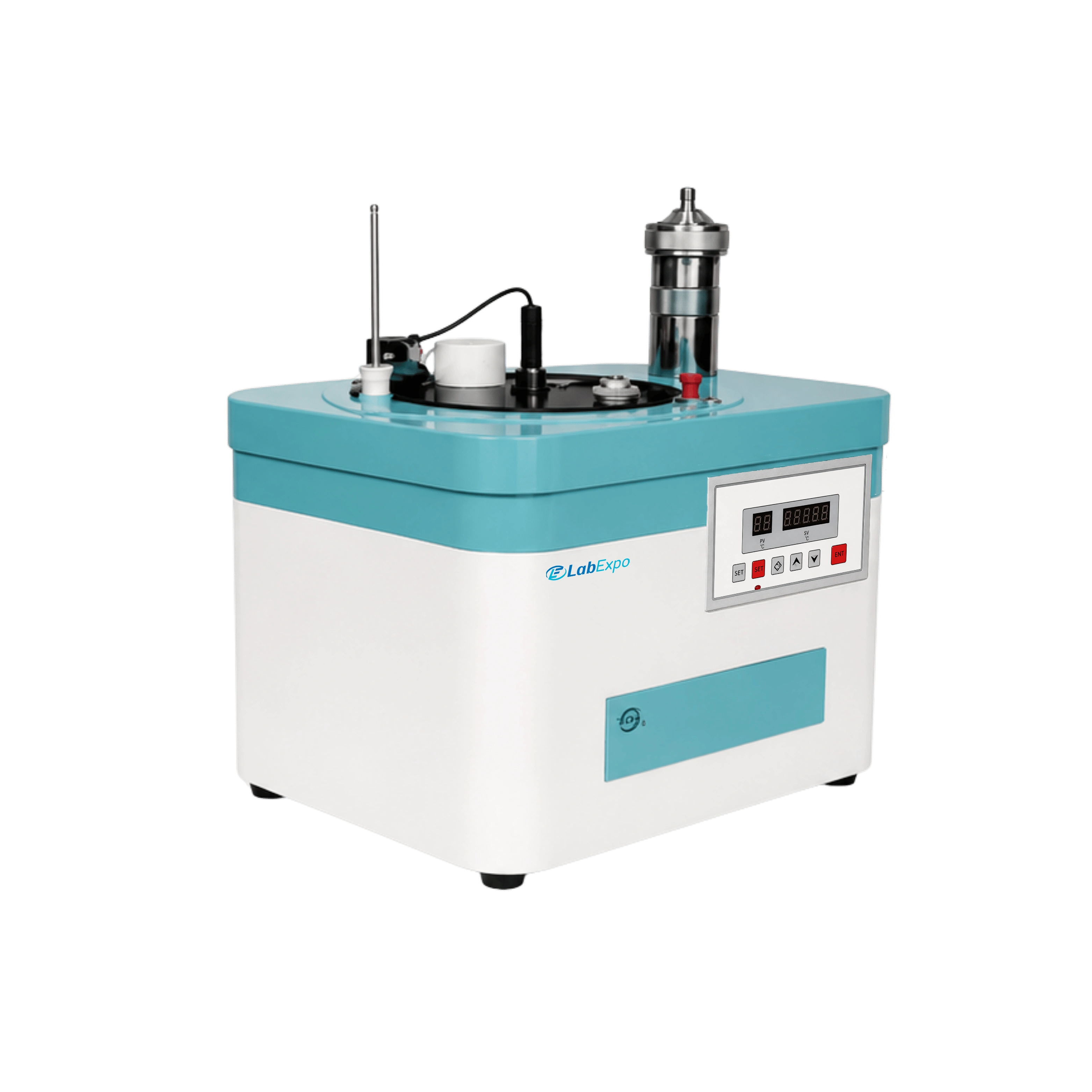

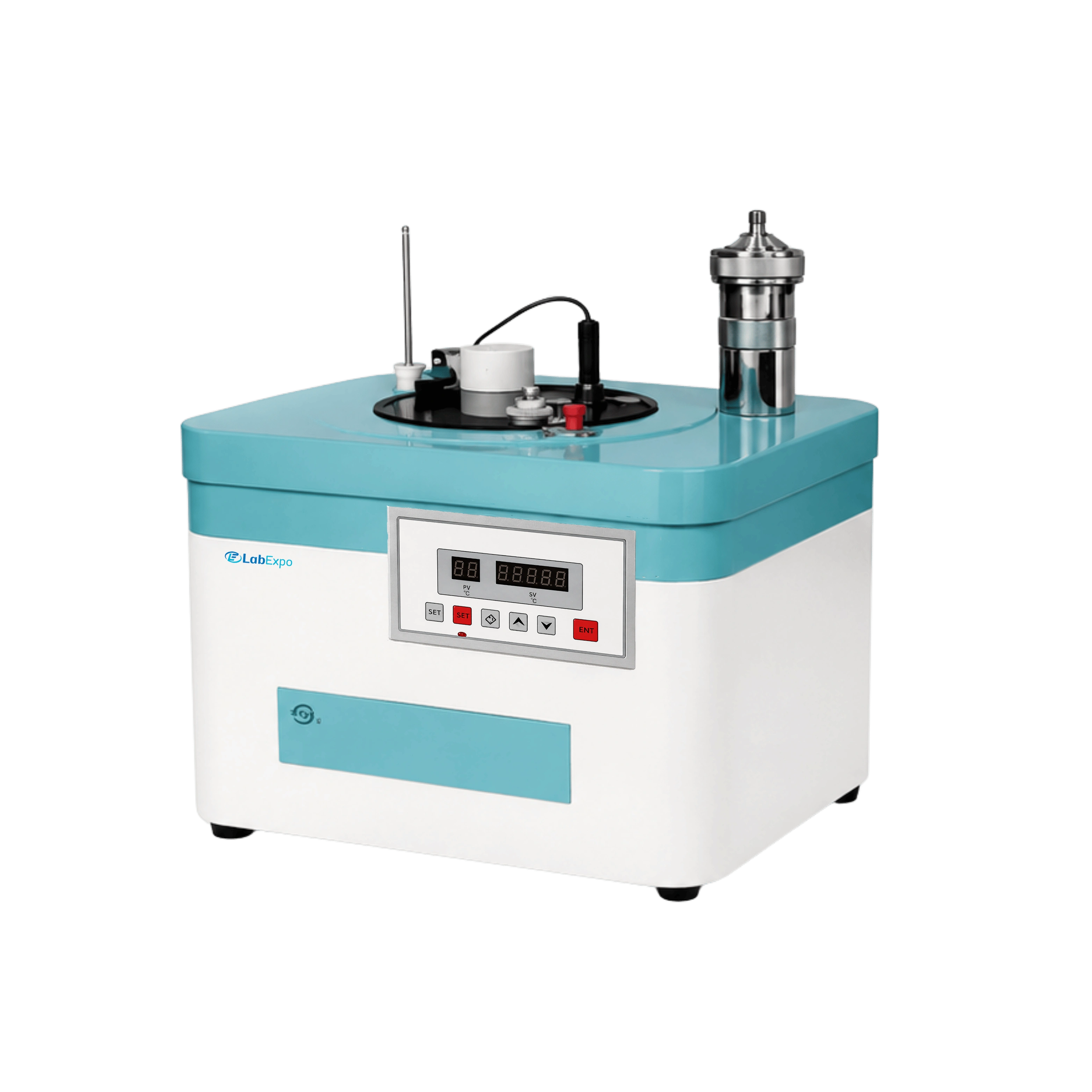

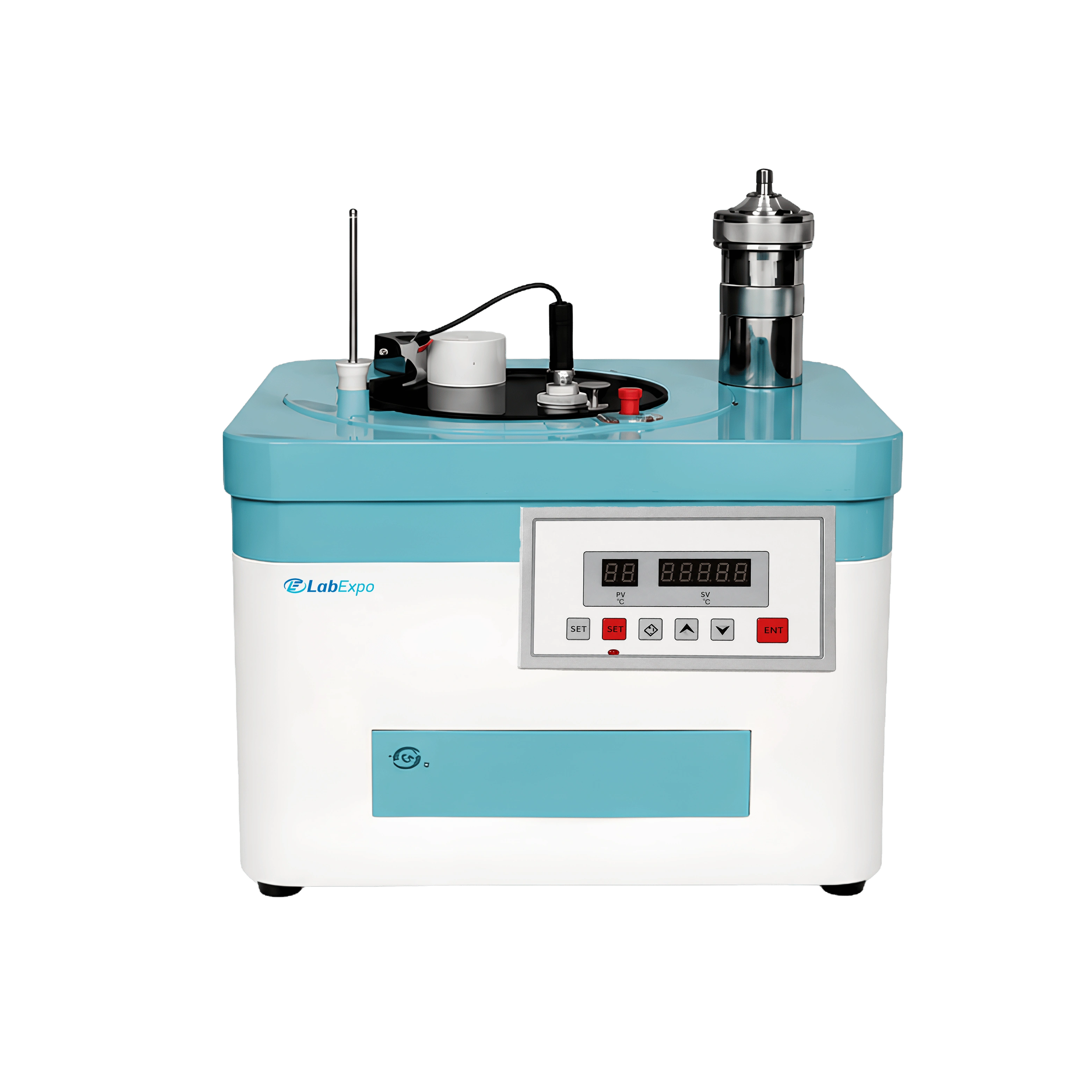

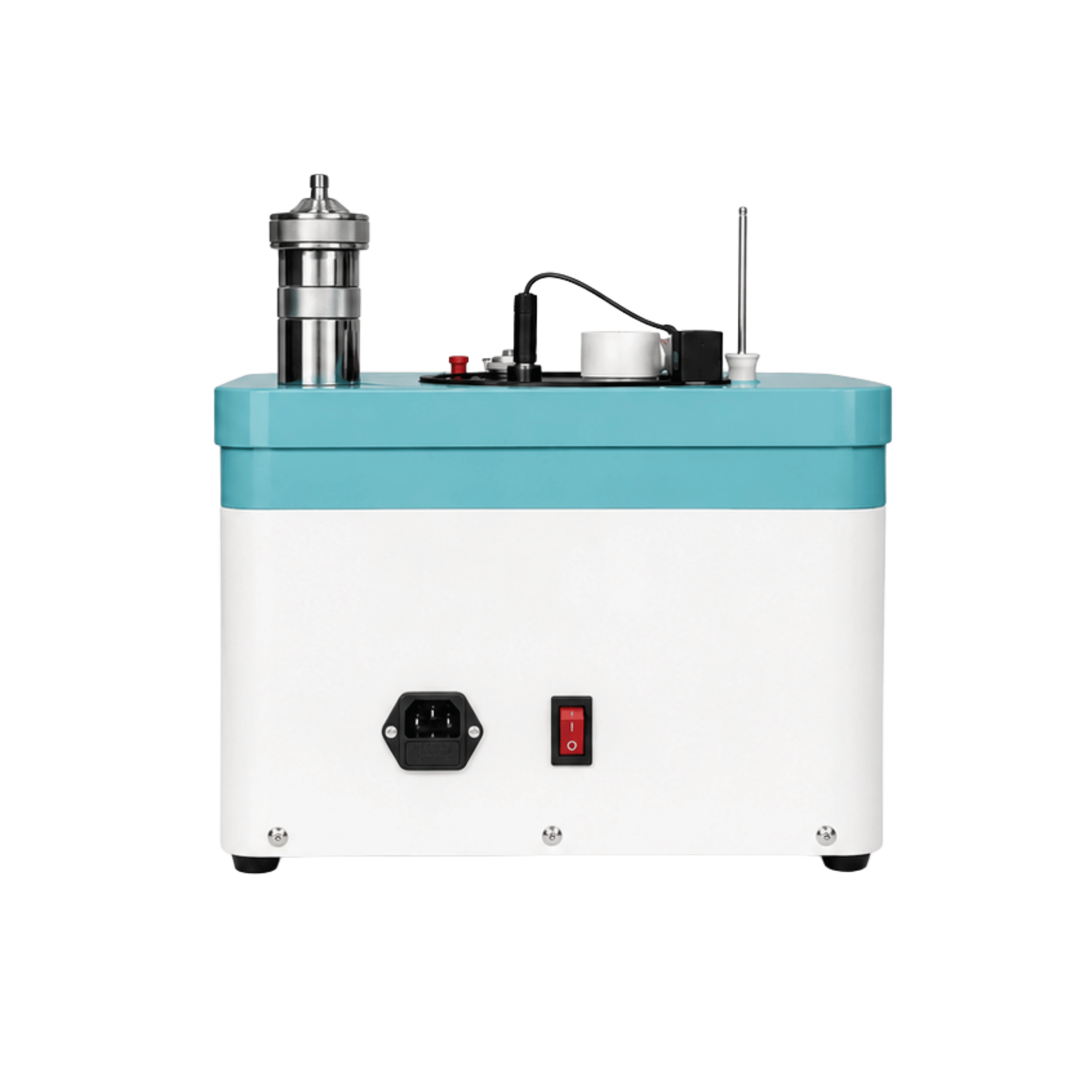

Lab Expo Oxygen Bomb Calorimeter 52-OBC101 measures heat of combustion with a temperature resolution of 0.001 K and measurement accuracy within ≤60 J/g, featuring a heat capacity range of 14400–14500 J/K and pressure endurance up to 20 MPa for the oxygen bomb. It operates within ambient temperatures of 15 to 28 ℃, stores up to 31 data sets, and functions on AC 220V consumption. Designed for quality control and research applications in fuel analysis, it supports procurement needs across laboratories requiring precise calorific value determination in accordance with international standards such as ASTM D5865-13 and D240-17.
$7,368.00 $ 6140
| Temperature Measurement Range | 10 ℃ to 35 ℃ |
| Heat Capacity | 14400 J/K to 14500 J/K |
| Resolution | 0.001 K |
| Measurement Accuracy | ≤ 60J/g |
| Repeatability | ≤0.2% |
| Pressure Endurance of Oxygen Bomb | 20 MPa |
| Ambient Temperature | 15 to 28 ℃ |
| Data Saved | 31 pieces |
| Relative Humidity | ≤85% |
| Power Consumption | ≤150W |
| Power Supply | AC (220V±10%), 50 Hz |
| Dimension | 600 × 460 × 430 mm |
| Net Weight | 30 kg |
| Gross Weight | 42 kg |
Function Implementation Quality control labs ≤0.2% repeatability ensures consistent calorific value testing Coal analysis facilities 14400 J/K to 14500 J/K heat capacity supports accurate coal heat measurement Petroleum testing units ≤60J/g measurement accuracy enables precise fuel calorific value determination Research laboratories 31 data points stored allows extended experimental data logging Industrial QA environments Power consumption ≤150W permits continuous operation under standard lab supply
Lab Expo Oxygen Bomb Calorimeters are designed for determination of calorific value in coal, fuel oil, biomass, petrochemical, food & industrial material testing applications. Units support oxygen bomb working pressures up to 20 MPa, heat capacity ranges from 14400 to 14500 J/K, and temperature measurement from 10°C to 35°C with resolution up to 0.001 K. Systems integrate automatic temperature control, stable water circulation, pressure-resistant combustion vessels, and repeatability error ≤0.2% for consistent thermal analysis. Automatic bomb calorimeter configurations support fuel combustion efficiency studies, energy content determination, combustion research, and Calorimeter-based quality control workflows.
