Ozone Test Chamber 24-OTC100
Product2
Product3
Product4

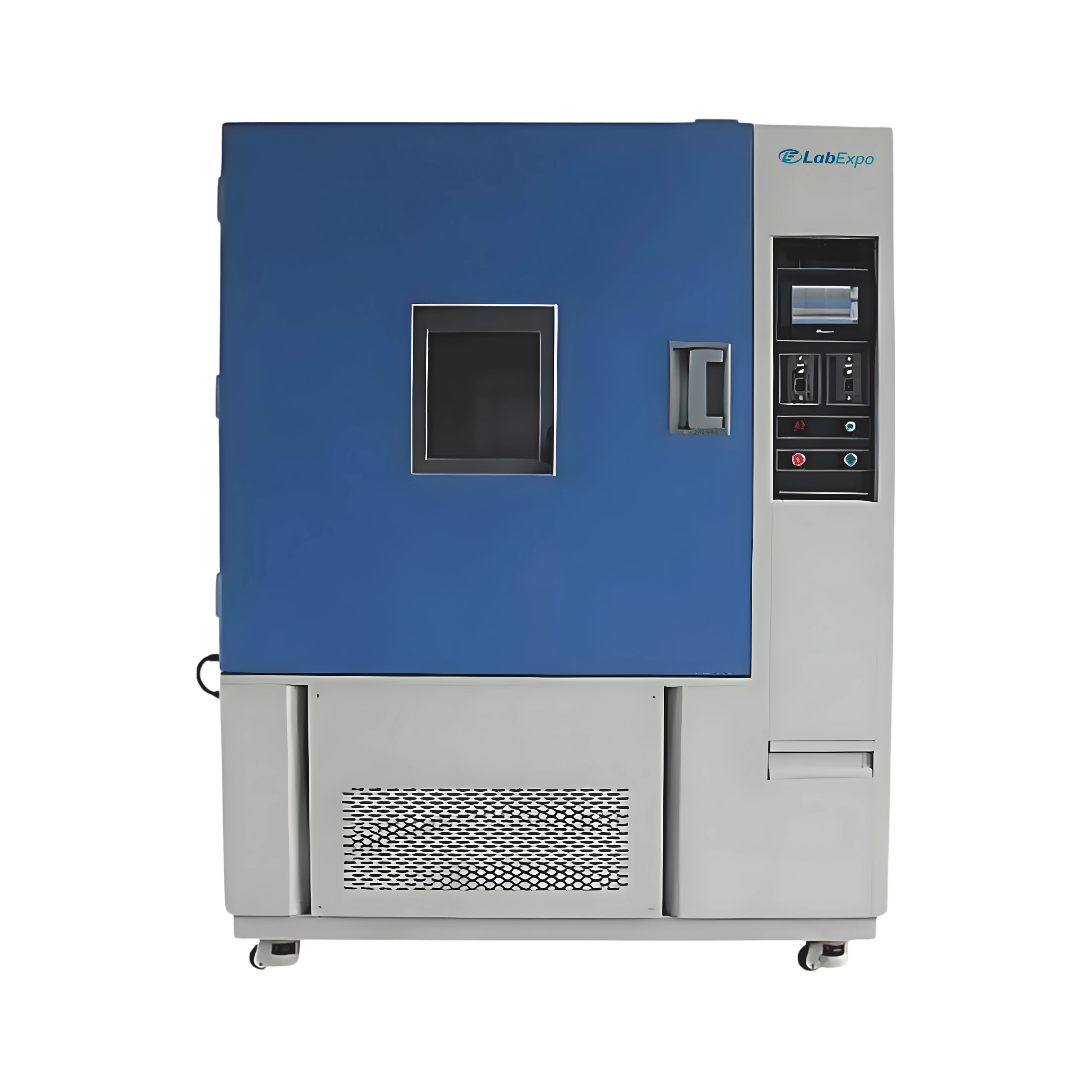

Ozone Test Chamber 24-OTC100

Lab Expo Ozone Test Chamber 24-OTC100 is designed with a maximum ozone concentration of 120 g O₃/m³, ensuring accurate testing. It operates within a temperature range of 0℃ to 100℃, providing a controlled environment for various testing applications. It is built with a corrosion-resistant stainless steel body, ensuring long-lasting durability even in harsh testing conditions. Its robust and durable closed-type compressor provides stable performance and reliable operation.

$33,854.00 $ 28212

Ozone Test Chamber 24-OTC100 - Specifications

Max. Ozone Concentration 120 g O₃/m³
Temperature Range 0℃ to 100℃
Temperature Fluctuation ± 0.5 ℃
Humidity Range 30 % to 98 % R.H
Ozone Output 3.5 g O₃/h (oxygen input, flow rate 100L/h)
Cooling Speed Ambient to 0 ℃ within 20 min
Timing Range 0 to 999 hours
Ozone Concentration 1 to 1000 PPHM
Sample Holder Speed 0 to 10 r/min (adjustable)
Clamps Tensile Stretch 5 % to 35 %
Nominal Power 5500 W
Power & Voltage AC 380 V 50Hz
Internal Dimensions 400 × 500 × 500 mm
Overall Dimensions 860 × 1050 × 1620 mm
Weight 363 Kg

Ozone Test Chamber 24-OTC100 - Key Features

  • Advanced PID control with 0.5C temperature fluctuation
  • 18.6L stainless steel chamber with uniform cooling
  • Precision ozone detection up to 1000 PPHM concentration
  • Flat shelf design supporting 5% to 35% tensile stretch
  • Enhanced safety module for AC 380V power input

Ozone Test Chamber 24-OTC100 - Applications

FunctionImplementation
Environmental aging tests0℃ to 100℃ enables controlled temperature exposure
Humidity-controlled chambers30 % to 98 % R.H supports moisture-variable testing
Extended duration trials0 to 999 hours timing range allows long-term exposure studies
High-concentration validationMax. Ozone Concentration: 120 g O₃/m³ ensures precise oxidative assessment
Oxidative material evaluationOzone Output: 3.5 g O₃/h (oxygen input, flow rate 100L/h) provides consistent gas delivery

Ozone Test Chamber 24-OTC100 - Catalog

Ozone Test Chamber 24-OTC100 Catalog

Related Ozone Test Chamber

Lab Expo Ozone Test Chamber enables controlled material aging and degradation studies through precise regulation of ozone concentration and temperature. Suitable for research, quality control, and industrial evaluation, this ozone chamber supports uniform exposure with real-time ozone monitoring via integrated detection systems. Corrosion-resistant build, programmable control, and stable ozone generation ensure repeatable testing conditions across long-duration environmental test cycles.
