Ozone Test Chamber 24-OTC101

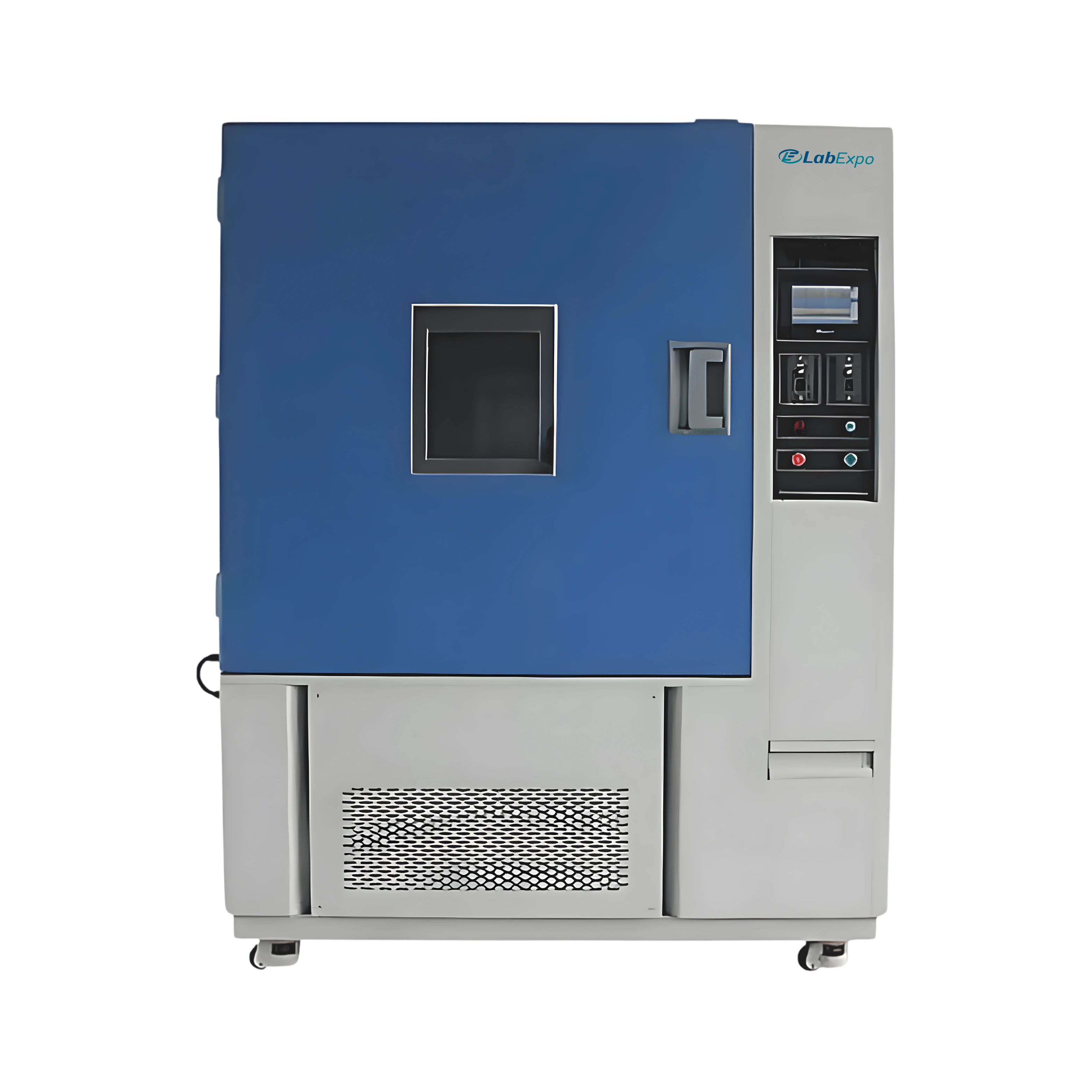

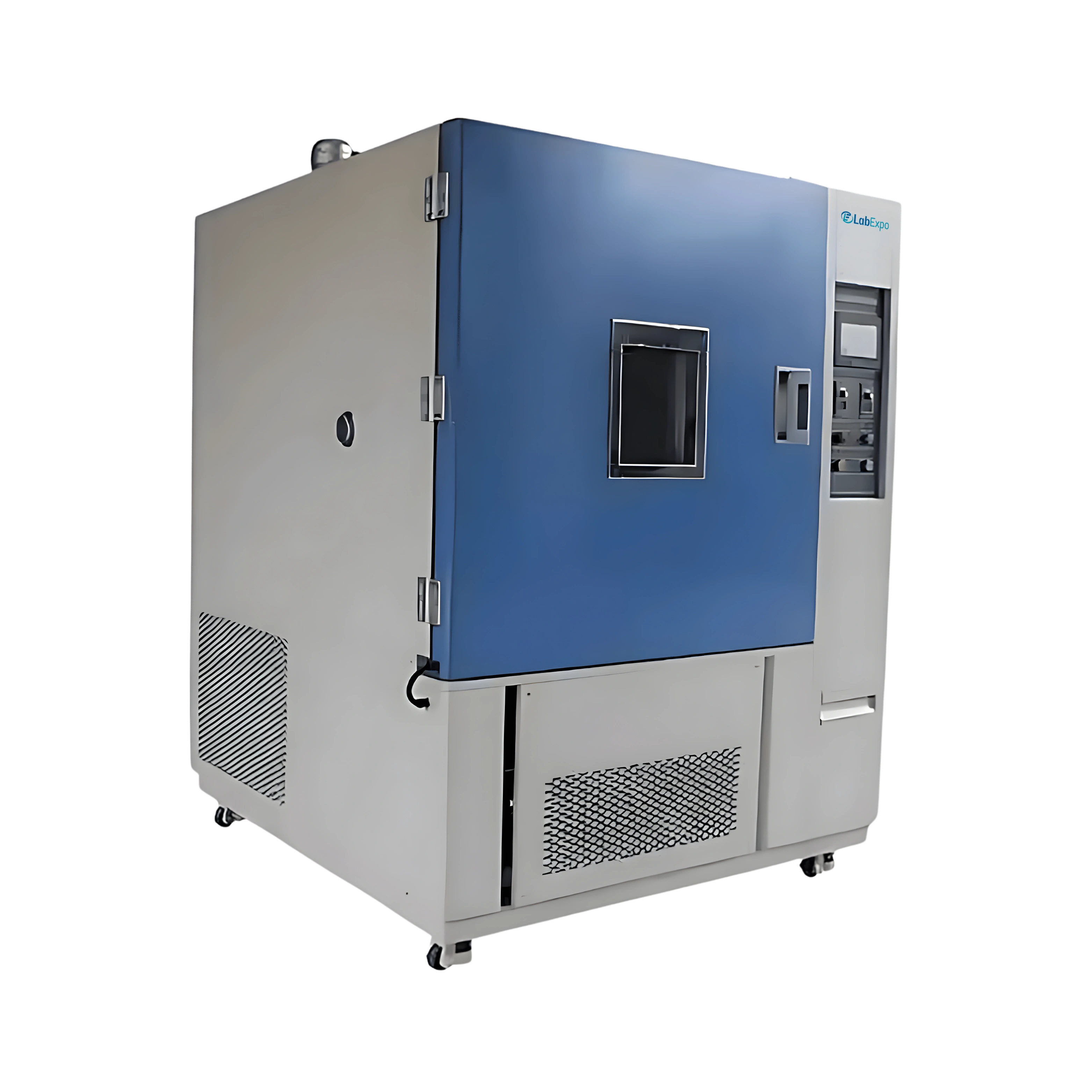

Lab Expo Ozone Test Chamber 24-OTC101 is specifically designed to detect the concentration of ozone with the help of ozone detector. Along with low maintenance and noiseless generator this machine has a well-built corrosion resistant body.

$36,144.00 $ 30120

Ozone Test Chamber 24-OTC101 - Specifications

Diameter of holder (mm) 400
Length of each side (mm) 180
Temperature range 0℃ to 100℃
Humidity range 30 % to 98 % R.H
Temperature fluctuation ± 0.5 ℃
Speed rate for cooling Ambient to 0 ℃ within 20 min
Timing range 0 to 999 hours
Ozone concentration 1 to 1000PPHM
Sample holder rotate speed 0 to 10 r/min (adjustable)
Clamps tensile stretch 5 % to 35 %
Max. ozone concentration 120 g O3/m³
Ozone output 3.5 g O3/h (oxygen input, flow rate 100L/h)
Nominal power 6000 W
Internal dimensions 600 × 600 × 700 mm
Overall dimensions (mm) 960 × 1150 × 1860 mm
Power & voltage AC 380 V 50Hz

Ozone Test Chamber 24-OTC101 - Key Features

  • PID programmable controller with LED touch screen display
  • UV detector for ozone concentration measurement 1 to 1000PPHM
  • Three control systems PLC HMI SOC integrated design
  • Protection module for safety voltage regulation
  • Closed-type compressor unit solid durable structure
  • User-friendly operation reliable performance stable function

Ozone Test Chamber 24-OTC101 - Applications

FunctionImplementation
Ozone resistance testing1 to 1000PPHM concentration enables precise material exposure assessment
Humidity-controlled aging30% to 98% R.H range supports environmental simulation protocols
Temperature-stable evaluation±0.5℃ fluctuation ensures consistent test repeatability
Extended duration studies0 to 999 hours timing allows prolonged exposure monitoring
Rotational sample analysis0 to 10 r/min speed promotes uniform ozone distribution across specimens

Ozone Test Chamber 24-OTC101 - Catalog

Ozone Test Chamber 24-OTC101 Catalog

Related Ozone Test Chamber

Lab Expo Ozone Test Chamber enables controlled material aging and degradation studies through precise regulation of ozone concentration and temperature. Suitable for research, quality control, and industrial evaluation, this ozone chamber supports uniform exposure with real-time ozone monitoring via integrated detection systems. Corrosion-resistant build, programmable control, and stable ozone generation ensure repeatable testing conditions across long-duration environmental test cycles.
