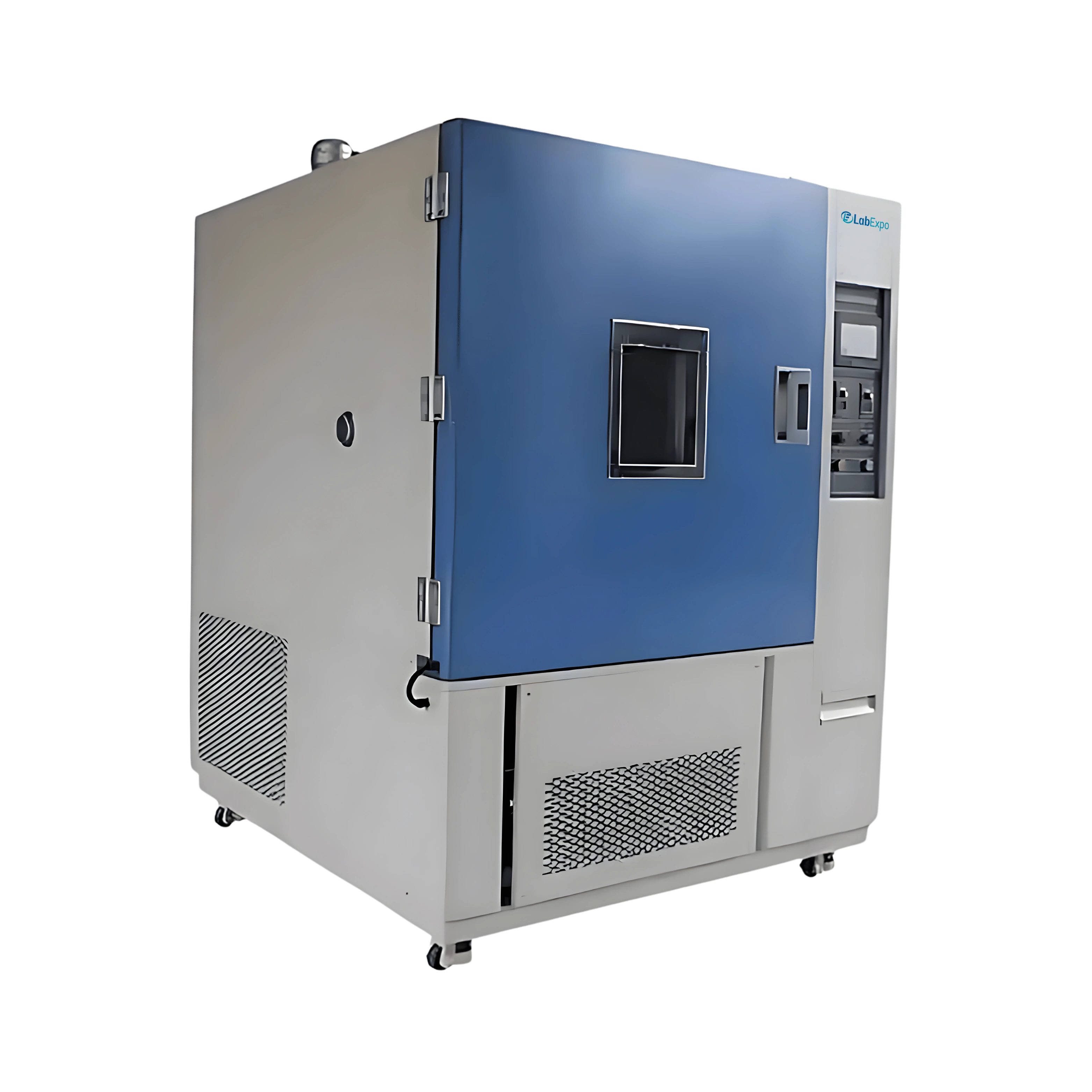

Product3

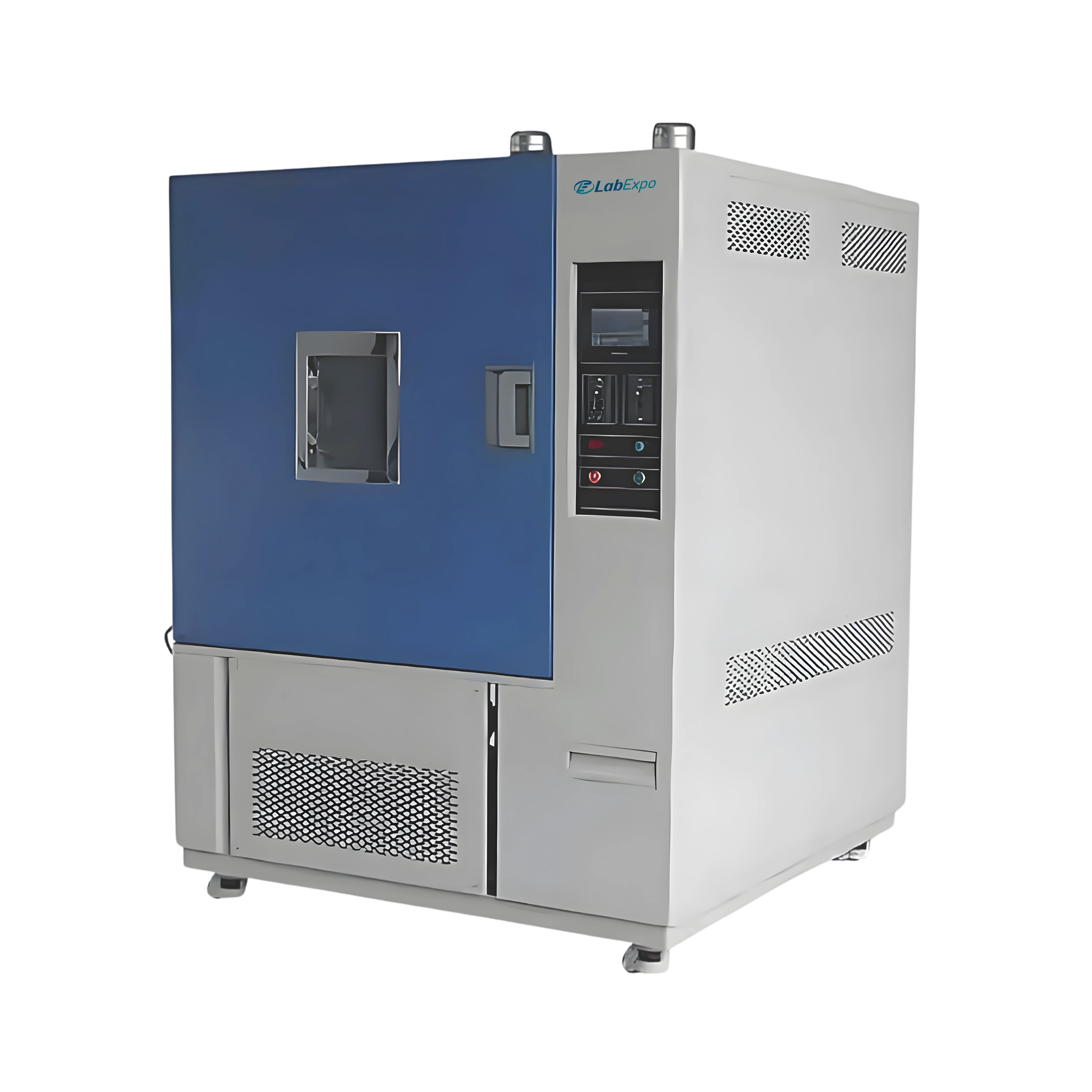

Product4

Ozone Test Chamber 24-OTC102

Lab Expo Ozone Test Chamber 24-OTC102 provides controlled ozone exposure for material aging tests, temperature range from 0℃ to 100℃, humidity control between 30% and 98% RH, and ozone concentration adjustable from 1 to 1000 PPHM. It features a rotating sample holder (600 mm diameter) with variable speed up to 10 r/min, tensile clamps accommodating stretches from 5% to 35%, and a nominal power of 750 W at AC380V/5Hz.

$46,584.00 $ 38820

Ozone Test Chamber 24-OTC102 - Specifications

Diameter of holder (mm) 600
Length of each side (mm) 220
Temperature range 0℃ to 100℃
Humidity range 30 % to 98 % R.H
Temperature fluctuation ± 0.5 ℃
Speed rate for cooling Ambient to 0 ℃ within 20 min
Timing range 0 to 999 hours
Ozone concentration 1 to 1000PPHM
Sample holder rotate speed 0 to 10 r/min (adjustable)
Clamps tensile stretch 5 % to 35 %
Max. ozone concentration 120 g O3/m³
Ozone output 3.5 g O3/h (oxygen input, flow rate 100L/h)
Nominal power 7500 W
Internal dimensions 700 × 800 × 900 mm
Overall dimensions (mm) 1180 × 1350 × 2010 mm
Power & voltage AC 380 V 50Hz

Ozone Test Chamber 24-OTC102 - Key Features

  • Static and dynamic combined sample holders with 600mm diameter
  • PID programmable controller with LED touch screen display resolution 0.1C
  • UV detector for ozone concentration measurement range 1 to 1000PPHM
  • Three control systems PLC HMI SOC integrated for precise regulation
  • Protection module for safety voltage fluctuation ± 0.5 C accuracy
  • Solid structured closed-type compressor unit nominal power 7500 W

Ozone Test Chamber 24-OTC102 - Applications

FunctionImplementation
Ozone resistance testing1 to 1000PPHM supports material exposure evaluation
Humidity-controlled aging30 % to 98 % R.H enables environmental stress simulation
Temperature cycling labs± 0.5 ℃ fluctuation ensures repeatable thermal exposure
Long-duration exposure testsTiming range: 0 to 999 hours accommodates extended protocols
Rotational sample analysisSample holder rotate speed: 0 to 10 r/min allows uniform ozone contact

Ozone Test Chamber 24-OTC102 - Catalog

Ozone Test Chamber 24-OTC102 Catalog

Related Ozone Test Chamber

Lab Expo Ozone Test Chamber enables controlled material aging and degradation studies through precise regulation of ozone concentration and temperature. Suitable for research, quality control, and industrial evaluation, this ozone chamber supports uniform exposure with real-time ozone monitoring via integrated detection systems. Corrosion-resistant build, programmable control, and stable ozone generation ensure repeatable testing conditions across long-duration environmental test cycles.
