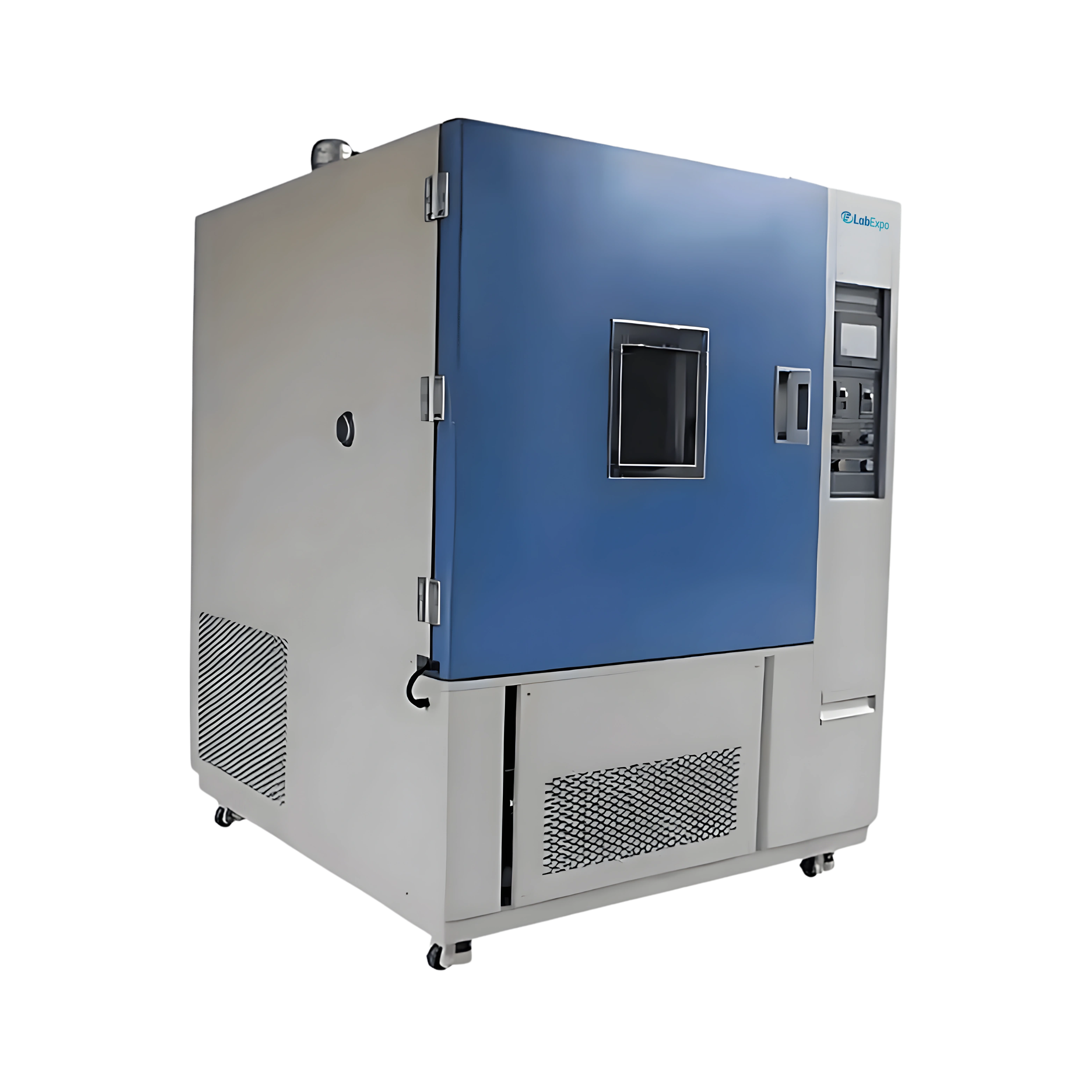

Lab Expo Ozone Test Chamber 24-OTC103 provides controlled environmental testing for material durability assessment, temperature range from 0℃ to 100℃, humidity control between 30% and 98% R.H., and ozone concentration up to 120 g O₃/m³. Features include adjustable sample holder rotation from 0 to 10 r/min, tensile stretch capability of clamps from 5% to 35%, timing range up to 999 hours, and cooling rate from ambient to 0℃ within 20 minutes. Operates on AC 380 V power at nominal consumption of kW with precise temperature stability within ±½°C. Suitable for quality control in polymer, pharmaceutical, automotive and industrial sectors requiring standardized ozone exposure protocols.
$50,904.00 $ 42420
| Diameter of holder (mm) | 700 |
| Length of each side (mm) | 350 |
| Temperature range | 0℃ to 100℃ |
| Humidity range | 30 % to 98 % R.H |
| Temperature fluctuation | ± 0.5 ℃ |
| Speed rate for cooling | Ambient to 0 ℃ within 20 min |
| Timing range | 0 to 999 hours |
| Ozone concentration | 1 to 1000PPHM |
| Sample holder rotate speed | 0 to 10 r/min (adjustable) |
| Clamps tensile stretch | 5 % to 35 % |
| Max. ozone concentration | 120 g O3/m³ |
| Ozone output | 3.5 g O3/h (oxygen input, flow rate 100L/h) |
| Nominal power | 9000 W |
| Internal dimensions | 800 × 1000 × 1000 mm |
| Overall dimensions (mm) | 1280 × 1550 × 2110 mm |
| Power & voltage | AC 380 V 50Hz |
Function Implementation Material durability assessment 120 g O3/m³ maximum concentration enables long-term exposure testing Environmental simulation labs Ambient to 0°C within 20 min supports rapid thermal cycling Quality control validation ±0.5°C fluctuation ensures consistent test conditions Accelerated aging studies 3.5 g O3/h output sustains controlled oxidative stress Multi-sample evaluation 800 × 1000 × 1000 mm internal dimensions allow batch processing
Lab Expo Ozone Test Chamber enables controlled material aging and degradation studies through precise regulation of ozone concentration and temperature. Suitable for research, quality control, and industrial evaluation, this ozone chamber supports uniform exposure with real-time ozone monitoring via integrated detection systems. Corrosion-resistant build, programmable control, and stable ozone generation ensure repeatable testing conditions across long-duration environmental test cycles.
