Softness Tester 61-PPT116

Name: Softness Tester 61-PPT116
Brand: Lab Expo
SKU: 61-PPT116
Price: $4732.00 USD
Availability: InStock
Rating: 4.8 (865 reviews)

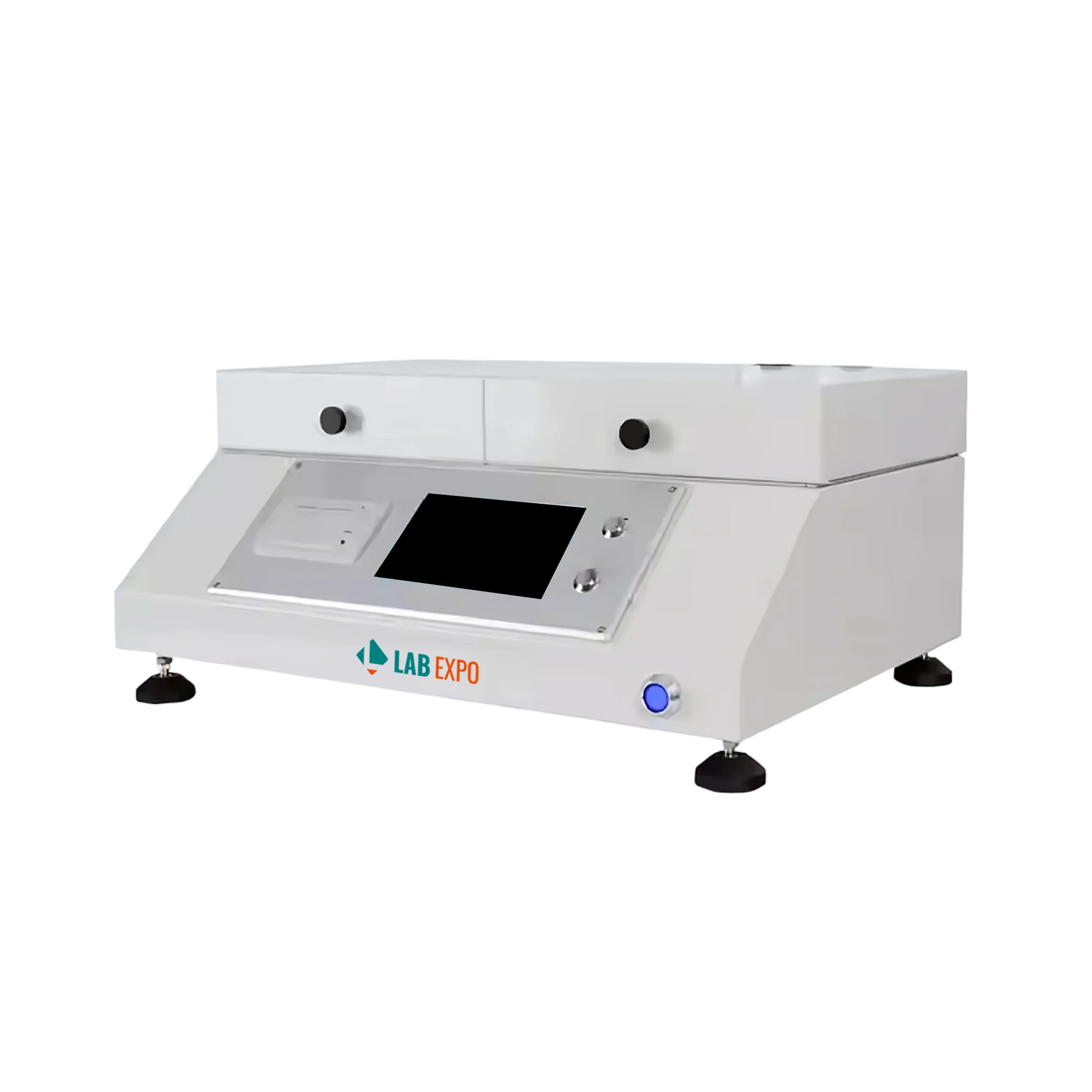

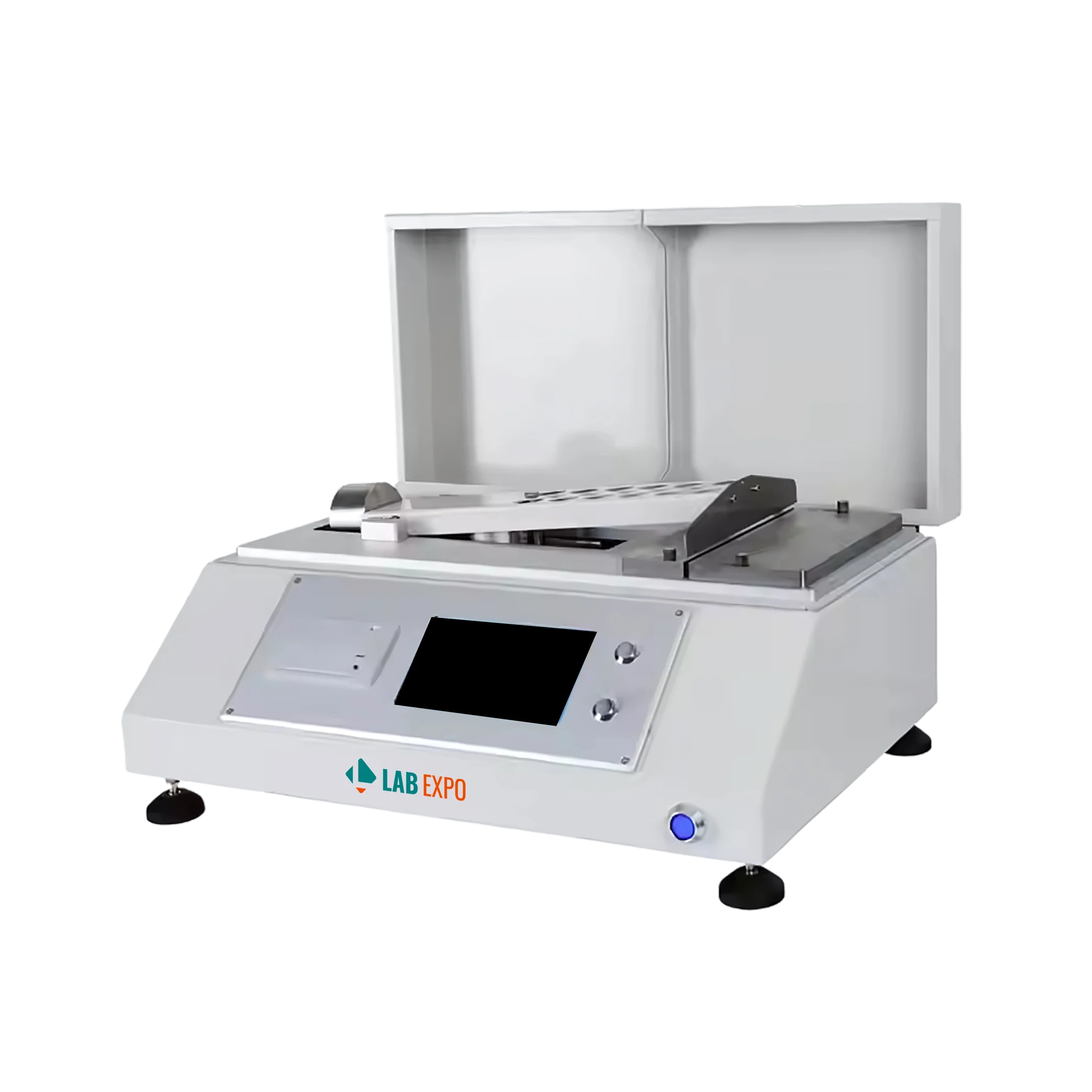

Softness Tester 61-PPT116 is a microprocessor-controlled technology and liquid crystal display to view and observe test parameters and result values. It can calculate and print test data. Its compact and sleek design and easy operations make it user-friendly. It is used to measure the softness of paper, tissue paper, sheets, fabric.

★ ★ ★ ★ ★

Price: ~~$9,464.00~~ $4,732.00

Name Please enter a valid name.

Email Please enter a valid email address.

Product

Message

Measuring range	10 to 1000 mN
Division value	1 mN
Accuracy	± 1%
Indicating Error	≤ 0.5
Pressing depth of the measuring head	8 + 0.5 mm
Parallelism error between two brims of the specimen stages	≤ 0.05 mm
Slit width of the specimen stage	5 mm, 6.35 mm, 10 mm, 20 mm
Dimension	570×410×200 mm
Weight	33 kg
Power supply	AC220 V ± 10 % , 50 Hz

Microprocessor controlled technology
LCD display
Measurement range: 10 to 1000 mN
Pressing depth of the measuring head: 8 + 0.5 mm
User-friendly operations

Softness tester can measure softness of materials such as toilet paper of all grades, tobacco sheet, fiber fabric and so on.

Softness Tester 61-PPT116 Catalog

Paper Testing Instruments

Whiteness & chromaticity Tester 61-PPT100

Sample (size) length: Diameter ≥30 mm, Thickness ≤ 40 mm
Measurement mode: Diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, chromaticity coordinates x10, y10, z10; lightness L *, chroma a * b *, chroma C * ab, hue angle h * ab, dominant wavelength λd, excitement purity Pe, color difference ΔE * ab, lightness difference ΔL *, chroma difference ΔC * ab, hue difference ΔH * ab, Hunter system L , A, b
Stability: ≤ 0.1 within 30 min
Accuracy: Chromaticity co-ordinate 0.0001

Whiteness Meter 61-PPT101

Sample (size) length: Diameter ≥30 mm, Thickness ≤ 40 mm
System: D/0 lighting geometrical viewing conditions, diffuser diameter (d) 150mm, testing hole diameter 30mm
Light source: D65 as illuminating source
Zero drift: ≤ 0.1 %

Tensile stifness tester 61-PPT102

Sample (size) length: 38×70 mm
Measuring range: (1-500) mN.m (divided into 7 small ranges)
Indication error: 0.02
Test speed: (200° ± 20°)/ min

Horizontal Tensile Tester 61-PPT103

Sample (size) length: 90 to 200 mm
Sample width: 15 mm, 25 mm, 50mm
Measuring range: 0 to 30, 0 to 100 N,0 to 300 N
Accuracy: ± 1 %

Horizontal Tensile Tester 61-PPT104

Sample (size) length: 180 mm (180, 150, 100, 90, 50 mm adjustable)
Sample width: 15 mm
Measuring range: 0 to 30, 0 to 100 N,0 to 300 N, 0 to 500 N, 0 to 1000 N
Accuracy: ± 1 %

Vertical tensile tester 61-PPT105

Sample (size) length: 0 to 200 mm adjustable
Sample width: 15 mm
Measuring range: 0 to 30 N (tissue paper), 0 to 100 N,0 to 300 N, 0 to 500 N, 0 to 1000 N
Accuracy: ± 1 %

Pulp beating freeness tester 61-PPT106

Measurement range: 0 to 100° SR
Sealed testing speed: 100 ± 10 mm/s
Volume of distilled water: 1000 ± 5 ml
Draining time: 149 ± 1 s

Water absorption tester (KLEMN type) 61-PPT107

Measurement range: 0 to 200 mm
Specimen size: 15×250 mm
Division value: 1 mm
Number of specimen holders: 5

Cobb Water absorption tester 61-PPT108

Metal Cylinder inner area: (100 ± 0.2) cm2
Metal Cylinder height: 50 mm
Metal roller width: (200 ± 0..5) mm
Metal roller weight: (10 ± 0.5) kg

Cobb Sample Cutter 61-PPT109

Sample diameter: 125 mm
Sample error: ± 0.2 mm
Sample Thickness: 0.1 to 1.0 mm
Dimension: 240×288×435 mm

Coefficient of friction tester 61-PPT110

Measurement range: 0.01 to 10 N
Slider weight: 200 g
Slider size: 63×63 mm
Testing accuracy: ± 2 %

Electronic bending stiffness tester 61-PPT111

Testing speed: 200° ± 20° / min
Test range: 1 to 10000 mN
Indicating Error: ± 1 %
Testing length: 5, 10, 15, 20, 25, 50 mm

Paper and Cardboard Thickness Meter 61-PPT112

Measuring range: 0 to 4 mm
Accuracy: 0.01 or 0.001 mm
Gauge: Analogue gauge display
Contact pressure (to create false weight): 100 ± 10 kPa

Corrugated Cardboard Thickness Meter 61-PPT113

Measuring range: 0 to 20 mm
Accuracy: 0.01 mm
Gauge: Analogue gauge display
Contact pressure (to create false weight): 20 ± 0.5 kPa

Ink Rubber Tester 61-PPT114

Sample size (L*B): 230×50 mm (can join short samples together)
Rub pressure: 20 ± 0.2 N
Friction speed: 43 times / min
Friction area (L*B): 155×50 mm

Standard strip cutter 61-PPT115

Sample width: 15 mm
Sample maximum length: 300 mm
Parallelism: ≤ 0.1 mm
Dimension: 240×520×70 mm

Compression Tester 61-PPT117

Measuring range: 0.1 to 10 kN
Indication error: < ± 1%
Platen Size: 500×500 mm (customized)
Operating stroke: 500 mm (customized)

Compression Tester 61-PPT118

Measuring range: 1 to 50 kN
Indication error: < ± 1%
Platen Size: 800×800 mm/ 1000×1000 mm/ 1200×1200 mm/ 1500×1500 mm (customized)
Operating stroke: 800 mm/ 1000 mm/ 1200 mm/ 1500 mm (customized)

Air permeability tester 61-PPT119

Measuring range: 0 to 1000 ml/min
Test area: 10 ± 0.02 cm2
Area differential pressure: 1 ± 0.01 kPa
Inner diameter of grip ring: 35.68 ± 0.05 mm

Internal Ply bond Tester 61-PPT120

Capacity: A: 20 to 500 J/m2 B: 500 to 1000 J/m2
Impact angle: 90°
Unit: Lb-ft/in2 J/m2
Error: A: ± 1 J/m2 B: ± 2 J/m2
