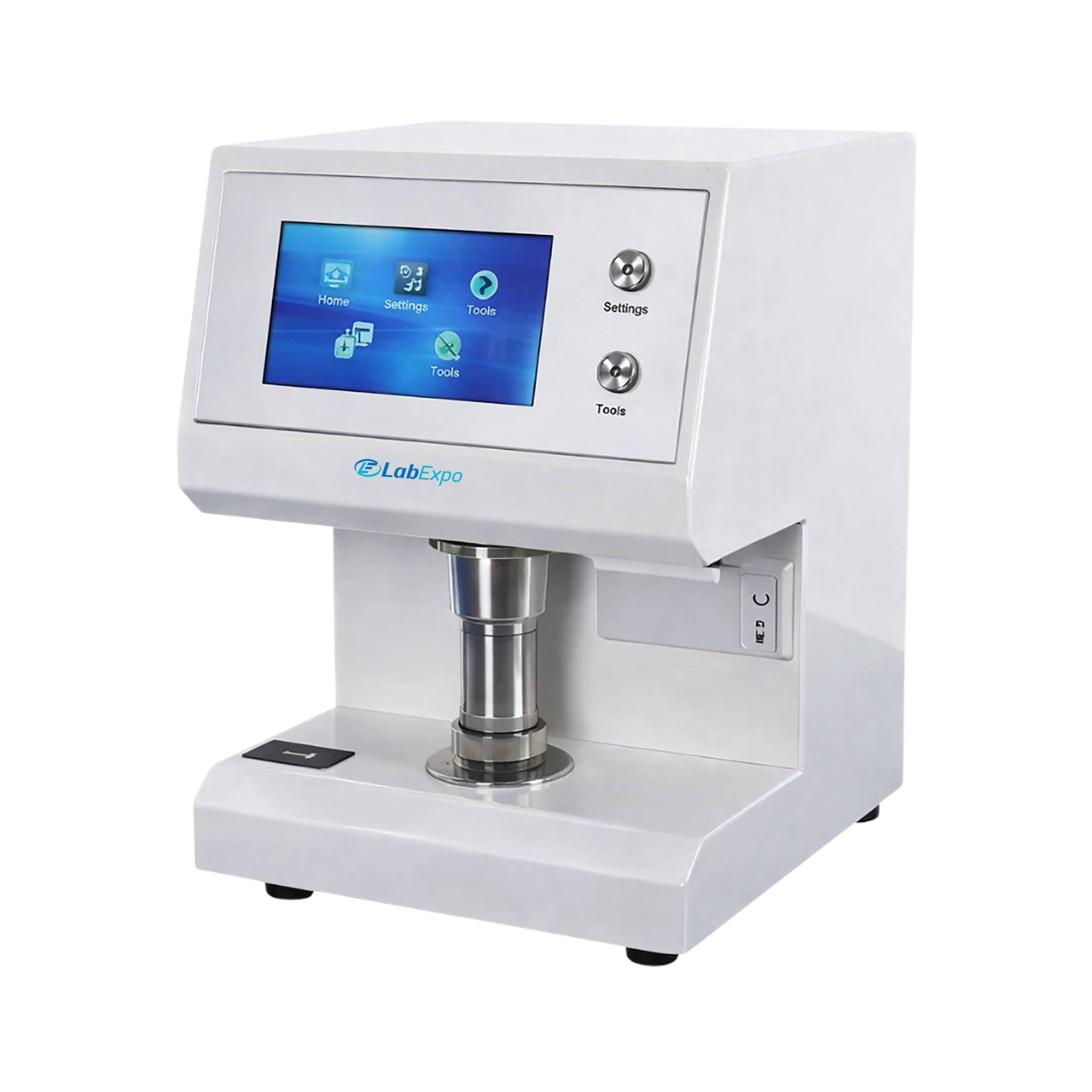

Bekk Smoothness tester with microprocessor controlled system is used for determination of smoothness of the paper & cardboard by ‘Bekk Method’. Equipped with high-precision sensor and imported oil-free vacuum pump for smooth operations. The test results generated with Bekk smoothness tester, has shown correlation with print smoothness evaluation using offset ink.
$4,954.00
$4,128.00
Specifications
| Measuring scope | ( 1 to 9999) s, divided in to (1 to 15) s, (15 to 300) s, (300 to 9999) s, the automatic (no. more than 200 s) |
| Accuracy | ±0.1 s within 300 s |
| Vacuum system volume (ml) | Bigger volume: 380 ± 1 Smaller volume: 38 ± 1 |
| Contact pressure | 100 ± 2 kPa |
| Vacuum scope | I) 50.66 to 48.00 II) 50.66 to 48.00 III) 50.66 to 29.33 Automatic: No limit |
| Air volume (50.66 kPa down to 48.00 kPa) | Big vacuum volume: 10.00 ± 0.20 ml Small vacuum volume: 1.00 ± 0.05 ml |
| Dimension | 325×390×430 mm |
| Net weight | 30 kg |
| Power supply | AC220 V ± 10 % , 50 Hz |
Features
Applications
Smoothness tester is used in testing smoothness of coated label papers, sheets, smooth textures papers, printing papers photographs papers etc. in paper, printing packaging industry.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
