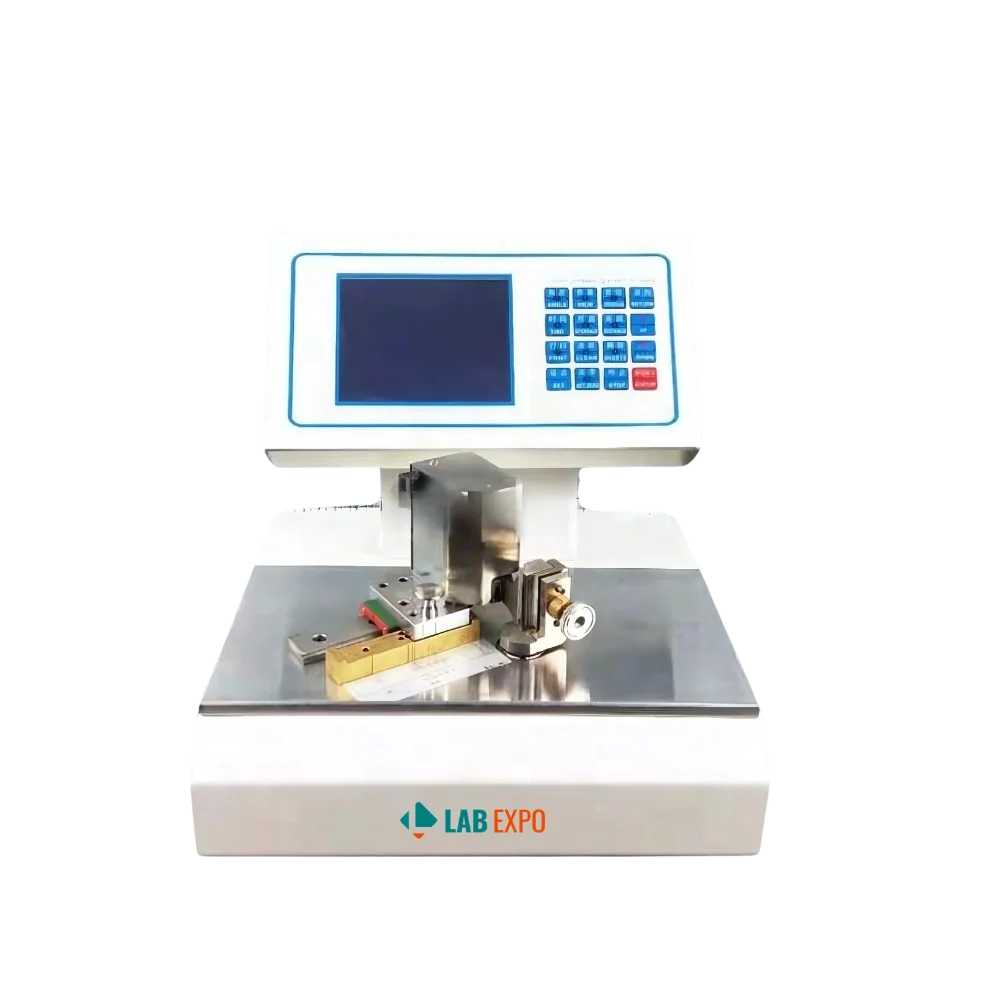

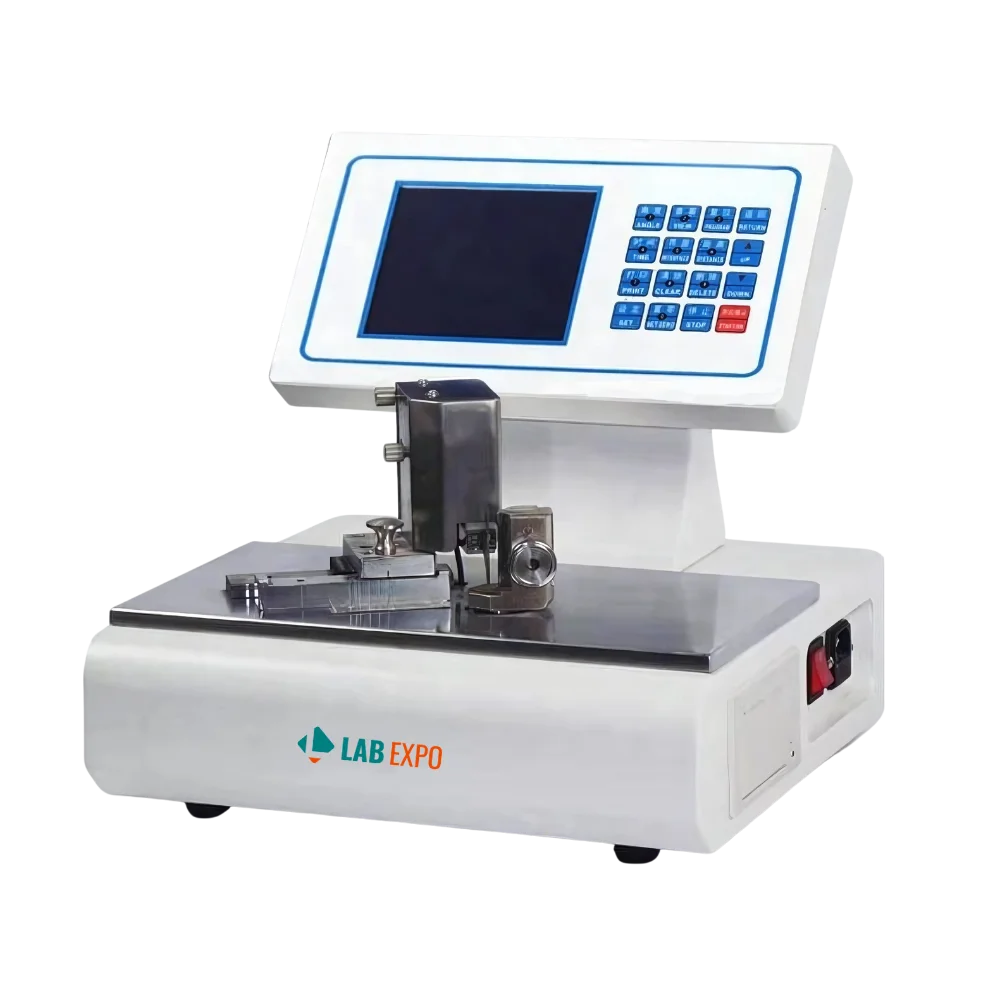

Lab Expo Automatic Carton Stiffness Tester 61-PPT129 offers a wide measuring range of 15 to 10,000 mN.m for testing various packaging materials. Our tester can set between 1° and 90° for precise adjustments to measure the stiffness of cartons at various angles. It features a clear 5.7-inch LCD Display showcasing real-time stiffness values and detailed curve graphs.
$7,008.00 $ 5840
| Measuring Range | 15 to 10,000 mN.m |
| Resolution | 0.1 mN |
| Accuracy | Below 50mN: ±0.6mN, Remaining: ±1% |
| Indication Variability | ≤1% (measured on 10% to 90% of range) |
| Bending Length | (50/25/20/15/10/5) ± 0.1 mm |
| Bending Angle | ±7.5° or ±15° (±0.3° within 1° to 90° range) |
| Test Speed | 200° ± 20°/min |
| Print Output | Modular integrated thermal printer |
| Data Display | 5.7-inch LCD with graph display |
| Working Conditions | Temperature: 20 to 40°C; Humidity: |
| Dimensions L×W×H | 340 × 330 × 340 mm |
| Weight | 15 kg |
Function Implementation Quality control labs 15 to 10,000 mN.m measures carton stiffness across material grades Packaging production lines Test Speed: 200° ± 20°/min enables rapid batch evaluation Research testing facilities Bending Length: (50/25/20/15/10/5) ± 0.1 mm supports multi-point analysis Clinical supply assessment Accuracy: Below 50mN: ±0.6mN ensures precise low-force detection Industrial material validation Indication Variability: ≤1% maintains consistent repeatability
Lab Expo Paper Testing Instruments are used for strength, thickness, smoothness, tearing, bursting, compression, whiteness, water absorption, and tensile analysis of paper, pulp, carton, and corrugated board materials. Systems support measuring ranges up to 6000 kPa bursting pressure, 50 kN compression force, 16000 mN tearing capacity, and 1000 N tensile testing with high-resolution digital measurement. Units integrate air permeability, stiffness, folding endurance, friction, chromaticity, and ply bond testing for paper manufacturing, packaging inspection, and quality control applications.
