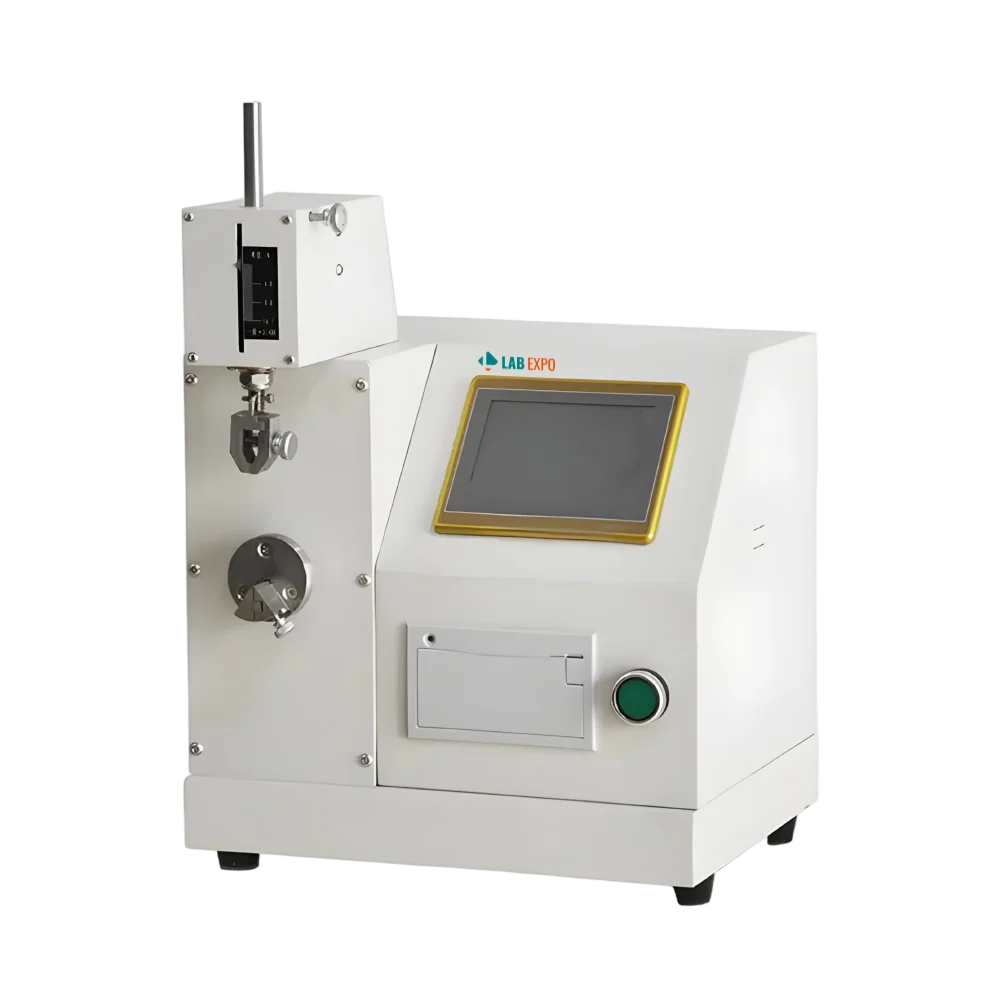

Folding Tester 61-PPT131

Lab Expo Folding Tester 61-PPT131 operates at a precise 175 ± 10 beats per minute, ensuring consistent and reliable folding performance. It offers a folding angle setting at 135°, delivering reliable and standardized folding tests. It features an advanced 32-bit ARM Processor ensuring precise control and exceptional accuracy during the testing process. Our tester equipped with a 5-inch Color Touch Screen LCD offers a user-friendly interface for easy navigation and control.

$6,144.00 $ 5120

Folding Tester 61-PPT131 - Specifications

Fold Speed 175 ± 10 beats/min
Fold Angle 135° ± 2°
Measuring Range 1 to 99999 times
Tension Adjustment Range 4.9N to 14.7N
Folding Clamp Slot 0.25mm, 0.50mm, 0.75mm, 1.00mm
Fold Head Width 19 ± 1mm
Folding Fillet Radius R0.38mm ± 0.02mm
Tension Variations ≤ 0.343N
Spring Compression At least 17mm
Working Environment Temperature: 0 to 40°C, Relative humidity ≤ 85%
Working Power AC 220V ± 10%, 50Hz
Dimensions 390 mm × 305 mm × 440 mm
Weight ≤ 24kg

Folding Tester 61-PPT131 - Key Features

  • Stepper motor drive system with 175 beats per minute
  • Auto zero reset function for measurement accuracy
  • Automatic measurement data statistics processing
  • English graphical menu interface display unit

Folding Tester 61-PPT131 - Applications

FunctionImplementation
Paper durability labs175 ± 10 beats/min ensures consistent folding cycles
Quality control stationsTension range 4.9N to 14.7N supports varied material testing
Research environmentsMeasuring range up to 99,999 folds enables extended endurance tests
Industrial settingsWorking power AC 220V ±10%, 50Hz allows stable lab operation
Clinical material analysisFolding fillet radius R0.38mm ±0.02mm ensures precise fold geometry
