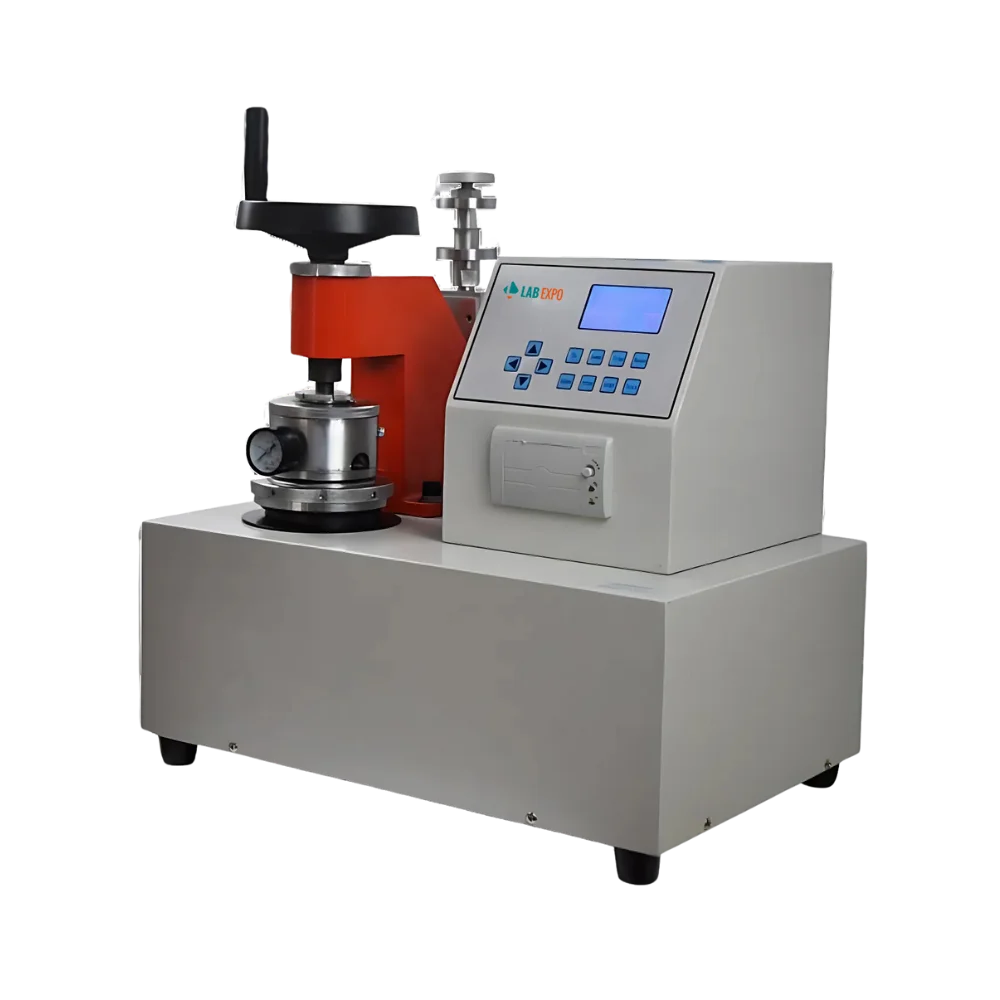

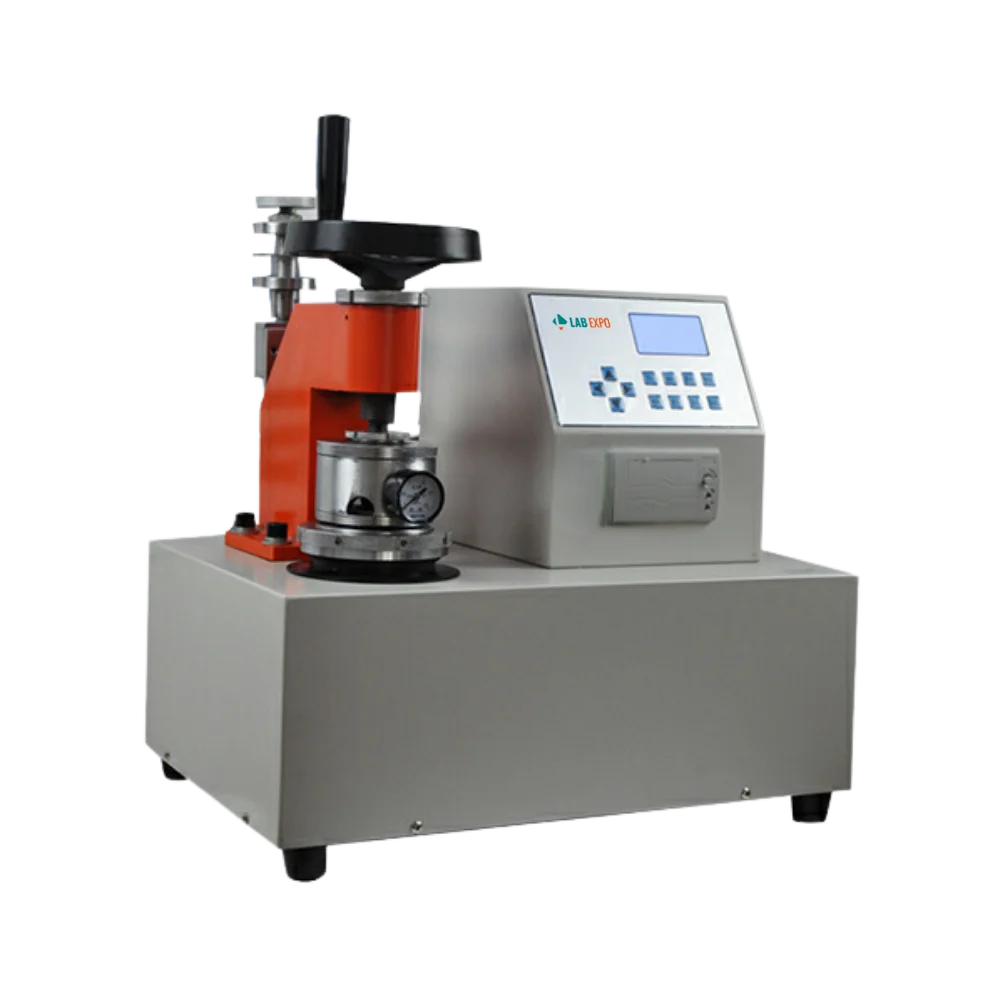

Lab Expo Bursting Tester 61-PPT132 offers an extensive measurement range from 50 to 1600 kPa for different burst strength requirements. Our bursting tester operates at a hydraulic transmission speed of 95 ml/min. It offers an advanced signal-transmitting pressure system to ensure precise and consistent pressure control during testing. Our tester features a clear, user-friendly LCD screen that displays real-time test data and results for easy monitoring and analysis.
$6,360.00 $ 5300
| Measure Range | 50 to 1600 kPa |
| Pressure Between Platen | >430 kPa |
| Transmit Hydraulic Speed | 95±5 ml/min |
| Diaphragm Resistance | Protruding 9mm: (20 to 40) mm |
| Continuous Testing Time | 5 s |
| Resolution | 1 kPa |
| Accuracy | ±0.5% F.S |
| Hydraulic System Tightness | On the measurement limit, one minute drop |
| Upper Platen Aperture Dia. | (30.5±0.05) mm |
| Lower Platen Aperture Dia. | (33.5±0.05) mm |
| Motor Power | 90 W |
| Power Supply | 220 V ±10% 50 Hz |
| Dimensions L×W×H | 440×370×520 mm |
| Weight | 55 kg |
Function Implementation Paper packaging labs 50 to 1600 kPa measures burst strength of cartons and bags Quality control lines ±0.5% F.S accuracy ensures repeatable test results Material testing facilities 95±5 ml/min hydraulic speed enables consistent pressure application Research institutions (30.5±0.05) mm upper platen tests small specimen samples Industrial production floors Continuous Testing Time: 5 s supports rapid batch evaluation
Lab Expo Paper Testing Instruments are used for strength, thickness, smoothness, tearing, bursting, compression, whiteness, water absorption, and tensile analysis of paper, pulp, carton, and corrugated board materials. Systems support measuring ranges up to 6000 kPa bursting pressure, 50 kN compression force, 16000 mN tearing capacity, and 1000 N tensile testing with high-resolution digital measurement. Units integrate air permeability, stiffness, folding endurance, friction, chromaticity, and ply bond testing for paper manufacturing, packaging inspection, and quality control applications.
