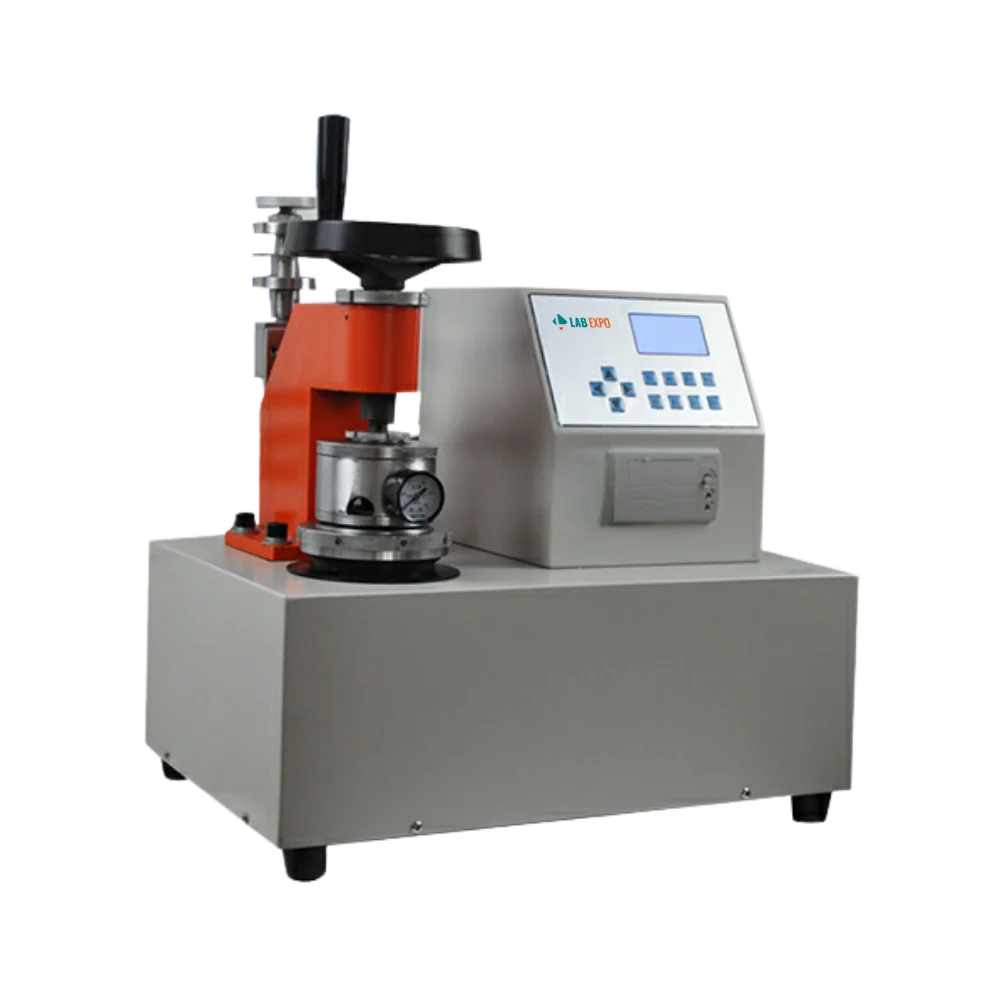

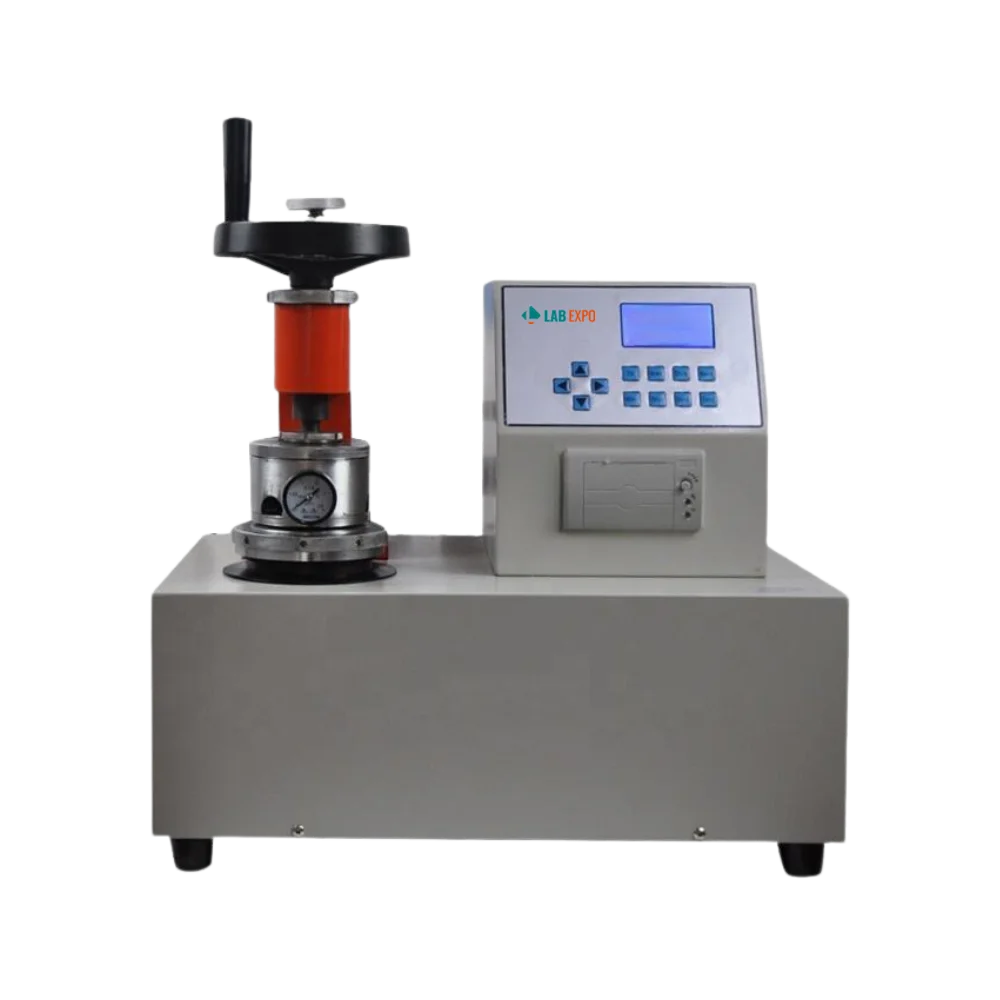

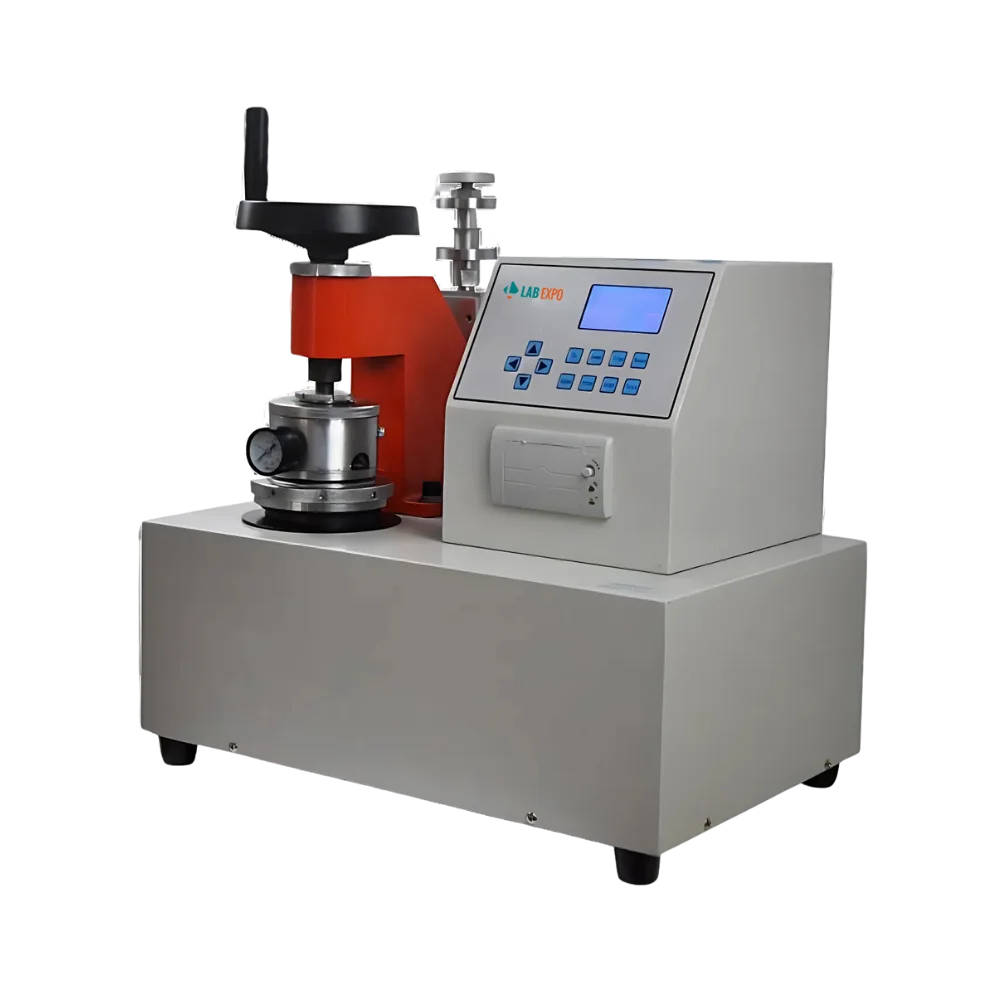

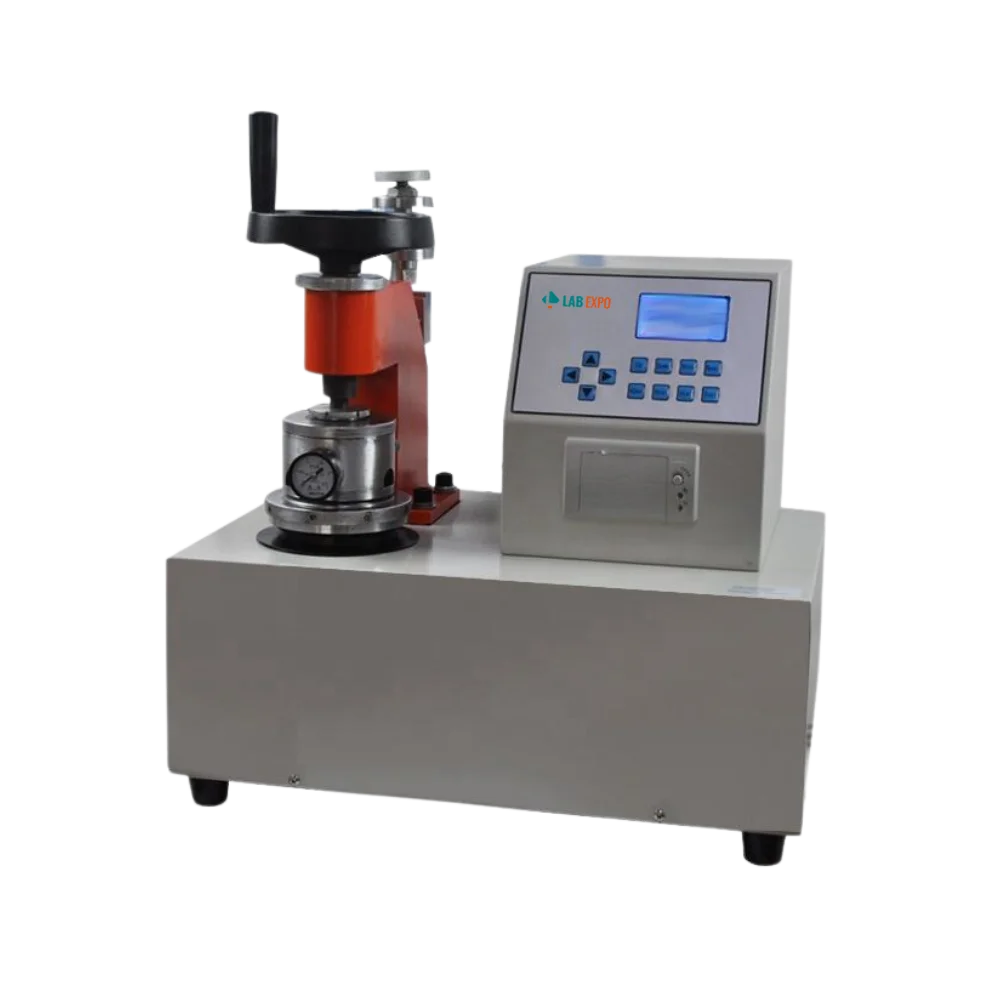

Bursting Tester 61-PPT133

Lab Expo Bursting Tester 61-PPT133 is designed with a precise measurement range of 250 to 6000 kPa, ensuring reliable burst testing performance. It features a hydraulic transmission speed of 170 ml/min for efficient operation. It utilizes a hydraulic oil-driven mechanism that delivers precise and powerful force, ensuring accurate specimen burst testing. Our tester features a Real-Time LCD interfacefor instant monitoring of test parameters and results.

$6,360.00 $ 5300

Bursting Tester 61-PPT133 - Specifications

Measure Range 250 to 6000 kPa
Pressure Between Platen >690 kPa
Transmit Hydraulic Speed 170±15 ml/min
Diaphragm Resistance Protruding 10mm, (170 to 220) mm Protruding 18mm, (250 to 350) mm
Continuous Testing Time 5 s
Resolution 1 kPa
Accuracy ±0.5% F.S
Hydraulic System Tightness On the measurement limit, one minute drop
Upper Platen Aperture Dia. (31.5±0.05) mm
Lower Platen Aperture Dia. (31.5±0.05) mm
Motor Power 90 W
Power Supply 220 V ±10% 50 Hz
Dimensions L×W×H 440×370×520 mm
Weight 55 kg

Bursting Tester 61-PPT133 - Key Features

  • Microcomputer-based control system with automatic maximum storage and reset function
  • Signal-transmitting pressure system with hydraulic transmission speed of 170 ml/min
  • Built-in high-speed printer for real-time test result output
  • Advanced microcomputer control with ±0.5% F.S accuracy and 1 kPa resolution

Bursting Tester 61-PPT133 - Applications

FunctionImplementation
Quality control labs250 to 6000 kPa measures burst strength of packaging materials
Paper manufacturing±1 kPa resolution detects subtle material weaknesses
Film production lines170 ml/min hydraulic speed enables rapid test cycles
Research institutions±0.5% F.S accuracy ensures repeatable analytical results
Industrial testing facilities>690 kPa pressure validates material integrity standards

Bursting Tester 61-PPT133 - Catalog

Bursting Tester 61-PPT133 Catalog
