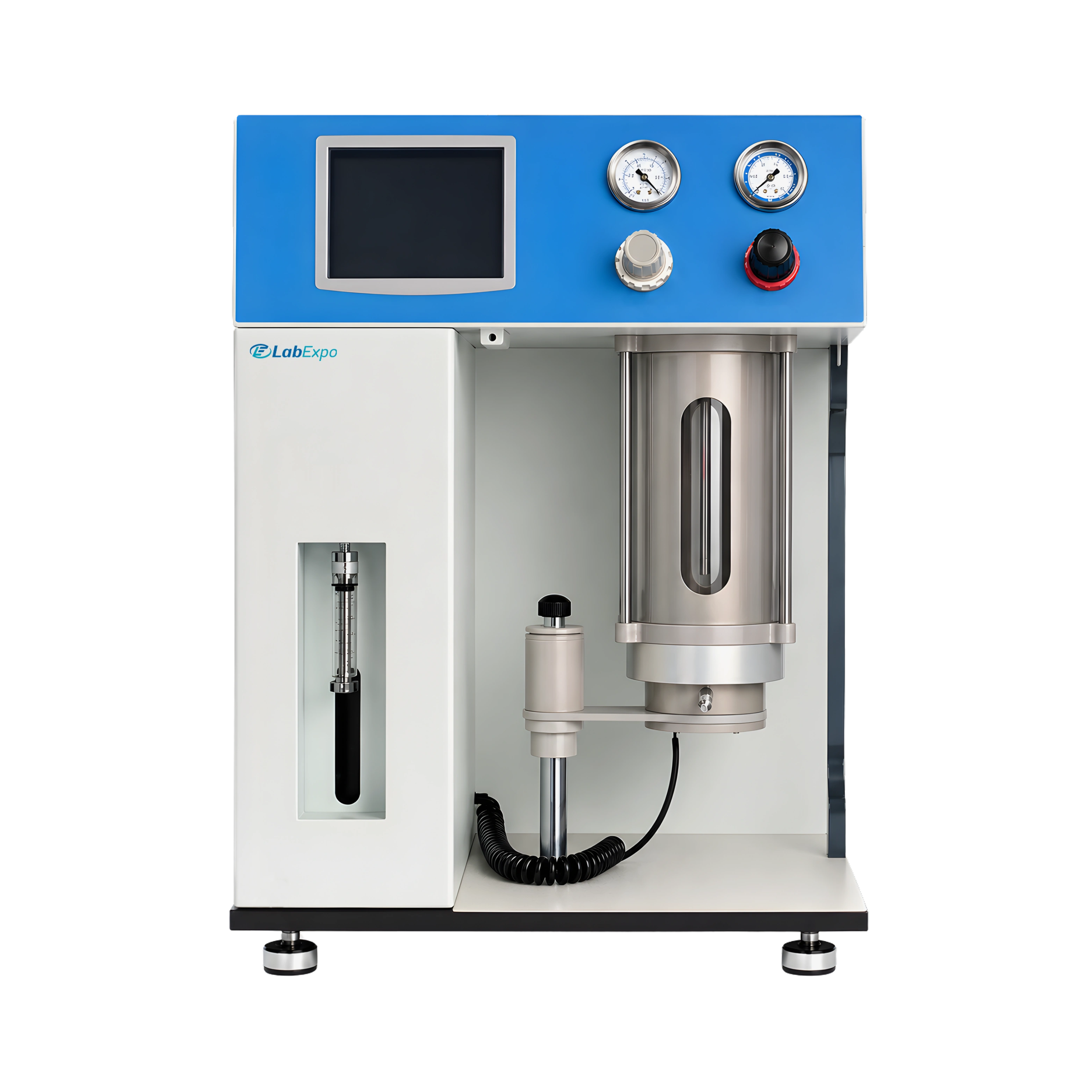

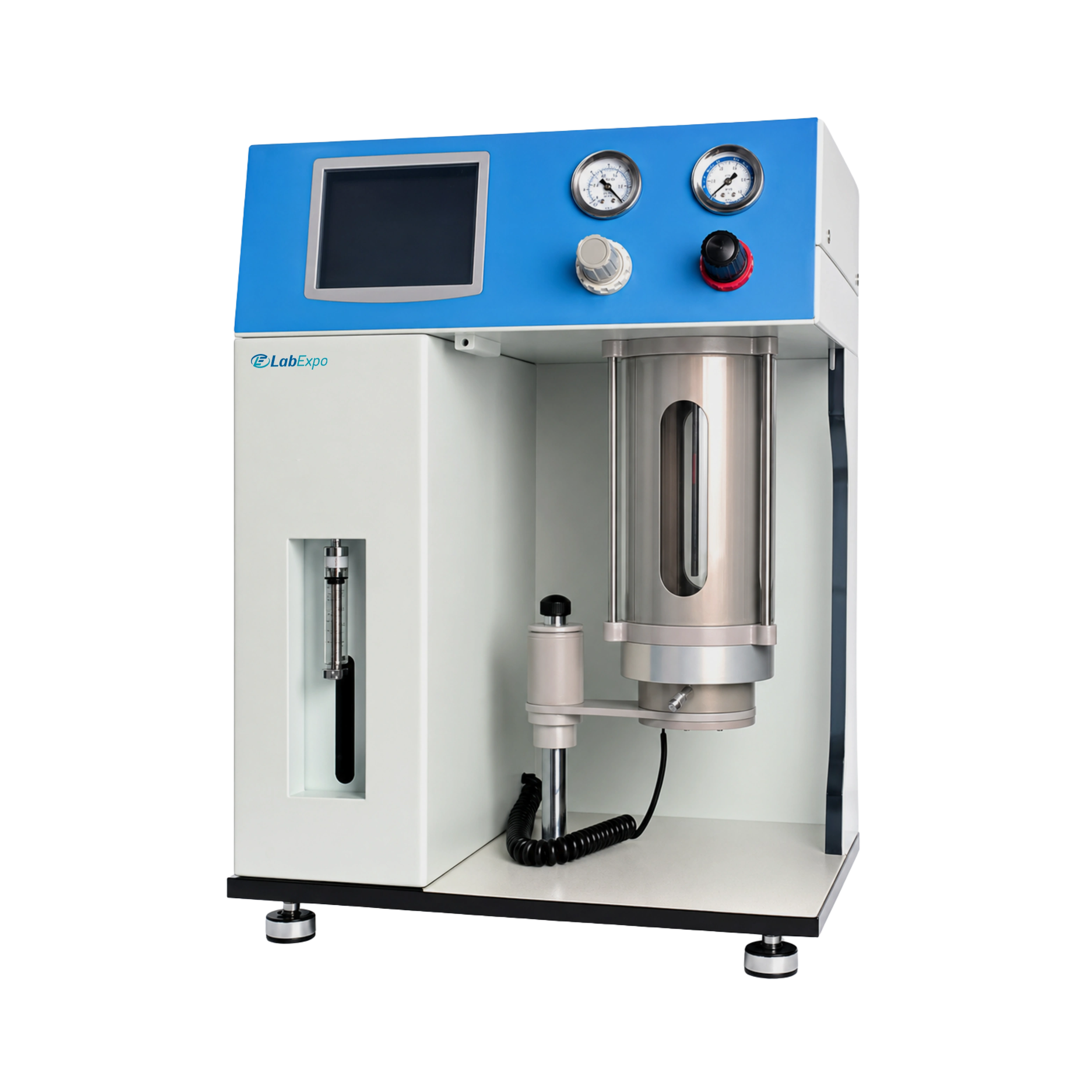

Liquid Particle Counter 70-LPC100 designed using photoresist method principle, detects size and number of solid particles present in a liquid sample. Equipped with high precision syringe sampling and semiconductor laser sensor. With high quality performance, it meets international standards such as ASTM D7619, ISO4406:1999.
Out of Stock
| Measurement range | 1 to 250 µm (25 sensors) 1 µm to 320 µm (32 sensors) 2 µm to 400 µm (40 sensors) |
| Light Source | Semiconductor laser light |
| Measurement Channels | 8 channels |
| Particle size | 1 µm (2 µm) to arbitrarily set within 100 µm |
| Sensitivity | 1 µm (ISO04402) 4 µm (C) (ISO11171) (25, 32 sensor)) 2 µm (ISO4402) (40 sensor) |
| Sample volume | ≥ 0.5 ml |
| Sample accuracy | Better than ± 1 % |
| Sampling rate | 5 ml/ min to 60 ml/ min |
| Resolution | < 10 % |
| Coincidence error limit | 10,000/ ml (5 % Coincidence error) |
| Maximum cabin pressure | 0.6 MPa |
| Maximum cabin vacuum | 0.08 MPa |
| Maximum viscosity detection | 350 cps (40 sensor) 250 cps (32 sensor) 100 cps (25 sensor) |
| Ambient temperature | 10 to 40°C |
| Humidity | ≤ 80 % RH |
| Interface | RS232 |
| Dimension | 220 × 380 × 480 mm |
| Weight | 28 kg |
| Power | 100 to 245 V, 50 Hz, ± 1 %, , 80 W |
Used in petroleum, aviation, automobile and other fields to detect insoluble particles present in hydraulic oil, petroleum oils, turbine and insulating oils, liquid polymer solution.
Our Particle Counter provide real-time monitoring to track particle levels and make adjustments as needed. They have multiple size channels to measure particles of different sizes, providing a clearer view of contamination. These have a user-friendly touch-screen interface for easy operation and quick result interpretation. They use laser detection to accurately analyze particle size, even in low concentrations. They are portable and compact making them easy to use in different environments from labs to field sites. Our counter features data logging capabilities, enabling users to store measurements for future analysis.
