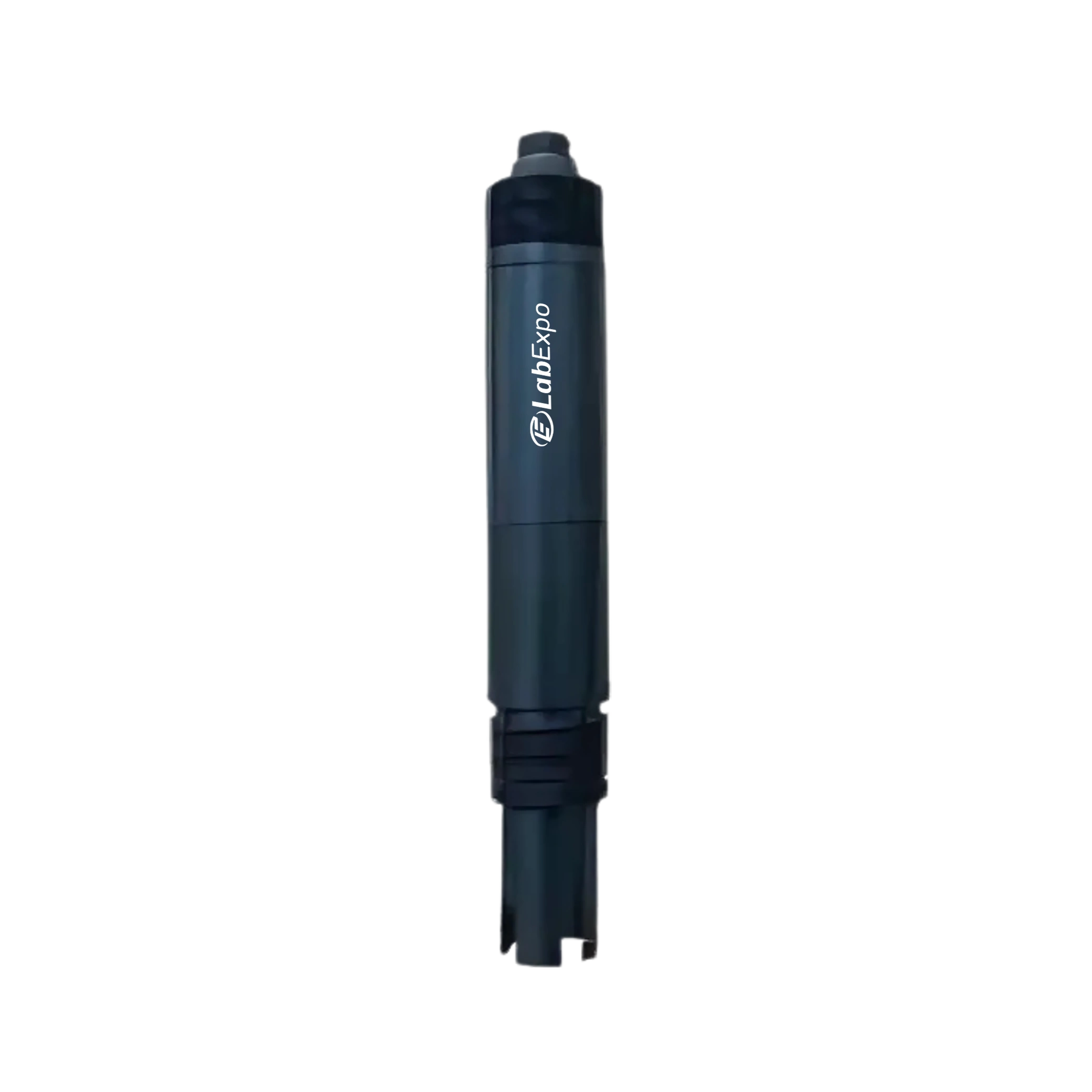

pH Sensor LE-PHS101

Name: pH Sensor LE-PHS101
Brand: Labexpo
SKU: LE-PHS101
Rating: 4.9 (678 reviews)

Lab Expo pH Sensor LE-PHS101 offers a wide measurement range from 0 to 14 pH for accurate readings. It supports a temperature range of 0 to 50 °C, allowing stable performance under varying conditions. Equipped with IP68 protection level, ensuring waterproof and dust-tight performance in harsh environments. Our pH Sensor is ideal for use in pharmaceutical, chemical, food and beverage, semiconductor, and water treatment industries.

$1,694.00 $ 1412

pH Sensor LE-PHS101 - Specifications

pH Measurement Range	0 to 14 pH
Temperature Range	0 to 50 °C
Maximum Operating Pressure	3 bar
Protection Level	IP68 (waterproof and dust-tight)
Sensor Interface	RS-485
Probe Cable Length	5 meters, Customizable
Power Supply	DC 12V, Current < 50 mA

pH Sensor LE-PHS101 - Key Features

Low Power Consumption DC 12V supply with current under 50 mA
Fast Response Time pH measurement range 0 to 14 pH for rapid detection
Easy Calibration Supports zero and slope adjustment across full scale
High Protection Level IP68 rating ensuring waterproof and dust-tight operation

pH Sensor LE-PHS101 - Applications

Function	Implementation
Pharmaceutical testing	0 to 14 pH enables accurate formulation analysis
Food quality control	IP68 protection supports operation in wet processing areas
Chemical plant monitoring	DC 12V with <50 mA current allows low-power deployment
Water treatment facilities	RS-485 interface integrates with industrial control systems
Semiconductor manufacturing	0 to 50 °C temperature range ensures stability during processing

pH Sensor LE-PHS101 - Catalog

pH Sensor LE-PHS101 Catalog
