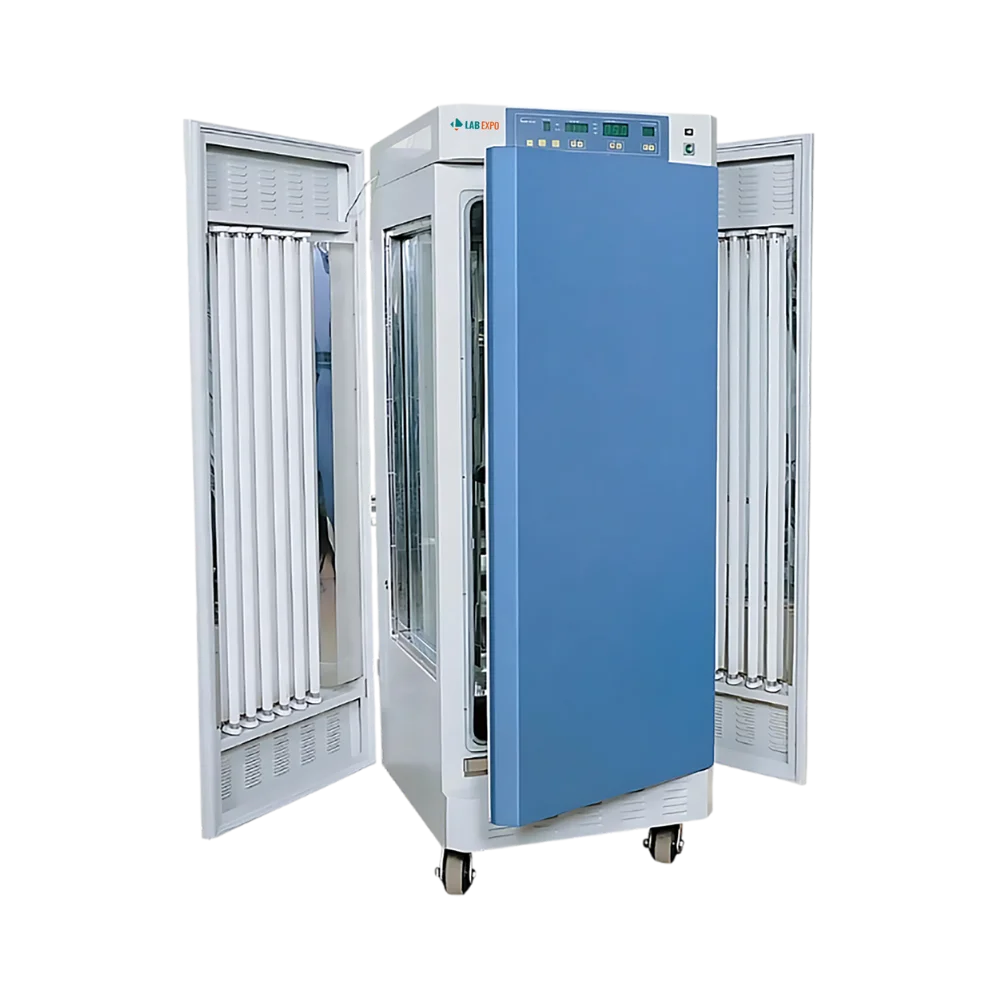

Plant Growth Chamber 24-PGC202

Plant Growth Chamber 24-PGC202

Lab Expo Plant Growth Chamber 24-PGC202 provides precise environmental control with a 450L chamber volume, temperature range of 0–50°C and lighting intensity up to 25000 LX. Features include three adjustable shelves, ±1°C temperature stability, ±1.5°C uniformity, and a programmable controller allowing separate settings for temperature, humidity and light across 30 programs with 1–99 hour timing. Operates on 220V 50Hz power at 2100W consumption, suitable for seed germination, plant cultivation and insect feeding applications in research and quality control settings. Designed for consistent performance in laboratory environments requiring regulated growth conditions.

$11,851.00 $ 9876

Plant Growth Chamber 24-PGC202 - Specifications

Chamber Volume 450 L
Shelves 3(PCS)
Display Resolution 0.1 ℃
Programmer Function Temperature, humidity, light intensity, can be set separately, and 30 programmersTime range is 1 - 99 hours for each programmer
Temperature Range With Lighting:10 ~ 50 ℃
Without lighting:0 ~ 50 ℃
Temperature Stability ± 1 ℃
Temperature Uniformity ± 1.5 ℃
Ambient Temperature 5 ~ 35 ℃
Humidity Range BPY-2: no humidity controller HPY-2: 50 ~ 90 % RH
Humidity Accuracy BPY-2: no humidity controller HPY-2: ± 5 ~ 7 % RH
Lighting Intensity 0 ~ 25000 LX
Interior Dimension(W × D × H) 700 × 550 × 1140 mm
Exterior Dimension(W × D × H) 950 × 850 × 1850 mm
Power Consumption 2100 W
Power 220 V 50 Hz

Plant Growth Chamber 24-PGC202 - Key Features

  • Microprocessor-based PID control with 0.1C resolution
  • Large LCD screen for real-time parameter monitoring
  • Simulates diurnal temperature and light cycles accurately
  • Separate over-temperature alarm system for operational safety
  • Imported compressor ensures uniform air distribution
  • RS485 connector enables optional printer and computer interface

Plant Growth Chamber 24-PGC202 - Applications

FunctionImplementation
Plant growth chambers450 L chamber volume supports multi-tray cultivation
Light-dependent studies0 ~ 25000 LX lighting intensity enables photosynthesis control
Temperature-sensitive trials±1.5 ℃ uniformity ensures consistent environmental conditions
Extended duration experiments30 programmers with 1-99 hour time range allow prolonged testing cycles
Humidity-regulated researchHPY-2 model provides ±5~7% RH accuracy for moisture-controlled studies

Plant Growth Chamber 24-PGC202 - Catalog

Plant Growth Chamber 24-PGC202 Catalog

Related Plant Growth Chamber

Lab Expo Plant Growth Chambers provide controlled environmental regulation with precise management of temperature, humidity, and lighting for reproducible cultivation studies. Designed to function as a plant growth cabinet, they support programmable growth cycles, real-time monitoring, and alarm-based deviation alerts. Uniform environmental distribution and durable build enable consistent plant development across research, agricultural testing, and laboratory growth applications.
