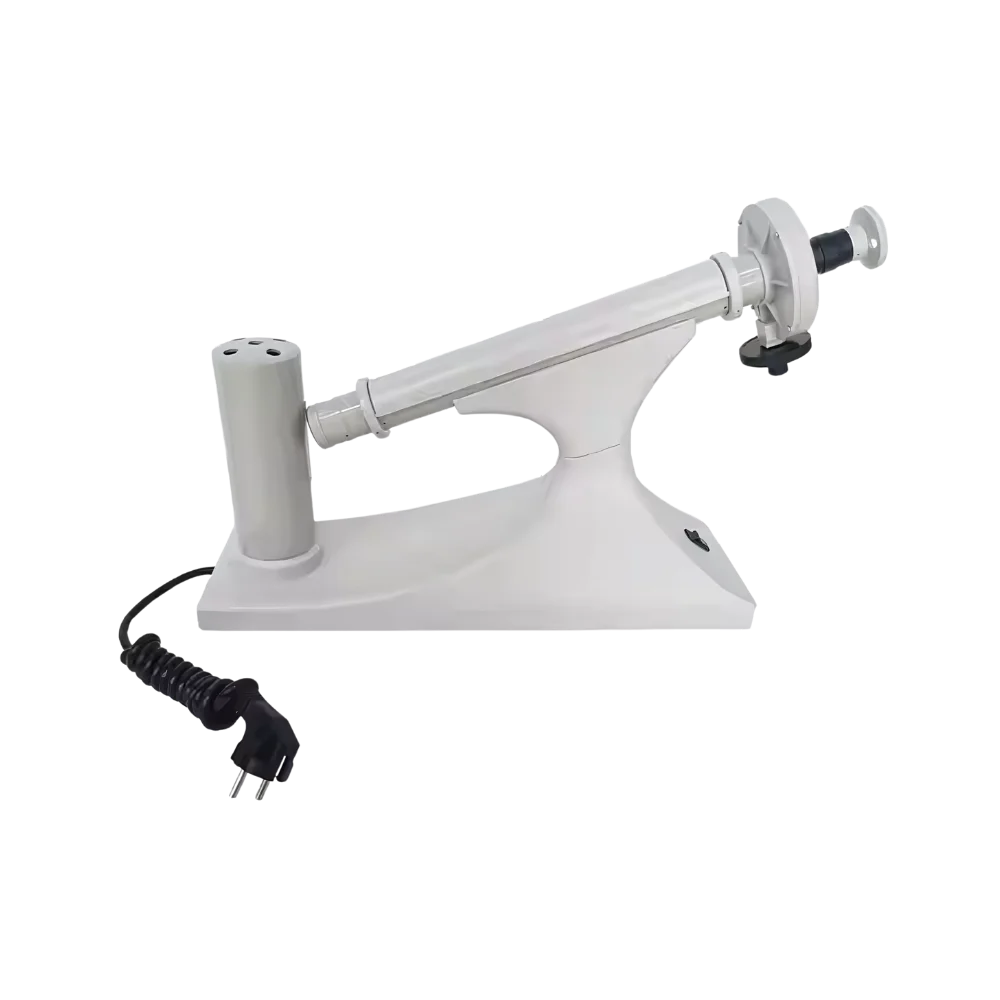

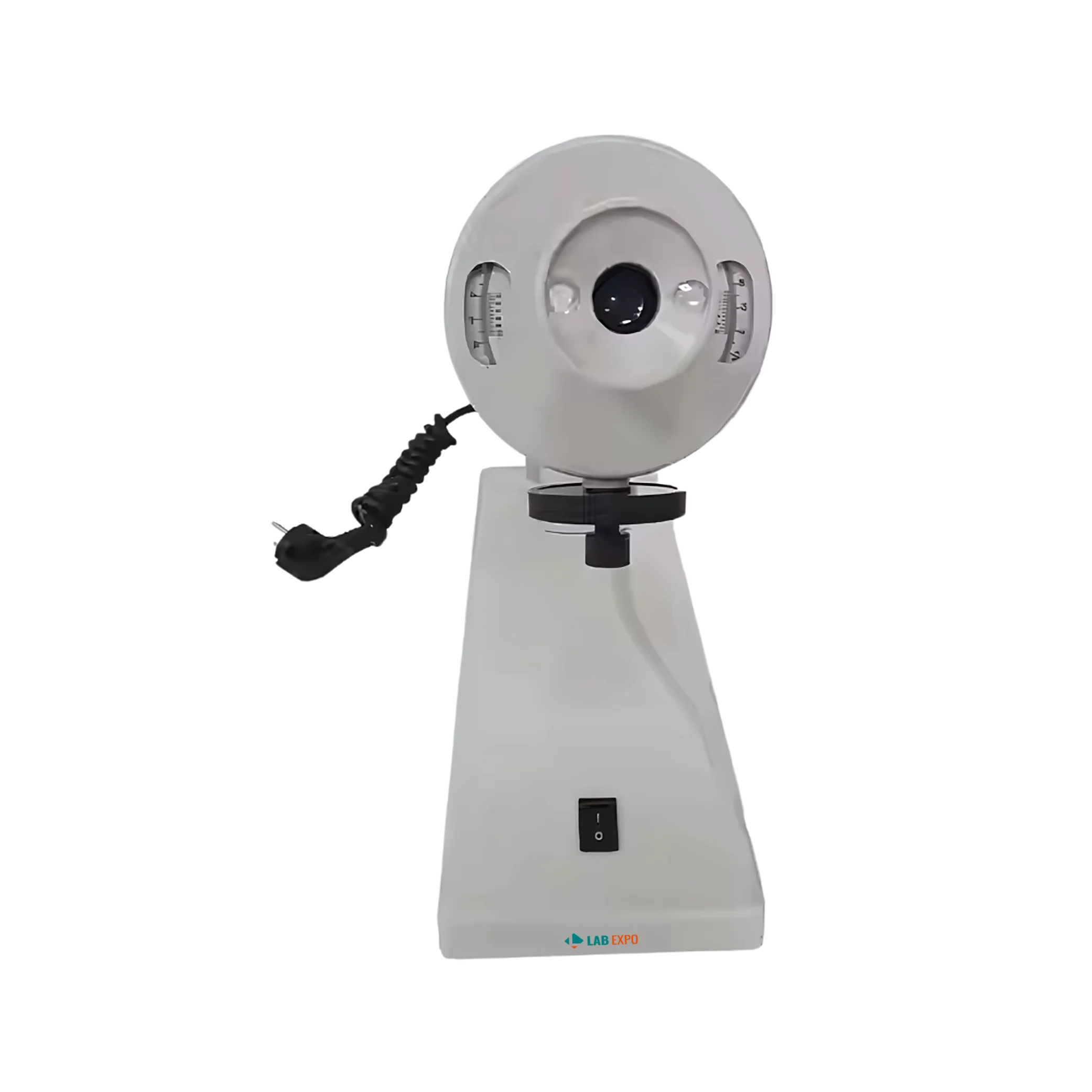

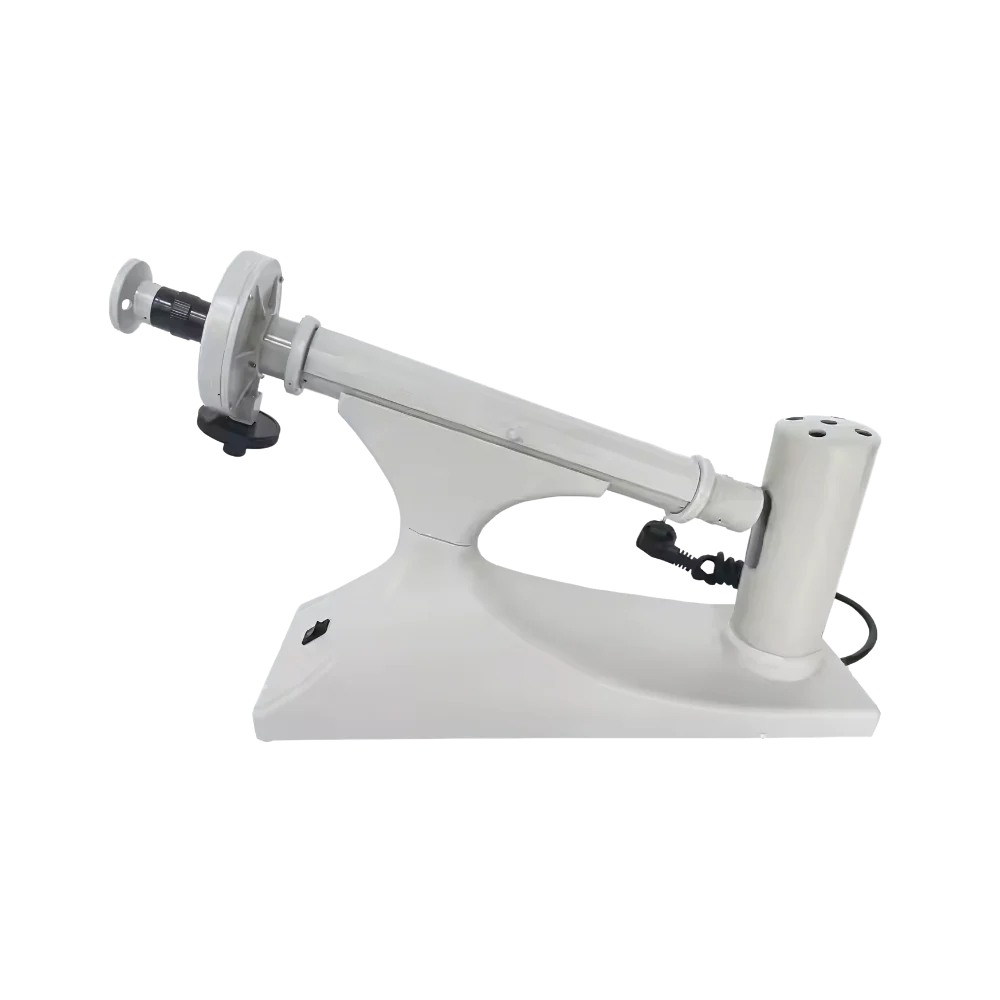

Lab Expo Manual Polarimeter 53-PMT100 is an optical instrument which comes with 589nm standard sodium lamp and (-180) °C to 180 °C measurement range for determining the concentration of the optical active substance, dissolved in an optically inactive liquid. The angle of rotation to be measured depends on the nature of the test sample, the concentration of the optically active components, wavelength of light, temperature of the test sample & optical path length.
$2,508.00 $ 2090
| Measuring Range | (-180) °C to 180 °C |
| Scale value | 1° |
| Vernier scale | 0.05° |
| Magnifier | 3X |
| Wavelength | 589 nm |
| Light source | Sodium lamp (built-in) |
| Test tube length | 50 / 100 / 200 mm |
| Dimension (L × W × H) | 500 × 135 × 330 mm |
| Power | AC 220 V, 50 Hz |
| Weight | 5 kg |
Function Implementation Optical analysis labs 589 nm wavelength enables precise optical rotation measurement Quality control testing ±0.05° vernier scale supports accurate concentration determination Clinical sample screening -180 to 180 °C range handles diverse sample temperature conditions Research substance evaluation 3X magnifier enhances readability of fine scale divisions Industrial process monitoring 50/100/200 mm test tube compatibility accommodates various sample volumes
Polarimeter test tube: 100 / 200 mm
Sodium lamp: 589 nm
Lab Expo Polarimeters enable accurate optical rotation measurement across multiple modes with stable illumination and integrated temperature control for consistent analysis. Designed to meet polarimeter instrument requirements, they support data storage for result comparison and touchscreen operation for efficient control. These units suit research, pharmaceutical, and chemical workflows requiring precise optical measurements under varying sample conditions.
